Catalog Service and API Mesh

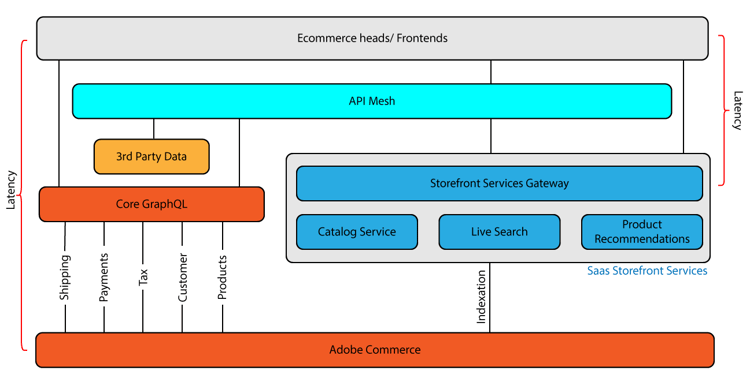

The API Mesh for Adobe Developer App Builder enables developers to integrate private or third-party APIs and other interfaces with Adobe products using Adobe I/O Runtime.
To use API Mesh with the Catalog Service, you must connect API Mesh to your instance, and then add the API Mesh source CommerceCatalogServiceGraph that provides the configuration to connect to the Catalog Service.
Connect and configure API Mesh.
-
Connect API Mesh to your Adobe Commerce instance by following the instructions to Create a Mesh in the API Mesh Developer Guide.
If this is your first time using API Mesh, complete the Getting Started process before you create the mesh.
-
Create a JSON file, such as
variables.jsonthat contains the Catalog Service API key for your project using the following format.code language-json { "CATALOG_SERVICE_API_KEY":"your_api_key" } -
Add the
CommerceCatalogServiceGraphsource to your mesh using the Adobe I/O Extensible CLI.code language-bash aio api-mesh source install "CommerceCatalogServiceGraph" -f variables.jsonThe
-f variables.jsonoption supplies the Catalog Service API key value required to update the configuration.
After running this command, the Catalog Service should be running through the API Mesh. Use the aio api-mesh get command to view the configuration of your updated mesh.
API Mesh examples
The API Mesh allows users to consume outside data sources to enhance your Adobe Commerce instance. It can also be used to configure existing Commerce data to enable new functionality.
Enable tier prices
In this example, the API Mesh is used to enable tier prices in Adobe Commerce.
Replace the name , endpoint, and x-api-key values.
{
"meshConfig": {
"sources": [
{
"name": "<Commerce Instance Name>",
"handler": {
"graphql": {
"endpoint": "<Adobe Commerce GraphQL endpoint>"
}
},
"transforms": [
{
"prefix": {
"includeRootOperations": true,
"value": "Core_"
}
}
]
},
{
"name": "CommerceCatalogServiceGraph",
"handler": {
"graphql": {
"endpoint": "https://commerce.adobe.io/catalog-service/graphql/",
"operationHeaders": {
"Magento-Store-View-Code": "{context.headers['magento-store-view-code']}",
"Magento-Website-Code": "{context.headers['magento-website-code']}",
"Magento-Store-Code": "{context.headers['magento-store-code']}",
"Magento-Environment-Id": "{context.headers['magento-environment-id']}",
"Magento-Customer-Group": "{context.headers['magento-customer-group']}"
},
"schemaHeaders": {
"x-api-key": "<YOUR API-KEY>"
}
}
}
}
],
"additionalTypeDefs": "extend interface ProductView {\n price_tiers: [Core_TierPrice]\n}\n extend type SimpleProductView {\n price_tiers: [Core_TierPrice]\n}\n extend type ComplexProductView {\n price_tiers: [Core_TierPrice]\n}\n",
"additionalResolvers": [
{
"targetTypeName": "ProductView",
"targetFieldName": "price_tiers",
"sourceName": "MagentoStageCore",
"sourceTypeName": "Query",
"sourceFieldName": "Core_products",
"requiredSelectionSet": "{\n items {\n sku\n price_tiers {\n quantity,\n final_price {\n value\n currency\n }\n }\n }\n }",
"sourceArgs": {
"filter.sku.eq": "{root.sku}"
},
"result": "items[0].price_tiers"
},
{
"targetTypeName": "SimpleProductView",
"targetFieldName": "price_tiers",
"sourceName": "MagentoStageCore",
"sourceTypeName": "Query",
"sourceFieldName": "Core_products",
"requiredSelectionSet": "{\n items {\n sku\n price_tiers {\n quantity,\n final_price {\n value\n currency\n }\n }\n }\n }",
"sourceArgs": {
"filter.sku.eq": "{root.sku}"
},
"result": "items[0].price_tiers"
},
{
"targetTypeName": "ComplexProductView",
"targetFieldName": "price_tiers",
"sourceName": "MagentoStageCore",
"sourceTypeName": "Query",
"sourceFieldName": "Core_products",
"requiredSelectionSet": "{\n items {\n sku\n price_tiers {\n quantity,\n final_price {\n value\n currency\n }\n }\n }\n }",
"sourceArgs": {
"filter.sku.eq": "{root.sku}"
},
"result": "items[0].price_tiers"
}
]
}
}
Once configured, query the Mesh for tiered pricing:
query {
products(skus: ["24-MB04"]) {
sku
description
price_tiers {
quantity
final_price {
value
currency
}
}
... on SimpleProductView {
id
price {
final {
amount {
value
}
}
}
}
}
}
Get an entity ID
This Mesh appends the entityId to the ProductView interface. Replace the name , endpoint, and x-api-key values.
{
"meshConfig": {
"sources": [
{
"name": "<Commerce Instance Name>",
"handler": {
"graphql": {
"endpoint": "<Adobe Commerce GraphQL endpoint>"
}
},
"transforms": [
{
"prefix": {
"includeRootOperations": true,
"value": "Core_"
}
}
]
},
{
"name": "CommerceCatalogServiceGraph",
"handler": {
"graphql": {
"endpoint": "https://catalog-service.adobe.io/graphql",
"operationHeaders": {
"Magento-Store-View-Code": "{context.headers['magento-store-view-code']}",
"Magento-Website-Code": "{context.headers['magento-website-code']}",
"Magento-Store-Code": "{context.headers['magento-store-code']}",
"Magento-Environment-Id": "{context.headers['magento-environment-id']}",
"x-api-key": "<YOUR_CATALOG_SERVICE_API_KEY>",
"Magento-Customer-Group": "{context.headers['magento-customer-group']}"
},
"schemaHeaders": {
"x-api-key": "<YOUR_CATALOG_SERVICE_API_KEY>"
}
}
}
}
],
"additionalTypeDefs": "extend interface ProductView {\n entityId: String\n}\n extend type SimpleProductView {\n entityId: String\n}\n extend type ComplexProductView {\n entityId: String\n}\n",
"additionalResolvers": [
{
"targetTypeName": "ComplexProductView",
"targetFieldName": "entityId",
"sourceName": "MagentoCore",
"sourceTypeName": "Query",
"sourceFieldName": "Core_products",
"requiredSelectionSet": "{ sku\n }",
"sourceSelectionSet": "{\n items {\n sku\n uid\n }\n }",
"sourceArgs": {
"filter.sku.eq": "{root.sku}"
},
"result": "items[0].uid",
"resultType": "String"
},
{
"targetTypeName": "SimpleProductView",
"targetFieldName": "entityId",
"sourceName": "MagentoCore",
"sourceTypeName": "Query",
"sourceFieldName": "Core_products",
"requiredSelectionSet": "{ sku\n }",
"sourceSelectionSet": "{\n items {\n sku\n uid\n }}",
"sourceArgs": {
"filter.sku.eq": "{root.sku}"
},
"result": "items[0].uid",
"resultType": "String"
}
]
}
}
entityId can now be queried:
query {
products(skus: ["MH07"]){
sku
name
id
entityId
}
}
