Layout - Row

Last update: Thu Sep 07 2023 00:00:00 GMT+0000 (Coordinated Universal Time)

CREATED FOR:

  • Beginner
  • Intermediate
  • User

Use the Row content type to add a row in the Page Builder stage.

NOTE
If you are making significant changes to Page Builder content, it is recommended that you increase the Admin Session Lifetime to prevent the session from timing out while you work.

Row toolbox

The row toolbox appears when you hover over the row container. The toolbox includes options to move, hide, duplicate, edit, or remove the row. The selection of settings determines the appearance, background, and layout of the row. Additional content elements can be dragged to the row from the Page Builder panel on the left.

Row toolbox

Tool
Icon
Description
Move
Move icon {width="25"}
Moves the row to another position in relation to other rows on the stage.
(label)
Row
Identifies the current content container as a row. Hover over the container to see the toolbox.
Settings
Settings icon {width="25"}
Opens the Edit Row page, where you can change the properties of the container.
Hide
Hide icon {width="25"}
Hides the current row.
Show
Show icon {width="25"}
Shows the hidden row.
Duplicate
Duplicate icon {width="25"}
Makes a copy of the row.
Remove
Remove icon {width="25"}
Deletes the row container and its content from the stage.
NOTE
Hidden elements are stored in the database and invisible to customers. However, these elements are visible to search engines and other bots that crawl your site. They are also returned as part of the content if requested through an API call with an attribute of invisibility, unless you remove them from the stage.

Add a row

  1. In the Page Builder panel under Layout, drag a new Row to the stage, just below the first row.

  2. To format the row, hover over the row container to display the toolbox and choose the Settings ( Settings icon {width="20"} ) icon.

    Use the following sections for detailed information about completing the available settings.

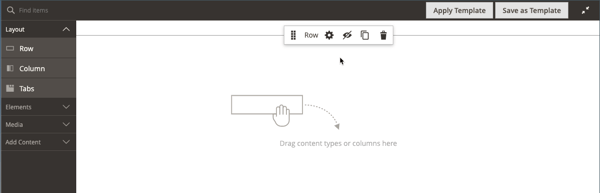

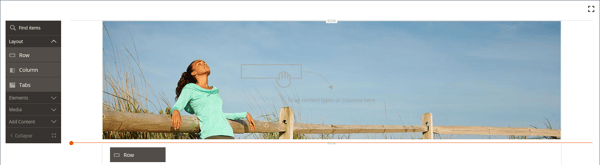

    Adding a row {width="600" modal="regular"}

Change row settings

  1. Hover over the row container to display the toolbox and choose the Settings ( Settings icon {width="20"} ) icon.

    Row toolbox {width="600" modal="regular"}

  2. Use the following sections for detailed information about updating the available settings.

  3. When complete, click Save to apply the settings and return to the Page Builder workspace.

Appearance

Use the Appearance settings to determine how content is displayed in the row.

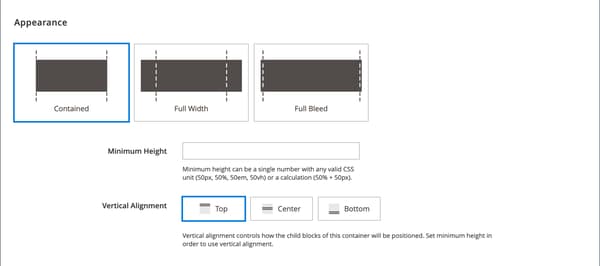

Appearance settings

  • To determine how the background color and/or background image appears in relation to the container and width of the content area, choose the alignment:

    table 0-row-2 1-row-2 2-row-2 3-row-2 layout-auto
    Option Description
    Contained The background color or image is limited to the maximum page width that is defined by the theme.
    Full Width Limits the content to the maximum page width that is defined by the theme. The background color and/or image is not limited, and extends the full width of the row.
    Full Bleed The content and background image and/or color are not limited, and extend the full width of the row. Full Bleed can be used only with themes that support the layout.

  • Enter the Minimum Height for the row. This value can be a number with any valid CSS unit (such as 100px, 50%, 50em, 100vh) or a calculation (such as 100vh - 237px).

    For example, you can set the minimum height of a row to stretch the full height of the page, giving you compelling options for full-page background images and videos.

  • Choose a Vertical Alignment setting to align any content containers that are added to the row (Top, Center, or Bottom).

Background

There are many options for defining the background display of a row. You can apply a simple color or background image, and manage more sophisticated effects.

Background Color

Specify the background color by choosing a swatch, by clicking the color picker, or by entering a valid color name or equivalent hexadecimal value. This setting determines the background color of the row. You can also adjust the opacity of the color.

No color (default)

You can set the value in one of three ways:

  • A predefined color name, such as White
  • The hexadecimal color value for the color, such as #ffffff
  • The rgba value for the color, with opacity percent, such as rgba(255, 255, 255, 0.75)

If you want to choose a color, click the swatch to the left of the No Color box.

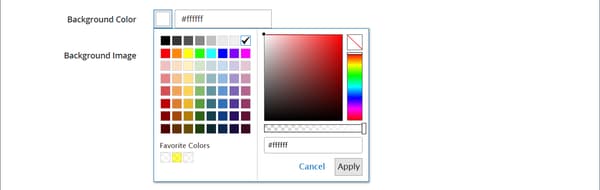

Choosing a color swatch

If you click the color box to open the color picker again, the box below the slider shows the current red, green, blue, and alpha values (rgba). The last number indicates the current opacity percentage as a decimal. You can use the slider to adjust the opacity, or enter the desired decimal value.

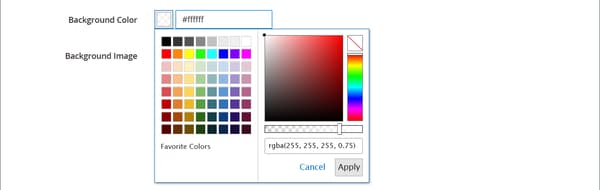

Setting opacity

NOTE
Page Builder also supports a transparency layer, or alpha channel, in background images that can be used to create backgrounds with varying degrees of opacity.

Background Type

A background type can be an image or a video. Page Builder defaults to Image and shows various image settings. If you select Video, Page Builder swaps the image settings with video settings. Both background types are described as follows.

Background type

Image type settings

If you set the Background Type to Image, use the following settings to define the background image display.

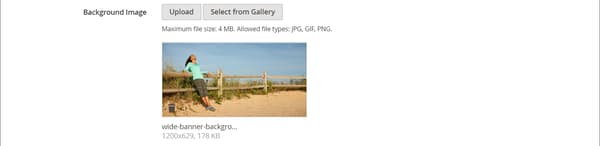

Background image

  • Background Image - If needed, use the provided tools to choose a background image to apply to the row:

    table 0-row-2 1-row-2 2-row-2 3-row-2 layout-auto
    Option Description
    Upload Uploads an image file from your local computer to the gallery and then applies it as the background image for the row.
    Select from Gallery Prompts you to choose an existing image from the gallery as the background image for the row.
    Camera icon {width="25"} Allows you to either drag the image to the camera tile or browse to the image in your local file system.

  • Background Mobile Image - If needed, use the same tools to choose a different background image to be used for display on mobile devices.

  • Background Size - Set this option to determine how the background image is scaled in relation to the width of the row:

    table 0-row-2 1-row-2 2-row-2 3-row-2 layout-auto
    Option Description
    Cover The background image covers the full width of the row.
    Contain The background image is limited to the width of the content area.
    Auto Applies the size from the current style sheet.

    Background Size {width="250"}

  • Background Position - Set this option to determine how the background image is anchored in relation to the row:

    table 0-row-2 1-row-2 2-row-2 3-row-2 layout-auto
    Anchor point Position
    Top Left / Center / Right
    Center Left / Center / Right
    Bottom Left / Center / Right

    The anchor point is like a push pin that attaches the image to the row at the specified background position.

  • Background Attachment - Set the attachment type to determine how the background image moves in relation to the scrolling page:

    table 0-row-2 1-row-2 2-row-2 layout-auto
    Option Description
    Scroll The attached background image is synchronized to move down as the page scrolls. Use Parallax Background to control the scrolling speed.
    Fixed (Not available for mobile) The background image does not move as the container scrolls over the image and is fixed at the specified background position.

  • Background Repeat - Set to Yes to repeat the background image to fill the available space in the row.

Video type settings

If you set the Background Type to Video, use the following settings to define the background image display.

  • Video URL - Enter a valid video URL. Valid video URLs can be links to:

    • YouTube videos: https://youtu.be/CoDhMRUUjeI
    • Vimeo videos: https://vimeo.com/190156113
    • Valid video files (.mp4 is recommended): https://myvideos.com/spiral.mp4

    Background video URL {width="300"}

  • Overlay Color - Select a color to apply a transparent tint to the video.

  • Infinite Loop - Set to No to make the video play once and stop. When this option is set to Yes (default), the video repeats in an infinite loop.

  • Lazy Load - Set to No to make the video load with the page, even when not visible. When this option is set to Yes (default), the video loads from the source only when visible on the screen.

  • Play Only When Visible - Set to No to make the video start playing immediately after it loads, regardless of whether it is visible. When this option is set to Yes (default), the video starts playing only when it is visible.

  • Fallback Image - If needed, specify an image to display on the screen before the video loads and if the video does not load for some reason.

Parallax Background

Use these options to control the speed of a scrolling background image or video in relation to the scrolling of the page. The background can be set to scroll more slowly to create a sense of immersion.

  • Set Enable Parallax Background to Yes.
  • Enter the Parallax Speed as a decimal value between -1.0 and 2.0.

Parallax Background settings

Advanced

  • To control the horizontal positioning of content containers that are added to the row, choose an Alignment:

    table 0-row-2 1-row-2 2-row-2 3-row-2 4-row-2 layout-auto
    Option Description
    Default Applies the alignment default setting that is specified in the style sheet of the current theme.
    Left Aligns the content containers along the left border of the row container, with allowance for any padding that is specified.
    Center Aligns the content container in the center of the row container, with allowance for any padding that is specified.
    Right Aligns the content container along the right border of the row container, with allowance for any padding that is specified.

  • Set the Border style that is applied to all four sides of the row container:

    table 0-row-2 1-row-2 2-row-2 3-row-2 4-row-2 5-row-2 6-row-2 7-row-2 8-row-2 9-row-2 10-row-2 layout-auto
    Option Description
    Default Applies the default border style that is specified by the associated style sheet.
    None Does not provide any visible indication of the container borders.
    Dotted The container border appears as a dotted line.
    Dashed The container border appears as a dashed line.
    Solid The container border appears as a solid line.
    Double The container border appears as a double line.
    Groove The container border appears as a grooved line.
    Ridge The container border appears as a ridged line.
    Inset The container border appears as an inset line.
    Outset The container border appears as an outset line.

  • If you set a border style other than None, complete the border display options:

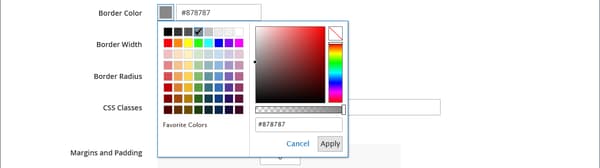

    Border Color {width="600" modal="regular"}

    table 0-row-2 1-row-2 2-row-2 3-row-2 layout-auto
    Option Description
    Border Color Specify the color by choosing a swatch, clicking the color picker, or by entering a valid color name or equivalent hexadecimal value.
    Border Width Enter the number of pixels for the border line width.
    Border Radius Enter the number of pixels to define the size of the radius that is used to round each corner of the border.

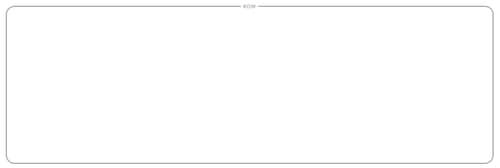

    The row in the following example has a border radius of 15.

    Row with Border Radius of 15 {width="500"}

  • (Optional) Specify the names of CSS classes from the current style sheet to apply to the row container.

    Separate multiple class names with a space.

  • Enter values, in pixels, for the Margins and Padding to specify the outer margins and inner padding of the row.

    Enter each corresponding value in the row container diagram.

    table 0-row-2 1-row-2 2-row-2 layout-auto
    Container area Description
    Margins The amount of blank space that is applied to the outside edge of all sides of the container. Options: Top / Right / Bottom / Left
    Padding The amount of blank space that is applied to the inside edge of all sides of the container. Options: Top / Right / Bottom / Left

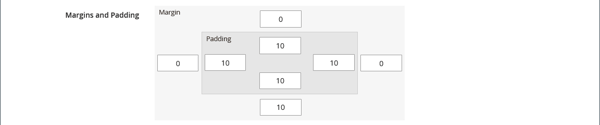

    Margins and Padding {width="600" modal="regular"}
