Define Relationships

Last update: September 11, 2026

CREATED FOR:

  • Developer
  • User

Relationship descriptors

In order to create a relationship from one schema to another, you need to create a Relationship Descriptor in the schema registry. A sample schema descriptor body looks like the following:

One-to-one Descriptor

{
  "@type": "xdm:descriptorOneToOne",
  "xdm:sourceSchema": "https://ns.adobe.com/devbc/schemas/8415ac18dd8943e35d12caf0c24b57b4a5a9ab7fd637245e",
  "xdm:sourceVersion": 1,
  "xdm:sourceProperty": "/_devbc/plan/planID",
  "xdm:destinationSchema": "https://ns.adobe.com/devbc/schemas/6470f71181cf87aa39c2c2c43824eaa15f523652f7f88ff7",
  "xdm:destinationVersion": 1
}

Reference Identity Descriptor

{
  "@type": "xdm:descriptorReferenceIdentity",
  "xdm:sourceSchema": "https://ns.adobe.com/devbc/schemas/6470f71181cf87aa39c2c2c43824eaa15f523652f7f88ff7",
  "xdm:sourceVersion": 1,
  "xdm:sourceProperty": "/_devbc/plan/planID",
  "xdm:identityNamespace": "planID"
}

Your objective

Create Relationship identities for the Customer Account Schema. After performing the steps in the next section, your schema should look like below.

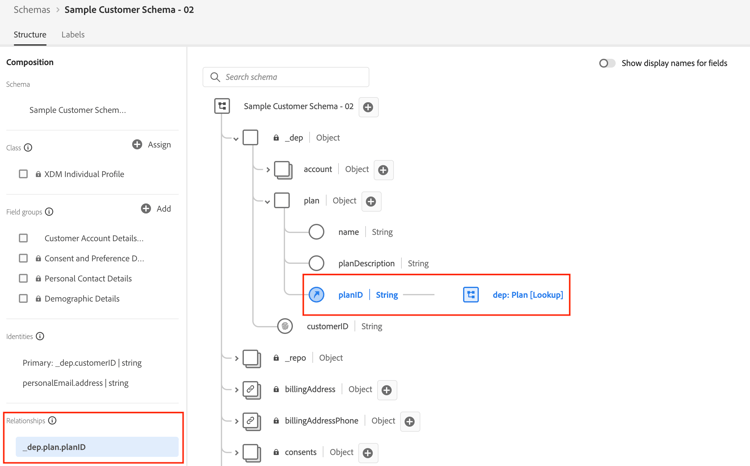

Customer Account schema showing the relationship and reference identity descriptors
