實作自訂的機會/內容解析器

您可以根據預設解析器實作解析器。

  1. 擴充PTContentResolver抽象類別,以開發自訂廣告解析程式。

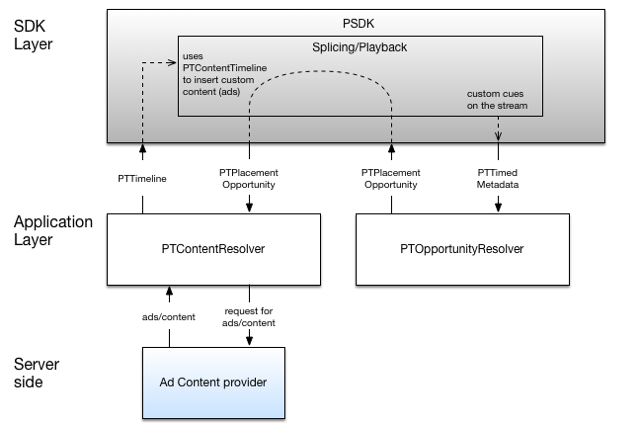

    PTContentResolver 是必須由內容解析器類實現的介面。同名的抽象類也可用,並自動處理配置(獲取委派)。

    秘訣

    PTContentResolver 在班級里 PTDefaultMediaPlayerClientFactory 曝光。客戶端可以通過擴展PTContentResolver抽象類來註冊新的內容解析器。 預設情況下,除非特別刪除,PTDefaultAdContentResolver將在PTDefaultMediaPlayerClientFactory中註冊。

    @protocol PTContentResolver <NSObject>
    @required
    + (BOOL)shouldHandleOpportunity:(PTPlacementOpportunity *)opportunity;
    //Detector returns YES/NO if it should handle the following placement opportunity
    - (void)configWithPlayerItem:(PTMediaPlayerItem *)item
                  delegate:(id<PTContentResolverDelegate> delegate);
    - (void)process:(PTPlacementOpportunity *)opportunity;
    - (void)timeout:(PTPlacementOpportunity *)opportunity;
    //The timeout method gets invoked if the TVSDK decides that the
    //PTContentResolver is taking too much time to respond.
    @end

    @interface PTContentResolver : NSObject <PTContentResolver>

    @property (readonly) id<PTContentResolverDelegate> delegate;
    @property (readonly) PTMediaPlayerItem *playerItem;

    - (BOOL)shouldHandleOpportunity:(PTPlacementOpportunity *)opportunity;
    - (void)configWithPlayerItem:(PTMediaPlayerItem *)item
                   delegate:(id<PTContentResolverDelegate>) delegate;
    - (void)process:(NSArray *)opportunities;
    - (void)cancel:(NSArray *)opportunities;
    @end

  2. 實施shouldResolveOpportunity並傳回YES(如果它應處理收到的PTPlacementOpportunity)。

  3. 實作resolvePlacementOpportunity,開始載入替代內容或廣告。

  4. 載入廣告後,請準備PTTimeline,其中包含要插入之內容的相關資訊。

    以下是有關時間軸的一些有用資訊:

    • 前滾、中滾和後滾類型可以有多種PTAdBreak

      • PTAdBreak包含下列項目:

        • CMTimeRange,包含中斷的開始時間和持續時間。

          此值設定為PTAdBreak的範圍屬性。

        • NSArray of PTAds.

          這會設為PTAdBreak的ads屬性。

    • PTAd代表廣告,而每個PTAd都有下列項目:

      • PTAdHLSAsset設為廣告的主要資產屬性。
      • 可能有多個PTAdAsset例項可點選廣告或橫幅廣告。

    例如:

    NSMutableArray *ptBreaks = [[[NSMutableArray alloc] init] autorelease];

    // Prepare the primary asset of the ad - links to ad m3u8
    PTAdHLSAsset *ptAdAsset = [[[PTAdHLSAsset alloc] init] autorelease];
    ptAdAsset.source = AD_SOURCE_M3U8;
    ptAdAsset.id = FAKE_NUMBER_ID;
    ptAdAsset.format = @"video";

    // Prepare the ad itself.
    PTAd *ptAd = [[[PTAd alloc] init] autorelease];
    ptAd.primaryAsset = ptAdAsset;
    ptAd.primaryAsset.ad = ptAd;

    // Prepare the break and add the ad created above.
    PTAdBreak *ptBreak = [[[PTAdBreak alloc] init] autorelease];
    ptBreak.relativeRange = CMTimeRangeMake(BREAK_START_TIME, BREAK_DURATION_VALUE);
    [ptBreak addAd:ptAd];

    // Add the break to array of breaks.
    [ptBreaks addObject:adBreak];

    // Once all breaks have been prepared, they can be set on timeline
    PTTimeline *_timeline = [[PTTimeline alloc] init];
    _timeline.adBreaks = ptBreaks;

  5. 呼叫didFinishResolvingPlacementOpportunity,其中提供PTTimeline

  6. 呼叫registerContentResolver,將您的自訂內容/廣告解析程式註冊至預設媒體播放器工廠。

    //Remove default content/ad resolver
    [[PTDefaultMediaPlayerFactory defaultFactory] clearContentResolvers];

    //Create an instance of your content/ad resolver (id <PTContentResolver>)
    CustomContentResolver *contentResolver = [[CustomContentResolver alloc] init];

    //Set custom content/ad resolver
    [[PTDefaultMediaPlayerFactory defaultFactory] registerContentResolver:[contentResolver autorelease]];

  7. 如果您實作自訂機會解析器,請將它註冊至預設的媒體播放器工廠。

    秘訣

    您不需要註冊自訂的銷售機會解析器,就可以註冊自訂的內容/廣告解析器。

    //Remove default opportunity resolver
    [[PTDefaultMediaPlayerFactory defaultFactory] clearOpportunityResolvers];

    //Create an instance of your opportunity resolver (id <PTOpportunityResolver>)
    CustomOpportunityResolver *opportunityResolver = [[CustomOpportunityResolver alloc] init];

    //Set custom opportunity resolver
    [[PTDefaultMediaPlayerFactory defaultFactory]
               registerOpportunityResolver:[opportunityResolver autorelease]];


當播放器載入內容時,並判斷其為VOD或LIVE類型,會發生下列其中一種情況:

  • 如果內容是VOD,則使用自訂內容解析程式來取得整個視訊的廣告時間軸。
  • 如果內容為LIVE,則每次在內容中偵測到放置機會(提示點)時,都會呼叫自訂內容解析器。
