Lecture VOD avec un chapitre

Scénario

Dans ce scénario, une partie du contenu VOD est marquée comme un chapitre.

Sauf indication contraire, les appels réseau dans ce scénario sont identiques à ceux du scénario Lecture VOD sans publicité. L’appel réseau se produit simultanément, mais la charge utile est différente.

Déclencheur Méthode Heartbeat Appels réseau Remarques
L’utilisateur clique sur Lecture. trackSessionStart Analytics Content Start, Heartbeat Content Start Nous n’avons pas encore indiqué à la bibliothèque de mesures qu’il existe une publicité preroll. Ces appels réseau sont donc exactement identiques à ceux du scénario VoD unique.
Le chapitre démarre. trackEvent:ChapterStart Heartbeat Chapter Start
La première image du chapitre s’affiche. trackPlay Heartbeat Content Play Lorsque le contenu du chapitre est lu avant le contenu principal, le Heartbeats commence lorsque le chapitre commence.
Le chapitre est lu. Chapter Heartbeats
Le chapitre est terminé. trackEvent:trackChapterComplete Heartbeat Chapter Complete La fin du chapitre est atteinte.
Le contenu est lu. Content Heartbeats Il s’agit du même appel réseau que le scénario Lecture VOD sans publicité.
Le contenu est terminé. trackComplete Heartbeat Content Complete Il s’agit du même appel réseau que le scénario Lecture VOD sans publicité.
La session est terminée. trackSessionEnd SessionEnd signifie que la fin de la session de visionnage a été atteinte. Cette API doit être appelée même si l’utilisateur n’utilise pas le média jusqu’à la fin.

Paramètres

Lorsque la lecture du chapitre démarre, un appel Heartbeat Chapter Start est envoyé. Si le début du chapitre ne correspond pas au minuteur de 10 secondes, l’appel Heartbeat Chapter Start est retardé pendant quelques secondes pour être envoyé lors de l’intervalle de 10 secondes suivant.

Dans ce cas, un appel Content Heartbeat est envoyé au cours de ce même intervalle. Vous pouvez différencier les deux en examinant le type d’événement et de ressource :

Heartbeat Chapter Start

Paramètre Valeur Remarques
s:event:type "chapter_start"
s:asset:type "main"
s:stream:chapter_* Informations de diffusion spécifiques aux données du chapitre.
s:meta:* Chapitre comportant des données contextuelles spécifiques.

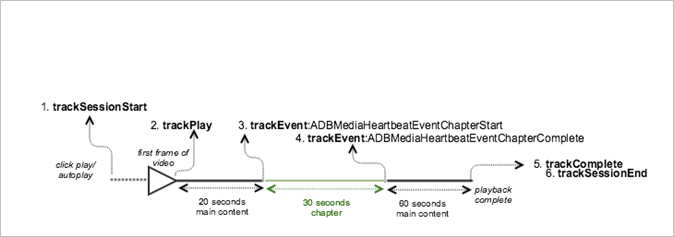

Exemple de code, chapitre au milieu

Dans ce scénario, une partie du contenu VOD est un chapitre.

Android

Pour afficher ce scénario dans Android, configurez le code suivant :

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., first frame of the
//    ad media is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// Chapter
HashMap<String, String> chapterMetadata = new HashMap<String, String>();
chapterMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
MediaObject chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                   CHAPTER_POSITION,
                                   CHAPTER_LENGTH,
                                   CHAPTER_START_TIME);

// 3. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart, chapterDataInfo, chapterMetadata);

.......
.......

// 4. Track the MediaHeartbeat.Event.ChapterComplete event when the chapter finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterComplete, null, null);

.......
.......

// 5. Call trackComplete() when the playback reaches the end, i.e., completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 6. Call trackSessionEnd() when the playback session is over. This method must be called even
//    if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

Pour afficher ce scénario dans iOS, configurez le code suivant :

when the user clicks Play
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., when there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// 2. Call trackPlay when the playback actually starts, i.e., when the
//    first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// Chapter
NSMutableDictionary *chapterContextData = [[NSMutableDictionary alloc] init];
[chapterContextData setObject:CONTEXT_DATA_VALUE forKey:CONTEXT_DATA_KEY];

id chapterInfo =
[ADBMediaHeartbeat createChapterObjectWithName:CHAPTER_NAME
                   position:CHAPTER_POSITION
                   length:CHAPTER_LENGTH
                   startTime:CHAPTER_START_TIME];

// 3. Track the ADBMediaHeartbeatEventChapterStart event when the chapter
//    starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterStart
               mediaObject:chapterInfo
               data:chapterContextData];
.......
.......

// 4. Track the ADBMediaHeartbeatEventChapterComplete event when the chapter
//    finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterComplete
               mediaObject:nil
               data:nil];
.......
.......
// 5. Call trackComplete when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......
// 6. Call trackSessionEnd when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

Pour afficher ce scénario dans JavaScript, saisissez le texte suivant :

// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
 Configuration.MEDIA_NAME,
 Configuration.MEDIA_ID,
 Configuration.MEDIA_LENGTH,
 MediaHeartbeat.StreamType.VOD

);

var mediaMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2,
  CUSTOM_KEY_3 : CUSTOM_VAL_3
};

// 1. Call trackSessionStart when Play is clicked or if autoplay is used,
//    i.e., when there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Chapter
var chapterMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1
};

var chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                   CHAPTER_POSITION,
                                   CHAPTER_LENGTH,
                                   CHAPTER_START_TIME);

// 2. Track the MediaHeartbeat.Event.ChapterStart event when the chapter
//    starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart,
                              chapterDataInfo,
                              chapterMetadata);

.......
.......

// 3. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 4. Track the MediaHeartbeat.Event.ChapterComplete event when the chapter
//    finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterComplete);

.......
.......

// 5. Call trackComplete() when the playback reaches the end, i.e., when playback
//    completes and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 6. Call trackSessionEnd() when the playback session is over. This method must be
//    called even if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........

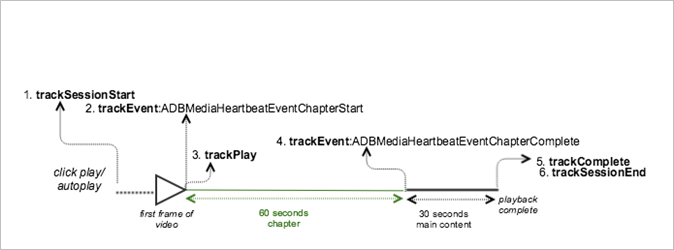

Exemple de code, chapitre au début

Dans ce scénario, le contenu VOD est lu avec un chapitre au début de la lecture.

Android

Pour afficher ce scénario dans Android, configurez le code suivant :

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., first frame of the
//    main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// Chapter
HashMap<String, String> chapterMetadata = new HashMap<String, String>();
chapterMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
MediaObject chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                   CHAPTER_POSITION,
                                   CHAPTER_LENGTH,
                                   CHAPTER_START_TIME);

// 3. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart, chapterDataInfo, chapterMetadata);

.......
.......

// 4. Track the MediaHeartbeat.Event.ChapterComplete event when the chapter finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterComplete, null, null);

.......
.......

// 5. Call trackComplete() when the playback reaches the end, i.e., when the media completes
//    and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 6. Call trackSessionEnd() when the playback session is over. This method must be called even
//    if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

Pour afficher ce scénario dans iOS, configurez le code suivant :

when the user clicks Play
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// Chapter
NSMutableDictionary *chapterContextData = [[NSMutableDictionary alloc] init];
[chapterContextData setObject:CONTEXT_DATA_VALUE forKey:CONTEXT_DATA_KEY];

id chapterInfo =
[ADBMediaHeartbeat createChapterObjectWithName:CHAPTER_NAME
                   position:CHAPTER_POSITION
                   length:CHAPTER_LENGTH
                   startTime:CHAPTER_START_TIME];

// 2. Call ADBMediaHeartbeatEventChapterStart when the chapter starts.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterStart
               mediaObject:chapterInfo
               data:chapterContextData];
.......
.......

// 3. Call trackPlay when the playback actually starts, i.e., when the
//    first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 4. Call ADBMediaHeartbeatEventChapterComplete when the chapter starts.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterComplete
               mediaObject:nil
               data:nil];
.......
.......

// 5. Call trackComplete when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 6. Call trackSessionEnd when the playback session is over. This method
//    must be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

Pour afficher ce scénario dans JavaScript, saisissez le texte suivant :

// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
 Configuration.MEDIA_NAME,
 Configuration.MEDIA_ID,
 Configuration.MEDIA_LENGTH,
 MediaHeartbeat.StreamType.VOD

);

var mediaMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2,
  CUSTOM_KEY_3 : CUSTOM_VAL_3
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., when there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Chapter
var chapterMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1
};

var chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                   CHAPTER_POSITION,
                                   CHAPTER_LENGTH,
                                   CHAPTER_START_TIME);

// 2. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart,
                              chapterDataInfo,
                              chapterMetadata);

.......
.......

// 3. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 4. Track the MediaHeartbeat.Event.ChapterComplete event when the chapter
//    finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterComplete);

.......
.......

// 5. Call trackComplete() when the playback reaches the end, i.e., when playback
//    completes and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 6. Call trackSessionEnd() when the playback session is over. This method must be
//    called even if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........

Sur cette page

Adobe Summit Banner

A virtual event April 27-28.

Expand your skills and get inspired.

Register for free
Adobe Summit Banner

A virtual event April 27-28.

Expand your skills and get inspired.

Register for free
Adobe Maker Awards Banner

Time to shine!

Apply now for the 2021 Adobe Experience Maker Awards.

Apply now
Adobe Maker Awards Banner

Time to shine!

Apply now for the 2021 Adobe Experience Maker Awards.

Apply now
