已略過廣告的 VOD 播放 vod-playback-with-skipped-ads
情境 scenario
此情境包含的 VOD 內容播放具有已略過的廣告。

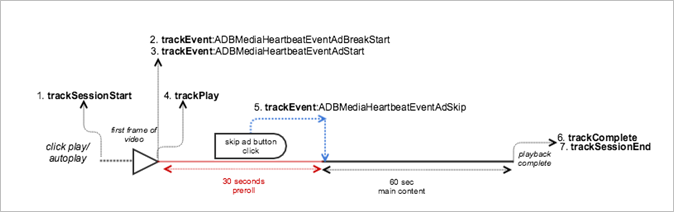

具有已略過前段廣告的一個 VOD
此情境等同於具有前段廣告的 VOD 播放，除了應用程式具有可讓使用者略過廣告 (也許是在點擊略過按鈕時) 的佈建。
觸發
心率方法
網路呼叫
附註
使用者點按「播放」
trackSessionStart()Analytics 內容開始、心率內容開始
Measurement Library 不知道有前段廣告。這些網路呼叫仍完全等同於 沒有廣告的 VOD 播放情境。
廣告開始。
trackEvent:AdBreakStarttrackEvent:AdStart
Analytics 廣告開始、心率廣告開始
播放廣告的第一個時間格。
trackPlay()心率廣告播放
當廣告內容在主要內容之前播放，心率會在廣告開始播放時啟動。
廣告播放。
廣告心率
廣告已略過。
trackEvent:trackAdSkip沒有廣告完成網路呼叫。
工作階段已結束。
trackSessionEnd()SessionEnd參數 parameters
除了沒有廣告完成和廣告插播完成呼叫之外，這些參數完全等同於具有前段廣告的 VOD 播放 情境中的參數。
程式碼範例 sample-code
Android
如要在 Android 中查看此情境，請設定下列程式碼：
// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD
);
HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// Pre-roll
MediaObject adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
ADBREAK_POSITION,
ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
AD_ID,
AD_POSITION,
AD_LENGTH);
// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts to play.
// Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdBreakStart"
// event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);
.......
.......
// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts to play.
// Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdStart" event
// before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);
.......
.......
// 4. Call trackPlay() when the playback actually starts, i.e. when the first frame of the
// main content is rendered on the screen.
_mediaHeartbeat.trackPlay();
.......
.......
// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to and is able to
// skip an ad. For example, this could be tied to a "Skip Ad" button onClick handler.
// The application could have the viewer land in main content post ad.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip, null, null);
.......
.......
// 6. Call trackComplete() when the playback reaches the end, i.e., when the media
// completes and finishes playing.
_mediaHeartbeat.trackComplete();
........
........
// 7. Call trackSessionEnd() when the playback session is over. This method must be called
// even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();
........
........
iOS
若要檢視此情境，請輸入下列文字：
when the user clicks Play
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
length:MEDIA_LENGTH
streamType:ADBMediaHeartbeatStreamTypeVOD];
NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];
// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......
// Pre-roll
ADBMediaObject *adBreakInfo =
[ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
position:AD_BREAK_POSITION
startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
[ADBMediaHeartbeat createAdObjectWithName:AD_NAME
adId:AD_ID
position:AD_POSITION
length:AD_LENGTH];
// Context ad data
NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];
// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod
// starts to play. Note that since this is a pre-roll, you must track the
// ADBMediaHeartbeatEventAdBreakStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
mediaObject:adBreakObject
data:nil];
.......
.......
// 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's ad
// starts to play. Note that since this is a pre-roll, track the
// ADBMediaHeartbeatEventAdStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
mediaObject:adObject
data:adDictionary];
.......
.......
// 4. Call trackPlay when the playback actually starts, i.e., when the first
// frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......
// 5. Track the ADBMediaHeartbeatEventAdSkip event when the user intends to
// and is able to skip an ad. For example, this could be tied to a
// "skip ad" button onClick handler. The application could have the viewer
// land in main content post ad.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdSkip mediaObject:nil data:nil];
.......
.......
// 6. Call trackComplete when the playback reaches the end, i.e., when the media
// completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......
// 7. Call trackSessionEnd when the playback session is over. This method must
// be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......
JavaScript
若要在 JavaScript 中檢視此情境，請輸入下列文字：
// Set up mediaObject
var mediaInfo =
MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD);
var mediaMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2,
CUSTOM_KEY_3 : CUSTOM_VAL_3
};
// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
// i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// Preroll
var adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
ADBREAK_POSITION,
ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
AD_ID,
AD_POSITION,
AD_LENGTH);
//context ad data
var adMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2
};
// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play.
// Since this is a preroll, you must track the MediaHeartbeat.Event.AdBreakStart event
// before calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);
.......
.......
// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play.
// Since this is a preroll, you must track the MediaHeartbeat.Event.AdStart event before
// calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);
.......
.......
// 4. Call trackPlay() when the playback actually starts, i.e., when the first frame of
// the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();
.......
.......
// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to (and can)
// skip the ad. For example, this could be tied to a "skip ad" button onClick handler.
// The application could have the viewer land in the main content post ad.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip);
.......
.......
// 6. Call trackComplete() when the playback reaches the end, i.e., playback completes
// and finishes playing.
this._mediaHeartbeat.trackComplete();
........
........
// 7. Call trackSessionEnd() when the playback session is over. This method must be called even
// if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();
........
........
