Reprodução de VOD com anúncios ignorados vod-playback-with-skipped-ads
Cenário scenario

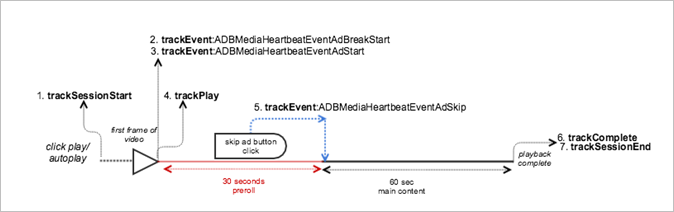

O cenário inclui a reprodução do conteúdo de VOD com um anúncio ignorado.
Um VOD com um anúncio precedente ignorado
Esse cenário é idêntico ao cenário de Reprodução de VOD com anúncios precedentes, exceto que o aplicativo tem uma provisão para permitir ao usuário ignorar o anúncio com o clique de um botão.
Acionador
Método do Heartbeat
Chamadas de rede
Notas
Cliques do usuário Reproduzir
trackSessionStart()Início do conteúdo do Analytics, Início do conteúdo do Heartbeat
A biblioteca de avaliações não sabe que há um anúncio antes da exibição. Essas chamadas de rede ainda são idênticas às chamadas do cenário Reprodução de VOD sem anúncios.
O anúncio começa.
trackEvent:AdBreakStarttrackEvent:AdStart
Início de anúncios do Analytics, Início de anúncios do Heartbeat
O primeiro quadro do anúncio é reproduzido.
trackPlay()Heartbeat Ad Play
Quando o conteúdo do anúncio é reproduzido antes do conteúdo principal, os heartbeats serão iniciados quando o anúncio for reproduzido.
O anúncio é reproduzido.
Ad Heartbeats (Pulsações do anúncio)
O anúncio é ignorado.
trackEvent:trackAdSkipNão há chamada de rede de anúncio concluída.
O conteúdo é reproduzido.
Content Heartbeats
Essas chamadas de rede são exatamente as mesmas do cenário de Reprodução de VOD sem anúncios.
A reprodução do conteúdo é concluída.
trackComplete()Heartbeat Content Complete
Essa chamada de rede é a mesma do cenário de Reprodução de VOD sem anúncios.
A sessão foi encerrada.
trackSessionEnd()SessionEndParâmetros parameters
Os parâmetros são idênticos aos da reprodução de VOD com anúncios antes da exibição, exceto por não terem anúncios concluídos e nenhuma chamada de ad break concluída.
Código de exemplo sample-code
Android
Para exibir esse cenário no Android, configure o seguinte código:
// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD
);
HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// Pre-roll
MediaObject adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
ADBREAK_POSITION,
ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
AD_ID,
AD_POSITION,
AD_LENGTH);
// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts to play.
// Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdBreakStart"
// event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);
.......
.......
// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts to play.
// Note that since this is a pre-roll, track the "MediaHeartbeat.Event.AdStart" event
// before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);
.......
.......
// 4. Call trackPlay() when the playback actually starts, i.e. when the first frame of the
// main content is rendered on the screen.
_mediaHeartbeat.trackPlay();
.......
.......
// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to and is able to
// skip an ad. For example, this could be tied to a "Skip Ad" button onClick handler.
// The application could have the viewer land in main content post ad.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip, null, null);
.......
.......
// 6. Call trackComplete() when the playback reaches the end, i.e., when the media
// completes and finishes playing.
_mediaHeartbeat.trackComplete();
........
........
// 7. Call trackSessionEnd() when the playback session is over. This method must be called
// even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();
........
........
iOS
Para exibir este cenário, insira o seguinte texto:
when the user clicks Play
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
length:MEDIA_LENGTH
streamType:ADBMediaHeartbeatStreamTypeVOD];
NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];
// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......
// Pre-roll
ADBMediaObject *adBreakInfo =
[ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
position:AD_BREAK_POSITION
startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
[ADBMediaHeartbeat createAdObjectWithName:AD_NAME
adId:AD_ID
position:AD_POSITION
length:AD_LENGTH];
// Context ad data
NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];
// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod
// starts to play. Note that since this is a pre-roll, you must track the
// ADBMediaHeartbeatEventAdBreakStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
mediaObject:adBreakObject
data:nil];
.......
.......
// 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's ad
// starts to play. Note that since this is a pre-roll, track the
// ADBMediaHeartbeatEventAdStart event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
mediaObject:adObject
data:adDictionary];
.......
.......
// 4. Call trackPlay when the playback actually starts, i.e., when the first
// frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......
// 5. Track the ADBMediaHeartbeatEventAdSkip event when the user intends to
// and is able to skip an ad. For example, this could be tied to a
// "skip ad" button onClick handler. The application could have the viewer
// land in main content post ad.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdSkip mediaObject:nil data:nil];
.......
.......
// 6. Call trackComplete when the playback reaches the end, i.e., when the media
// completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......
// 7. Call trackSessionEnd when the playback session is over. This method must
// be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......
JavaScript
Para exibir este cenário em JavaScript, insira o seguinte texto:
// Set up mediaObject
var mediaInfo =
MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD);
var mediaMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2,
CUSTOM_KEY_3 : CUSTOM_VAL_3
};
// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
// i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// Preroll
var adBreakInfo =
MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
ADBREAK_POSITION,
ADBREAK_START_TIME);
MediaObject adInfo =
MediaHeartbeat.createAdObject(AD_NAME,
AD_ID,
AD_POSITION,
AD_LENGTH);
//context ad data
var adMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2
};
// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play.
// Since this is a preroll, you must track the MediaHeartbeat.Event.AdBreakStart event
// before calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);
.......
.......
// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play.
// Since this is a preroll, you must track the MediaHeartbeat.Event.AdStart event before
// calling trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);
.......
.......
// 4. Call trackPlay() when the playback actually starts, i.e., when the first frame of
// the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();
.......
.......
// 5. Track the MediaHeartbeat.Event.AdSkip event when the user intends to (and can)
// skip the ad. For example, this could be tied to a "skip ad" button onClick handler.
// The application could have the viewer land in the main content post ad.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdSkip);
.......
.......
// 6. Call trackComplete() when the playback reaches the end, i.e., playback completes
// and finishes playing.
this._mediaHeartbeat.trackComplete();
........
........
// 7. Call trackSessionEnd() when the playback session is over. This method must be called even
// if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();
........
........
