이 시나리오는 재생 중에 주 콘텐츠에서 찾기를 구성합니다.
이 시나리오는 광고 없이 VOD 재생 시나리오와 동일하지만, 콘텐츠의 일부가 스크러빙되고 주 콘텐츠의 한 지점에서 다른 지점으로 찾기가 완료됩니다.
트리거 | 하트비트 메서드 | 네트워크 호출 | 참고 |
---|---|---|---|
사용자가 재생 클릭 | trackSessionStart |
Analytics 콘텐츠 시작, 하트비트 콘텐츠 시작 | 측정 라이브러리는 프리롤 광고가 있는지 모르므로, 이러한 네트워크 호출은 광고 없이 VOD 재생 시나리오와 동일합니다. |
콘텐츠의 첫 번째 프레임이 재생됩니다. | trackPlay |
하트비트 콘텐츠 재생 | 챕터 콘텐츠가 주 콘텐츠 전에 재생되면 챕터가 시작될 때 하트비트가 시작됩니다. |
콘텐츠 재생 | 콘텐츠 하트비트 | 이 네트워크 호출은 광고 없이 VOD 재생 시나리오와 동일합니다. | |
사용자가 콘텐츠에 대한 찾기 작업 시작 | trackSeekStart |
찾기가 완료될 때까지(예: trackSeekComplete ) 하트비트는 시작되지 않습니다. |
|
이동 작업이 완료됨 | trackSeekComplete |
이동이 완료되었으므로 하트비트가 시작됩니다. 팁: 플레이헤드 값은 이동 후 올바른 새 플레이헤드를 나타냅니다. | |
콘텐츠가 완료됨 | trackComplete |
하트비트 콘텐츠 완료 | 이 네트워크 호출은 광고 없이 VOD 재생 시나리오와 동일합니다. |
세션 종료 | trackSessionEnd |
SessionEnd |

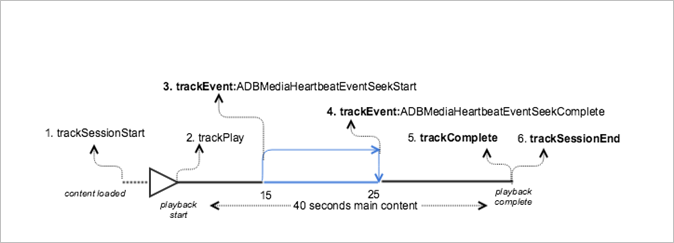

이 시나리오에서는 주 콘텐츠가 재생 중일 때 사용자가 콘텐츠 이동을 합니다.
Android에서 이 시나리오를 보려면 다음 코드를 설정합니다.
// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD
);
HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);
// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// 2. Call trackPlay() when the playback actually starts, i.e., whn the first frame
// of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();
.......
.......
// 3. Track the MediaHeartbeat.Event.SeekStart event when the user begins to seek.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekStart, null, null);
.......
.......
// 4. Track the MediaHeartbeat.Event.SeekComplete event when the user completes seeking
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekComplete, null, null);
.......
.......
// 5. Call trackComplete() when the playback reaches the end, i.e., when the media
// completes and finishes playing.
_mediaHeartbeat.trackComplete();
........
........
// 6. Call trackSessionEnd() when the playback session is over. This method must be
// called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();
........
........
iOS에서 이 시나리오를 보려면 다음 코드를 설정합니다.
// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME o
length:MEDIA_LENGTH
streamType:ADBMediaHeartbeatStreamTypeVOD];
NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];
// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
// i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......
// 2. Call trackPlay when the playback actually starts, i.e., when the
// first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......
// 3. Track the trackEvent:ADBMediaHeartbeatEventSeekStart event when the user
// begins to seek out of the chapter with the intent to skip it.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventSeekStart
mediaObject:nil
data:nil];
.......
.......
// 4. Track the trackEvent:ADBMediaHeartbeatEventSeekComplete event when the
// user seeks out of the chapter with the intent to skip it.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventSeekComplete
mediaObject:nil
data:nil];
.......
.......
// 5. Call trackComplete when the playback reaches the end, i.e., completes
// and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......
// 6. Call trackSessionEnd when the playback session is over. This method must
// be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......
이 시나리오를 보려면 다음 텍스트를 입력하십시오.
// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
Configuration.MEDIA_NAME,
Configuration.MEDIA_ID,
Configuration.MEDIA_LENGTH,
MediaHeartbeat.StreamType.VOD
);
var mediaMetadata = {
CUSTOM_KEY_1 : CUSTOM_VAL_1,
CUSTOM_KEY_2 : CUSTOM_VAL_2,
CUSTOM_KEY_3 : CUSTOM_VAL_3
};
// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
// i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);
......
......
// 2. Call trackPlay() when the playback actually starts, i.e., when the
// first frame of the ad media is rendered on the screen.
this._mediaHeartbeat.trackPlay();
.......
.......
// 3. Track the MediaHeartbeat.Event.SeekStart event when the user
// begins to seek.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekStart);
.......
.......
// 4. Track the MediaHeartbeat.Event.SeekComplete event when the user
// completes seeking.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekComplete);
.......
.......
// 5. Call trackComplete() when the playback reaches the end, i.e., when
// playback completes and finishes playing.
this._mediaHeartbeat.trackComplete();
........
........
// 6. Call trackSessionEnd() when the playback session is over. This method must be called
// even if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();
........
........
