有前段廣告的 VOD 播放
在此案例中，前段廣告已插入到主要內容之前。除非另有指定，否則網路呼叫與沒有廣告的 VOD 播放案例中的呼叫相同。網路呼叫會同時發生，但裝載不同。
| 觸發 | 心率方法 | 網路呼叫 | 附註 |
|---|---|---|---|
| 使用者點按播放 | trackSessionStart |
Analytics 內容開始、心率內容開始 | Measurement Library 不知道有前段廣告，因此這些網路呼叫仍完全等同於沒有廣告的 VOD 播放案例。 |
| 廣告開始。 |
|
Analytics 廣告開始、心率廣告開始 | |
| 已播放廣告 #1 的時間格。 | trackPlay |
心率廣告播放 | 廣告內容在主要內容之前播放，而心率在廣告開始時啟動。 |
| 廣告播放。 | 廣告心率 | ||
| 廣告 #2 完成播放。 | trackEvent:trackAdComplete |
心率廣告完成 | 已到達廣告結尾。 |
| 已播放廣告 #2 的第一個時間格。 | trackEvent:AdStart |
Analytics 廣告開始、心率廣告開始 | |
| 廣告播放。 | 廣告心率 | ||
| 廣告 #2 完成播放。 |
|
心率廣告完成 | 已到達廣告和 Pod 結尾。 |
| 內容播放。 | 內容心率 | 此網路呼叫完全等同於沒有廣告的 VOD 播放案例。 | |
| 內容已完成。 | trackComplete |
心率內容完成 | 此網路呼叫完全等同於沒有廣告的 VOD 播放案例。 |
| 工作階段已結束 | trackSessionEnd |
SessionEnd |
參數
當廣告播放開始時，會傳送 Heartbeat Ad Start 呼叫。如果廣告的開頭不符合 10 秒的計時器，Heartbeat Ad Start 呼叫會延遲幾秒，然後呼叫會進入下一個 10 秒的間隔。發生此情況時，Content Heartbeat 會以相同的間隔傳出，而您可以透過查看事件類型和資產類型來區分這兩個呼叫：
心率廣告開始
| 參數 | 值 | 附註 |
|---|---|---|
s:event:type |
start |
|
s:asset:type |
ad |
廣告會遵循與 Content Heartbeats 相同的基本模式，因此 Ad Play 呼叫類似於 Content Play 呼叫。
心率廣告播放呼叫
| 參數 | 值 | 附註 |
|---|---|---|
s:event:type |
play |
|
s:asset:type |
ad |
這些參數類似於 Content Heartbeats 呼叫，但 Ad Heartbeats 呼叫包含一些額外的參數：
廣告心率
| 參數 | 值 | 附註 |
|---|---|---|
s:event:type |
play |
|
s:asset:type |
ad |
|
s:asset:ad_id |
<ad ID> | |
s:asset:pod_id |
<ad pod ID> |
類似於 Heartbeat Content Complete 呼叫，當完成時，以及到達播放點結尾時，會傳送 Heartbeat Ad Complete 呼叫。此呼叫看起來類似其他 Heartbeat Ad 呼叫，但包含某些特定項目：
心率廣告完成呼叫
| 參數 | 值 | 附註 |
|---|---|---|
s:event:type |
complete |
|
s:asset:type |
ad |

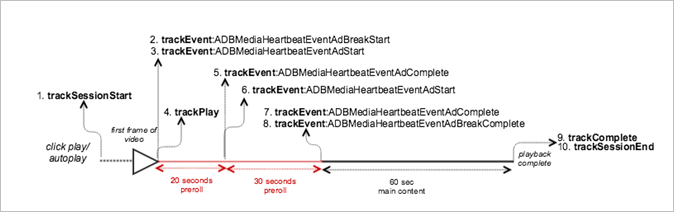

前段廣告插播的程式碼範例
在此案例中，VOD 包含一個前段廣告、第二個前段廣告，然後播放內容。
-
Android 若要在 Android 中查看此案例，請設定下列程式碼：
// Set up mediaObject MediaObject mediaInfo = MediaHeartbeat.createMediaObject( Configuration.MEDIA_NAME, Configuration.MEDIA_ID, Configuration.MEDIA_LENGTH, MediaHeartbeat.StreamType.VOD ); HashMap<String, String> videoMetadata = new HashMap<String, String>(); videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1); videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2); // 1. Call trackSessionStart() when the user clicks Play or if autoplay is used, // i.e., there's an intent to start playback. _mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata); ...... ...... // Pre-roll MediaObject adBreakInfo = MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME); MediaObject adInfo = MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH); // Context ad data HashMap<String, String> adMetadata = new HashMap<String, String>(); adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1); adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2); // 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts // to play. Note that since this is a pre-roll, call must track the // "MediaHeartbeat.Event.AdBreakStart" event before you call trackPlay(). _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null); ....... ....... // 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts // to play. Note that since this is a pre-roll, you must track the // "MediaHeartbeat.Event.AdStart" event before you call trackPlay(). _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 4. Call trackPlay() when the playback actually starts, i.e., when the first frame // of the ad video is rendered on the screen. _mediaHeartbeat.trackPlay(); ....... ....... // 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end, // i.e., when the ad completes and finishes playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null); ....... ....... // 6. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's second ad // starts to play. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 7. Track the MediaHeartbeat.Event.AdComplete event when the second ad reaches the // end, i.e., the second ad completes and finishes playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null); ....... ....... // 8. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in the // pod finish playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null); ....... ....... // 9. Call trackComplete() when the playback reaches the end, i.e., when the video // completes and finishes playing. _mediaHeartbeat.trackComplete(); ........ ........ // 10. Call trackSessionEnd() when the playback session is over. This method must be // called even if the user does not watch the video to completion. _mediaHeartbeat.trackSessionEnd(); ........ ........ -
iOS - 若要在 iOS 中查看此案例，請設定下列程式碼：
// Set up mediaObject ADBMediaObject *mediaObject = [ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME length:MEDIA_LENGTH streamType:ADBMediaHeartbeatStreamTypeVOD]; NSMutableDictionary *videoContextData = [[NSMutableDictionary alloc] init]; [videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1]; [videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2]; // 1. Call trackSessionStart when the user clicks Play or if autoplay is used, // i.e., there is an intent to start playback. [_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData]; ....... ....... // Pre-roll ADBMediaObject *adBreakInfo = [ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME position:AD_BREAK_POSITION startTime:AD_BREAK_START_TIME]; ADBMediaObject *adInfo = [ADBMediaHeartbeat createAdObjectWithName:AD_NAME adId:AD_ID position:AD_POSITION length:AD_LENGTH]; // context ad data NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init]; [adDictionary setObject:@"custom-val1" forKey:@"custom-key1"]; [adDictionary setObject:@"custom-val2" forKey:@"custom-key2"]; // 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod // starts to play. Note that since this is a pre-roll, you must track the // "ADBMediaHeartbeatEventAdBreakStart" event before you call trackPlay. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart mediaObject:adBreakObject data:nil]; ....... ....... // 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's // ad starts to play. Note that since this is a pre-roll, you must track // the "ADBMediaHeartbeatEventAdStart" event before you call trackPlay. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart mediaObject:adObject data:adDictionary]; ....... ....... // 4. Call trackPlay when the playback actually starts, i.e., when the // first frame of the main content is rendered on the screen. [_mediaHeartbeat trackPlay]; ....... ....... // 5. Track the ADBMediaHeartbeatEventAdComplete event when the ad reaches // the end, i.e., when the video completes and finishes playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete mediaObject:nil data:nil]; ....... ....... // 6. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's // second ad starts to play. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart mediaObject:adBreakObject data:nil]; ....... ....... // 7. Track the ADBMediaHeartbeatEventAdComplete event when the second ad // reaches the end, i.e., it completes and finishes playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete mediaObject:nil data:nil]; ....... ....... // 8. Track the ADBMediaHeartbeatEventAdBreakComplete event when all the // ads in the pod finish playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete mediaObject:adBreakObject data:nil]; ....... ....... // 9. Call trackComplete when the playback reaches the end, i.e., when the // video completes and finishes playing. [_mediaHeartbeat trackComplete]; ....... ....... // 10. Call trackSessionEnd when the playback session is over. This method // must be called even if the user does not watch the video to completion. [_mediaHeartbeat trackSessionEnd]; ....... ....... -
JavaScript 若要在 JavaScript 中檢視此案例，請輸入下列文字：
// Set up mediaObject var mediaInfo = MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME, Configuration.MEDIA_ID, Configuration.MEDIA_LENGTH,MediaHeartbeat.StreamType.VOD); var videoMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2, CUSTOM_KEY_3 : CUSTOM_VAL_3 }; // 1. Call trackSessionStart() when Play is clicked or if autoplay is used, // i.e., there's an intent to start playback. this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata); ...... ...... // Preroll var adBreakInfo = MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME); var adInfo = MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH); // Custom ad metadata var adMetadata = { CUSTOM_AD_KEY_1 : CUSTOM_AD_VAL_1, CUSTOM_AD_KEY_2 : CUSTOM_AD_VAL_2 }; // 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play. // Note that since this is a preroll, track the MediaHeartbeat.Event.AdBreakStart // event before you call trackPlay(). this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null); ....... ....... // 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play. // Note that since this is a preroll, track the MediaHeartbeat.Event.AdStart event before // you call trackPlay(). this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 4. Call trackPlay() when the playback actually starts, i.e., the first frame of the main content is rendered on the screen. this._mediaHeartbeat.trackPlay(); ....... ....... // 5. Track event MediaHeartbeat.Event.AdComplete when the ad reaches the end, // i.e., when it completes and finishes playing. this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdComplete); ....... ....... // 6. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's second // ad starts to play. this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 7. Track the MediaHeartbeat.Event.AdComplete event when the second ad reaches // the end, i.e., when it completes and finishes playing. this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdComplete); ....... ....... // 8. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads // in the pod finish playing. this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete); ....... ....... // 9. Call trackComplete() when the playback reaches the end, i.e., when it // completes and finishes playing. this._mediaHeartbeat.trackComplete(); // 10. Call trackSessionEnd() when the playback session is over. This method must // be called even if the user does not watch the video to completion. this._mediaHeartbeat.trackSessionEnd(); ....... .......

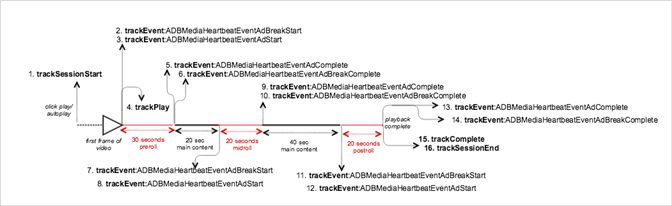

多個廣告插播的程式碼範例
在此案例中，VOD 內容的播放會是前段廣告、內容、中段廣告、內容和後段廣告。
-
Android 若要在 Android 中查看此案例，請設定下列程式碼：
// Set up mediaObject MediaObject mediaInfo = MediaHeartbeat.createMediaObject( Configuration.MEDIA_NAME, Configuration.MEDIA_ID, Configuration.MEDIA_LENGTH, MediaHeartbeat.StreamType.VOD ); HashMap<String, String> videoMetadata = new HashMap<String, String>(); videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1); videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2); // 1. Call trackSessionStart() when the user clicks Play or if autoplay is used, // i.e., there's an intent to start playback. _mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata); ...... ...... // Pre-roll MediaObject adBreakInfo = MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME); MediaObject adInfo = MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH); // Context ad data HashMap<String, String> adMetadata = new HashMap<String, String>(); adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1); adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2); // 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod // starts to play. Note that since this is a pre-roll, you must track the // "MediaHeartbeat.Event.AdBreakStart" event before you call trackPlay(). _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null); ....... ....... // 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad // starts to play. Note that since this is a pre-roll, you must track the // "MediaHeartbeat.Event.AdStart" event before you call trackPlay(). _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 4. Call trackPlay() when the playback actually starts, i.e., when the first // frame of the main content is rendered on the screen. _mediaHeartbeat.trackPlay(); ....... ....... // 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end, // i.e., when the ad completes and finishes playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null); ....... ....... // 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in //; the pod finish playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null); ....... ....... // Mid-roll MediaObject adBreakInfo = MediaHeartbeat.createAdBreakObject(mid-roll_BREAK_NAME, mid-roll_BREAK_POSITION, mid-roll_BREAK_START_TIME); MediaObject adInfo = MediaHeartbeat.createAdObject(mid-roll_AD_NAME, mid-roll_AD_ID, mid-roll_AD_POSITION, mid-roll_AD_LENGTH); // Context ad data HashMap<String, String> adMetadata = new HashMap<String, String>(); adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1); adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2); // 7. Track the MediaHeartbeat.Event.AdBreakStart event when the mid-roll pod // starts to play. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null); ....... ....... // 8. Track the MediaHeartbeat.Event.AdStart event when the mid-roll pod's ad // starts to play. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 9. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end, // i.e., when the adcompletes and finishes playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null); ....... ....... // 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads in the // mid-roll pod finish playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null); ....... ....... // Post-roll MediaObject adBreakInfo = MediaHeartbeat.createAdBreakObject(POSTROLL_BREAK_NAME, POSTROLL_BREAK_POSITION, POSTROLL_BREAK_START_TIME); MediaObject adInfo = MediaHeartbeat.createAdObject(POSTROLL_AD_NAME, POSTROLL_AD_ID, POSTROLL_AD_POSITION, POSTROLL_AD_LENGTH); // Context ad data HashMap<String, String> adMetadata = new HashMap<String, String>(); adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1); adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2); // 11. Track the MediaHeartbeat.Event.AdBreakStart event when the post-roll pod // starts to play. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null); ....... ....... // 12. Track the MediaHeartbeat.Event.AdStart event when the post-roll pod's // ad starts to play. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 13. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the // end, i.e., when the ad completes and finishes playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null); ....... ....... // 14. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads in // the post-roll pod finish playing. _mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null); ....... ....... // 15. Call trackComplete() when the playback reaches the end, i.e., when the // video completes and finishes playing. _mediaHeartbeat.trackComplete(); ........ ........ // 16. Call trackSessionEnd() when the playback session is over. This method // must be called even if the user does not watch the video to completion. _mediaHeartbeat.trackSessionEnd(); ........ ........ -
iOS 若要在 iOS 中查看此案例，請設定下列程式碼：
// Set up mediaObject ADBMediaObject *mediaObject = [ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME length:MEDIA_LENGTH streamType:ADBMediaHeartbeatStreamTypeVOD]; NSMutableDictionary *videoContextData = [[NSMutableDictionary alloc] init]; [videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1]; [videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2]; // 1. Call trackSessionStart when the user clicks Play or if autoplay is used, // i.e., there is an intent to start playback. [_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData]; ....... ....... // Pre-roll ADBMediaObject *adBreakInfo = [ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME position:AD_BREAK_POSITION startTime:AD_BREAK_START_TIME]; ADBMediaObject *adInfo = [ADBMediaHeartbeat createAdObjectWithName:AD_NAME adId:AD_ID position:AD_POSITION length:AD_LENGTH]; // Context ad data NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init]; [adDictionary setObject:@"custom-val1" forKey:@"custom-key1"]; [adDictionary setObject:@"custom-val2" forKey:@"custom-key2"]; // 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the // pre-roll pod starts to play. Note that since this is a pre-roll, // you must track the ADBMediaHeartbeatEventAdBreakStart event // before you call trackPlay. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart mediaObject:adBreakObject data:adDictionary]; ....... ....... // 3. Track the ADBMediaHeartbeatEventAdStart when the pre-roll // pod's ad starts to play. Note that since this is a pre-roll, // you must track the ADBMediaHeartbeatEventAdStart before you // call trackPlay. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart mediaObject:adObject data:adDictionary]; ....... ....... // 4. Call trackPlay when the playback actually starts, i.e., when // the first frame of the main content is rendered on the screen. [_mediaHeartbeat trackPlay]; ....... ....... // 5. Track the ADBMediaHeartbeatEventAdComplete event when the ad // reaches the end, i.e., when it completes and finishes playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete mediaObject:nil data:nil]; ....... ....... // 6. Track the ADBMediaHeartbeatEventAdBreakComplete event when all // of the ads in the pod finish playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete mediaObject:nil data:nil]; ....... ....... // Mid-roll ADBMediaObject *adBreakInfo = [ADBMediaHeartbeat createAdBreakObjectWithName:MIDROLL_BREAK_NAME position:MIDROLL_BREAK_POSITION startTime:MIDROLL_BREAK_START_TIME]; ADBMediaObject *adInfo = [ADBMediaHeartbeat createAdObjectWithName:MIDROLL_AD_NAME adId:MIDROLL_AD_ID position:MIDROLL_AD_POSITION length:MIDROLL_AD_LENGTH]; // context ad data NSMutableDictionary *midrollAdDictionary = [[NSMutableDictionary alloc] init]; [midrollAdDictionary setObject:@"custom-val1" forKey:@"custom-key1"]; [midrollAdDictionary setObject:@"custom-val2" forKey:@"custom-key2"]; // 7. Track the ADBMediaHeartbeatEventAdBreakStart event when the mid-roll pod // starts to play. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart mediaObject:adBreakObject data:nil]; ....... ....... // 8. Track the ADBMediaHeartbeatEventAdStart event when the mid-roll pod's // ad starts to play. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart mediaObject:adObject data:midrollAdDictionary]; ....... ....... // 9. Track the ADBMediaHeartbeatEventAdComplete event when the ad reaches // the end, i.e., when it completes and finishes playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete mediaObject:nil data:nil]; ....... ....... // 10. Track the ADBMediaHeartbeatEventAdBreakComplete event when all the // ads in the mid-roll pod finish playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete mediaObject:nil data:nil]; ....... ....... // Post-roll ADBMediaObject *postrollBreakInfo = [ADBMediaHeartbeat createAdBreakObjectWithName:POSTROLL_BREAK_NAME position:POSTROLL_BREAK_POSITION startTime:POSTROLL_BREAK_START_TIME]; ADBMediaObject *adInfo = [ADBMediaHeartbeat createAdObjectWithName:POSTROLL_AD_NAME adId:POSTROLL_AD_ID position:POSTROLL_AD_POSITION length:POSTROLL_AD_LENGTH]; // Context ad data NSMutableDictionary *postrollAdDictionary = [[NSMutableDictionary alloc] init]; [postrollAdDictionary setObject:@"custom-val1" forKey:@"custom-key1"]; [postrollAdDictionary setObject:@"custom-val2" forKey:@"custom-key2"]; // 11. Track the ADBMediaHeartbeatEventAdBreakStart event when the // post-roll pod starts to play. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart mediaObject:adBreakObject data:nil]; ....... ....... // 12. Track the ADBMediaHeartbeatEventAdStart event when the // post-roll pod's ad starts to play. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart mediaObject:adObject data:postrollAdDictionary]; ....... ....... // 13. Track the ADBMediaHeartbeatEventAdComplete event when the // post-roll pod's ad finishes playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete mediaObject:nil data:nil]; ....... ....... // 14. Track the ADBMediaHeartbeatEventAdBreakComplete event when // all the ads in the post-roll pod finish playing. [_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete mediaObject:nil data:nil]; ....... ....... // 15. Call trackComplete when the playback reaches the end, // i.e., when the video completes and finishes playing. [_mediaHeartbeat trackComplete]; ....... ....... // 16. Call trackSessionEnd when the playback session is over. This method // must be called even if the user does not watch the video to completion. [_mediaHeartbeat trackSessionEnd]; ....... ....... -
JavaScript 若要在 JavaScript 中檢視此案例，請輸入下列文字：
// Set up mediaObject MediaObject mediaInfo = MediaHeartbeat.createMediaObject( Configuration.MEDIA_NAME, Configuration.MEDIA_ID, Configuration.MEDIA_LENGTH, MediaHeartbeat.StreamType.VOD ); var videoMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2, CUSTOM_KEY_3 : CUSTOM_VAL_ }; // 1. Call trackSessionStart() when Play is clicked or if autoplay is used, // i.e., when there's an intent to start playback. this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata); ...... ...... // Preroll var adBreakInfo = MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME); var adInfo = MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH); // Custom ad metadata var adMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2 }; // 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod // starts to play. Note that since this is a preroll, you must track the // MediaHeartbeat.Event.AdBreakStart event before you call trackPlay(). this._trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null); ....... ....... // 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad // starts to play. Note that since this is a preroll, you must track the // MediaHeartbeat.Event.AdStart event before you call trackPlay(). this._heartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 4. Call trackPlay() when the main content actually starts, i.e., when the // first frame of the video content is rendered on the screen. this._mediaHeartbeat.trackPlay(); ....... ....... // 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end, // i.e., when the ad completes and finishes playing. this._heartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null); ....... ....... // 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in // the pod finish playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete); ....... ....... // Midroll var adBreakInfo = MediaHeartbeat.createAdBreakObject(MIDROLL_BREAK_NAME, MIDROLL_BREAK_POSITION, MIDROLL_BREAK_START_TIME); var adInfo = MediaHeartbeat.createAdObject(MIDROLL_AD_NAME, MIDROLL_AD_ID, MIDROLL_AD_POSITION, MIDROLL_AD_LENGTH); // Custom ad metadata var adMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2 }; // 7. Track the MediaHeartbeat.Event.AdBreakStart event when the // midroll pod starts to play. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo); ....... ....... // 8. Track the MediaHeartbeat.Event.AdStart event when the midroll // pod's ad starts to play. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 9. Track the MediaHeartbeat.Event.AdComplete event when the ad // reaches the end, i.e., when the ad completes and finishes playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete); ....... ....... // 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all of // the ads in the midroll pod finish playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete); ....... ....... // Set up mediaObject var mediaInfo = MediaHeartbeat.createMediaObject( Configuration.MEDIA_NAME, Configuration.MEDIA_ID, Configuration.MEDIA_LENGTH, MediaHeartbeat.StreamType.VOD ); var videoMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2, CUSTOM_KEY_3 : CUSTOM_VAL_3 }; // 1. Call trackSessionStart() when Play is clicked or if autoplay // is used, i.e., when there's an intent to start playback. this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata); ...... ...... // Preroll var adBreakInfo = MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME); var adInfo = MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH); // Custom ad metadata var adMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2 }; // 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod // starts to play. Note that since this is a preroll, you must track the // MediaHeartbeat.Event.AdBreakStart event before you call trackPlay(). this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo); ....... ....... // 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's // ad starts to play. Note that since this is a preroll, you must track // the MediaHeartbeat.Event.AdStart event before you call trackPlay(). this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 4. Call trackPlay() when the playback actually starts, i.e., when the first // frame of the main content is rendered on the screen. _mediaHeartbeat.trackPlay(); ....... ....... // 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches // the end, i.e., when the ad completes and finishes playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete); ....... ....... // 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all // of the ads in the pod finish playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete); ....... ....... // Mid-roll var adBreakInfo = MediaHeartbeat.createAdBreakObject(MIDROLL_BREAK_NAME, MIDROLL_BREAK_POSITION, MIDROLL_BREAK_START_TIME); var adInfo = MediaHeartbeat.createAdObject(MIDROLL_AD_NAME, MIDROLL_AD_ID, MIDROLL_AD_POSITION, MIDROLL_AD_LENGTH); // Custom ad metadata var adMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2 }; // 7. Track the MediaHeartbeat.Event.AdBreakStart event when the midroll // pod starts to play. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo); ....... ....... // 8. Track the MediaHeartbeat.Event.AdStart event when the midroll pod's // ad starts to play. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 9. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches // the end, i.e., when the ad completes and finishes playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete); ....... ....... // 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all // of the ads in the midroll pod finish playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete); ....... ....... // Postroll var adBreakInfo = MediaHeartbeat.createAdBreakObject(POSTROLL_BREAK_NAME, POSTROLL_BREAK_POSITION, POSTROLL_BREAK_START_TIME); var adInfo = MediaHeartbeat.createAdObject(POSTROLL_AD_NAME, POSTROLL_AD_ID, POSTROLL_AD_POSITION, POSTROLL_AD_LENGTH); // Custom ad metadata var adMetadata = { CUSTOM_KEY_1 : CUSTOM_VAL_1, CUSTOM_KEY_2 : CUSTOM_VAL_2 }; // 11. Track the MediaHeartbeat.Event.AdBreakStart event when the postroll // pod starts to play. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo); ....... ....... // 12. Track the MediaHeartbeat.Event.AdStart event when the postroll pod's ad // starts to play. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata); ....... ....... // 13. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches // the end, i.e., when the ad completes and finishes playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete); ....... ....... // 14. Track the MediaHeartbeat.Event.AdBreakComplete event when all of // the ads in the postroll pod finish playing. this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete); ....... ....... // 15. Call trackComplete() when the playback reaches the end, i.e., when playback // completes and finishes playing. this._mediaHeartbeat.trackComplete(); ........ ........ // 16. Call trackSessionEnd() when the playback session is over. This method must be called // even if the user does not watch the video to completion. this._mediaHeartbeat.trackSessionEnd(); ........ ........
