Nesse cenário, um anúncio antes da exibição foi inserido antes do conteúdo principal. A menos que seja especificado, as chamadas de rede correspondem às chamadas presentes no cenário de reprodução de VOD sem anúncios. As chamadas de rede ocorrem simultaneamente, mas a carga é diferente.

Acionador	Método do Heartbeat	Chamadas de rede	Notas
Cliques do usuário Reproduzir	`trackSessionStart`	Início do conteúdo do Analytics, Início do conteúdo do Heartbeat	A biblioteca de avaliações não tem conhecimento de um anúncio precedente; portanto, essas chamadas de rede são idênticas ao cenário de Reprodução de VOD sem anúncios.
O anúncio começa.	`trackEvent:AdBreakStart` `trackEvent:AdStart`	Início de anúncios do Analytics, Início de anúncios do Heartbeat
O quadro do anúncio nº 1 é reproduzido.	`trackPlay`	Heartbeat Ad Play	O conteúdo do anúncio é reproduzido antes do conteúdo principal e o início das pulsações quando o anúncio é iniciado.
O anúncio é reproduzido.		Ad Heartbeats (Pulsações do anúncio)
A reprodução do anúncio nº 2 é concluída.	`trackEvent:trackAdComplete`	Heartbeat Ad Complete	O fim do anúncio é atingido.
O primeiro quadro do anúncio nº 2 é reproduzido.	`trackEvent:AdStart`	Início de anúncios do Analytics, Início de anúncios do Heartbeat
O anúncio é reproduzido.		Ad Heartbeats (Pulsações do anúncio)
A reprodução do anúncio nº 2 é concluída.	`trackEvent:trackAdComplete` `trackEvent:AdBreakComplete`	Heartbeat Ad Complete	O fim do anúncio e do pod é atingido.
O conteúdo é reproduzido.		Content Heartbeats	Essa chamada de rede é idêntica ao cenário de Reprodução de VOD sem anúncios.
O conteúdo foi concluído.	`trackComplete`	Heartbeat Content Complete	Essa chamada de rede é idêntica ao cenário de Reprodução de VOD sem anúncios.
A sessão foi encerrada	`trackSessionEnd`		`SessionEnd`

Parâmetros

Quando a reprodução do anúncio começar, uma chamada Heartbeat Ad Start é enviada. Se o início do anúncio não coincidir com a marcação de 10 segundos, a chamada Heartbeat Ad Start é atrasada em alguns segundos e é direcionada para o próximo intervalo de 10 segundos. Quando isso ocorre, uma Content Heartbeat ocorre no mesmo intervalo e, desse modo, é possível observar a diferença entre as duas chamadas ao analisar os tipos de evento e de ativo:

Heartbeat Ad Start (Início do anúncio do Heartbeat)

Parâmetro	Valor	Notas
`s:event:type`	`start`
`s:asset:type`	`ad`

Os anúncios seguem o mesmo modelo básico da Content Heartbeats, portanto, a chamada Ad Play é semelhante à chamada Content Play

Chamada Heartbeat Ad Play

Parâmetro	Valor	Notas
`s:event:type`	`play`
`s:asset:type`	`ad`

Esses parâmetros são semelhantes à chamada de Content Heartbeats, mas a chamada Ad Heartbeats conta com alguns parâmetros adicionais:

Ad Heartbeats (Pulsações do anúncio)

Parâmetro	Valor	Notas
`s:event:type`	`play`
`s:asset:type`	`ad`
`s:asset:ad_id`	<ad ID>
`s:asset:pod_id`	<ID de pod de anúncios>

Semelhante às chamadas Heartbeat Content Complete, quando a reprodução do anúncio é concluída e chega ao fim da reprodução, uma chamada de Heartbeat Ad Complete é enviada. Essa chamada é semelhante a outras chamadas de Heartbeat Ad, mas contém alguns itens específicos:

Chamada Heartbeat Ad Complete

Parâmetro	Valor	Notas
`s:event:type`	`complete`
`s:asset:type`	`ad`

Exemplo de código para um ad break antes da exibição

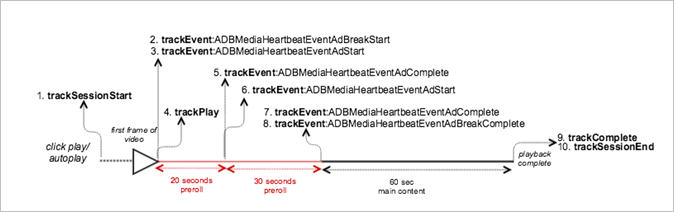

Neste cenário, o VOD consiste em um anúncio antes da exibição, um segundo anúncio antes da exibição e, em seguida, o conteúdo é reproduzido.

Android Para exibir esse cenário no Android, configure o seguinte código:

// Set up  mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> videoMetadata = new HashMap<String, String>();
videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there's an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Pre-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
MediaObject adInfo =
  MediaHeartbeat.createAdObject(AD_NAME,
                                AD_ID,
                                AD_POSITION,
                                AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod starts
//    to play. Note that since this is a pre-roll, call must track the
//    "MediaHeartbeat.Event.AdBreakStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad starts
//    to play. Note that since this is a pre-roll, you must track the
//    "MediaHeartbeat.Event.AdStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first frame
//    of the ad video is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's second ad
//    starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 7. Track the MediaHeartbeat.Event.AdComplete event when the second ad reaches the
//    end, i.e., the second ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in the
//    pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// 9. Call trackComplete() when the playback reaches the end, i.e., when the video
//    completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 10. Call trackSessionEnd() when the playback session is over. This method must be
//     called even if the user does not watch the video to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS - Para exibir esse cenário no iOS, configure o seguinte código:

//  Set up mediaObject
ADBMediaObject *mediaObject =
  [ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                     length:MEDIA_LENGTH
                     streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *videoContextData = [[NSMutableDictionary alloc] init];
[videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData];
.......
.......

// Pre-roll
ADBMediaObject *adBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
                     position:AD_BREAK_POSITION
                     startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:AD_NAME
                     adId:AD_ID
                     position:AD_POSITION
                     length:AD_LENGTH];

// context ad data
NSMutableDictionary *adDictionary = [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the pre-roll pod
//    starts to play. Note that since this is a pre-roll, you must track the
//    "ADBMediaHeartbeatEventAdBreakStart" event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 3. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's
//    ad starts to play. Note that since this is a pre-roll, you must track
//    the "ADBMediaHeartbeatEventAdStart" event before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adObject
                 data:adDictionary];
.......
.......

// 4. Call trackPlay when the playback actually starts, i.e., when the
//    first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 5. Track the ADBMediaHeartbeatEventAdComplete event when the ad reaches
//    the end, i.e., when the video completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 6. Track the ADBMediaHeartbeatEventAdStart event when the pre-roll pod's
//    second ad starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 7. Track the ADBMediaHeartbeatEventAdComplete event when the second ad
//    reaches the end, i.e., it completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 8. Track the ADBMediaHeartbeatEventAdBreakComplete event when all the
//    ads in the pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 9. Call trackComplete when the playback reaches the end, i.e., when the
//    video completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 10. Call trackSessionEnd when the playback session is over. This method
//     must be called even if the user does not watch the video to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript Para exibir este cenário em JavaScript, insira o seguinte texto:

// Set up mediaObject
var mediaInfo =
  MediaHeartbeat.createMediaObject(Configuration.MEDIA_NAME,
                                   Configuration.MEDIA_ID,
                                   Configuration.MEDIA_LENGTH,MediaHeartbeat.StreamType.VOD);
var videoMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2,
    CUSTOM_KEY_3 : CUSTOM_VAL_3
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Preroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME, ADBREAK_POSITION, ADBREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(AD_NAME, AD_ID, AD_POSITION, AD_LENGTH);

// Custom ad metadata
var adMetadata = {
    CUSTOM_AD_KEY_1 : CUSTOM_AD_VAL_1,
    CUSTOM_AD_KEY_2 : CUSTOM_AD_VAL_2
};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod starts to play.
//    Note that since this is a preroll, track the MediaHeartbeat.Event.AdBreakStart
//    event before you call trackPlay().
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad starts to play.
//    Note that since this is a preroll, track the MediaHeartbeat.Event.AdStart event before
//    you call trackPlay().
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., the first frame of the
      main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 5. Track event MediaHeartbeat.Event.AdComplete when the ad reaches the end,
//    i.e., when it completes and finishes playing.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's second
//    ad starts to play.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 7. Track the MediaHeartbeat.Event.AdComplete event when the second ad reaches
//    the end, i.e., when it completes and finishes playing.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads
//    in the pod finish playing.
this._mediaheartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// 9. Call trackComplete() when the playback reaches the end, i.e., when it
//    completes and finishes playing.
this._mediaHeartbeat.trackComplete();

// 10. Call trackSessionEnd() when the playback session is over. This method must
//     be called even if the user does not watch the video to completion.
this._mediaHeartbeat.trackSessionEnd();

.......
.......

Exemplo de código para vários ad breaks

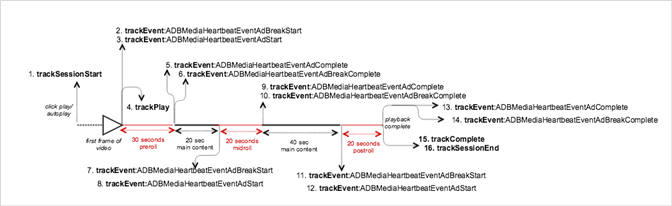

Neste cenário, o conteúdo de VOD é reproduzido com um anúncio precedente, o conteúdo, um anúncio intermediário, o conteúdo e um anúncio posterior.

Android Para exibir esse cenário no Android, configure o seguinte código:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> videoMetadata = new HashMap<String, String>();
videoMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
videoMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//   i.e., there's an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Pre-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
MediaObject adInfo = MediaHeartbeat.createAdObject(AD_NAME,
                                                   AD_ID,
                                                   AD_POSITION,
                                                   AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the pre-roll pod
//    starts to play. Note that since this is a pre-roll, you must track the
//    "MediaHeartbeat.Event.AdBreakStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the pre-roll pod's ad
//    starts to play. Note that since this is a pre-roll, you must track the
//    "MediaHeartbeat.Event.AdStart" event before you call trackPlay().
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in
//;    the pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// Mid-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(mid-roll_BREAK_NAME,
                                     mid-roll_BREAK_POSITION,
                                     mid-roll_BREAK_START_TIME);
MediaObject adInfo =
  MediaHeartbeat.createAdObject(mid-roll_AD_NAME,
                                mid-roll_AD_ID,
                                mid-roll_AD_POSITION,
                                mid-roll_AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 7. Track the MediaHeartbeat.Event.AdBreakStart event when the mid-roll pod
//    starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdStart event when the mid-roll pod's ad
//    starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 9. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the adcompletes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads in the
//      mid-roll pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// Post-roll
MediaObject adBreakInfo =
  MediaHeartbeat.createAdBreakObject(POSTROLL_BREAK_NAME,
                                     POSTROLL_BREAK_POSITION,
                                     POSTROLL_BREAK_START_TIME);
MediaObject adInfo =
  MediaHeartbeat.createAdObject(POSTROLL_AD_NAME,
                                POSTROLL_AD_ID,
                                POSTROLL_AD_POSITION,
                                POSTROLL_AD_LENGTH);

// Context ad data
HashMap<String, String> adMetadata = new HashMap<String, String>();
adMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
adMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 11. Track the MediaHeartbeat.Event.AdBreakStart event when the post-roll pod
//     starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 12. Track the MediaHeartbeat.Event.AdStart event when the post-roll pod's
//     ad starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 13. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the
//     end, i.e., when the ad completes and finishes playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 14. Track the MediaHeartbeat.Event.AdBreakComplete event when all the ads in
//     the post-roll pod finish playing.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete, null, null);

.......
.......

// 15. Call trackComplete() when the playback reaches the end, i.e., when the
//     video completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 16. Call trackSessionEnd() when the playback session is over. This method
//     must be called even if the user does not watch the video to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS Para exibir esse cenário no iOS, configure o seguinte código:

//  Set up mediaObject
ADBMediaObject *mediaObject =
  [ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                     length:MEDIA_LENGTH
                     streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *videoContextData =
  [[NSMutableDictionary alloc] init];
[videoContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[videoContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:videoContextData];
.......
.......

// Pre-roll
ADBMediaObject *adBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:AD_BREAK_NAME
                     position:AD_BREAK_POSITION
                     startTime:AD_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:AD_NAME
                     adId:AD_ID
                     position:AD_POSITION
                     length:AD_LENGTH];

// Context ad data
NSMutableDictionary *adDictionary =
  [[NSMutableDictionary alloc] init];
[adDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[adDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 2. Track the ADBMediaHeartbeatEventAdBreakStart event when the
//    pre-roll pod starts to play. Note that since this is a pre-roll,
//    you must track the ADBMediaHeartbeatEventAdBreakStart event
//    before you call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                 mediaObject:adBreakObject
                 data:adDictionary];
.......
.......

// 3. Track the ADBMediaHeartbeatEventAdStart when the pre-roll
//    pod's ad starts to play. Note that since this is a pre-roll,
//    you must track the ADBMediaHeartbeatEventAdStart before you
//    call trackPlay.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                  mediaObject:adObject
                  data:adDictionary];
.......
.......

// 4. Call trackPlay when the playback actually starts, i.e., when
//    the first frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 5. Track the ADBMediaHeartbeatEventAdComplete event when the ad
//    reaches the end, i.e., when it completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                  mediaObject:nil
                  data:nil];
.......
.......

// 6. Track the ADBMediaHeartbeatEventAdBreakComplete event when all
//    of the ads in the pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                  mediaObject:nil
                  data:nil];
.......
.......

// Mid-roll
ADBMediaObject *adBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:MIDROLL_BREAK_NAME
                     position:MIDROLL_BREAK_POSITION
                     startTime:MIDROLL_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:MIDROLL_AD_NAME
                     adId:MIDROLL_AD_ID position:MIDROLL_AD_POSITION
                     length:MIDROLL_AD_LENGTH];

// context ad data
NSMutableDictionary *midrollAdDictionary = [[NSMutableDictionary alloc] init];
[midrollAdDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[midrollAdDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 7. Track the ADBMediaHeartbeatEventAdBreakStart event when the mid-roll pod
//    starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                  mediaObject:adBreakObject
                  data:nil];
.......
.......

// 8. Track the ADBMediaHeartbeatEventAdStart event when the mid-roll pod's
//    ad starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adObject
                 data:midrollAdDictionary];
.......
.......

// 9. Track the ADBMediaHeartbeatEventAdComplete event when the ad reaches
//    the end, i.e., when it completes and finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 10. Track the ADBMediaHeartbeatEventAdBreakComplete event when all the
//     ads in the mid-roll pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// Post-roll
ADBMediaObject *postrollBreakInfo =
  [ADBMediaHeartbeat createAdBreakObjectWithName:POSTROLL_BREAK_NAME
                     position:POSTROLL_BREAK_POSITION
                     startTime:POSTROLL_BREAK_START_TIME];
ADBMediaObject *adInfo =
  [ADBMediaHeartbeat createAdObjectWithName:POSTROLL_AD_NAME
                     adId:POSTROLL_AD_ID
                     position:POSTROLL_AD_POSITION
                     length:POSTROLL_AD_LENGTH];

// Context ad data
NSMutableDictionary *postrollAdDictionary =
  [[NSMutableDictionary alloc] init];
[postrollAdDictionary setObject:@"custom-val1" forKey:@"custom-key1"];
[postrollAdDictionary setObject:@"custom-val2" forKey:@"custom-key2"];

// 11. Track the ADBMediaHeartbeatEventAdBreakStart event when the
//     post-roll pod starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakStart
                 mediaObject:adBreakObject
                 data:nil];
.......
.......

// 12. Track the ADBMediaHeartbeatEventAdStart event when the
//     post-roll pod's ad starts to play.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdStart
                 mediaObject:adObject
                 data:postrollAdDictionary];
.......
.......

// 13. Track the ADBMediaHeartbeatEventAdComplete event when the
//     post-roll pod's ad finishes playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdComplete
                 mediaObject:nil
                 data:nil];
.......
.......

// 14. Track the ADBMediaHeartbeatEventAdBreakComplete event when
//     all the ads in the post-roll pod finish playing.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventAdBreakComplete
                 mediaObject:nil data:nil];
.......
.......

// 15. Call trackComplete when the playback reaches the end,
//     i.e., when the video completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 16. Call trackSessionEnd when the playback session is over. This method
//     must be called even if the user does not watch the video to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript Para exibir este cenário em JavaScript, insira o seguinte texto:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD
);

var videoMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2,
    CUSTOM_KEY_3 : CUSTOM_VAL_
};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., when there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Preroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(AD_NAME,
                                AD_ID,
                                AD_POSITION,
                                AD_LENGTH);

// Custom ad metadata
var adMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod
//    starts to play. Note that since this is a preroll, you must track the
//    MediaHeartbeat.Event.AdBreakStart event before you call trackPlay().
this._trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo, null);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's ad
//    starts to play. Note that since this is a preroll, you must track the
//    MediaHeartbeat.Event.AdStart event before you call trackPlay().
this._heartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the main content actually starts, i.e., when the
//    first frame of the video content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches the end,
//    i.e., when the ad completes and finishes playing.
this._heartbeat.trackEvent(MediaHeartbeat.Event.AdComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all of the ads in
//    the pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Midroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(MIDROLL_BREAK_NAME,
                                     MIDROLL_BREAK_POSITION,
                                     MIDROLL_BREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(MIDROLL_AD_NAME,
                                MIDROLL_AD_ID,
                                MIDROLL_AD_POSITION,
                                MIDROLL_AD_LENGTH);

// Custom ad metadata
var adMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 7. Track the MediaHeartbeat.Event.AdBreakStart event when the
//    midroll pod starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdStart event when the midroll
//    pod's ad starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart,
                                adInfo,
                                adMetadata);

.......
.......

// 9. Track the MediaHeartbeat.Event.AdComplete event when the ad
//    reaches the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all of
//     the ads in the midroll pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
    Configuration.MEDIA_NAME,
    Configuration.MEDIA_ID,
    Configuration.MEDIA_LENGTH,
    MediaHeartbeat.StreamType.VOD

);

var videoMetadata = {
    CUSTOM_KEY_1 : CUSTOM_VAL_1,
    CUSTOM_KEY_2 : CUSTOM_VAL_2,
    CUSTOM_KEY_3 : CUSTOM_VAL_3

};

// 1. Call trackSessionStart() when Play is clicked or if autoplay
//    is used, i.e., when there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, videoMetadata);

......
......

// Preroll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(ADBREAK_NAME,
                                     ADBREAK_POSITION,
                                     ADBREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(AD_NAME,
                                AD_ID,
                                AD_POSITION,
                                AD_LENGTH);

// Custom ad metadata
var adMetadata = {
   CUSTOM_KEY_1 : CUSTOM_VAL_1,
   CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 2. Track the MediaHeartbeat.Event.AdBreakStart event when the preroll pod
//    starts to play. Note that since this is a preroll, you must track the
//    MediaHeartbeat.Event.AdBreakStart event before you call trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 3. Track the MediaHeartbeat.Event.AdStart event when the preroll pod's
//    ad starts to play. Note that since this is a preroll, you must track
//    the MediaHeartbeat.Event.AdStart event before you call trackPlay().
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 4. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 5. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches
//    the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 6. Track the MediaHeartbeat.Event.AdBreakComplete event when all
//    of the ads in the pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Mid-roll
var adBreakInfo =
  MediaHeartbeat.createAdBreakObject(MIDROLL_BREAK_NAME,
                                     MIDROLL_BREAK_POSITION,
                                     MIDROLL_BREAK_START_TIME);
var adInfo =
  MediaHeartbeat.createAdObject(MIDROLL_AD_NAME,
                                MIDROLL_AD_ID,
                                MIDROLL_AD_POSITION,
                                MIDROLL_AD_LENGTH);

// Custom ad metadata
var adMetadata = {
   CUSTOM_KEY_1 : CUSTOM_VAL_1,
   CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 7. Track the MediaHeartbeat.Event.AdBreakStart event when the midroll
//    pod starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 8. Track the MediaHeartbeat.Event.AdStart event when the midroll pod's
//    ad starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 9. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches
//    the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 10. Track the MediaHeartbeat.Event.AdBreakComplete event when all
//     of the ads in the midroll pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// Postroll
var adBreakInfo = MediaHeartbeat.createAdBreakObject(POSTROLL_BREAK_NAME,
POSTROLL_BREAK_POSITION, POSTROLL_BREAK_START_TIME);
var adInfo = MediaHeartbeat.createAdObject(POSTROLL_AD_NAME, POSTROLL_AD_ID,
POSTROLL_AD_POSITION, POSTROLL_AD_LENGTH);

// Custom ad metadata
var adMetadata = {
   CUSTOM_KEY_1 : CUSTOM_VAL_1,
   CUSTOM_KEY_2 : CUSTOM_VAL_2

};

// 11. Track the MediaHeartbeat.Event.AdBreakStart event when the postroll
//     pod starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakStart, adBreakInfo);

.......
.......

// 12. Track the MediaHeartbeat.Event.AdStart event when the postroll pod's ad
//     starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdStart, adInfo, adMetadata);

.......
.......

// 13. Track the MediaHeartbeat.Event.AdComplete event when the ad reaches
//     the end, i.e., when the ad completes and finishes playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdComplete);

.......
.......

// 14. Track the MediaHeartbeat.Event.AdBreakComplete event when all of
//     the ads in the postroll pod finish playing.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.AdBreakComplete);

.......
.......

// 15. Call trackComplete() when the playback reaches the end, i.e., when playback
//     completes and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 16. Call trackSessionEnd() when the playback session is over. This method must be called
//     even if the user does
not watch the video to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........

Página anterior

Reprodução de VOD com anúncios antes da exibição

Parâmetros

Heartbeat Ad Start (Início do anúncio do Heartbeat)

Chamada Heartbeat Ad Play

Ad Heartbeats (Pulsações do anúncio)

Chamada Heartbeat Ad Complete

Exemplo de código para um ad break antes da exibição

Exemplo de código para vários ad breaks

Nesta página

Exibir próximo:

Aprender

Documentação

Comunidade

Suporte

Recursos

Conta do Adobe

Adobe
