Vários rastreadores de VOD ao mesmo tempo vod-multiple-trackers-in-parallel

Cenário scenario

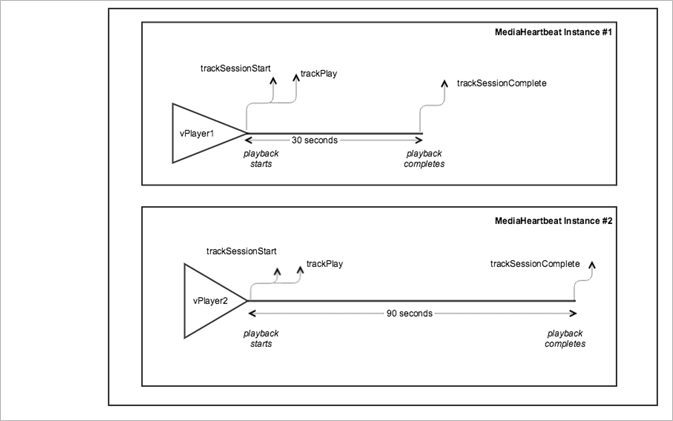

Neste cenário, há duas sessões ocorrendo simultaneamente para duas mídias separadas e usando duas instâncias separadas de MediaHeartbeat.

Este cenário é idêntico ao cenário de Reprodução de VOD sem anúncios, exceto pelo fato de contar com duas sessões que estão sendo executadas simultaneamente para duas mídias separadas. Cada uma dessas sessões usa uma instância separada de MediaHeartbeat.

A menos que seja especificado, as chamadas de rede são iguais ao cenário reprodução de VOD sem anúncios.

Parâmetros parameters

Sessão do Heartbeat

Parâmetro
Valor
Notas
s:event:sid
ID exclusiva da sessão
Uma ID exclusiva da sessão que existe em todas as chamadas de rede de heartbeat até que o método trackSessionEnd seja chamado.

Código de exemplo sample-code

Android

public class MediaAnalyticsProvider implements MediaHeartbeatDelegate {
  private MediaPlayer _player;
  private MediaHeartbeat _heartbeat;

  public MediaAnalyticsProvider(MediaPlayer player) {
      if (player == null) {
          throw new IllegalArgumentException("Player reference cannot be null.");

      }
      _player = player;
      _player.addObserver(this);

      // Media Heartbeat initialization
      MediaHeartbeatConfig config = new MediaHeartbeatConfig();
      config.trackingServer = HEARTBEAT_TRACKING_SERVER;
      config.channel = HEARTBEAT_CHANNEL;
      config.appVersion = HEARTBEAT_SDK;
      config.ovp = HEARTBEAT_OVP;
      config.playerName = PLAYER_NAME;
      config.ssl = false;
      config.debugLogging = true;

      _heartbeat = new MediaHeartbeat(this, config);
  }

  @Override
  public MediaObject getQoSObject() {
      return MediaHeartbeat.createQoSObject(BITRATE,
                                            STARTUP_TIME,
                                            FPS,
                                            DROPPED_FRAMES);
  }

  @Override
  public Double getCurrentPlaybackTime() {
      return _player.getCurrentPlaybackTime();
  }
}
@Override
protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);

  // Bootstrap the AdobeMobile library.
  Config.setContext(this.getApplicationContext());

  // Create first MediaPlayer instance.
  _player1 = new MediaPlayer();

  // Create first MediaAnalyticsProvider instance and
  // attach it to the MediaPlayer instance.
  _analyticsProvider1 = new MediaAnalyticsProvider(_player1);

  // Load the main media content.
  Uri uri =
    Uri.parse("android.resource://" + getPackageName() + "/" + R.raw.media1);
  _player1.loadContent(uri);

  // Create second MediaPlayer instance.
  _player2 = new MediaPlayer();

  // Create second MediaAnalyticsProvider instance and
  // attach it to the MediaPlayer instance.
  _analyticsProvider2 = new MediaAnalyticsProvider(_player2);

  // Load the main media content.
  Uri uri =
    Uri.parse("android.resource://" + getPackageName() + "/" + R.raw.media2);
  _player2.loadContent(uri);
}

Ambas as instâncias do MediaAnalyticsProvider e do MediaHeartbeat monitoram duas sessões separadas, cada uma com suas próprias IDs de sessão exclusivas. As duas sessões na ferramenta de depuração Charles ou nos logs de depuração podem ser identificadas usando o valor da ID da sessão. Para exibir esse cenário no Android, configure o seguinte código:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_VAL_1, CUSTOM_KEY_1);
mediaMetadata.put(CUSTOM_VAL_2, CUSTOM_KEY_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 3. Call trackComplete() when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 4. Call trackSessionEnd() when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

@interface MediaAnalyticsProvider : NSObject <ADBMediaHeartbeatDelegate>

@end

@implementation {
  MediaPlayer *_player;
}

- (instancetype)initWithPlayer:(AVPlayer *)player {
  if (self = [super init]) {
      _player = player;

      ADBMediaHeartbeatConfig *config =
        [[ADBMediaHeartbeatConfig alloc] init];
      config.trackingServer = HEARTBEAT_TRACKING_SERVER;
      config.channel = HEARTBEAT_CHANNEL;
      config.appVersion = HEARTBEAT_SDK_VERSION;
      config.playerName = PLAYER_NAME;
      config.ssl = SSL_SETTING;
      config.debugLogging = DEBUG_SETTING;

      ADBMediaHeartbeatConfig *config =
        [[ADBMediaHeartbeatConfig alloc] init];
      _mediaHeartbeat =
        [[ADBMediaHeartbeat alloc] initWithDelegate:self config:config];

      [self setupPlayerNotifications];
  }

  return self;
}

- (ADBMediaObject *)getQoSInfo {
  return [ADBMediaHeartbeat createQoSObjectWithBitrate:CURRENT_BITRATE_VALUE
                            startupTime:CALCULATED_STARTED_TIME
                            fps:CALCULATED_FPS
                            droppedFrames:DROPPED_FRAMES_COUNT];
}

- (NSTimeInterval)getCurrentPlaybackTime {
  return CMTimeGetSeconds(_player.currentTime);
}

@end

- (void)viewDidAppear:(BOOL)animated {
  [super viewDidAppear:animated];
  [ADBMobile setDebugLogging:YES];

  // Setup the first media player
  NSURL *streamUrl = [NSURL URLWithString:CONTENT_URL_1];

  if (!self.mediaPlayer1) {
      self.mediaPlayer1 = [[MediaPlayer alloc] initWithContentURL:streamUrl];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the first
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider1) {
      self.mediaAnalyticsProvider1 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer1];
  }

  // Setup the second media player
  NSURL *streamUrl2 = [NSURL URLWithString:CONTENT_URL_2];

  if (!self.mediaPlayer2) {
      self.mediaPlayer2 = [[MediaPlayer alloc] initWithContentURL:streamUrl2];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the second
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider2) {
      self.mediaAnalyticsProvider2 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer2];
  }
}
- (void)viewDidAppear:(BOOL)animated {
  [super viewDidAppear:animated];
  [ADBMobile setDebugLogging:YES];

  // Setup the first media player
  NSURL *streamUrl = [NSURL URLWithString:CONTENT_URL_1];

  if (!self.mediaPlayer1) {
      self.mediaPlayer1 = [[MediaPlayer alloc] initWithContentURL:streamUrl];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the first
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider1) {
      self.mediaAnalyticsProvider1 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer1];
  }

  // Setup the second media player
  NSURL *streamUrl2 = [NSURL URLWithString:CONTENT_URL_2];

  if (!self.mediaPlayer2) {
      self.mediaPlayer2 = [[MediaPlayer alloc] initWithContentURL:streamUrl2];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the second MediaPlayer instance.
  if (!self.mediaAnalyticsProvider2) {
      self.mediaAnalyticsProvider2 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer2];
  }
}

Ambas as instâncias do MediaAnalyticsProvider e do ADBMediaHeartbeat monitoram duas sessões separadas, cada uma com suas próprias IDs de sessão exclusivas. As duas sessões na ferramenta de depuração Charles ou nos logs de depuração podem ser identificadas usando o valor da ID da sessão.

Para exibir esse cenário no iOS, configure o seguinte código:

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// 2. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 3. Call trackComplete when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 4. Call trackSessionEnd when the playback session is over. This method
//    must be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

var MediaHeartbeat = ADB.va.MediaHeartbeat;
var MediaHeartbeatConfig = ADB.va.MediaHeartbeatConfig;
var MediaHeartbeatDelegate = ADB.va.MediaHeartbeatDelegate;

function MediaAnalyticsProvider(player) {
  if (!player) {
      throw new Error("Illegal argument. Player reference cannot be null.")

  }
  this._player = player;

  //Media Heartbeat initialization
  var mediaConfig = new MediaHeartbeatConfig();
  mediaConfig.trackingServer = Configuration.HEARTBEAT.TRACKING_SERVER;
  mediaConfig.playerName = Configuration.PLAYER.NAME;
  mediaConfig.channel = Configuration.HEARTBEAT.CHANNEL;
  mediaConfig.debugLogging = true;
  mediaConfig.appVersion = Configuration.HEARTBEAT.SDK;
  mediaConfig.ssl = false;
  mediaConfig.ovp = Configuration.HEARTBEAT.OVP;

  var mediaDelegate = new MediaHeartbeatDelegate();

  mediaDelegate.getCurrentPlaybackTime = function() {
      return player.getCurrentPlaybackTime();
  };

  mediaDelegate.prototype.getQoSObject = function() {
      return player.getQoSInfo();
  };

  this._mediaHeartbeat =
    new MediaHeartbeat(mediaDelegate, mediaConfig, appMeasurement);
}
// Create first MediaPlayer instance.
var _player1 = new MediaPlayer();

// Create the first MediaAnalyticsProvider instance
// and attach it to the MediaPlayer instance.
analyticsProvider1 = new MediaAnalyticsProvider(_player1);

// Load the main media content.
_player1.loadContent(URL_TO_MEDIA_1);

// Create second MediaPlayer instance.
var _player2 = new MediaPlayer();

// Create second MediaAnalyticsProvider instance and
// attach it to the MediaPlayer instance.
analyticsProvider2 = new MediaAnalyticsProvider(_player2);

// Load the main media content for the 2nd player.
_player2.loadContent(URL_TO_MEDIA_2);

Ambas as instâncias do MediaAnalyticsProvider e do MediaHeartbeat monitoram duas sessões separadas, cada uma com suas próprias IDs de sessão exclusivas. Você pode ver as duas sessões na ferramenta de depuração Charles.
