VOD 여러 추적기 동시 실행

시나리오

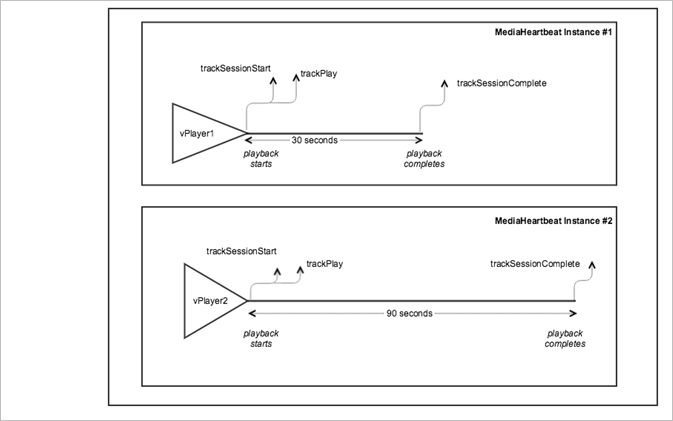

이 시나리오에는 두 개의 별도 미디어에 대해 동시에 실행되며, 두 개의 MediaHeartbeat 인스턴스를 사용하는 세션이 두 개 있습니다.

이 시나리오는 두 개의 별도 미디어에 대해 동시에 실행되는 세션이 두 개 있다는 점을 제외하고, 광고 없이 VOD 재생 시나리오와 동일합니다. 이러한 각 세션은 MediaHeartbeat의 별도 인스턴스를 사용합니다.

명시하지 않은 경우, 네트워크 호출은 광고 없이 VOD 재생 시나리오와 동일합니다.

매개 변수

하트비트 세션

매개 변수	값	참고
`s:event:sid`	고유 세션 ID	`trackSessionEnd` 메서드가 호출될 때까지 모든 하트비트 네트워크 호출에 있는 고유한 세션 ID입니다.

샘플 코드

Android

public class MediaAnalyticsProvider implements MediaHeartbeatDelegate {
  private MediaPlayer _player;
  private MediaHeartbeat _heartbeat;

  public MediaAnalyticsProvider(MediaPlayer player) {
      if (player == null) {
          throw new IllegalArgumentException("Player reference cannot be null.");

      }
      _player = player;
      _player.addObserver(this);

      // Media Heartbeat initialization
      MediaHeartbeatConfig config = new MediaHeartbeatConfig();
      config.trackingServer = HEARTBEAT_TRACKING_SERVER;
      config.channel = HEARTBEAT_CHANNEL;
      config.appVersion = HEARTBEAT_SDK;
      config.ovp = HEARTBEAT_OVP;
      config.playerName = PLAYER_NAME;
      config.ssl = false;
      config.debugLogging = true;

      _heartbeat = new MediaHeartbeat(this, config);
  }

  @Override
  public MediaObject getQoSObject() {
      return MediaHeartbeat.createQoSObject(BITRATE,
                                            STARTUP_TIME,
                                            FPS,
                                            DROPPED_FRAMES);
  }

  @Override
  public Double getCurrentPlaybackTime() {
      return _player.getCurrentPlaybackTime();
  }
}

@Override
protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);

  // Bootstrap the AdobeMobile library.
  Config.setContext(this.getApplicationContext());

  // Create first MediaPlayer instance.
  _player1 = new MediaPlayer();

  // Create first MediaAnalyticsProvider instance and
  // attach it to the MediaPlayer instance.
  _analyticsProvider1 = new MediaAnalyticsProvider(_player1);

  // Load the main media content.
  Uri uri =
    Uri.parse("android.resource://" + getPackageName() + "/" + R.raw.media1);
  _player1.loadContent(uri);

  // Create second MediaPlayer instance.
  _player2 = new MediaPlayer();

  // Create second MediaAnalyticsProvider instance and
  // attach it to the MediaPlayer instance.
  _analyticsProvider2 = new MediaAnalyticsProvider(_player2);

  // Load the main media content.
  Uri uri =
    Uri.parse("android.resource://" + getPackageName() + "/" + R.raw.media2);
  _player2.loadContent(uri);
}

MediaAnalyticsProvider와 MediaHeartbeat의 두 인스턴스는 각각 고유한 세션 ID가 있는 두 개의 별도 세션을 추적합니다. Charles 디버깅 도구 또는 디버그 로그에서 두 세션은 세션 ID 값으로 식별할 수 있습니다. Android에서 이 시나리오를 표시하려면 다음 코드를 설정합니다.

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_VAL_1, CUSTOM_KEY_1);
mediaMetadata.put(CUSTOM_VAL_2, CUSTOM_KEY_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 3. Call trackComplete() when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 4. Call trackSessionEnd() when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

@interface MediaAnalyticsProvider : NSObject <ADBMediaHeartbeatDelegate>

@end

@implementation {
  MediaPlayer *_player;
}

- (instancetype)initWithPlayer:(AVPlayer *)player {
  if (self = [super init]) {
      _player = player;

      ADBMediaHeartbeatConfig *config =
        [[ADBMediaHeartbeatConfig alloc] init];
      config.trackingServer = HEARTBEAT_TRACKING_SERVER;
      config.channel = HEARTBEAT_CHANNEL;
      config.appVersion = HEARTBEAT_SDK_VERSION;
      config.playerName = PLAYER_NAME;
      config.ssl = SSL_SETTING;
      config.debugLogging = DEBUG_SETTING;

      ADBMediaHeartbeatConfig *config =
        [[ADBMediaHeartbeatConfig alloc] init];
      _mediaHeartbeat =
        [[ADBMediaHeartbeat alloc] initWithDelegate:self config:config];

      [self setupPlayerNotifications];
  }

  return self;
}

- (ADBMediaObject *)getQoSInfo {
  return [ADBMediaHeartbeat createQoSObjectWithBitrate:CURRENT_BITRATE_VALUE
                            startupTime:CALCULATED_STARTED_TIME
                            fps:CALCULATED_FPS
                            droppedFrames:DROPPED_FRAMES_COUNT];
}

- (NSTimeInterval)getCurrentPlaybackTime {
  return CMTimeGetSeconds(_player.currentTime);
}

@end

- (void)viewDidAppear:(BOOL)animated {
  [super viewDidAppear:animated];
  [ADBMobile setDebugLogging:YES];

  // Setup the first media player
  NSURL *streamUrl = [NSURL URLWithString:CONTENT_URL_1];

  if (!self.mediaPlayer1) {
      self.mediaPlayer1 = [[MediaPlayer alloc] initWithContentURL:streamUrl];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the first
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider1) {
      self.mediaAnalyticsProvider1 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer1];
  }

  // Setup the second media player
  NSURL *streamUrl2 = [NSURL URLWithString:CONTENT_URL_2];

  if (!self.mediaPlayer2) {
      self.mediaPlayer2 = [[MediaPlayer alloc] initWithContentURL:streamUrl2];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the second
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider2) {
      self.mediaAnalyticsProvider2 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer2];
  }
}

- (void)viewDidAppear:(BOOL)animated {
  [super viewDidAppear:animated];
  [ADBMobile setDebugLogging:YES];

  // Setup the first media player
  NSURL *streamUrl = [NSURL URLWithString:CONTENT_URL_1];

  if (!self.mediaPlayer1) {
      self.mediaPlayer1 = [[MediaPlayer alloc] initWithContentURL:streamUrl];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the first
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider1) {
      self.mediaAnalyticsProvider1 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer1];
  }

  // Setup the second media player
  NSURL *streamUrl2 = [NSURL URLWithString:CONTENT_URL_2];

  if (!self.mediaPlayer2) {
      self.mediaPlayer2 = [[MediaPlayer alloc] initWithContentURL:streamUrl2];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the second MediaPlayer instance.
  if (!self.mediaAnalyticsProvider2) {
      self.mediaAnalyticsProvider2 =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer2];
  }
}

MediaAnalyticsProvider와 ADBMediaHeartbeat의 두 인스턴스는 각각 고유한 세션 ID가 있는 두 개의 별도 세션을 추적합니다. Charles 디버깅 도구 또는 디버그 로그에서 두 세션은 세션 ID 값으로 식별할 수 있습니다.

iOS에서 이 시나리오를 표시하려면 다음 코드를 설정합니다.

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// 2. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 3. Call trackComplete when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 4. Call trackSessionEnd when the playback session is over. This method
//    must be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

var MediaHeartbeat = ADB.va.MediaHeartbeat;
var MediaHeartbeatConfig = ADB.va.MediaHeartbeatConfig;
var MediaHeartbeatDelegate = ADB.va.MediaHeartbeatDelegate;

function MediaAnalyticsProvider(player) {
  if (!player) {
      throw new Error("Illegal argument. Player reference cannot be null.")

  }
  this._player = player;

  //Media Heartbeat initialization
  var mediaConfig = new MediaHeartbeatConfig();
  mediaConfig.trackingServer = Configuration.HEARTBEAT.TRACKING_SERVER;
  mediaConfig.playerName = Configuration.PLAYER.NAME;
  mediaConfig.channel = Configuration.HEARTBEAT.CHANNEL;
  mediaConfig.debugLogging = true;
  mediaConfig.appVersion = Configuration.HEARTBEAT.SDK;
  mediaConfig.ssl = false;
  mediaConfig.ovp = Configuration.HEARTBEAT.OVP;

  var mediaDelegate = new MediaHeartbeatDelegate();

  mediaDelegate.getCurrentPlaybackTime = function() {
      return player.getCurrentPlaybackTime();
  };

  mediaDelegate.prototype.getQoSObject = function() {
      return player.getQoSInfo();
  };

  this._mediaHeartbeat =
    new MediaHeartbeat(mediaDelegate, mediaConfig, appMeasurement);
}

// Create first MediaPlayer instance.
var _player1 = new MediaPlayer();

// Create the first MediaAnalyticsProvider instance
// and attach it to the MediaPlayer instance.
analyticsProvider1 = new MediaAnalyticsProvider(_player1);

// Load the main media content.
_player1.loadContent(URL_TO_MEDIA_1);

// Create second MediaPlayer instance.
var _player2 = new MediaPlayer();

// Create second MediaAnalyticsProvider instance and
// attach it to the MediaPlayer instance.
analyticsProvider2 = new MediaAnalyticsProvider(_player2);

// Load the main media content for the 2nd player.
_player2.loadContent(URL_TO_MEDIA_2);

MediaAnalyticsProvider와 MediaHeartbeat의 두 인스턴스는 각각 고유한 세션 ID가 있는 두 개의 별도 세션을 추적합니다. Charles 디버깅 도구에서 두 개의 세션을 볼 수 있습니다.
