Um rastreador de VOD para várias sessões

Cenário

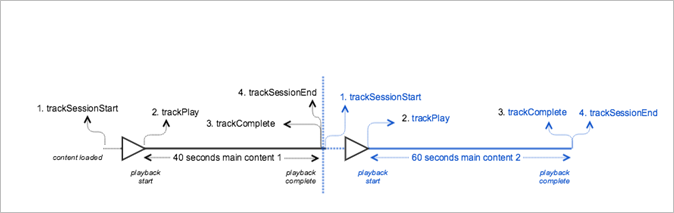

Neste cenário, a instância MediaHeartbeat é usada para criar duas sessões separadas em sequência.

Esse cenário é igual ao cenário Reprodução de VOD sem anúncios.

Parâmetros

Sessão do Heartbeat

Código de exemplo

Android

Para criar duas instâncias de MediaHeartbeat para dois reprodutores de mídia, configure o seguinte código:

public class MediaAnalyticsProvider implements MediaHeartbeatDelegate {

  private MediaPlayer _player;
  private MediaHeartbeat _heartbeat;

  public MediaAnalyticsProvider(MediaPlayer player) {
      if (player == null) {
          throw new IllegalArgumentException("Player reference cannot be null.");
      }
  }

  _player = player;
  _player.addObserver(this);

  // Media Heartbeat initialization
  MediaHeartbeatConfig config = new MediaHeartbeatConfig();

  config.trackingServer = HEARTBEAT_TRACKING_SERVER;
  config.channel = HEARTBEAT_CHANNEL;
  config.appVersion = HEARTBEAT_SDK;
  config.ovp = HEARTBEAT_OVP;
  config.playerName = PLAYER_NAME;
  config.ssl = false;
  config.debugLogging = true;
  _heartbeat = new MediaHeartbeat(this, config);
}

@Override
public MediaObject getQoSObject() {
  return MediaHeartbeat.createQoSObject(BITRATE, STARTUP_TIME, FPS, DROPPED_FRAMES);
}

@Override
public Double getCurrentPlaybackTime() {
  return _player.getCurrentPlaybackTime();
}

@Override
protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);

  // Bootstrap the AppMeasurement library.
  Config.setContext(this.getApplicationContext());

  // Create the MediaPlayer instance.
  _player = new MediaPlayer();

  // Create the MediaAnalyticsProvider instance and
  // attach it to the MediaPlayer instance.
   _analyticsProvider = new MediaAnalyticsProvider(_player);

  // Load the main media content.
   Uri uri = Uri.parse("android.resource://" + getPackageName() + "/" + R.raw.media1);
   _player.loadContent(uri);
}

Para exibir a primeira sessão usando a instância MediaAnalyticsProvider (ou seja, MediaHeartbeat) no Android, configure o seguinte código:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_VAL_1, CUSTOM_KEY_1);
mediaMetadata.put(CUSTOM_VAL_2, CUSTOM_KEY_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 3. Call trackComplete() when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 4. Call trackSessionEnd() when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

Para exibir a segunda sessão, você pode usar a mesma instância MediaAnalyticsProvider (MediaHeartbeat) da primeira sessão, só que para uma nova sessão:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_VAL_1, CUSTOM_KEY_1);
mediaMetadata.put(CUSTOM_VAL_2, CUSTOM_KEY_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// 2. Call trackPlay() when the playback actually starts, i.e., when the first
//    frame of main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 3. Call trackComplete() when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
_mediaHeartbeat.trackComplete();

........
........

// 4. Call trackSessionEnd() when the playback session is over. This method
//    must be called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

Para criar duas instâncias de MediaHeartbeat para dois reprodutores de mídia, insira:

@interface MediaAnalyticsProvider : NSObject <ADBMediaHeartbeatDelegate>

@end

@implementation {
  MediaPlayer *_player;
}

- (instancetype)initWithPlayer:(AVPlayer *)player {
  if (self = [super init]) {
      _player = player;

      ADBMediaHeartbeatConfig *config = [[ADBMediaHeartbeatConfig alloc] init];
      config.trackingServer = HEARTBEAT_TRACKING_SERVER;
      config.channel = HEARTBEAT_CHANNEL;
      config.appVersion = HEARTBEAT_SDK_VERSION;
      config.playerName = PLAYER_NAME;
      config.ssl = SSL_SETTING;
      config.debugLogging = DEBUG_SETTING;

      ADBMediaHeartbeatConfig *config = [[ADBMediaHeartbeatConfig alloc] init];
      _mediaHeartbeat = [[ADBMediaHeartbeat alloc] initWithDelegate:self config:config];

      [self setupPlayerNotifications];
  }

  return self;
}

- (ADBMediaObject *)getQoSInfo {
  return [ADBMediaHeartbeat createQoSObjectWithBitrate:CURRENT_BITRATE_VALUE
                            startupTime:CALCULATED_STARTED_TIME
                            fps:CALCULATED_FPS
                            droppedFrames:DROPPED_FRAMES_COUNT];
}

- (NSTimeInterval)getCurrentPlaybackTime {
  return CMTimeGetSeconds(_player.currentTime);
}

@end

- (void)viewDidAppear:(BOOL)animated {
  [super viewDidAppear:animated];
  [ADBMobile setDebugLogging:YES];

  // Setup the first media player
  NSURL *streamUrl = [NSURL URLWithString:CONTENT_URL];

  if (!self.mediaPlayer) {
      self.mediaPlayer = [[MediaPlayer alloc] initWithContentURL:streamUrl];
      //setup player
  }

  // Create the MediaAnalyticsProvider instance and attach it to the first
  // MediaPlayer instance.
  if (!self.mediaAnalyticsProvider) {
      self.mediaAnalyticsProvider =
        [[MediaAnalyticsProvider alloc] initWithPlayerDelegate:self.mediaPlayer];
  }
}

Para exibir a primeira sessão usando a instância MediaAnalyticsProvider (ou seja, o MediaHeartbeat) no iOS, configure o seguinte código:

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there's an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// 2. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 3. Call trackComplete when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 4. Call trackSessionEnd when the playback session is over. This method
//    must be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

Para exibir a segunda sessão, você pode usar a mesma instância MediaAnalyticsProvider (MediaHeartbeat) da primeira sessão, só que para uma nova sessão:

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// 2. Call trackPlay when the playback actually starts, i.e. when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 3. Call trackComplete when the playback reaches the end, i.e., when the
//    media completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 4. Call trackSessionEnd when the playback session is over. This method
//    must be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

var MediaHeartbeat = ADB.va.MediaHeartbeat;
var MediaHeartbeatConfig = ADB.va.MediaHeartbeatConfig;
var MediaHeartbeatDelegate = ADB.va.MediaHeartbeatDelegate;

function MediaAnalyticsProvider(player) {
  if (!player) {
      throw new Error("Illegal argument. Player reference cannot be null.")
  }
  this._player = player;

  // Media Heartbeat initialization
  var mediaConfig = new MediaHeartbeatConfig();
  mediaConfig.trackingServer = Configuration.HEARTBEAT.TRACKING_SERVER;
  mediaConfig.playerName = Configuration.PLAYER.NAME;
  mediaConfig.channel = Configuration.HEARTBEAT.CHANNEL;
  mediaConfig.debugLogging = true;
  mediaConfig.appVersion = Configuration.HEARTBEAT.SDK;
  mediaConfig.ssl = false;
  mediaConfig.ovp = Configuration.HEARTBEAT.OVP;

  var mediaDelegate = new MediaHeartbeatDelegate();

  mediaDelegate.getCurrentPlaybackTime = function() {
      return player.getCurrentPlaybackTime();
  };

  mediaDelegate.prototype.getQoSObject = function() {
      return player.getQoSInfo();
  };

  this._mediaHeartbeat =
    new MediaHeartbeat(mediaDelegate, mediaConfig, appMeasurement);
}

// Create the first MediaPlayer instance.
var _player1 = new MediaPlayer();

// Create the first MediaAnalyticsProvider instance and
// attach it to the MediaPlayer instance.
analyticsProvider1 = new MediaAnalyticsProvider(_player1);

// Load the main media content.
_player1.loadContent(URL_TO_MEDIA_1);
