Adobe Experience Platform Launch has been rebranded as a suite of data collection technologies in Adobe Experience Platform. Several terminology changes have rolled out across the product documentation as a result. Please refer to the following document for a consolidated reference of the terminology changes.
Amazon Web Services (AWS) is a cloud computing platform that offers a wide variety of services such as distributed computing, database storage, content delivery, and software-as-a-service (SaaS) integration services for customer relationship management (CRM) and enterprise resource planning (ERP).
The AWS event forwarding extension leverages Amazon Kinesis Data Streams to send events from the Adobe Experience Platform Edge Network to AWS for further processing. This guide covers how to install the extension and employ its capabilities in an event forwarding rule.
You must have an AWS account with an existing Kinesis data stream in order to use this extension. If you do not have a pre-existing data stream, see the AWS documentation on creating a new data stream using the AWS Management Console.
To install the AWS extension, navigate to the Data Collection UI or Experience Platform UI and select Event Forwarding from the left navigation. From here, select a property to add the extension to, or create a new property instead.
Once you have selected or created the desired property, select Extensions in the left navigation, then select the Catalog tab. Search for the AWS card, then select Install.
On the next screen, you must provide the connection credentials for your AWS account. Specifically, you must provide your AWS access key ID and secret access key. If you do not know these values, see the AWS documentation on how to obtain your access key ID and secret access key.
An access policy needs to be attached to the AWS account used to generate the access credentials. This policy must be configured to grant access rights to send data to the Kinesis data stream. Refer to Example 2 in the AWS document on example policies for Kinesis Data Streams to see how the policy should be defined.
When finished, select Save and the extension is installed.

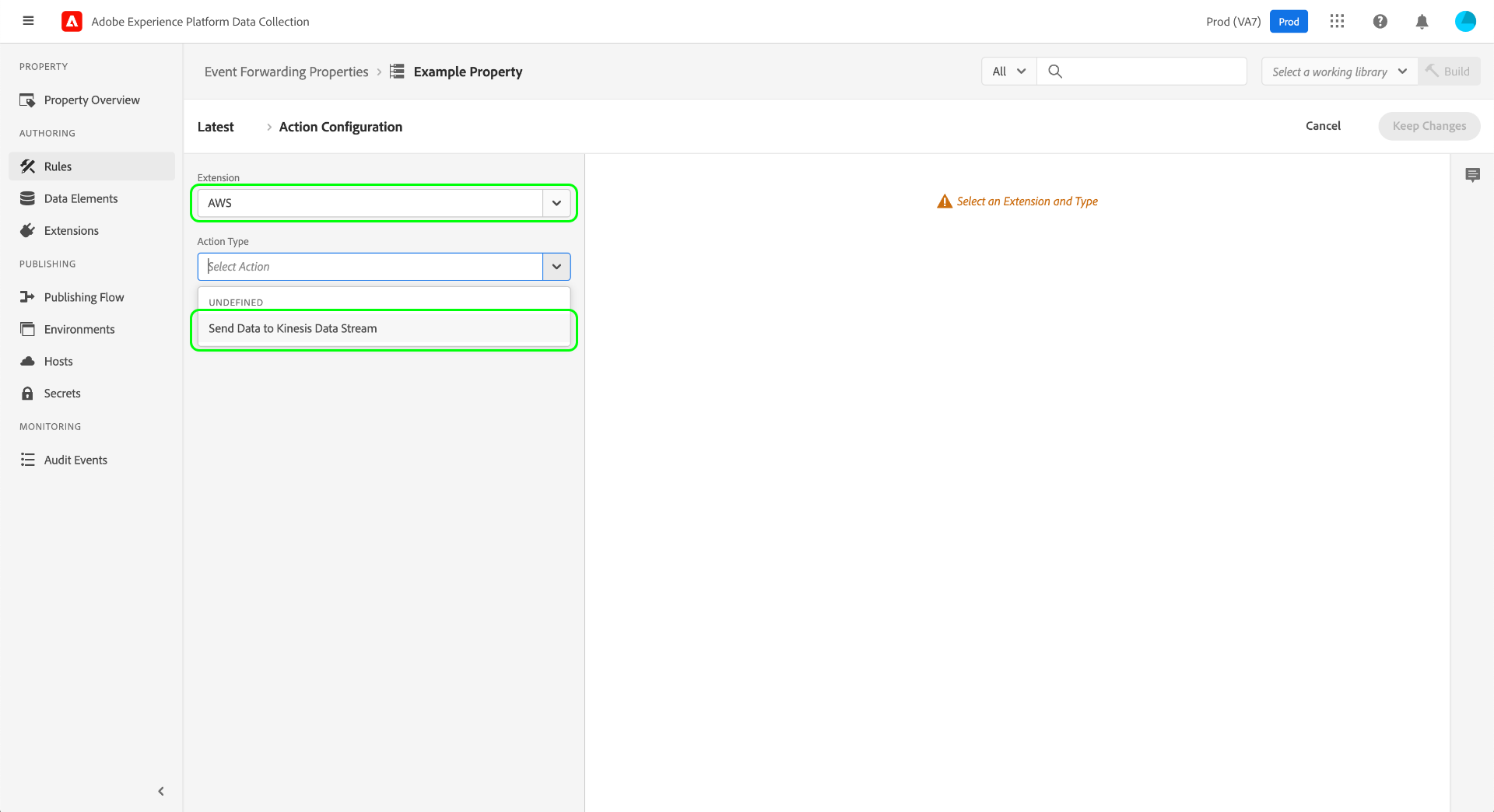

After installing the extension, create a new event forwarding rule and configure its conditions as desired. When configuring the actions for the rule, select the AWS extension, then select Send Data to Kinesis Data Stream for the action type.
The right panel updates to show configuration options for how the data should be sent. Specifically, you must assign data elements to the various properties that represent your Event Hub configuration.
Kinesis Data Stream Details
|Stream Name||The name of the stream to that this event forwarding rule will send data records to.|
|AWS Region||The AWS region where the Kinesis data stream is created.|
|Partition Key||The partition key that the extension will use when sending data to the data stream.
Kinesis Data Streams segregates the data records belonging to a stream into multiple shards. It uses the partition key that is sent with each data record to determine which shard a given data record belongs to.
A good partition key for distributing customers might be the customer number, since it is different for each customer. A poor partition key might their zip code because they all may live in the same area nearby. In general, you should choose a partition key that has the highest range of different potential values. See the AWS article on scaling your Kinesis data streams for best practices on managing partition keys.
|Payload||This field contains the data that will be forwarded to the Kinesis data stream, in JSON format.
Under the Raw option, you can paste the JSON object directly into the provided text field, or you can select the data element icon () to select from a list of existing data elements to represent the payload.
You can also use the JSON Key-Value Pairs Editor option to manually add each key-value pair through a UI editor. Each value can be represented by a raw input, or a data element can be selected instead.
When finished, select Keep Changes to add the action to the rule configuration. When you are satisfied with the rule, select Save to Library.
Finally, publish a new event forwarding build to enable the changes to the library.
This guide covered how to send data to Kinesis Data Streams using the AWS event forwarding extension. For more information on event forwarding capabilities in Experience Platform, refer to the event forwarding overview.
