開發適用於AEM Screens的自訂元件

下列教學課程將逐步說明為AEM Screens建立自訂元件的步驟。 AEM Screens會重新使用其他AEM產品的許多現有設計模式和技術。 本教學課程著重說明開發AEM Screens時的差異和特殊考量。

概觀

本教學課程適用於剛接觸AEM Screens的開發人員。 在本教學課程中,已針對AEM Screens中的序列管道建置簡單的「Hello World」元件。 對話方塊可讓作者更新顯示的文字。

溢漏

必備條件

若要完成本教學課程,需要執行下列操作:

  1. AEM 6.5AEM 6.3 +最新Screens Feature Pack

  2. AEM Screens 播放器

  3. 本機開發環境

教學課程步驟和螢幕擷取畫面是使用 CRXDE-Lite. IDE也可用於完成本教程。 有關使用IDE開發的更多資訊 若需AEM,請前往此處。

專案設定

Screens專案的原始碼通常以多模組Maven專案的形式管理。 為加快教學課程的進行,已使用 AEM專案原型13. 更多詳細資訊 若要使用Maven AEM專案原型建立專案,請前往此處.

  1. 使用 CRX套件管理器:

取得檔案

取得檔案
(可選) 如果使用Eclipse或其他IDE,請下載以下源包。 使用Maven命令將專案部署至本機AEM執行個體:

mvn -PautoInstallPackage clean install

啟動HelloWorld SRC螢幕We.Retail運行項目

取得檔案

  1. CRX封裝管理器 驗證是否安裝了以下兩個軟體包:

    1. screens-weretail-run.ui.content-0.0.1-SNAPSHOT.zip
    2. screens-weretail-run.ui.apps-0.0.1-SNAPSHOT.zip

    透過CRX套件管理器安裝的Screens We.Retail執行Ui.Apps和Ui.Content套件

    透過CRX套件管理器安裝的Screens We.Retail執行Ui.Apps和Ui.Content套件

  2. screens-weretail-run.ui.apps 套件安裝程式碼底下 /apps/weretail-run.

    此套件包含負責呈現專案自訂元件的程式碼。 此套件包含元件程式碼,以及需要的任何JavaScript或CSS。 這個包裹也嵌入 screens-weretail-run.core-0.0.1-SNAPSHOT.jar 包含專案所需的任何Java程式碼。

    注意

    在本教學課程中,不會編寫Java程式碼。 如果需要更複雜的業務邏輯,可使用核心Java套件來建立和部署後端Java。

    在CRXDE Lite中呈現ui.apps程式碼

    在CRXDE Lite中呈現ui.apps程式碼

    海洛世界 元件目前只是預留位置。 在教學課程中,將新增功能,讓作者更新元件顯示的訊息。

  3. screens-weretail-run.ui.content 套件安裝程式碼如下:

    • /conf/we-retail-run
    • /content/dam/we-retail-run
    • /content/screens/we-retail-run

    此套件包含專案所需的開始內容和設定結構。 /conf/we-retail-run 包含We.Retail Run專案的所有設定。 /content/dam/we-retail-run 包括啟動專案的數位資產。 /content/screens/we-retail-run 包含Screens內容結構。 這些路徑下方的內容主要會在AEM中更新。 為了提高環境(本地、開發、階段、生產)之間的一致性,通常在原始碼控制中保存基本內容結構。

  4. 導覽至「AEM Screens > We.Retail執行」專案:

    從「 AEM開始」功能表>按一下「畫面」圖示。 驗證是否可以看到We.Retail運行項目。

    我們 — Retaiul-run-starter

建立Hello World元件

Hello World元件是一個簡單元件,允許用戶輸入要在螢幕上顯示的消息。 元件以 AEM Screens元件範本:https://github.com/Adobe-Marketing-Cloud/aem-screens-component-template.

AEM Screens有一些有趣的限制,但傳統WCM Sites元件未必如此。

  • 大部分的Screens元件都需要在目標數位看板裝置上以全螢幕執行
  • 大部分的Screens元件需內嵌在序列頻道中,才能產生投影片
  • 製作應允許編輯序列管道中的個別元件,因此無法全螢幕呈現元件
  1. CRXDE-Lite http://localhost:4502/crx/de/index.jsp (或您選擇的IDE)導覽至 /apps/weretail-run/components/content/helloworld.

    將下列屬性新增至 helloworld 元件:

        jcr:title="Hello World"
        sling:resourceSuperType="foundation/components/parbase"
        componentGroup="We.Retail Run - Content"


    /apps/weretail-run/components/content/helloworld的屬性

    /apps/weretail-run/components/content/helloworld的屬性

    海洛世界 元件延伸 foundation/components/parbase 元件,以便在序列通道內正確使用。

  2. 在下方建立檔案 /apps/weretail-run/components/content/helloworld 已命名 helloworld.html.

    將下列項目填入檔案:

    <!--/*

     /apps/weretail-run/components/content/helloworld/helloworld.html

    */-->

    <!--/* production: preview authoring mode + unspecified mode (i.e. on publish) */-->
    <sly data-sly-test.production="${wcmmode.preview || wcmmode.disabled}" data-sly-include="production.html" />

    <!--/* edit: any other authoring mode, i.e. edit, design, scaffolding, etc. */-->
    <sly data-sly-test="${!production}" data-sly-include="edit.html" />


    螢幕元件需要兩種不同的呈現方式,具體取決於 製作模式 正在使用:

    1. 生產:預覽或發佈模式(wcmmode=disabled)
    2. 編輯:用於所有其他製作模式,例如編輯、設計、支架、開發人員……

    helloworld.html可做為交換機,檢查目前作用中的製作模式,並重新導向至其他HTL指令碼。 螢幕元件使用的常見慣例是 edit.html 編輯模式的指令碼,以及 production.html 指令碼。

  3. 在下方建立檔案 /apps/weretail-run/components/content/helloworld 已命名 production.html.

    將下列項目填入檔案:

    <!--/*
     /apps/weretail-run/components/content/helloworld/production.html

    */-->

    <div data-duration="${properties.duration}" class="cmp-hello-world">
     <h1 class="cmp-hello-world__message">${properties.message}</h1>
    </div>


    以上是Hello World元件的生產標籤。 A data-duration 屬性,因為元件用於序列管道。 此 data-duration 「序列」管道會使用「屬性」來知道序列項目要顯示多久。

    元件會呈現 divh1 標籤文字。 ${properties.message} 是HTL指令碼的一部分,會輸出名為的JCR屬性的內容 message. 稍後會建立對話方塊,讓使用者為 message 屬性文字。

    另請注意,BEM(區塊元素修飾元)標籤法會與元件搭配使用。 BEM是CSS編碼慣例,可讓您更輕鬆建立可重複使用的元件。 BEM是使用的標籤法 AEM核心元件.

  4. 在下方建立檔案 /apps/weretail-run/components/content/helloworld 已命名 edit.html.

    將下列項目填入檔案:

    <!--/*

     /apps/weretail-run/components/content/helloworld/edit.html

    */-->

    <!--/* if message populated */-->
    <div
     data-sly-test.message="${properties.message}"
     class="aem-Screens-editWrapper cmp-hello-world">
     <p class="cmp-hello-world__message">${message}</p>
    </div>

    <!--/* empty place holder */-->
    <div data-sly-test="${!message}"
         class="aem-Screens-editWrapper cq-placeholder cmp-hello-world"
         data-emptytext="${'Hello World' @ i18n, locale=request.locale}">
    </div>


    以上是Hello World元件的編輯標籤。 如果已填入對話方塊訊息,第一個區塊會顯示元件的編輯版本。

    如果未輸入對話消息,則呈現第二塊。 此 cq-placeholderdata-emptytext 呈現標籤 《你好世界》 作為那個案子的持倉者。 標籤的字串可以使用i18n進行國際化,以支援在多個語言環境中編寫。

  5. 複製要用於Hello World元件的螢幕影像對話框。

    最簡單的方式是從現有對話方塊開始,然後進行修改。

    1. 從以下位置複製對話框: /libs/screens/core/components/content/image/cq:dialog
    2. 將對話方塊貼到下方 /apps/weretail-run/components/content/helloworld

    copy-image-dialog

  6. 更新「Hello World」對話框以包含消息的頁簽。

    更新對話方塊,使其符合下列項目。 最終對話框的JCR節點結構以XML形式顯示如下:

    <?xml version="1.0" encoding="UTF-8"?>
    <jcr:root xmlns:sling="https://sling.apache.org/jcr/sling/1.0" xmlns:cq="https://www.day.com/jcr/cq/1.0" xmlns:jcr="https://www.jcp.org/jcr/1.0" xmlns:nt="https://www.jcp.org/jcr/nt/1.0"
        jcr:primaryType="nt:unstructured"
        jcr:title="Hello World"
        sling:resourceType="cq/gui/components/authoring/dialog">
        <content
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/coral/foundation/tabs"
            size="L">
            <items jcr:primaryType="nt:unstructured">
                <message
                    jcr:primaryType="nt:unstructured"
                    jcr:title="Message"
                    sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
                    <items jcr:primaryType="nt:unstructured">
                        <column
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/container">
                            <items jcr:primaryType="nt:unstructured">
                                <message
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                    fieldDescription="Message for component to display"
                                    fieldLabel="Message"
                                    name="./message"/>
                            </items>
                        </column>
                    </items>
                </message>
                <sequence
                    jcr:primaryType="nt:unstructured"
                    jcr:title="Sequence"
                    sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
                    <items jcr:primaryType="nt:unstructured">
                        <column
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/container">
                            <items jcr:primaryType="nt:unstructured">
                                <duration
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/form/numberfield"
                                    defaultValue=""
                                    fieldDescription="Amount of time the image will be shown in the sequence, in milliseconds"
                                    fieldLabel="Duration (ms)"
                                    min="0"
                                    name="./duration"/>
                            </items>
                        </column>
                    </items>
                </sequence>
            </items>
        </content>
    </jcr:root>


    訊息的文字欄位將儲存至名為 message 而且持續時間的number欄位將儲存至名為 duration. 這兩個屬性均在 /apps/weretail-run/components/content/helloworld/production.html 由HTL as ${properties.message}${properties.duration}.

    Hello World — 已完成對話

    Hello World — 已完成對話

建立用戶端程式庫

用戶端資料庫提供組織及管理AEM實作所需CSS和JavaScript檔案的機制。

AEM Screens元件在編輯模式和預覽/生產模式中呈現的呈現方式不同。 將建立兩個用戶端程式庫,一個用於編輯模式,另一個用於預覽/生產。

  1. 為Hello World元件的用戶端程式庫建立資料夾。

    下方 /apps/weretail-run/components/content/helloworld建立名為 clientlibs.

    2018-04-30_at_1046am

  2. clientlibs 資料夾建立名為的新節點 shared 類型 cq:ClientLibraryFolder.

    2018-04-30_at_1115am

  3. 將以下屬性添加到共用客戶端庫:

    • allowProxy | 布林值 | true

    • categories|字串[] | cq.screens.components

    /apps/weretail-run/components/content/helloworld/clientlibs/shared的屬性

    /apps/weretail-run/components/content/helloworld/clientlibs/shared的屬性

    categories屬性是識別用戶端程式庫的字串。 cq.screens.components類別可在「編輯」和「預覽/生產」模式中使用。 因此,在sharedclientlib中定義的任何CSS/JS都會在所有模式中載入。

    最佳作法是絕不直接公開任何路徑至生產環境中的/apps。 allowProxy屬性可確保透過首碼of/etc.clientlibs參考用戶端程式庫CSS和JS。

  4. 建立名為 css.txt 共用資料夾底下。

    將下列項目填入檔案:

    #base=css

    styles.less

  5. 建立名為 css 在下面 shared 檔案夾。 新增名為的檔案 style.less 在下面 css 檔案夾。 用戶端程式庫的結構現在應該如下所示:

    2018-04-30_at_3_11pm

    本教學課程不會直接編寫CSS,而是使用LESS。 較少 是一種熱門的CSS預編譯器,可支援CSS變數、mixin和函式。 AEM用戶端程式庫原本支援LESS編譯。 可以使用Sas或其他預編譯器,但需要在AEM之外進行編譯。

  6. 填入 /apps/weretail-run/components/content/helloworld/clientlibs/shared/css/styles.less 並搭配下列項目:

    /**
        Shared Styles
       /apps/weretail-run/components/content/helloworld/clientlibs/shared/css/styles.less

    **/

    .cmp-hello-world {
        background-color: #fff;

     &__message {
      color: #000;
      font-family: Helvetica;
      text-align:center;
     }
    }

  7. 複製並貼上 shared 用戶端程式庫資料夾,以建立名為 production.

    複製共用客戶端庫以建立新的生產客戶端庫

    複製共用客戶端庫以建立新的生產客戶端庫

  8. 更新 categories 要設為的生產clientlibrary的屬性 cq.screens.components.production.

    這可確保樣式只有在預覽/生產模式中才會載入。

    /apps/weretail-run/components/content/helloworld/clientlibs/production的屬性

    /apps/weretail-run/components/content/helloworld/clientlibs/production的屬性

  9. 填入 /apps/weretail-run/components/content/helloworld/clientlibs/production/css/styles.less 並搭配下列項目:

    /**
        Production Styles
       /apps/weretail-run/components/content/helloworld/clientlibs/production/css/styles.less

    **/
    .cmp-hello-world {

        height: 100%;
        width: 100%;
        position: fixed;

     &__message {

      position: relative;
      font-size: 5rem;
      top:25%;
     }
    }


    上述樣式會在畫面中央顯示訊息,但僅限在生產模式中。

第三個clientlibrary類別: cq.screens.components.edit 可用來新增僅限編輯的特定樣式至元件。

Clientlib類別 使用狀況
cq.screens.components 在編輯和生產模式之間共用的樣式和指令碼
cq.screens.components.edit 僅用於編輯模式的樣式和指令碼
cq.screens.components.production 僅用於生產模式的樣式和指令碼

建立設計頁面

AEM Screens使用 靜態頁面範本設計配置 全域變更。 設計設定常用來為通道上的Parsys設定允許的元件。 最佳實務是以應用程式專屬的方式儲存這些設定。

在「We.Retail執行設計」頁面下方建立,該頁面會儲存We.Retail執行專案的所有特定設定。

  1. CRXDE-Lite http://localhost:4502/crx/de/index.jsp#/apps/settings/wcm/designs 導覽至 /apps/settings/wcm/designs

  2. 在設計資料夾下建立新節點,名為 we-retail-run 具有 cq:Page.

  3. we-retail-run 頁面,新增另一個節點,名為 jcr:content 類型 nt:unstructured. 將下列屬性新增至 jcr:content 節點:

    名稱 類型
    jcr:title 字串 We.Retail運行
    sling:resourceType 字串 wcm/core/components/designer
    cq:doctype 字串 html_5

    設計頁面(位於/apps/settings/wcm/designs/we-retail-run)

    設計頁面(位於/apps/settings/wcm/designs/we-retail-run)

建立序列管道

Hello World元件用於序列管道。 要測試元件,將建立新的「序列通道」。

  1. 從AEM開始功能表導覽至 Screens > We.Retail Ru n >選取 管道.

  2. 按一下 建立 按鈕

    1. 選擇 建立實體

    2018-04-30_at_5_18pm

  3. 在建立精靈中:

  4. 模板步驟 — 選擇 序列頻道

    1. 屬性步驟
    • 基本標籤>標題= 空閒通道
    • 管道標籤>檢查 使通道聯機

    空閒通道

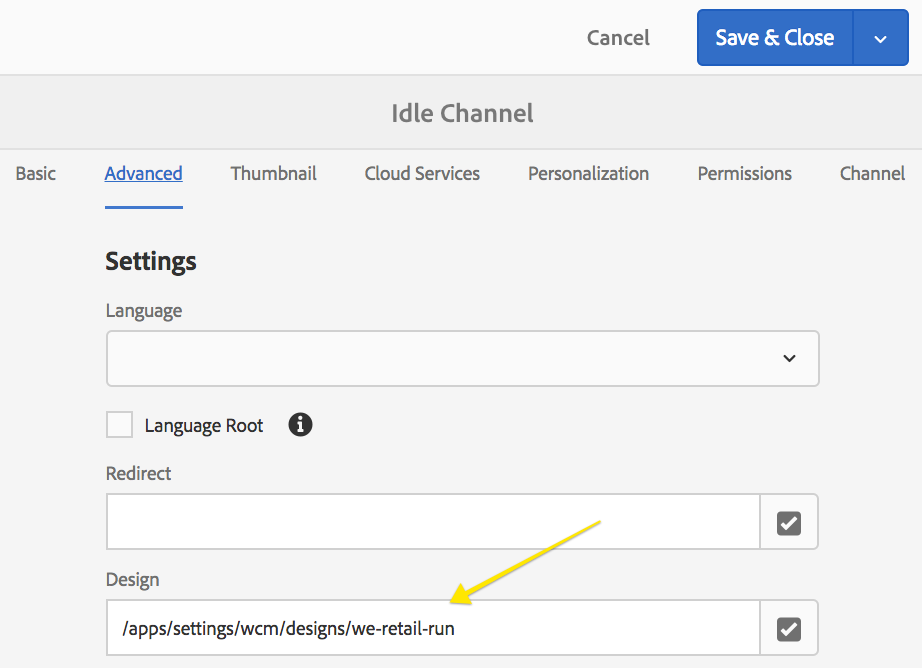

  5. 開啟「空閒通道」的頁面屬性。 更新「設計」欄位以指向 /apps/settings/wcm/designs/we-retail-run,在上一節中建立的設計頁。

    設計配置/apps/settings/wcm/designs/we-retail-run

    指向/apps/settings/wcm/designs/we-retail-run的設計配置

  6. 編輯新建立的空閒通道以開啟它。

  7. 將頁面模式切換為 設計 模式

    1. 按一下 扳手 Parsys中的圖示,以設定允許的元件

    2. 選取 Screens 本集團及 We.Retail執行 — 內容 群組。

    2018-04-30_at_5_43pm

  8. 將頁面模式切換為 編輯. 您現在可以將Hello World元件新增至頁面,並與其他序列管道元件結合。

    2018-04-30_at_5_53pm

  9. CRXDE-Lite http://localhost:4502/crx/de/index.jsp#/apps/settings/wcm/designs/we-retail-run/jcr%3Acontent/sequencechannel/par 導覽至 /apps/settings/wcm/designs/we-retail-run/jcr:content/sequencechannel/par. 請注意 components 現在包含 group:Screens, group:We.Retail Run - Content.

    /apps/settings/wcm/designs/we-retail-run下的設計配置

    /apps/settings/wcm/designs/we-retail-run下的設計配置

自訂處理常式的範本

如果您的自訂元件使用外部資源,例如資產(影像、視訊、字型、圖示等)、特定資產轉譯或用戶端程式庫(css、js等),則這些資源不會自動新增至離線設定,因為我們預設僅捆綁HTML標籤。

為了讓您自訂並最佳化下載至播放器的確切資產,我們提供自訂元件的擴充功能機制,以在Screens中公開其相依性至離線快取邏輯。

下節將展示自訂離線資源處理常式的範本,以及 pom.xml 特定專案。

package …;

import javax.annotation.Nonnull;

import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.Service;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.api.resource.ResourceUtil;
import org.apache.sling.api.resource.ValueMap;

import com.adobe.cq.screens.visitor.OfflineResourceHandler;

@Service(value = OfflineResourceHandler.class)
@Component(immediate = true)
public class MyCustomHandler extends AbstractResourceHandler {

 @Reference
 private …; // OSGi services injection

 /**
  * The resource types that are handled by the handler.
  * @return the handled resource types
  */
 @Nonnull
 @Override
 public String[] getSupportedResourceTypes() {
     return new String[] { … };
 }

 /**
  * Accept the provided resource, visit and traverse it as needed.
  * @param resource The resource to accept
  */
 @Override
 public void accept(@Nonnull Resource resource) {
     ValueMap properties = ResourceUtil.getValueMap(resource);

     /* You can directly add explicit paths for offline caching using the `visit`
        method of the visitor. */

     // retrieve a custom property from the component
     String myCustomRenditionUrl = properties.get("myCustomRenditionUrl", String.class);
     // adding that exact asset/rendition/path to the offline manifest
     this.visitor.visit(myCustomRenditionUrl);


     /* You can delegate handling for dependent resources so they are also added to
        the offline cache using the `accept` method of the visitor. */

     // retrieve a referenced dependent resource
     String referencedResourcePath = properties.get("myOtherResource", String.class);
     ResourceResolver resolver = resource.getResourceResolver();
     Resource referencedResource = resolver.getResource(referencedResourcePath);
     // let the handler for that resource handle it
     if (referencedResource != null) {
         this.visitor.accept(referencedResource);
     }
   }
}

下列程式碼提供 pom.xml 針對該特定專案:

   <dependencies>
        …
        <!-- Felix annotations -->
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
            <version>1.9.0</version>
            <scope>provided</scope>
        </dependency>

        <!-- Screens core bundle with OfflineResourceHandler/AbstractResourceHandler -->
        <dependency>
            <groupId>com.adobe.cq.screens</groupId>
            <artifactId>com.adobe.cq.screens</artifactId>
            <version>1.5.90</version>
            <scope>provided</scope>
        </dependency>
        …
      </dependencies>

把它們放在一起

以下影片顯示已完成的元件,以及如何將其新增至「序列」管道。 然後,該頻道會新增至「位置」顯示畫面,並最終指派給Screens播放器。

內嵌其他頁面或片段的自訂元件的其他考量事項

如果您要開發的自訂元件旨在包含其他頁面或體驗片段,而且如果您想要播放器自動擷取內嵌內容中的變更,而不需要重新發佈管道,您需要考量這2項限制:

  1. 而非直接延伸 foundation/components/parbase,您必須將 screens/core/components/content/pagescreens/core/components/content/experiencefragment
  2. 您用來參考內嵌內容的屬性名稱必須為 pagePath

運用這2個Screens核心元件,還可提供額外的優點,讓他們能將您需要的一些相依性(用戶端程式庫、字型等)整合在一起 透過元件對話方塊中的離線設定選項,這樣就能降低您必須用於此的任何自訂離線處理常式的責任,有時甚至會完全移除使用自訂離線處理常式的需求。

完成的程式碼

以下是教學課程中完成的程式碼。 此 screens-weretail-run.ui.apps-0.0.1-SNAPSHOT.zipscreens-weretail-run.ui.content-0.0.1-SNAPSHOT.zip 是已編譯的AEM套件。 SRC-screens-weretail-run-0.0.1.zip ​ 是未編譯的原始碼,可使用Maven部署。

取得檔案

取得檔案

取得檔案

本頁內容
