可編輯的固定元件

可編輯的React元件可以是「固定」元件,或硬式編碼至SPA檢視。 這可讓開發人員將SPA Editor相容的元件放入SPA檢視中,並讓使用者在AEM SPA Editor中製作元件的內容。

固定元件

在本章中,我們會取代首頁檢視的標題「目前歷險」,這是 Home.js 具有固定但可編輯的標題元件時。 固定元件可保證標題的放置,但也允許編寫標題的文字,並在開發週期之外進行變更。

更新WKND應用程式

新增 固定 「首頁」視圖的元件:

  • 建立可自定義編輯的Title元件,並將其註冊到項目的Title的資源類型
  • 將可編輯的Title元件放置在SPA首頁檢視上

建立可編輯的React Title元件

在SPA首頁檢視中,取代硬式編碼文字 <h2>Current Adventures</h2> 具有自訂可編輯的標題元件。 必須先執行下列動作,才能使用Title元件:

  1. 建立自訂Title React元件
  2. 使用以下來源的方法裝飾自訂標題元件: @adobe/aem-react-editable-components 讓其可編輯。
  3. 使用註冊可編輯的標題元件 MapTo 以便用於 容器元件.

要執行此操作:

  1. 在開啟遠端SPA專案 ~/Code/aem-guides-wknd-graphql/remote-spa-tutorial/react-app 在IDE中

  2. 在建立React元件 react-app/src/components/editable/core/Title.js

  3. 將下列程式碼新增至 Title.js.

    import React from 'react'
    import { RoutedLink } from "./RoutedLink";

    const TitleLink = (props) => {
    return (
        <RoutedLink className={props.baseCssClass + (props.nested ? '-' : '__') + 'link'}
            isRouted={props.routed}
            to={props.linkURL}>
        {props.text}
        </RoutedLink>
    );
    };

    const TitleV2Contents = (props) => {
        if (!props.linkDisabled) {
            return <TitleLink {...props} />
        }

        return <>{props.text}</>
    };

    export const Title = (props) => {
        if (!props.baseCssClass) {
            props.baseCssClass = 'cmp-title'
        }

        const elementType = (!!props.type) ? props.type.toString() : 'h3';
        return (<div className={props.baseCssClass}>
            {
                React.createElement(elementType, {
                        className: props.baseCssClass + (props.nested ? '-' : '__') + 'text',
                    },
                    <TitleV2Contents {...props} />
                )
            }

            </div>)
    }

    export const titleIsEmpty = (props) => props.text == null || props.text.trim().length === 0


    請注意,此React元件尚未使用AEM SPA Editor編輯。 此基礎元件將在下一步中設為可編輯。

    閱讀程式碼的註解,了解實作詳細資訊。

  4. 在建立React元件 react-app/src/components/editable/EditableTitle.js

  5. 將下列程式碼新增至 EditableTitle.js.

    // Import the withMappable API provided bu the AEM SPA Editor JS SDK
    import { EditableComponent, MapTo } from '@adobe/aem-react-editable-components';
    import React from 'react'

    // Import the AEM the Title component implementation and it's Empty Function
    import { Title, titleIsEmpty } from "./core/Title";
    import { withConditionalPlaceHolder } from "./core/util/withConditionalPlaceholder";
    import { withStandardBaseCssClass } from "./core/util/withStandardBaseCssClass";

    // The sling:resourceType of the AEM component used to collected and serialize the data this React component displays
    const RESOURCE_TYPE = "wknd-app/components/title";

    // Create an EditConfig to allow the AEM SPA Editor to properly render the component in the Editor's context
    const EditConfig = {
        emptyLabel: "Title",        // The component placeholder in AEM SPA Editor
        isEmpty: titleIsEmpty,      // The function to determine if this component has been authored
        resourceType: RESOURCE_TYPE // The sling:resourceType this component is mapped to
    };

    export const WrappedTitle = (props) => {
        const Wrapped = withConditionalPlaceHolder(withStandardBaseCssClass(Title, "cmp-title"), titleIsEmpty, "TitleV2")
        return <Wrapped {...props} />
    }

    // EditableComponent makes the component editable by the AEM editor, either rendered statically or in a container
    const EditableTitle = (props) => <EditableComponent config={EditConfig} {...props}><WrappedTitle /></EditableComponent>

    // MapTo allows the AEM SPA Editor JS SDK to dynamically render components added to SPA Editor Containers
    MapTo(RESOURCE_TYPE)(EditableTitle);

    export default EditableTitle;


    EditableTitle React元件包住 Title React元件、包裝和裝飾,以便在AEM SPA Editor中編輯。

使用React EditableTitle元件

現在EditableTitle React元件已在中註冊,且可在React應用程式中使用,請取代首頁檢視上的硬式編碼標題文字。

  1. 編輯 react-app/src/components/Home.js

  2. Home() 在底部,匯入 EditableTitle 並將硬式編碼標題取代為 AEMTitle 元件:

    ...
    import EditableTitle from './editable/EditableTitle';
    ...
    function Home() {
        return (
            <div className="Home">

            <EditableTitle
                pagePath='/content/wknd-app/us/en/home'
                itemPath='root/title'/>

                <Adventures />
            </div>
        );
    }


Home.js 檔案看起來應該像這樣:

Home.js

在AEM中製作標題元件

  1. 登入AEM作者

  2. 導覽至 Sites > WKND應用程式

  3. 點選 首頁 選取 編輯 從頂端動作列

  4. 選擇 編輯 從頁面編輯器右上角的編輯模式選取器

  5. 將滑鼠移到WKND標誌下方和歷險清單上方的預設標題文字上,直到顯示藍色的編輯大綱

  6. 點選以公開元件的動作列,然後點選 扳手 編輯

    標題元件動作列

  7. 製作標題元件:

    • 標題: WKND冒險

    • 類型/大小: H2

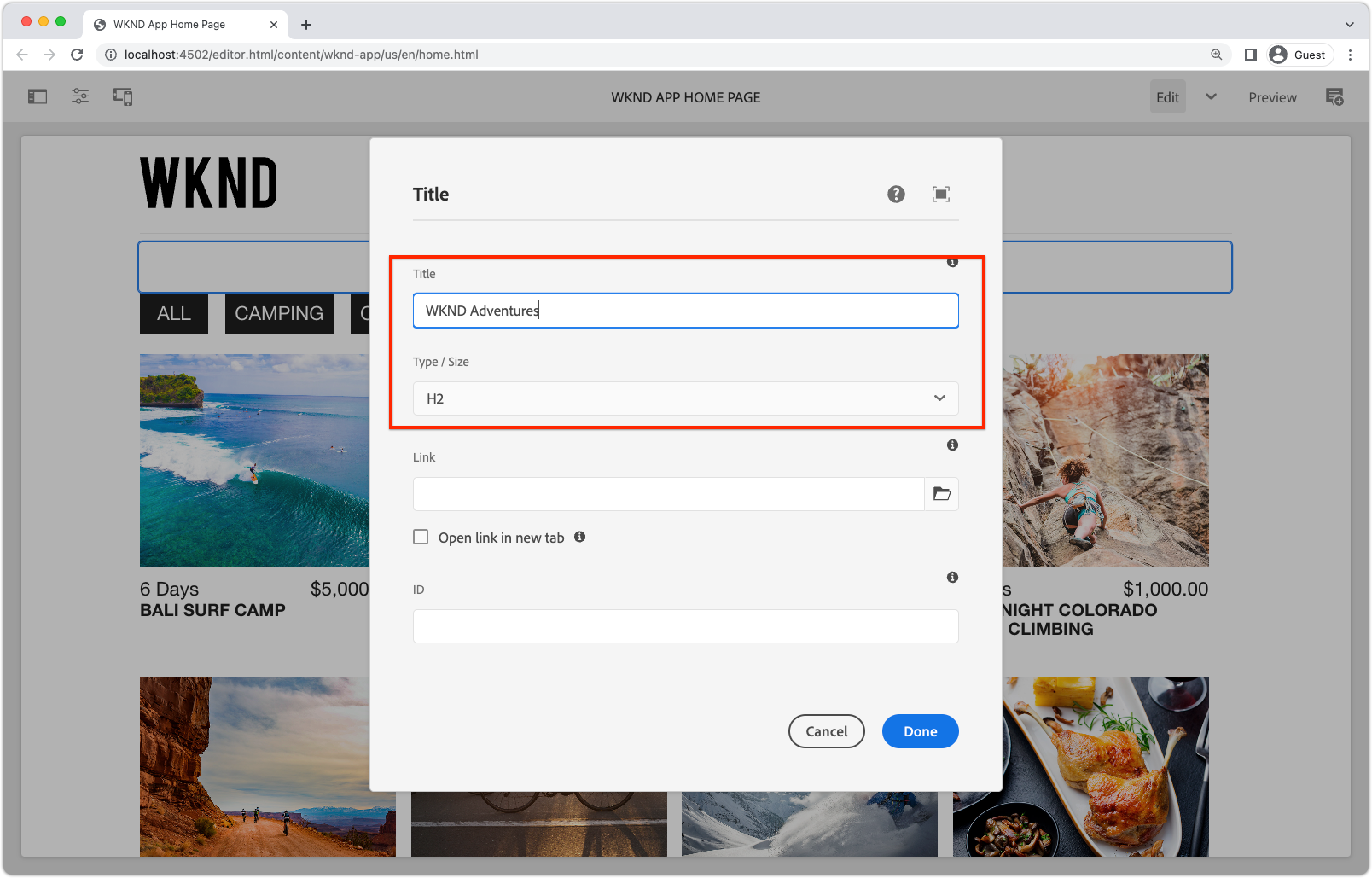

      標題元件對話方塊

  8. 點選 完成 儲存

  9. 在AEM SPA編輯器中預覽變更

  10. 重新整理在本機執行的WKND應用程式 http://localhost:3000 並立即查看所撰寫的標題變更。

    SPA中的標題元件

恭喜!

您已將固定的可編輯元件新增至WKND應用程式! 您現在知道如何:

  • 為SPA建立固定但可編輯的元件
  • 在AEM中製作固定元件
  • 在遠端SPA中查看製作內容

後續步驟

接下來的步驟是 新增AEM ResponsiveGrid容器元件 讓作者可將和可編輯的元件新增至SPA!
