사용자 지정 WeatherComponent 만들기 custom-component

AEM SPA 편집기에서 사용할 사용자 지정 날씨 구성 요소를 만드는 방법을 알아봅니다. 작성자 대화 상자 및 Sling 모델을 개발하여 JSON 모델을 확장하여 사용자 지정 구성 요소를 채우는 방법에 대해 알아봅니다. 다음 날씨 API 열기React Open Weather 구성 요소 를 사용합니다.

목표

  1. AEM에서 제공하는 JSON 모델 API를 조작하는 Sling 모델의 역할을 이해합니다.
  2. 새 AEM 구성 요소 대화 상자를 만드는 방법을 이해합니다.
  3. 다음을 만드는 방법 알아보기 사용자 정의 AEM 편집기 프레임워크와 호환되는 SPA 구성 요소입니다.

빌드할 내용

간단한 날씨 구성 요소가 구축됩니다. 콘텐츠 작성자는 이 구성 요소를 SPA에 추가할 수 있습니다. 작성자가 AEM 대화 상자를 사용하여 표시할 날씨 위치를 설정할 수 있습니다. 이 구성 요소의 구현은 AEM SPA Editor 프레임워크와 호환되는 새로운 AEM 구성 요소를 만드는 데 필요한 단계를 보여 줍니다.

개방형 날씨 구성 요소 구성

사전 요구 사항

설정에 필요한 도구 및 지침 검토 로컬 개발 환경. 이 장은 의 연속입니다. 탐색 및 라우팅 챕터에서는 로컬 AEM 인스턴스에 배포된 SPA 사용 AEM 프로젝트만 수행하면 됩니다.

날씨 API 키 열기

의 API 키 탁 트인 날씨 은 자습서와 함께 따라가야 합니다. 무료 등록 제한된 양의 API 호출.

AEM 구성 요소 정의

AEM 구성 요소는 노드 및 속성으로 정의됩니다. 프로젝트에서 이러한 노드 및 속성은 의 XML 파일로 표시됩니다. ui.apps 모듈. 그런 다음,에서 AEM 구성 요소를 만듭니다. ui.apps 모듈.

  1. 선택한 IDE에서 ui.apps 폴더를 삭제합니다.

  2. 다음으로 이동 ui.apps/src/main/content/jcr_root/apps/wknd-spa-react/components 및 (이)라는 이름의 새 폴더 만들기 open-weather.

  3. 이름이 인 새 파일 만들기 .content.xml 아래에 open-weather 폴더를 삭제합니다. 채우기 open-weather/.content.xml 다음을 사용하여:

    code language-xml
    <?xml version="1.0" encoding="UTF-8"?>
    <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0"
        jcr:primaryType="cq:Component"
        jcr:title="Open Weather"
        componentGroup="WKND SPA React - Content"/>


    사용자 지정 구성 요소 정의 만들기

    jcr:primaryType="cq:Component" - 이 노드가 AEM 구성 요소임을 식별합니다.

    jcr:title 는 콘텐츠 작성자에게 표시되는 값이며 componentGroup 제작 UI에서 구성 요소의 그룹화를 결정합니다.

  4. 아래 custom-component 폴더, (이)라는 다른 폴더를 만듭니다. _cq_dialog.

  5. 아래 _cq_dialog 폴더 (이)라는 이름의 새 파일을 만듭니다. .content.xml 다음을 입력합니다.

    code language-xml
    <?xml version="1.0" encoding="UTF-8"?>
    <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:granite="http://www.adobe.com/jcr/granite/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
        jcr:primaryType="nt:unstructured"
        jcr:title="Open Weather"
        sling:resourceType="cq/gui/components/authoring/dialog">
        <content
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/coral/foundation/container">
            <items jcr:primaryType="nt:unstructured">
                <tabs
                    jcr:primaryType="nt:unstructured"
                    sling:resourceType="granite/ui/components/coral/foundation/tabs"
                    maximized="{Boolean}true">
                    <items jcr:primaryType="nt:unstructured">
                        <properties
                            jcr:primaryType="nt:unstructured"
                            jcr:title="Properties"
                            sling:resourceType="granite/ui/components/coral/foundation/container"
                            margin="{Boolean}true">
                            <items jcr:primaryType="nt:unstructured">
                                <columns
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns"
                                    margin="{Boolean}true">
                                    <items jcr:primaryType="nt:unstructured">
                                        <column
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/container">
                                            <items jcr:primaryType="nt:unstructured">
                                                <label
                                                    jcr:primaryType="nt:unstructured"
                                                    sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                                    fieldDescription="The label to display for the component"
                                                    fieldLabel="Label"
                                                    name="./label"/>
                                                <lat
                                                    jcr:primaryType="nt:unstructured"
                                                    sling:resourceType="granite/ui/components/coral/foundation/form/numberfield"
                                                    fieldDescription="The latitude of the location."
                                                    fieldLabel="Latitude"
                                                    step="any"
                                                    name="./lat" />
                                                <lon
                                                    jcr:primaryType="nt:unstructured"
                                                    sling:resourceType="granite/ui/components/coral/foundation/form/numberfield"
                                                    fieldDescription="The longitude of the location."
                                                    fieldLabel="Longitude"
                                                    step="any"
                                                    name="./lon"/>
                                            </items>
                                        </column>
                                    </items>
                                </columns>
                            </items>
                        </properties>
                    </items>
                </tabs>
            </items>
        </content>
    </jcr:root>


    사용자 지정 구성 요소 정의

    위의 XML 파일은 Weather Component. 파일의 중요한 부분은 내부입니다 <label>, <lat><lon> 노드. 이 대화 상자에는 두 개의 numberfields 및 a textfield 이를 통해 사용자가 표시할 날씨를 구성할 수 있습니다.

    값을 표시하기 위해 옆에 슬링 모델 이 만들어집니다. label,latlong json 모델을 통한 속성.

    note note
    NOTE
    훨씬 더 많은 항목을 볼 수 있습니다. 핵심 구성 요소 정의를 보는 대화 상자의 예. 다음과 같은 추가 양식 필드를 볼 수도 있습니다 select, textarea, pathfield, 아래에서 사용 가능 /libs/granite/ui/components/coral/foundation/form 위치: CRXDE-Lite.

    기존 AEM 구성 요소를 사용하여 HTL 일반적으로 스크립트가 필요합니다. SPA은 구성 요소를 렌더링하므로 HTL 스크립트가 필요하지 않습니다.

Sling 모델 만들기

Sling 모델은 JCR에서 Java 변수로의 데이터 매핑을 용이하게 하는 주석 기반 Java "POJO"(일반 이전 Java 개체)입니다. Sling 모델 일반적으로 AEM 구성 요소에 대한 복잡한 서버측 비즈니스 논리를 캡슐화하는 역할을 합니다.

SPA 편집기의 컨텍스트에서 슬링 모델은 를 사용하는 기능을 통해 JSON 모델을 통해 구성 요소의 콘텐츠를 노출합니다. Sling 모델 내보내기.

  1. 선택한 IDE에서 core 모듈 위치: aem-guides-wknd-spa.react/core.

  2. 다음 위치에 이름이 지정된 파일 만들기 OpenWeatherModel.java 위치: core/src/main/java/com/adobe/aem/guides/wkndspa/react/core/models.

  3. 채우기 OpenWeatherModel.java 다음을 사용하여:

    code language-java
    package com.adobe.aem.guides.wkndspa.react.core.models;

    import com.adobe.cq.export.json.ComponentExporter;

    // Sling Models intended to be used with SPA Editor must extend ComponentExporter interface
    public interface OpenWeatherModel extends ComponentExporter {
        public String getLabel();
        public double getLat();
        public double getLon();
    }


    구성 요소의 Java 인터페이스입니다. Sling 모델이 SPA Editor 프레임워크와 호환되려면 를 확장해야 합니다. ComponentExporter 클래스.

  4. 다음 이름의 폴더 만들기 impl 아래에 core/src/main/java/com/adobe/aem/guides/wkndspa/react/core/models.

  5. 이름이 인 파일 만들기 OpenWeatherModelImpl.java 아래에 impl 다음을 채웁니다.

    code language-java
    package com.adobe.aem.guides.wkndspa.react.core.models.impl;

    import org.apache.sling.models.annotations.*;
    import org.apache.sling.models.annotations.injectorspecific.ValueMapValue;
    import com.adobe.cq.export.json.ComponentExporter;
    import com.adobe.cq.export.json.ExporterConstants;
    import org.apache.commons.lang3.StringUtils;
    import org.apache.sling.api.SlingHttpServletRequest;
    import com.adobe.aem.guides.wkndspa.react.core.models.OpenWeatherModel;

    // Sling Model annotation
    @Model(
        adaptables = SlingHttpServletRequest.class,
        adapters = { OpenWeatherModel.class, ComponentExporter.class },
        resourceType = OpenWeatherModelImpl.RESOURCE_TYPE,
        defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL
    )
    @Exporter( //Exporter annotation that serializes the modoel as JSON
        name = ExporterConstants.SLING_MODEL_EXPORTER_NAME,
        extensions = ExporterConstants.SLING_MODEL_EXTENSION
    )
    public class OpenWeatherModelImpl implements OpenWeatherModel {

        @ValueMapValue
        private String label; //maps variable to jcr property named "label" persisted by Dialog

        @ValueMapValue
        private double lat; //maps variable to jcr property named "lat"

        @ValueMapValue
        private double lon; //maps variable to jcr property named "lon"

        // points to AEM component definition in ui.apps
        static final String RESOURCE_TYPE = "wknd-spa-react/components/open-weather";

        // public getter method to expose value of private variable `label`
        // adds additional logic to default the label to "(Default)" if not set.
        @Override
        public String getLabel() {
            return StringUtils.isNotBlank(label) ? label : "(Default)";
        }

        // public getter method to expose value of private variable `lat`
        @Override
        public double getLat() {
            return lat;
        }

        // public getter method to expose value of private variable `lon`
        @Override
        public double getLon() {
            return lon;
        }

        // method required by `ComponentExporter` interface
        // exposes a JSON property named `:type` with a value of `wknd-spa-react/components/open-weather`
        // required to map the JSON export to the SPA component props via the `MapTo`
        @Override
        public String getExportedType() {
            return OpenWeatherModelImpl.RESOURCE_TYPE;
        }
    }


    정적 변수 RESOURCE_TYPE 의 경로를 가리켜야 합니다. ui.apps 구성 요소. 다음 getExportedType() 를 통해 SPA 구성 요소에 JSON 속성을 매핑하는 데 사용됩니다. MapTo. @ValueMapValue 는 대화 상자에 의해 저장된 jcr 속성을 읽는 주석입니다.

SPA 업데이트

그런 다음 React 코드를 업데이트하여 다음을 포함합니다. React Open Weather 구성 요소 이전 단계에서 만든 AEM 구성 요소에 매핑하게 합니다.

  1. React Open Weather 구성 요소를 로 설치 npm 종속성:

    code language-shell
    $ cd aem-guides-wknd-spa.react/ui.frontend
    $ npm i react-open-weather

  2. (이)라는 이름의 새 폴더 만들기 OpenWeather 위치: ui.frontend/src/components/OpenWeather.

  3. 이름이 인 파일 추가 OpenWeather.js 다음을 입력합니다.

    code language-js
    import React from 'react';
    import {MapTo} from '@adobe/aem-react-editable-components';
    import ReactWeather, { useOpenWeather } from 'react-open-weather';

    // Open weather API Key
    // For simplicity it is hard coded in the file, ideally this is extracted in to an environment variable
    const API_KEY = 'YOUR_API_KEY';

    // Logic to render placeholder or component
    const OpenWeatherEditConfig = {

        emptyLabel: 'Weather',
        isEmpty: function(props) {
            return !props || !props.lat || !props.lon || !props.label;
        }
    };

    // Wrapper function that includes react-open-weather component
    function ReactWeatherWrapper(props) {
        const { data, isLoading, errorMessage } = useOpenWeather({
            key: API_KEY,
            lat: props.lat, // passed in from AEM JSON
            lon: props.lon, // passed in from AEM JSON
            lang: 'en',
            unit: 'imperial', // values are (metric, standard, imperial)
        });

        return (
            <div className="cmp-open-weather">
                <ReactWeather
                    isLoading={isLoading}
                    errorMessage={errorMessage}
                    data={data}
                    lang="en"
                    locationLabel={props.label} // passed in from AEM JSON
                    unitsLabels={{ temperature: 'F', windSpeed: 'mph' }}
                    showForecast={false}
                  />
            </div>
        );
    }

    export default function OpenWeather(props) {

            // render nothing if component not configured
            if (OpenWeatherEditConfig.isEmpty(props)) {
                return null;
            }

            // render ReactWeather component if component configured
            // pass props to ReactWeatherWrapper. These props include the mapped properties from AEM JSON
            return ReactWeatherWrapper(props);

    }

    // Map OpenWeather to AEM component
    MapTo('wknd-spa-react/components/open-weather')(OpenWeather, OpenWeatherEditConfig);

  4. 업데이트 import-components.js 위치: ui.frontend/src/components/import-components.js 다음을 포함 OpenWeather 구성 요소:

    code language-diff
      // import-component.js
      import './Container/Container';
      import './ExperienceFragment/ExperienceFragment';
    + import './OpenWeather/OpenWeather';

  5. Maven 기술을 사용하여 프로젝트 디렉토리의 루트에서 로컬 AEM 환경에 모든 업데이트를 배포합니다.

    code language-shell
    $ cd aem-guides-wknd-spa.react
    $ mvn clean install -PautoInstallSinglePackage


템플릿 정책 업데이트

그런 다음 AEM으로 이동하여 업데이트를 확인하고 OpenWeather SPA에 추가할 구성 요소입니다.

  1. 로 이동하여 새 Sling 모델 등록 확인 http://localhost:4502/system/console/status-slingmodels.

    code language-plain
    com.adobe.aem.guides.wkndspa.react.core.models.impl.OpenWeatherModelImpl - wknd-spa-react/components/open-weather

    com.adobe.aem.guides.wkndspa.react.core.models.impl.OpenWeatherModelImpl exports 'wknd-spa-react/components/open-weather' with selector 'model' and extension '[Ljava.lang.String;@2fd80fc5' with exporter 'jackson'


    위의 두 줄은 다음을 나타냅니다. OpenWeatherModelImpl 이(가) 와(과) 연결되어 있습니다. wknd-spa-react/components/open-weather 구성 요소와 Sling 모델 내보내기를 통해 등록되었는지 확인합니다.

  2. 다음 SPA 페이지 템플릿으로 이동합니다. http://localhost:4502/editor.html/conf/wknd-spa-react/settings/wcm/templates/spa-page-template/structure.html.

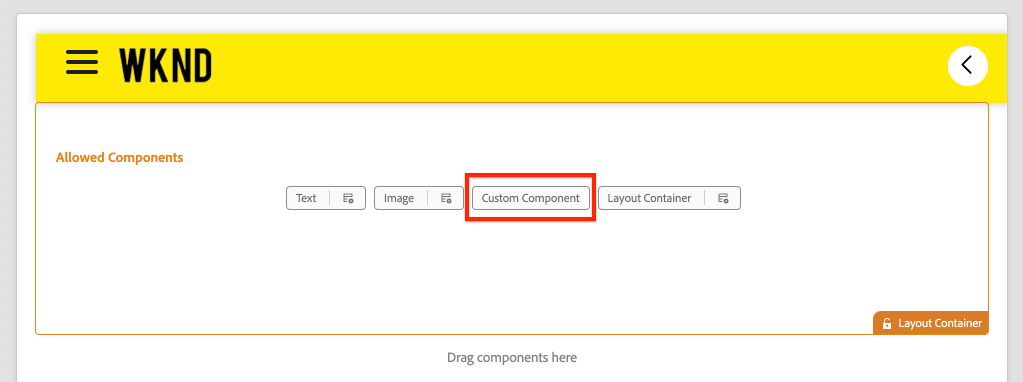

  3. 레이아웃 컨테이너의 정책을 업데이트하여 새 항목 추가 Open Weather 허용된 구성 요소:

    레이아웃 컨테이너 정책 업데이트

    정책에 대한 변경 사항을 저장하고 다음을 확인합니다. Open Weather 허용된 구성 요소:

    사용자 지정 구성 요소를 허용된 구성 요소로 사용

개방형 날씨 구성 요소 작성

다음으로, 를 작성합니다. Open Weather AEM SPA 편집기를 사용하는 구성 요소입니다.

  1. 다음으로 이동 http://localhost:4502/editor.html/content/wknd-spa-react/us/en/home.html.

  2. 위치 Edit 모드, 추가 Open Weather (으)로 Layout Container:

    새 구성 요소 삽입

  3. 구성 요소의 대화 상자를 열고 레이블, 위도, 및 경도. 예 샌디에이고, 32.7157, 및 -117.1611. 서반구 및 남반구 숫자는 Open Weather API를 사용하여 음수로 표시됩니다

    개방형 날씨 구성 요소 구성

    이 대화 상자는 이 장 앞부분에서 XML 파일을 기반으로 만든 대화 상자입니다.

  4. 변경 사항을 저장합니다. 다음 기간 동안 날씨를 관찰하십시오. 샌디에이고 은(는) 현재 다음과 같이 표시됩니다.

    날씨 구성 요소 업데이트됨

  5. 로 이동하여 JSON 모델 보기 http://localhost:4502/content/wknd-spa-react/us/en.model.json. 검색 대상 wknd-spa-react/components/open-weather:

    code language-json
    "open_weather": {
        "label": "San Diego",
        "lat": 32.7157,
        "lon": -117.1611,
        ":type": "wknd-spa-react/components/open-weather"
    }


    JSON 값은 Sling 모델에 의해 출력됩니다. 이러한 JSON 값은 React 구성 요소에 prop으로 전달됩니다.

축하합니다! congratulations

축하합니다. SPA 편집기에서 사용할 사용자 지정 AEM 구성 요소를 만드는 방법에 대해 알아보았습니다. 또한 대화 상자, JCR 속성 및 Sling 모델이 상호 작용하여 JSON 모델을 출력하는 방법에 대해 알아보았습니다.

다음 단계 next-steps

핵심 구성 요소 확장 - AEM SPA 편집기에서 사용할 기존 AEM 핵심 구성 요소를 확장하는 방법을 알아봅니다. 기존 구성 요소에 속성 및 콘텐츠를 추가하는 방법을 이해하는 것은 AEM SPA Editor 구현의 기능을 확장하는 강력한 기술입니다.
