创建自定义组件

了解如何创建要与AEM SPA编辑器一起使用的自定义组件。 了解如何开发创作对话框和Sling模型以扩展JSON模型以填充自定义组件。

目标

  1. 了解Sling模型在处理AEM提供的JSON模型API中的角色。
  2. 了解如何创建AEM组件对话框。
  3. 了解如何创建 自定义 与AEM编辑器框架兼容的SPA组件。

将构建的内容

前几章的重点是开发SPA组件并将其映射到 现有 AEM核心组件。 本章重点介绍如何创建和扩展 新建 AEM组件,并处理AEM提供的JSON模型。

简单 Custom Component 说明了创建新AEM组件所需的步骤。

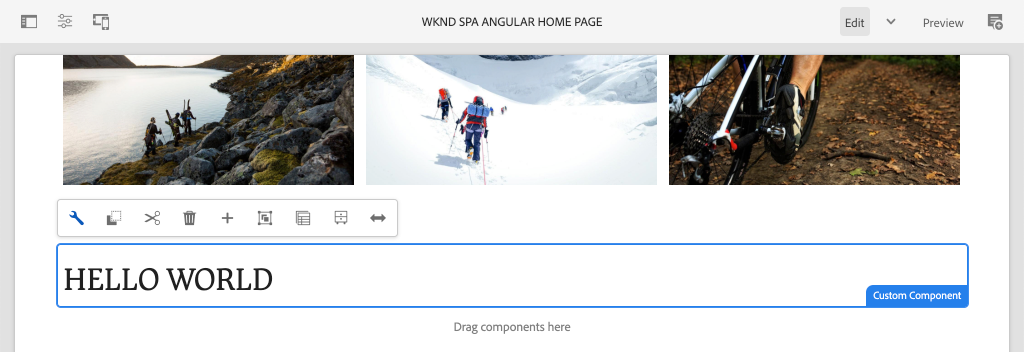

全部大写显示的消息

前提条件

查看设置 本地开发环境.

获取代码

  1. 通过Git下载本教程的起点:

    $ git clone git@github.com:adobe/aem-guides-wknd-spa.git
    $ cd aem-guides-wknd-spa
    $ git checkout Angular/custom-component-start

  2. 使用Maven将代码库部署到本地AEM实例:

    $ mvn clean install -PautoInstallSinglePackage


    如果使用 AEM 6.x 添加 classic 用户档案:

    $ mvn clean install -PautoInstallSinglePackage -Pclassic

  3. 为传统 WKND参考站点. 提供的图像 WKND参考站点 在WKND SPA上重复使用。 可以使用 AEM包管理器.

    包管理器安装wknd.all

您始终可以在 GitHub 或通过切换到分支在本地签出代码 Angular/custom-component-solution.

定义AEM组件

AEM组件被定义为节点和属性。 在项目中,这些节点和属性在 ui.apps 模块。 接下来,在 ui.apps 模块。

  1. 打开 ui.apps 文件夹。

  2. 导航到 ui.apps/src/main/content/jcr_root/apps/wknd-spa-angular/components 并创建名为 custom-component.

  3. 创建名为 .content.xmlcustom-component 文件夹。 填充 custom-component/.content.xml ,具有以下特点:

    <?xml version="1.0" encoding="UTF-8"?>
    <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0"
        jcr:primaryType="cq:Component"
        jcr:title="Custom Component"
        componentGroup="WKND SPA Angular - Content"/>


    创建自定义组件定义

    jcr:primaryType="cq:Component" — 标识此节点是AEM组件。

    jcr:title 是显示给内容作者的值,并且 componentGroup 确定创作UI中的组件分组。

  4. custom-component 文件夹,创建另一个名为 _cq_dialog.

  5. _cq_dialog 文件夹创建名为的文件 .content.xml 并使用以下内容填充该变量:

    <?xml version="1.0" encoding="UTF-8"?>
    <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:granite="http://www.adobe.com/jcr/granite/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
        jcr:primaryType="nt:unstructured"
        jcr:title="Custom Component"
        sling:resourceType="cq/gui/components/authoring/dialog">
        <content
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/coral/foundation/container">
            <items jcr:primaryType="nt:unstructured">
                <tabs
                    jcr:primaryType="nt:unstructured"
                    sling:resourceType="granite/ui/components/coral/foundation/tabs"
                    maximized="{Boolean}true">
                    <items jcr:primaryType="nt:unstructured">
                        <properties
                            jcr:primaryType="nt:unstructured"
                            jcr:title="Properties"
                            sling:resourceType="granite/ui/components/coral/foundation/container"
                            margin="{Boolean}true">
                            <items jcr:primaryType="nt:unstructured">
                                <columns
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns"
                                    margin="{Boolean}true">
                                    <items jcr:primaryType="nt:unstructured">
                                        <column
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/container">
                                            <items jcr:primaryType="nt:unstructured">
                                                <message
                                                    jcr:primaryType="nt:unstructured"
                                                    sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                                    fieldDescription="The text to display on the component."
                                                    fieldLabel="Message"
                                                    name="./message"/>
                                            </items>
                                        </column>
                                    </items>
                                </columns>
                            </items>
                        </properties>
                    </items>
                </tabs>
            </items>
        </content>
    </jcr:root>


    自定义组件定义

    上述XML文件会为 Custom Component. 文件的关键部分是内部 <message> 节点。 此对话框包含一个简单的 textfield 已命名 Message 并将textifeld的值保留为名为 message.

    随即会创建一个Sling模型,以显示 message 属性。

    注意

    您可以查看更多内容 查看核心组件定义时显示的对话框示例. 您还可以查看其他表单字段,如 select, textarea, pathfield下方可用 /libs/granite/ui/components/coral/foundation/form in CRXDE-Lite.

    使用传统AEM组件, HTL 通常需要脚本。 由于SPA会渲染组件,因此不需要HTL脚本。

创建Sling模型

Sling模型是由注释驱动的Java™“POJO”(纯旧Java™对象),有助于将数据从JCR映射到Java™变量。 Sling模型 通常用于封装AEM组件的复杂服务器端业务逻辑。

在SPA编辑器的上下文中,Sling模型通过使用的功能,通过JSON模型来显示组件的内容 Sling模型导出程序.

  1. 在选择的IDE中,打开 core 模块。 CustomComponent.javaCustomComponentImpl.java 已作为章节起始代码的一部分创建和退出。

    注意

    如果使用Visual Studio Code IDE,则安装可能会有所帮助 Java™扩展.

  2. 打开Java™界面 CustomComponent.java at core/src/main/java/com/adobe/aem/guides/wknd/spa/angular/core/models/CustomComponent.java:

    CustomComponent.java界面

    这是由Sling模型实现的Java™界面。

  3. 更新 CustomComponent.java 这样它就会 ComponentExporter 界面:

    package com.adobe.aem.guides.wknd.spa.angular.core.models;
    import com.adobe.cq.export.json.ComponentExporter;

    public interface CustomComponent extends ComponentExporter {

        public String getMessage();

    }


    实施 ComponentExporter 界面要求JSON模型API自动选取Sling模型。

    CustomComponent 接口包括单个getter方法 getMessage(). 这是通过JSON模型公开创作对话框值的方法。 仅具有空参数的getter方法 () 在JSON模型中导出。

  4. 打开 CustomComponentImpl.java at core/src/main/java/com/adobe/aem/guides/wknd/spa/angular/core/models/impl/CustomComponentImpl.java.

    这是 CustomComponent 界面。 的 @Model 注释将Java™类标识为Sling模型。 的 @Exporter 注释允许通过Sling模型导出器序列化和导出Java™类。

  5. 更新静态变量 RESOURCE_TYPE 指向AEM组件 wknd-spa-angular/components/custom-component 在上一个练习中创建。

    static final String RESOURCE_TYPE = "wknd-spa-angular/components/custom-component";


    组件的资源类型是将Sling模型绑定到AEM组件,并最终映射到Angular组件的资源类型。

  6. 添加 getExportedType() 方法 CustomComponentImpl 类以返回组件资源类型:

    @Override
    public String getExportedType() {
        return CustomComponentImpl.RESOURCE_TYPE;
    }


    在实施 ComponentExporter 界面中,并公开允许映射到Angular组件的资源类型。

  7. 更新 getMessage() 方法返回 message “创作”对话框保留的属性。 使用 @ValueMap 注释映射JCR值 message 变量:

    import org.apache.commons.lang3.StringUtils;
    ...

    @ValueMapValue
    private String message;

    @Override
    public String getMessage() {
        return StringUtils.isNotBlank(message) ? message.toUpperCase() : null;
    }


    添加了一些额外的“业务逻辑”,以返回消息的值作为大写。 这样,我们便可以查看创作对话框存储的原始值与Sling模型公开的值之间的差异。

    注意

更新Angular组件

已创建自定义组件的Angular代码。 接下来,进行一些更新,以将Angular组件映射到AEM组件。

  1. ui.frontend 模块打开文件 ui.frontend/src/app/components/custom/custom.component.ts

  2. 观察 @Input() message: string; 行。 转换后的大写值应映射到此变量。

  3. 导入 MapTo 对象,并使用它映射到AEM组件:

    + import {MapTo} from '@adobe/cq-angular-editable-components';

     ...
     export class CustomComponent implements OnInit {
         ...
     }

    + MapTo('wknd-spa-angular/components/custom-component')(CustomComponent, CustomEditConfig);

  4. 打开 cutom.component.html 并观察 {{message}}<h2> 标记。

  5. 打开 custom.component.css 并添加以下规则:

    :host-context {
        display: block;
    }


    对于在组件为空时正确显示的AEM编辑器占位符, :host-context 或其他 <div> 需要将 display: block;.

  6. 使用您的Maven技能,从项目目录的根目录将更新部署到本地AEM环境:

    $ cd aem-guides-wknd-spa
    $ mvn clean install -PautoInstallSinglePackage


更新模板策略

接下来,导航到AEM以验证更新并允许 Custom Component 添加到SPA中。

  1. 通过导航到 http://localhost:4502/system/console/status-slingmodels.

    com.adobe.aem.guides.wknd.spa.angular.core.models.impl.CustomComponentImpl - wknd-spa-angular/components/custom-component

    com.adobe.aem.guides.wknd.spa.angular.core.models.impl.CustomComponentImpl exports 'wknd-spa-angular/components/custom-component' with selector 'model' and extension '[Ljava.lang.String;@6fb4a693' with exporter 'jackson'


    您应会看到以上两行,这些行表示 CustomComponentImplwknd-spa-angular/components/custom-component 组件,并且已通过Sling模型导出程序进行注册。

  2. 导航到SPA页面模板(位于 http://localhost:4502/editor.html/conf/wknd-spa-angular/settings/wcm/templates/spa-page-template/structure.html.

  3. 更新布局容器的策略以添加新 Custom Component 作为允许的组件:

    更新布局容器策略

    保存对策略所做的更改,并观察 Custom Component 作为允许的组件:

    自定义组件作为允许的组件

创作自定义组件

接下来,创作 Custom Component 使用AEM SPA编辑器。

  1. 导航到 http://localhost:4502/editor.html/content/wknd-spa-angular/us/en/home.html.

  2. Edit 模式,添加 Custom ComponentLayout Container:

    插入新组件

  3. 打开组件的对话框,然后输入一条包含一些小写字母的消息。

    配置自定义组件

    这是基于章节前面的XML文件创建的对话框。

  4. 保存更改。请注意显示的消息全部大写。

    全部大写显示的消息

  5. 通过导航到 http://localhost:4502/content/wknd-spa-angular/us/en.model.json. 搜索 wknd-spa-angular/components/custom-component:

    "custom_component_208183317": {
        "message": "HELLO WORLD",
        ":type": "wknd-spa-angular/components/custom-component"
    }


    请注意,JSON值会根据添加到Sling模型的逻辑设置为所有大写字母。

恭喜!

恭喜,您学习了如何创建自定义AEM组件,以及Sling模型和对话框如何与JSON模型一起使用。

您始终可以在 GitHub 或通过切换到分支在本地签出代码 Angular/custom-component-solution.

后续步骤

扩展核心组件 — 了解如何扩展要与AEM SPA编辑器一起使用的现有核心组件。 了解如何向现有组件添加属性和内容是一项功能强大的技术,可扩展AEM SPA Editor实施的功能。
