範例應用程式是探索Adobe Experience Manager (AEM)無周邊功能的絕佳方式。 此iOS應用程式示範了如何使用AEM GraphQL API透過持續性查詢來查詢內容。
檢視 GitHub上的原始碼
下列工具應在本機安裝:
iOS應用程式可與下列AEM部署選項搭配使用。 所有部署都需要 WKND網站v3.0.0+ 即將安裝。
iOS應用程式是專為連線至 AEM發佈 不過,如果在iOS應用程式的設定中提供驗證,則它可以從AEM Author取得內容。
原地複製 adobe/aem-guides-wknd-graphql
存放庫:
$ git clone git@github.com:adobe/aem-guides-wknd-graphql.git
Launch Xcode 並開啟資料夾 ios-app
修改檔案 Config.xcconfig
檔案和更新 AEM_SCHEME
和 AEM_HOST
以符合您的目標AEM Publish服務。
// The http/https protocol scheme used to access the AEM_HOST
AEM_SCHEME = https
// Target hostname for AEM environment, do not include http:// or https://
AEM_HOST = publish-p123-e456.adobeaemcloud.com
如果連線到AEM作者,請新增 AEM_AUTH_TYPE
和支援的驗證屬性 Config.xcconfig
.
基本驗證
此 AEM_USERNAME
和 AEM_PASSWORD
驗證可存取WKND GraphQL內容的本機AEM使用者。
AEM_AUTH_TYPE = basic
AEM_USERNAME = admin
AEM_PASSWORD = admin
權杖驗證
此 AEM_TOKEN
是 存取權杖 會向可存取WKND GraphQL內容的AEM使用者進行驗證。
AEM_AUTH_TYPE = token
AEM_TOKEN = abcd...0123
使用Xcode建立應用程式,並將應用程式部署到iOS模擬器

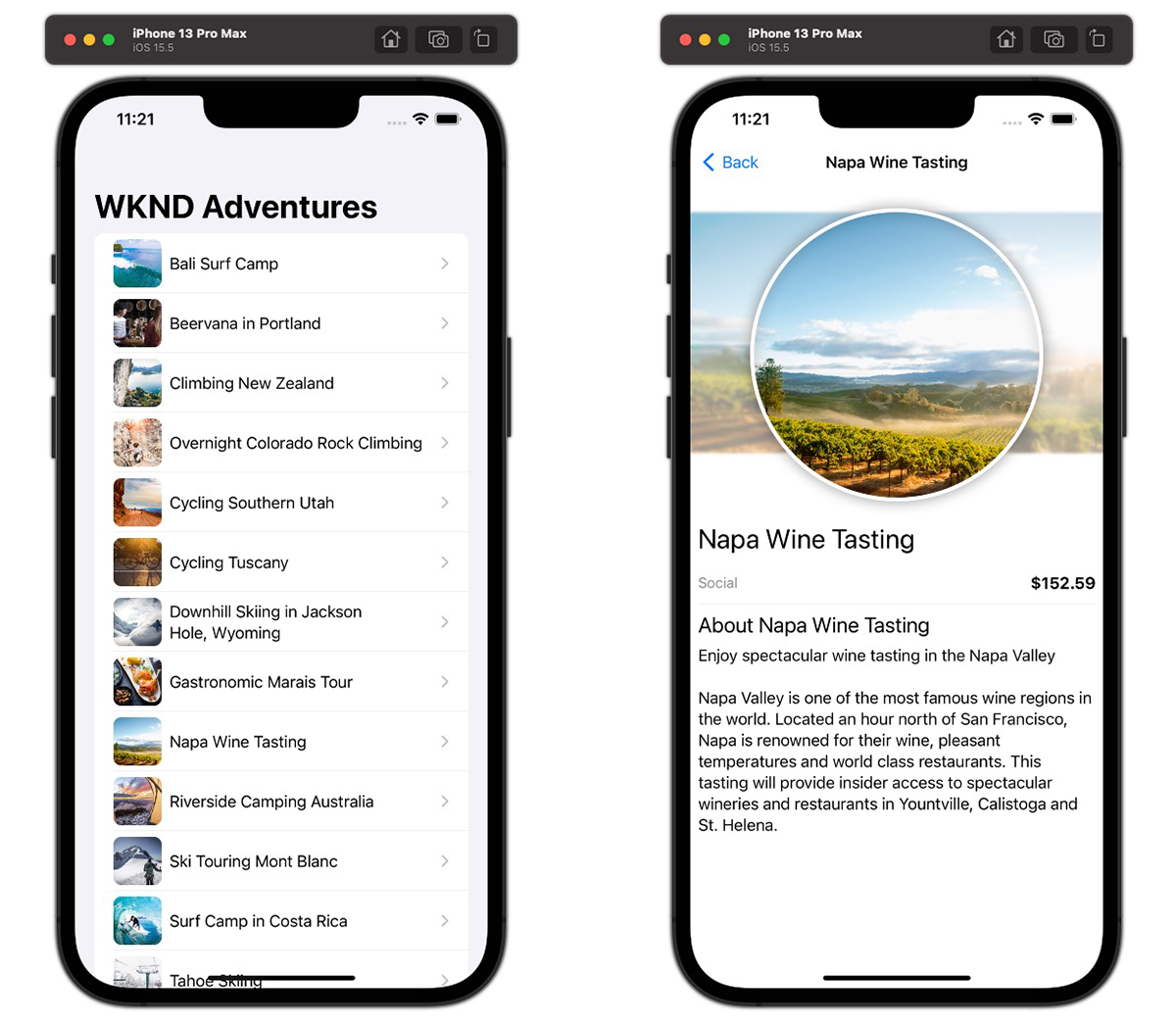

WKND網站中的冒險清單應顯示在應用程式上。 選取冒險會開啟冒險詳細資料。 在冒險清單檢視上,提取以從AEM重新整理資料。
以下摘要說明如何建立iOS應用程式、其如何連線至AEM Headless以使用GraphQL持續查詢來擷取內容,以及資料如何呈現。 完整的程式碼可在上找到 GitHub.
依照AEM Headless最佳實務,iOS應用程式會使用AEM GraphQL持續性查詢來查詢冒險資料。 應用程式使用兩個持續查詢:
wknd/adventures-all
持久查詢,它會傳回AEM中所有冒險和一組刪節的屬性。 此持續查詢會驅動初始檢視的冒險清單。# Retrieves a list of all Adventures
#
# Optional query variables:
# - { "offset": 10 }
# - { "limit": 5 }
# - {
# "imageFormat": "JPG",
# "imageWidth": 1600,
# "imageQuality": 90
# }
query ($offset: Int, $limit: Int, $sort: String, $imageFormat: AssetTransformFormat=JPG, $imageWidth: Int=1200, $imageQuality: Int=80) {
adventureList(
offset: $offset
limit: $limit
sort: $sort
_assetTransform: {
format: $imageFormat
width: $imageWidth
quality: $imageQuality
preferWebp: true
}) {
items {
_path
slug
title
activity
price
tripLength
primaryImage {
... on ImageRef {
_path
_dynamicUrl
}
}
}
}
}
wknd/adventure-by-slug
持久查詢,會依據以下條件傳回單一冒險 slug
(可唯一識別冒險的自訂屬性)和完整的屬性集。 此持續性查詢可為冒險詳細資料檢視提供支援。query ($slug: String!, $imageFormat:AssetTransformFormat=JPG, $imageSeoName: String, $imageWidth: Int=1200, $imageQuality: Int=80) {
adventureList(
filter: {slug: {_expressions: [{value: $slug}]}}
_assetTransform: {
format: $imageFormat
seoName: $imageSeoName
width: $imageWidth
quality: $imageQuality
preferWebp: true
}) {
items {
_path
title
slug
activity
adventureType
price
tripLength
groupSize
difficulty
price
primaryImage {
... on ImageRef {
_path
_dynamicUrl
}
}
description {
json
plaintext
html
}
itinerary {
json
plaintext
html
}
}
_references {
... on AdventureModel {
_path
slug
title
price
__typename
}
}
}
}
AEM持續查詢會透過HTTPGET執行,因此使用HTTPPOST的常見GraphQL程式庫(例如Apollo)無法使用。 請改為建立自訂類別,對AEM執行持續查詢HTTPGET請求。
AEM/Aem.swift
例項化 Aem
用於與AEM Headless的所有互動的類別。 模式為:
每個持續查詢都有對應的公用函式(例如 getAdventures(..)
或 getAdventureBySlug(..)
)叫用iOS應用程式的檢視來取得冒險資料。
公用函式呼叫私人函式 makeRequest(..)
它會叫用對AEM Headless的非同步HTTPGET請求,並傳回JSON資料。
接著,每個公用函式都會解碼JSON資料,並執行任何必要的檢查或轉換,然後將冒險資料傳回檢視。
AEM/Models.swift
,對應到傳回我的AEM Headless的JSON物件。 /// # getAdventures(..)
/// Returns all WKND adventures using the `wknd-shared/adventures-all` persisted query.
/// For this func call to work, the `wknd-shared/adventures-all` query must be deployed to the AEM environment/service specified by the host.
///
/// Since HTTP requests are async, the completion syntax is used.
func getAdventures(params: [String:String], completion: @escaping ([Adventure]) -> ()) {
let request = makeRequest(persistedQueryName: "wknd-shared/adventures-all", params: params)
URLSession.shared.dataTask(with: request) { (data, response, error) in
if ((error) != nil) {
print("Unable to connect to AEM GraphQL endpoint")
completion([])
} else if (!data!.isEmpty) {
let adventures = try! JSONDecoder().decode(Adventures.self, from: data!)
DispatchQueue.main.async {
completion(adventures.data.adventureList.items)
}
}
}.resume();
}
...
/// #makeRequest(..)
/// Generic method for constructing and executing AEM GraphQL persisted queries
private func makeRequest(persistedQueryName: String, params: [String: String] = [:]) -> URLRequest {
// Encode optional parameters as required by AEM
let persistedQueryParams = params.map { (param) -> String in
encode(string: ";\(param.key)=\(param.value)")
}.joined(separator: "")
// Construct the AEM GraphQL persisted query URL, including optional query params
let url: String = "\(self.scheme)://\(self.host)/graphql/execute.json/" + persistedQueryName + persistedQueryParams;
var request = URLRequest(url: URL(string: url)!);
// Add authentication to the AEM GraphQL persisted query requests as defined by the iOS application's configuration
request = addAuthHeaders(request: request)
return request
}
...
iOS偏好將JSON物件對應至輸入的資料模型。
此 src/AEM/Models.swift
定義 可解碼 Swift結構和類別會對應至AEM JSON回應傳回的AEM JSON回應。
SwiftUI用於應用程式中的各種檢視。 Apple提供快速入門教學課程,適用於 使用SwiftUI建立清單和導覽.
WKNDAdventuresApp.swift
應用程式的專案,包括 AdventureListView
其 .onAppear
事件處理常式是用來透過擷取所有冒險資料 aem.getAdventures()
. 共用的 aem
物件在這裡初始化,並公開給其他檢視做為 環境物件.
Views/AdventureListView.swift
顯示冒險清單(根據來自 aem.getAdventures()
)和顯示每個冒險的清單專案,使用 AdventureListItemView
.
Views/AdventureListItemView.swift
顯示冒險清單中的每個專案(Views/AdventureListView.swift
)。
Views/AdventureDetailView.swift
顯示冒險的詳細資訊,包括標題、說明、價格、活動型別和主要影像。 此檢視會查詢AEM以取得完整的冒險詳細資訊,使用 aem.getAdventureBySlug(slug: slug)
,其中 slug
會根據選取清單列傳入引數。
冒險內容片段參考的影像由AEM提供。 此iOS應用程式使用路徑 _dynamicUrl
GraphQL欄位中輸入值,並在前面加上 AEM_SCHEME
和 AEM_HOST
以建立完整限定的URL。 如果針對AEM SDK開發, _dynamicUrl
傳回null,因此對於開發,會遞補為影像的 _path
欄位。
如果連線到AEM上需要授權的受保護資源,則也必須將憑證新增到影像請求。
SdwebimageswiftUI 和 Sdwebimage 是用來從AEM載入遠端影像,並填入 AdventureListItemView
和 AdventureDetailView
檢視。
此 aem
類別(在 AEM/Aem.swift
)以兩種方式加速使用AEM影像:
aem.imageUrl(path: String)
在檢視中使用,在AEM配置前面加上,並託管到影像的路徑,以建立完全限定的URL。
// adventure.image() => /adobe/dynamicmedia/deliver/dm-aid--741ed388-d5f8-4797-8095-10c896dc9f1d/example.jpg?quality=80&preferwebp=true
let imageUrl = aem.imageUrl(path: adventure.image())
// imageUrl => https://publish-p123-e456.adobeaemcloud.com/adobe/dynamicmedia/deliver/dm-aid--741ed388-d5f8-4797-8095-10c896dc9f1d/example.jpg?quality=80&preferwebp=true
此 convenience init(..)
在 Aem
根據iOS應用程式設定,在影像HTTP請求上設定HTTP授權標頭。
/// AEM/Aem.swift
///
/// # Basic authentication init
/// Used when authenticating to AEM using local accounts (basic auth)
convenience init(scheme: String, host: String, username: String, password: String) {
...
// Add basic auth headers to all Image requests, as they are (likely) protected as well
SDWebImageDownloader.shared.setValue("Basic \(encodeBasicAuth(username: username, password: password))", forHTTPHeaderField: "Authorization")
}
/// AEM/Aem.swift
///
/// # Token authentication init
/// Used when authenticating to AEM using token authentication (Dev Token or access token generated from Service Credentials)
convenience init(scheme: String, host: String, token: String) {
...
// Add token auth headers to all Image requests, as they are (likely) protected as well
SDWebImageDownloader.shared.setValue("Bearer \(token)", forHTTPHeaderField: "Authorization")
}
類似的方法可用於SwiftUI原生 AsyncImage. AsyncImage
在iOS 15.0+上支援。
