AEM Headless quick setup using the local SDK

The AEM Headless quick setup gets you hands-on with AEM Headless using content from the WKND Site sample project, and a sample React App (a SPA) that consumes the content over AEM Headless GraphQL APIs. This guide uses the AEM as a Cloud Service SDK.


The following tools should be installed locally:

1. Install the AEM SDK

This setup uses the AEM as a Cloud Service SDK to explore AEM’s GraphQL APIs. This section provides a quick guide to installing the AEM SDK and running it in Author mode. A more detailed guide for setting up a local development environment can be found here.


It is also possible to follow the tutorial with an AEM as a Cloud Service environment. Additional notes for using a Cloud environment are included throughout the tutorial.

  1. Navigate to the Software Distribution Portal > AEM as a Cloud Service and download the latest version of the AEM SDK.

    Software Distribution Portal


    The GraphQL feature is enabled by default only on the AEM SDK from 2021-02-04 or newer.

  2. Unzip the download and copy the Quickstart jar (aem-sdk-quickstart-XXX.jar) to a dedicated folder, i.e ~/aem-sdk/author.

  3. Re-name the jar file to aem-author-p4502.jar.

    The author name specifies that the Quickstart jar will start in Author mode. The p4502 specifies that the Quickstart server will run on port 4502.

  4. Open a new terminal window and navigate to the folder that contains the jar file. Run the following command to install and start the AEM instance:

    $ cd ~/aem-sdk/author
    $ java -jar aem-author-p4502.jar
  5. Provide an admin password as admin. Any admin password is acceptable, however its recommend to use admin for local development to reduce the need to re-configure.

  6. After a few minutes the AEM instance will finish installing and a new browser window should open at http://localhost:4502.

  7. Login with the username admin and the password selected during AEM’s initial start-up (usually admin).

2. Install sample WKND content

Sample content from the WKND Reference site will be installed to accelerate the tutorial. The WKND is a fictitious life-style brand, often used in conjunction with AEM training.

The WKND Reference site includes configurations needed to expose a GraphQL endpoint. In a real-world implementation follow the documented steps to include the GraphQL endpoints in your customer project. A CORS has also been packaged as part of the WKND Site. A CORS configuration is needed to grant access to an external application, more information about CORS can be found below.

  1. Download the latest compiled AEM Package for WKND Site:


    Make sure to download the standard version compatible with AEM as a Cloud Service and not the classic version.

  2. From the AEM Start menu navigate to Tools > Deployment > Packages.

    Navigate to Packages

  3. Click Upload Package and choose the WKND package downloaded in the prior step. Click Install to install the package.

  4. From the AEM Start menu navigate to Assets > Files.

  5. Click through the folders to navigate to WKND Site > English > Adventures.

    Folder view of Adventures

    This is a folder of all the assets that comprise the various Adventures promoted by the WKND brand. This includes traditional media types like images and video, as well as media specific to AEM like Content Fragments.

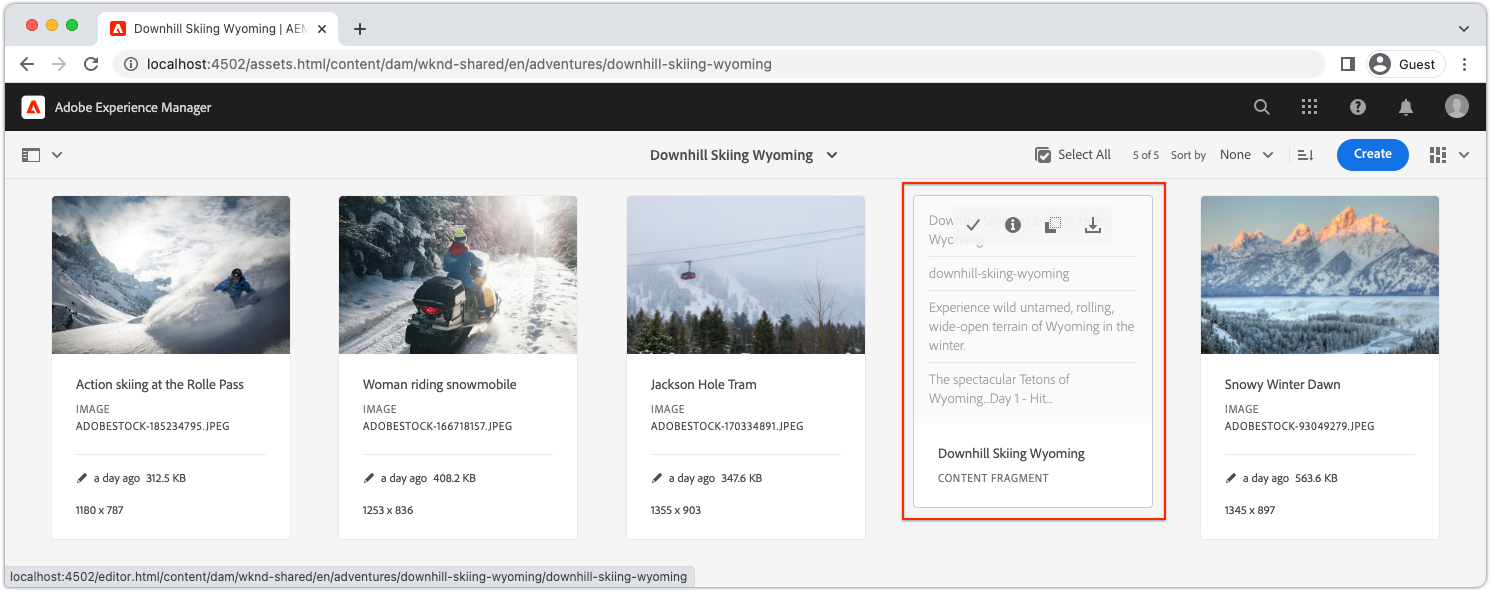

  6. Click into the Downhill Skiing Wyoming folder and click the Downhill Skiing Wyoming Content Fragment card:

    Downwhill Skiing Content fragment Card

  7. The Content Fragment Editor UI will open for the Downhill Skiing Wyoming adventure.

    Downhill Skiing Content Fragment

    Observe that various fields like Title, Description, and Activity define the fragment.

    Content Fragments are one of the ways content can be managed in AEM. Content Fragment are reusable, presentation-agnostic content composed of structured data elements such as text, rich text, dates or references to other Content Fragments. Content Fragments will be explored in greater detail later in the tutorial.

  8. Click Cancel to close the fragment. Feel free to navigate into some of the other folders and explore the other Adventure content.


If using a Cloud Service environment see the documentation for how to deploy a code base like the WKND Reference site to a Cloud Service environment.

3. Download and run WKND React app

One of the goals of this tutorial is to show how to consume AEM content from an external application using the GraphQL APIs. This tutorial uses an example React App that has been partially completed to accelerate the tutorial. The same lessons and concepts apply to apps built with iOS, Android or any other platform. The React app is intentionally simple, to avoid unnecessary complexity; it is not meant to be a reference implementation.

  1. Open a new terminal window and clone tutorial starter branch using Git:

    $ git clone --branch tutorial/react
  2. In the IDE of your choice open the file .env.development at aem-guides-wknd-graphql/react-app/.env.development. Verify that the REACT_APP_AUTHORIZATION line is un-commented and that the file looks like the following:

    # Use Authorization when connecting to an AEM Author environment

    Ensure that React_APP_HOST_URI matches your local AEM instance. In this chapter we will connect the React App directly to the AEM Author environment. Author environments by default require authentication, so our app will connect as the admin user. This is a common practice during development, since it allows us to quickly make changes on the AEM environment and see them immediately reflected in the app.


    In a production scenario the App will connect to an AEM Publish environment. This is covered in more detail in the Production deployment chapter.

  3. Navigate into the aem-guides-wknd-graphql/react-app folder. Install and start the app:

    $ cd aem-guides-wknd-graphql/react-app
    $ npm install
    $ npm start
  4. A new browser window should automatically launch the app at http://localhost:3000.

    React starter app

    A list of the current Adventure content from AEM should be displayed.

  5. Click one of the adventure images to view the adventure detail. A request is made to AEM to return the detail for an adventure.

    Adventure Details view

  6. Use the browser’s developer tools to inspect the Network requests. View the XHR requests and observe multiple POST requests to /content/graphql/global/endpoint.json, the GraphQL endpoint configured for AEM.

    GraphQL Endpoint XHR request

  7. You can also view the parameters and JSON response by inspecting the network request. It may be helpful to install a browser extension like GraphQL Network Inspector for Chrome to get a better understanding of the query and response.

4. Edit content in AEM

Now that the React app is running, make an update to the content in AEM and see the change reflected in the app.

  1. Navigate to AEM http://localhost:4502.

  2. Navigate to Assets > Files > WKND Site > English > Adventures > Bali Surf Camp.

    Bali Surf Camp folder

  3. Click into the Bali Surf Camp content fragment to open the Content Fragment Editor.

  4. Modify the Title and the Description of the adventure

    Modify content fragment

  5. Click Save to save the changes.

  6. Navigate back to the React app at http://localhost:3000 and refresh to see your changes:

    Updated Bali Surf Camp Adventure

5. Install the GraphiQL Tool

GraphiQL is a development tool and needed only on lower-level environments like a development or local instance. The GraphiQL IDE allows you to quickly test and refine the queries and data returned. GraphiQL also provides easy access to the documentation, making it easy to learn and understand what methods are available.

  1. Navigate to the Software Distribution Portal > AEM as a Cloud Service.

  2. Search for “GraphiQL” (be sure to include the i in GraphiQL.

  3. Download the latest GraphiQL Content Package v.x.x.x

    Download GraphiQL Package

    The zip file is an AEM package that can be installed directly.

  4. From the AEM Start menu navigate to Tools > Deployment > Packages.

  5. Click Upload Package and choose the package downloaded in the prior step. Click Install to install the package.

    Install GraphiQL Package

  6. Navigate to the GraphiQL IDE at http://localhost:4502/content/graphiql.html and begin exploring the GraphQL APIs.


    The GraphiQL tool and GraphQL API is explored in more detail later in the tutorial.


Congratulations, you now have an external application consuming AEM content with GraphQL. Feel free to inspect the code in the React app and continue to experiment with modifying existing Content Fragments.

Next Steps

(Bonus) CORS Configuration

AEM, being secure by default, blocks cross-origin requests, preventing unauthorized applications from connecting to and surfacing its content.

To allow this tutorial’s React app to interact with AEM’s GraphQL API endpoints, a cross-origin resource sharing configuration has been defined in the WKND Site reference project.

Cross-Origin Resource Sharing Configuration

To view the configuration deployed:

  1. Navigate to AEM SDK’s Web Console at http://localhost:4502/system/console.


    The Web Console is only available on the SDK. In an AEM as a Cloud Service environment this information can be viewed via the Developer Console.

  2. In the top menu click OSGI > Configuration to bring up all of the OSGi Configurations.

  3. Scroll down the page Adobe Granite Cross-Origin Resource Sharing.

  4. Click on the configuration for com.adobe.granite.cors.impl.CORSPolicyImpl~wknd-graphql.

  5. The following fields have been updated:

    • Allowed Origins (Regex): http://localhost:.*
      • Allows all local host connections.
    • Allowed Paths: /content/graphql/global/endpoint.json
      • This is the only GraphQL endpoint currently configured. As a best practice, CORs configurations should be as restrictive as possible.
    • Allowed Methods: GET, HEAD, POST
      • Only POST is required for GraphQL however the other methods can be useful when interacting with AEM in headless manner.
    • Supported Headers: authorization has been added to pass in basic authentication on the author environment.
    • Supports Credentials: Yes
      • This is required as our React app will communicate with the protected GraphQL end points on the AEM Author service.

This configuration and the GraphQL endpoints are a part of the AEM WKND project. You can view all the OSGi configurations here.
