Page Component

Last update: 2023-12-04
  • Created for:
  • Beginner

A page component is a regular component responsible for rendering a page. We are going a create a new page component and will be associating this page component with a new adaptive form template. This ensure our code will be excecuted only when an adaptive form is based on this particular template.

Create Page Component

Login to your local cloud ready AEM Forms instance. Create the following structure under the apps folder

  1. Right click page folder and create a node called storeandfetch of type cq:Component
  2. Save the changes
  3. Add the following properties to the storeandfetch node and save
Property Name Property Type Property Value
componentGroup String hidden
jcr:description String Adaptive Form Template Page Type
jcr:title String Adaptive Form Template Page
sling:resourceSuperType String fd/af/components/page2/aftemplatedpage

Copy the /libs/fd/af/components/page2/aftemplatedpage/aftemplatedpage.jsp and paste it under the storeandfetch node. Rename the aftemplatedpage.jsp to storeandfetch.jsp.

Open storeandfetch.jsp and add the following line:

<cq:include script="azureportal.jsp"/>

under the

<cq:include script="fallbackLibrary.jsp"/>

The final code should look like below

<cq:include script="fallbackLibrary.jsp"/>
<cq:include script="azureportal.jsp"/>

Create a file called azureportal.jsp under the storeandfetch node
copy the following code in to the azureportal.jsp and save the changes

<%@page session="false" %>
<%@include file="/libs/fd/af/components/guidesglobal.jsp" %>
<%@ page import="org.apache.commons.logging.Log" %>
<%@ page import="org.apache.commons.logging.LogFactory" %>
    if(request.getParameter("guid")!=null) {
            logger.debug( "Got Guid in the request" );
            String BlobId = request.getParameter("guid");
            java.util.Map paraMap = new java.util.HashMap();
    } else {
            logger.debug( "There is no Guid in the request " );

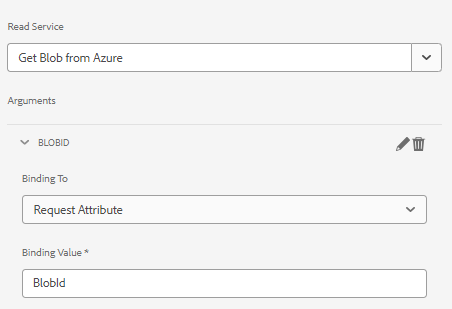

In this code we get the value of the request parameter guid and store it in a variable called BlobId. This BlobId is then passed into the sling request using the paramMap attribute. For this code to work, it is assumed that you have a form based on a Azure Storage backed form data model and the read service of the form data model is bound to an request attribute called BlobId as shown in the screen shot below.


Next Steps

Associate the page component with the template
