다음 자습서에서는 AEM Screens에 대한 사용자 지정 구성 요소를 만드는 단계를 안내합니다. AEM Screens은 다른 AEM 제품의 많은 기존 디자인 패턴과 기술을 재사용합니다. 이 튜토리얼에서는 AEM Screens용 을 개발할 때 차이점과 특별한 고려 사항을 강조 표시합니다.
이 튜토리얼은 AEM Screens을 처음 사용하는 개발자를 위한 것입니다. 이 자습서에서는 간단한 "Hello World" 구성 요소를 AEM Screens의 시퀀스 채널용으로 빌드했습니다. 대화 상자를 통해 작성자는 표시된 텍스트를 업데이트할 수 있습니다.
이 자습서를 완료하려면 다음이 필요합니다.
최신 Screens 기능 팩
AEM 스크린 플레이어
로컬 개발 환경
튜토리얼 단계 및 스크린샷은 다음을 사용하여 수행됩니다. CRXDE Lite. IDE를 사용하여 자습서를 완료할 수도 있습니다. IDE를 사용하여 개발하는 방법에 대한 자세한 정보 AEM과 함께 여기에서 찾을 수 있습니다.
Screens 프로젝트의 소스 코드는 일반적으로 다중 모듈 Maven 프로젝트로 관리됩니다. 튜토리얼을 신속하게 수행하기 위해 다음을 사용하여 프로젝트가 사전 생성되었습니다. AEM Project Archetype 13. 에 대한 추가 세부 정보 maven AEM Project Archetype으로 프로젝트를 만드는 방법은 여기에서 확인할 수 있습니다..
파일 가져오기
선택 사항 eclipse 또는 다른 IDE로 작업하는 경우 아래 소스 패키지를 다운로드합니다. Maven 명령을 사용하여 로컬 AEM 인스턴스에 프로젝트를 배포합니다.
mvn -PautoInstallPackage clean install
HelloWorld SRC Screens We.Retail 프로젝트 시작
위치 CRX 패키지 관리자, 다음 두 패키지가 설치되었는지 확인합니다.
Screens We.Retail에서는 CRX 패키지 관리자를 통해 설치된 Ui.Apps 및 Ui.Content 패키지를 실행합니다.
다음 screens-weretail-run.ui.apps 패키지 설치 코드 /apps/weretail-run
.
이 패키지에는 프로젝트에 대한 사용자 지정 구성 요소를 렌더링하는 코드를 포함합니다. 이 패키지에는 구성 요소 코드와 필요한 JavaScript 또는 CSS가 포함되어 있습니다. 이 패키지는 또한 임베드됩니다 screens-weretail-run.core-0.0.1-SNAPSHOT.jar 프로젝트에 필요한 Java™ 코드가 포함되어 있습니다.
이 자습서에서는 Java™ 코드가 작성되지 않습니다. 보다 복잡한 비즈니스 논리가 필요한 경우 Core Java™ 번들을 사용하여 백엔드 Java™을 만들고 배포할 수 있습니다.

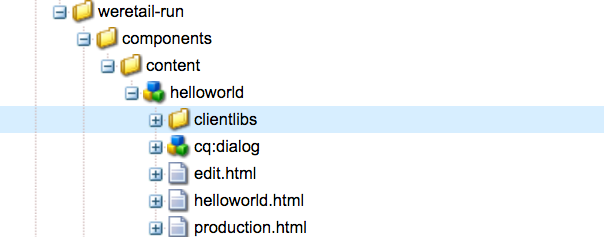

CRXDE Lite의 ui.apps 코드 표현
다음 helloworld
구성 요소는 자리 표시자일 뿐입니다. 자습서 과정에서 작성자가 구성 요소에서 표시하는 메시지를 업데이트할 수 있는 기능이 추가되었습니다.
다음 screens-weretail-run.ui.content 패키지 설치 코드:
/conf/we-retail-run
/content/dam/we-retail-run
/content/screens/we-retail-run
이 패키지에는 프로젝트에 필요한 시작 콘텐츠 및 구성 구조가 포함되어 있습니다. /conf/we-retail-run
We.Retail 실행 프로젝트에 대한 모든 구성을 포함합니다. /content/dam/we-retail-run
에는 프로젝트에 대한 디지털 에셋 시작이 포함됩니다. /content/screens/we-retail-run
에는 Screens 콘텐츠 구조가 포함되어 있습니다. 이러한 경로 아래의 콘텐츠는 주로 AEM에서 업데이트됩니다. 환경(로컬, 개발, 스테이지, 프로덕션) 간의 일관성을 향상시키기 위해 기본 콘텐츠 구조가 소스 제어에 저장되는 경우가 많습니다.
AEM Screens > We.Retail 실행 프로젝트로 이동합니다.
AEM 시작 메뉴 > Screens 아이콘을 클릭합니다. We.Retail 실행 프로젝트가 표시되는지 확인합니다.
Hello World 구성 요소는 사용자가 화면에 표시할 메시지를 입력할 수 있는 간단한 구성 요소입니다. 구성 요소는 AEM Screens 구성 요소 템플릿: https://github.com/Adobe-Marketing-Cloud/aem-screens-component-template.
AEM Screens에는 기존 WCM Sites 구성 요소에 대해 반드시 true가 아닌 몇 가지 흥미로운 제한 사항이 있습니다.
위치 CRXDE-Lite http://localhost:4502/crx/de/index.jsp
(또는 선택한 IDE), 다음 위치로 이동 /apps/weretail-run/components/content/helloworld.
에 다음 속성을 추가합니다 helloworld
구성 요소:
jcr:title="Hello World"
sling:resourceSuperType="foundation/components/parbase"
componentGroup="We.Retail Run - Content"
/apps/weretail-run/components/content/helloworld에 대한 속성
다음 helloworld
구성 요소가 foundation/components/parbase 구성 요소를 사용하여 시퀀스 채널 내에서 적절하게 사용할 수 있습니다.
아래에 파일 만들기 /apps/weretail-run/components/content/helloworld
명명된 helloworld.html.
파일을 다음과 같이 채웁니다.
<!--/*
/apps/weretail-run/components/content/helloworld/helloworld.html
*/-->
<!--/* production: preview authoring mode + unspecified mode (that is, on publish) */-->
<sly data-sly-test.production="${wcmmode.preview || wcmmode.disabled}" data-sly-include="production.html" />
<!--/* edit: any other authoring mode, that is, edit, design, scaffolding, and so on. */-->
<sly data-sly-test="${!production}" data-sly-include="edit.html" />
Screens 구성 요소에는 각 구성 요소에 따라 두 개의 서로 다른 렌더링 필요 작성 모드 사용 중:
helloworld.html
스위치 역할을 하여 활성화된 작성 모드를 확인하고 다른 HTL 스크립트로 리디렉션합니다. Screens 구성 요소에서 사용하는 일반적인 규칙은 edit.html
편집 모드 및 production.html
프로덕션 모드에 대한 스크립트입니다.
아래에 파일 만들기 /apps/weretail-run/components/content/helloworld
명명된 production.html.
파일을 다음과 같이 채웁니다.
<!--/*
/apps/weretail-run/components/content/helloworld/production.html
*/-->
<div data-duration="${properties.duration}" class="cmp-hello-world">
<h1 class="cmp-hello-world__message">${properties.message}</h1>
</div>
위의 프로덕션 마크업은 Hello World 구성 요소에 사용됩니다. A data-duration
구성 요소가 시퀀스 채널에서 사용되므로 속성이 포함됩니다. 다음 data-duration
속성은 시퀀스 항목이 표시되는 기간을 알기 위해 시퀀스 채널에서 사용됩니다.
구성 요소는 를 렌더링합니다. div
및 h1
텍스트가 있는 태그. ${properties.message}
는 라는 JCR 속성의 컨텐츠를 출력하는 HTL 스크립트의 일부입니다 message
. 사용자가 다음에 대한 값을 입력할 수 있는 대화 상자가 만들어집니다. message
속성 텍스트입니다.
또한 구성 요소에는 BEM(블록 요소 수정자) 표기법이 사용됩니다. BEM은 재사용 가능한 구성 요소를 쉽게 만들 수 있는 CSS 코딩 규칙입니다. BEM은 다음에 의해 사용되는 표기법입니다. AEM 핵심 구성 요소.
아래에 파일 만들기 /apps/weretail-run/components/content/helloworld
명명된 edit.html.
파일을 다음과 같이 채웁니다.
<!--/*
/apps/weretail-run/components/content/helloworld/edit.html
*/-->
<!--/* if message populated */-->
<div
data-sly-test.message="${properties.message}"
class="aem-Screens-editWrapper cmp-hello-world">
<p class="cmp-hello-world__message">${message}</p>
</div>
<!--/* empty place holder */-->
<div data-sly-test="${!message}"
class="aem-Screens-editWrapper cq-placeholder cmp-hello-world"
data-emptytext="${'Hello World' @ i18n, locale=request.locale}">
</div>
위의 편집 마크업은 Hello World 구성 요소용입니다. 대화 상자 메시지가 채워진 경우 첫 번째 블록에는 구성 요소의 편집 버전이 표시됩니다.
두 번째 블록은 대화 메시지를 입력하지 않은 경우 렌더링됩니다. 다음 cq-placeholder
및 data-emptytext
레이블 렌더링 헬로 월드 그 경우에 장소 보유자로서. 레이블의 문자열은 i18n을 사용하여 다국어로 구성하여 여러 로케일에서 작성할 수 있습니다.
Hello World 구성 요소에 사용할 Screens 이미지 대화 상자 복사
기존 대화 상자에서 시작한 다음 수정하는 것이 가장 쉽습니다.
/libs/screens/core/components/content/image/cq:dialog
/apps/weretail-run/components/content/helloworld
메시지의 탭을 포함하도록 Hello World 대화 상자를 업데이트합니다.
다음과 일치하도록 대화 상자를 업데이트합니다. 최종 대화 상자의 JCR 노드 구조는 아래에 XML로 표시되어 있습니다.
<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="https://sling.apache.org/jcr/sling/1.0" xmlns:cq="https://www.day.com/jcr/cq/1.0" xmlns:jcr="https://www.jcp.org/jcr/1.0" xmlns:nt="https://www.jcp.org/jcr/nt/1.0"
jcr:primaryType="nt:unstructured"
jcr:title="Hello World"
sling:resourceType="cq/gui/components/authoring/dialog">
<content
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/tabs"
size="L">
<items jcr:primaryType="nt:unstructured">
<message
jcr:primaryType="nt:unstructured"
jcr:title="Message"
sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
<items jcr:primaryType="nt:unstructured">
<column
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<message
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
fieldDescription="Message for component to display"
fieldLabel="Message"
name="./message"/>
</items>
</column>
</items>
</message>
<sequence
jcr:primaryType="nt:unstructured"
jcr:title="Sequence"
sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
<items jcr:primaryType="nt:unstructured">
<column
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<duration
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/numberfield"
defaultValue=""
fieldDescription="Amount of time the image is shown in the sequence, in milliseconds"
fieldLabel="Duration (ms)"
min="0"
name="./duration"/>
</items>
</column>
</items>
</sequence>
</items>
</content>
</jcr:root>
다음 textfield
에 대해 메시지는 라는 속성에 저장됩니다. message
및 numberfield
기간 은 이라는 속성에 저장됩니다. duration
. 이 두 속성은에서 모두 참조됩니다 /apps/weretail-run/components/content/helloworld/production.html
HTL별 ${properties.message}
및 ${properties.duration}
.
Hello World - 완료된 대화 상자
클라이언트측 라이브러리는 AEM 구현에 필요한 CSS 및 JavaScript 파일을 구성하고 관리하는 메커니즘을 제공합니다.
AEM Screens 구성 요소는 편집 모드와 미리보기/프로덕션 모드에서 다르게 렌더링됩니다. 두 개의 클라이언트 라이브러리가 만들어집니다. 하나는 편집 모드용이고 하나는 미리보기/프로덕션용입니다.
Hello World 구성 요소의 클라이언트측 라이브러리에 대한 폴더를 만듭니다.
아래에 /apps/weretail-run/components/content/helloworld
, 폴더 만들기 clientlibs
.
아래 clientlibs
폴더, 다음 이름의 노드 만들기 shared
유형 cq:ClientLibraryFolder.
공유 클라이언트 라이브러리에 다음 속성을 추가합니다.
allowProxy
| 부울 | true
categories
| 문자열[] | cq.screens.components
/apps/weretail-run/components/content/helloworld/clientlibs/shared에 대한 속성
categories 속성은 클라이언트 라이브러리를 식별하는 문자열입니다. cq.screens.componentcategory는 편집 모드와 미리보기/프로덕션 모드 모두에서 사용됩니다. 따라서 sharedclientlib에 정의된 모든 CSS/JS는 모든 모드에서 로드됩니다.
프로덕션 환경에서는 경로를 /apps에 직접 노출하지 않는 것이 좋습니다. allowProxy 속성은 접두사 of/etc.clientlibs을 통해 클라이언트 라이브러리 CSS 및 JS를 참조하도록 합니다.
파일 만들기: css.txt
공유 폴더 아래에 있습니다.
파일을 다음과 같이 채웁니다.
#base=css
styles.less
다음 이름의 폴더 만들기 css
아래에 shared
폴더를 삭제합니다. 이름이 인 파일 추가 style.less
아래에 css
폴더를 삭제합니다. 이제 클라이언트 라이브러리의 구조는 다음과 같아야 합니다.
이 자습서에서는 CSS를 직접 작성하는 대신 LESS를 사용합니다. 간단히 는 CSS 변수, mixin 및 함수를 지원하는 널리 사용되는 CSS 사전 컴파일러입니다. AEM 클라이언트 라이브러리는 기본적으로 LESS 컴파일을 지원합니다. Sass 또는 기타 사전 컴파일러를 사용할 수 있지만 AEM 외부에서 컴파일해야 합니다.
채우기 /apps/weretail-run/components/content/helloworld/clientlibs/shared/css/styles.less
다음을 사용하여:
/**
Shared Styles
/apps/weretail-run/components/content/helloworld/clientlibs/shared/css/styles.less
**/
.cmp-hello-world {
background-color: #fff;
&__message {
color: #000;
font-family: Helvetica;
text-align:center;
}
}
복사 및 붙여넣기 shared
클라이언트 라이브러리를 만들 클라이언트 라이브러리 폴더 production
.
공유 클라이언트 라이브러리를 복사하여 프로덕션 클라이언트 라이브러리를 만듭니다.
업데이트 categories
생성할 프로덕션 클라이언트 라이브러리의 속성입니다. cq.screens.components.production.
이렇게 하면 스타일이 미리 보기/프로덕션 모드에서만 로드됩니다.
/apps/weretail-run/components/content/helloworld/clientlibs/production용 속성
채우기 /apps/weretail-run/components/content/helloworld/clientlibs/production/css/styles.less
다음을 사용하여:
/**
Production Styles
/apps/weretail-run/components/content/helloworld/clientlibs/production/css/styles.less
**/
.cmp-hello-world {
height: 100%;
width: 100%;
position: fixed;
&__message {
position: relative;
font-size: 5rem;
top:25%;
}
}
위의 스타일은 메시지를 화면 가운데에 표시하지만 프로덕션 모드에서만 표시합니다.
세 번째 clientlibrary 범주: cq.screens.components.edit
편집 전용 스타일을 구성 요소에 추가하는 데 사용할 수 있습니다.
Clientlib 범주 | 사용 |
---|---|
cq.screens.components |
편집 모드와 프로덕션 모드 간에 공유되는 스타일 및 스크립트 |
cq.screens.components.edit |
편집 모드에서만 사용되는 스타일 및 스크립트 |
cq.screens.components.production |
프로덕션 모드에서만 사용되는 스타일 및 스크립트 |
AEM Screens 사용 정적 페이지 템플릿 및 디자인 구성 글로벌 변경 사항. 디자인 구성은 채널에서 Parsys에 대해 허용되는 구성 요소를 구성하는 데 자주 사용됩니다. 가장 좋은 방법은 이러한 구성을 앱별 방법으로 저장하는 것입니다.
We.Retail 실행 프로젝트에 관련된 모든 구성을 저장하는 We.Retail 실행 디자인 페이지가 아래에 만들어집니다.
위치 CRXDE Lite http://localhost:4502/crx/de/index.jsp#/apps/settings/wcm/designs
, 다음으로 이동 /apps/settings/wcm/designs
디자인 폴더 아래에 다음 이름의 노드를 만듭니다. we-retail-run
다음 유형의 cq:Page
.
아래 we-retail-run
페이지, 이름이 인 다른 노드 추가 jcr:content
유형 nt:unstructured
. 에 다음 속성을 추가합니다 jcr:content
노드:
이름 | 유형 | 값 |
---|---|---|
jcr:title | 문자열 | We.Retail 실행 |
sling:resourceType | 문자열 | wcm/core/components/designer |
cq:doctype | 문자열 | html_5 |
/apps/settings/wcm/designs/we-retail-run의 디자인 페이지
Hello World 구성 요소는 시퀀스 채널에서 사용하기 위한 것입니다. 구성 요소를 테스트하기 위해 새 시퀀스 채널이 만들어집니다.
AEM 시작 메뉴에서 다음으로 이동합니다. 스크린 > We.Retail Ru n > 및 선택 채널.
다음을 클릭합니다. 만들기 단추
만들기 마법사에서 다음을 수행합니다.
템플릿 단계 - 선택 시퀀스 채널
유휴 채널에 대한 페이지 속성을 엽니다. 디자인 필드가 을 가리키도록 업데이트 /apps/settings/wcm/designs/we-retail-run,
이전 섹션에서 만든 디자인 페이지입니다.
/apps/settings/wcm/designs/we-retail-run을 가리키는 디자인 구성
만든 유휴 채널을 편집하여 열 수 있습니다.
페이지 모드를 다음으로 전환 디자인 모드.
다음을 클릭합니다. 렌치 허용된 구성 요소를 구성할 수 있도록 Parsys의 아이콘
다음 항목 선택 스크린 그룹 및 We.Retail 실행 - 콘텐츠 그룹입니다.
페이지 모드를 다음으로 전환 편집. 이제 Hello World 구성 요소를 페이지에 추가하고 다른 시퀀스 채널 구성 요소와 결합할 수 있습니다.
위치 CRXDE Lite http://localhost:4502/crx/de/index.jsp#/apps/settings/wcm/designs/we-retail-run/jcr%3Acontent/sequencechannel/par
, 다음으로 이동 /apps/settings/wcm/designs/we-retail-run/jcr:content/sequencechannel/par
. 다음 사항에 주목합니다. components
이제 속성에 다음이 포함됩니다 group:Screens
, group:We.Retail Run - Content
.
/apps/settings/wcm/designs/we-retail-run에서 디자인 구성
사용자 지정 구성 요소가 에셋(이미지, 비디오, 글꼴 및 아이콘), 특정 에셋 표현물 또는 클라이언트측 라이브러리(css 및 js)와 같은 외부 리소스를 사용하는 경우 이러한 리소스는 오프라인 구성에 자동으로 추가되지 않습니다. 그 이유는 Adobe이 기본적으로 HTML 마크업만 번들로 제공하기 때문입니다.
플레이어에 다운로드되는 정확한 에셋을 맞춤화하고 최적화할 수 있도록 하기 위해 Adobe은 사용자 지정 구성 요소가 Screens의 오프라인 캐싱 논리에 종속성을 노출하도록 하는 확장 메커니즘을 제공합니다.
아래 섹션에서는 사용자 지정 오프라인 리소스 핸들러에 대한 템플릿과 pom.xml
특정 프로젝트에 사용할 수 있습니다.
package …;
import javax.annotation.Nonnull;
import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.Service;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.api.resource.ResourceUtil;
import org.apache.sling.api.resource.ValueMap;
import com.adobe.cq.screens.visitor.OfflineResourceHandler;
@Service(value = OfflineResourceHandler.class)
@Component(immediate = true)
public class MyCustomHandler extends AbstractResourceHandler {
@Reference
private …; // OSGi services injection
/**
* The resource types that are handled by the handler.
* @return the handled resource types
*/
@Nonnull
@Override
public String[] getSupportedResourceTypes() {
return new String[] { … };
}
/**
* Accept the provided resource, visit and traverse it as needed.
* @param resource The resource to accept
*/
@Override
public void accept(@Nonnull Resource resource) {
ValueMap properties = ResourceUtil.getValueMap(resource);
/* You can directly add explicit paths for offline caching using the `visit`
method of the visitor. */
// retrieve a custom property from the component
String myCustomRenditionUrl = properties.get("myCustomRenditionUrl", String.class);
// adding that exact asset/rendition/path to the offline manifest
this.visitor.visit(myCustomRenditionUrl);
/* You can delegate handling for dependent resources so they are also added to
the offline cache using the `accept` method of the visitor. */
// retrieve a referenced dependent resource
String referencedResourcePath = properties.get("myOtherResource", String.class);
ResourceResolver resolver = resource.getResourceResolver();
Resource referencedResource = resolver.getResource(referencedResourcePath);
// let the handler for that resource handle it
if (referencedResource != null) {
this.visitor.accept(referencedResource);
}
}
}
다음 코드는 의 최소 요구 사항을 제공합니다. pom.xml
해당 특정 프로젝트의 경우:
<dependencies>
…
<!-- Felix annotations -->
<dependency>
<groupId>org.apache.felix</groupId>
<artifactId>org.apache.felix.scr.annotations</artifactId>
<version>1.9.0</version>
<scope>provided</scope>
</dependency>
<!-- Screens core bundle with OfflineResourceHandler/AbstractResourceHandler -->
<dependency>
<groupId>com.adobe.cq.screens</groupId>
<artifactId>com.adobe.cq.screens</artifactId>
<version>1.5.90</version>
<scope>provided</scope>
</dependency>
…
</dependencies>
아래 비디오는 완료된 구성 요소와 시퀀스 채널에 구성 요소를 추가하는 방법을 보여 줍니다. 그런 다음 채널은 위치 표시에 추가되고 최종적으로 Screens 플레이어에 할당됩니다.
다음은 자습서의 완성된 코드입니다. 다음 screens-weretail-run.ui.apps-0.0.1-SNAPSHOT.zip 및 screens-weretail-run.ui.content-0.0.1-SNAPSHOT.zip 는 컴파일된 AEM 패키지입니다. SRC-screens-weretail-run-0.0.1.zip은 Maven을 사용하여 배포할 수 있는 컴파일되지 않은 소스 코드입니다.
