查询生成器提供了一种查询AEM内容存储库的简单方法。 该功能通过Java™ API和REST API公开。 本文档介绍了这些API。
服务器端查询生成器(QueryBuilder
)接受查询说明,创建并运行XPath查询,可以选择筛选结果集,并根据需要提取方面。
查询描述只是一组谓词(Predicate
)。 示例包括一个全文谓词,该谓词对应于 jcr:contains()
函数。
对于每个谓词类型,都有一个计算器组件(PredicateEvaluator
)已知如何处理XPath、筛选和Facet提取的特定谓词。 可以轻松创建自定义评估器,这些评估器通过OSGi组件运行时插入。
REST API通过HTTP提供对相同功能的访问,响应以JSON发送。
QueryBuilder API是使用JCR API构建的。 您还可以使用OSGi捆绑包中的JCR API查询AEM JCR。 有关信息,请参阅 使用JCR API查询Adobe Experience Manager数据.
AEM Gems 是Adobe专家对Adobe Experience Manager进行的一系列深入技术探讨。
您可以 查看专门用于查询生成器的会话 有关工具的概述和使用。
这些示例以Java™属性样式表示法提供。 要将其与Java™ API结合使用,请使用Java™ HashMap
如下面的API示例所示。
对于 QueryBuilder
JSON Servlet,每个示例都包含一个指向AEM安装的示例链接(位于默认位置, http://<host>:<port>
)。 在使用这些链接之前,请登录到您的AEM实例。
默认情况下,查询生成器JSON Servlet最多显示10次点击。
添加以下参数允许servlet显示所有查询结果:
p.limit=-1
要在浏览器中查看返回的JSON数据,您可能要使用诸如JSONView for Firefox之类的插件。
以下查询 返回十个结果 (确切地说,最多为10个),但会通知您 点击次数: 可用的:
http://<host>:<port>/bin/querybuilder.json?path=/content&1_property=sling:resourceType&1_property.value=wknd/components/structure/page&1_property.operation=like&orderby=path
path=/content
1_property=sling:resourceType
1_property.value=wknd/components/structure/page
1_property.operation=like
orderby=path
相同查询(使用参数) p.limit=-1
) 返回所有结果 (根据您的实例,它可能是一个很高的数字):
http://<host>:<port>/bin/querybuilder.json?path=/content&1_property=sling:resourceType&1_property.value=wknd/components/structure/page&1_property.operation=like&orderby=path&p.limit=-1
path=/content
1_property=sling:resourceType
1_property.value=wknd/components/structure/page
1_property.operation=like
p.limit=-1
orderby=path
目的 p.guessTotal
参数是返回通过组合最小可行值可以显示的适当数量的结果 p.offset
和 p.limit
值。 使用该参数的优点是改善了性能,且结果集大。 此参数还可避免计算完整总计(例如,调用 result.getSize()
)并读取整个结果集,从而优化了Oak引擎和索引。 在执行时间和内存使用量方面,当结果达到数十万时,此过程可能会产生显着差异。
此参数的缺点是用户看不到确切的总数。 但您可以设置以下最小值 p.guessTotal=1000
所以它总能读到1000。 这样,您便可以获得较小结果集的准确总计,但如果更多结果集,则只能显示“和更多”。
添加 p.guessTotal=true
,以了解其工作方式:
http://<host>:<port>/bin/querybuilder.json?path=/content&1_property=sling:resourceType&1_property.value=wknd/components/structure/page&1_property.operation=like&p.guessTotal=true&orderby=path
path=/content
1_property=sling:resourceType
1_property.value=wknd/components/structure/page
1_property.operation=like
p.guessTotal=true
orderby=path
查询返回 p.limit
默认 10
结果带有 0
offset:
"success": true,
"results": 10,
"total": 10,
"more": true,
"offset": 0,
您还可以使用数值来累加到自定义的最大结果数。 使用与上述相同的查询,但更改 p.guessTotal
到 50
:
http://<host>:<port>/bin/querybuilder.json?path=/content&1_property=sling:resourceType&1_property.value=wknd/components/structure/page&1_property.operation=like&p.guessTotal=50&orderby=path
它会返回一个数字,该数字与带0偏移量、具有10个结果的默认限制相同,但只显示最多50个结果:
"success": true,
"results": 10,
"total": 50,
"more": true,
"offset": 0,
默认情况下,查询生成器还会提供点击数。 根据结果大小,此数字可能需要较长时间,因为确定准确计数涉及检查每个结果的访问控制。 总数主要用于为最终用户UI实现分页。 由于确定确切计数可能会较慢,建议您使用guessTotal功能实施分页。
例如,UI可以调整以下方法:
获取并显示总点击量的准确计数(SearchResult.getTotalMatches() 或中的总计 querybuilder.json
响应)小于或等于100;
设置 guessTotal
到100调用查询生成器。
响应可能会产生以下结果:
total=43
, more=false
— 表示总点击数为43。 UI可以在第一个页面中显示最多十个结果,并为后续三个页面提供分页。 您还可以使用此实施来显示描述性文本,如 “找到43个结果”.total=100
, more=true
— 表示点击总数大于100,但确切计数未知。 UI最多可以将10个作为第一页的一部分显示,并为接下来的10个页面提供分页。 您还可以使用此功能来显示文本,如 “找到100个以上的结果”. 当用户进入下一页时,调用查询生成器会增加限制 guessTotal
以及 offset
和 limit
参数。此外,使用 guessTotal
在用户界面必须使用无限滚动以避免Query Builder确定确切点击计数的情况下。
http://<host>:<port>/bin/querybuilder.json?type=nt:file&nodename=*.jar&orderby=@jcr:content/jcr:lastModified&orderby.sort=desc
type=nt:file
nodename=*.jar
orderby=@jcr:content/jcr:lastModified
orderby.sort=desc
http://<host>:<port>/bin/querybuilder.json?type=cq:Page&orderby=@jcr:content/cq:lastModified
type=cq:Page
orderby=@jcr:content/cq:lastModified
http://<host>:<port>/bin/querybuilder.json?type=cq:Page&orderby=@jcr:content/cq:lastModified&orderby.sort=desc
type=cq:Page
orderby=@jcr:content/cq:lastModified
orderby.sort=desc
http://<host>:<port>/bin/querybuilder.json?fulltext=Management&orderby=@jcr:score&orderby.sort=desc
fulltext=Management
orderby=@jcr:score
orderby.sort=desc
http://<host>:<port>/bin/querybuilder.json?type=cq:Page&tagid=wknd:activity/cycling&tagid.property=jcr:content/cq:tags
type=cq:Page
tagid=wknd:activity/cycling
tagid.property=jcr:content/cq:tags
使用 tagid
谓词,如示例中所示,前提是您知道显式标记ID。
使用 tag
标记标题路径的谓词(不带空格)。
在上一个示例中,由于您正在搜索页面(cq:Page
节点),使用该节点的相对路径 tagid.property
谓词,即 jcr:content/cq:tags
. 默认情况下, tagid.property
会是 cq:tags
.
http://<host>:<port>/bin/querybuilder.json?fulltext=Experience&group.1_path=/content/wknd/us/en/magazine&group.2_path=/content/wknd/us/en/adventures&group.p.or=true
fulltext=Experience
group.p.or=true
group.1_path=/content/wknd/us/en/magazine
group.2_path=/content/wknd/us/en/adventures
此查询使用 组 (已命名 group
),它用于在查询中分隔子表达式,就像圆括号在更标准的符号中所做的那样。 例如,上一个查询可能会以更熟悉的样式表示,如:
"Experience" and ("/content/wknd/us/en/magazine" or "/content/wknd/us/en/adventures")
在示例中的组内, path
谓词使用多次。 要区分谓词的两个实例并对其进行排序(某些谓词需要排序),必须在谓词前面添加以下前缀 N_
位置 N
是排序索引。 在上一个示例中,生成的谓词为 1_path
和 2_path
.
此 p
在 p.or
是一个特殊分隔符,指示接下来的(在本例中为 or
)是 参数 组的一个子谓词,例如 1_path
.
如果否 p.or
给定,然后所有谓词都进行AND运算,即每个结果必须满足所有谓词。
不能在一个查询中使用相同的数字前缀,即使对于不同的谓词也是如此。
在此处,您将使用 cq:template
属性:
http://<host>:<port>/bin/querybuilder.json?property=cq%3atemplate&property.value=%2fconf%2fwknd%2fsettings%2fwcm%2ftemplates%2fadventure-page-template&type=cq%3aPageContent
type=cq:PageContent
property=cq:template
property.value=/conf/wknd/settings/wcm/templates/adventure-page-template
缺点在于 jcr:content
返回的是页面的节点,而不是页面本身。 要解决此问题,您可以按相对路径搜索:
http://<host>:<port>/bin/querybuilder.json?property=jcr%3acontent%2fcq%3atemplate&property.value=%2fconf%2fwknd%2fsettings%2fwcm%2ftemplates%2fadventure-page-template&type=cq%3aPage
type=cq:Page
property=jcr:content/cq:template
property.value=/conf/wknd/settings/wcm/templates/adventure-page-template
多次使用属性谓词时,必须再次添加数字前缀:
http://<host>:<port>/bin/querybuilder.json?1_property=jcr%3acontent%2fcq%3atemplate&1_property.value=%2fconf%2fwknd%2fsettings%2fwcm%2ftemplates%2fadventure-page-template&2_property=jcr%3acontent%2fjcr%3atitle&2_property.value=Cycling%20Tuscany&type=cq%3aPage
type=cq:Page
1_property=jcr:content/cq:template
1_property.value=/conf/wknd/settings/wcm/templates/adventure-page-template
2_property=jcr:content/jcr:title
2_property.value=Cycling Tuscany
要在搜索属性的多个值时避免大型组("A" or "B" or "C"
),您可以为提供多个值 property
谓词:
http://<host>:<port>/bin/querybuilder.json?property=jcr%3atitle&property.1_value=Cycling%20Tuscany&property.2_value=Ski%20Touring&property.3_value=Whistler%20Mountain%20Biking
property=jcr:title
property.1_value=Cycling Tuscany
property.2_value=Ski Touring
property.3_value=Whistler Mountain Biking
对于多值属性,您还可以要求多个值匹配("A" and "B" and "C"
):
http://<host>:<port>/bin/querybuilder.json?property=jcr%3atitle&property.and=true&property.1_value=Cycling%20Tuscany&property.2_value=Ski%20Touring&property.3_value=Whistler%20Mountain%20Biking
property=jcr:title
property.and=true
property.1_value=Cycling Tuscany
property.2_value=Ski Touring
property.3_value=Whistler Mountain Biking
默认情况下,QueryBuilder JSON Servlet为搜索结果中的每个节点返回一组默认属性(例如,路径、名称和标题)。 要获得对返回哪些属性的控制权,您可以执行以下操作之一:
指定
p.hits=full
在这种情况下,每个节点包含所有属性:
http://<host>:<port>/bin/querybuilder.json?p.hits=full&property=jcr%3atitle&property.value=Cycling%20Tuscany
property=jcr:title
property.value=Cycling Tuscany
p.hits=full
使用
p.hits=selective
并指定要访问的属性
p.properties
以空格分隔:
http://<host>:<port>/bin/querybuilder.json?p.hits=selective&p.properties=sling%3aresourceType%20jcr%3aprimaryType&property=jcr%3atitle&property.value=Cycling%20Tuscany
property=jcr:title
property.value=Cycling Tuscany
p.hits=selective
p.properties=sling:resourceType jcr:primaryType
您还可以在查询生成器响应中包含子节点。 指定
p.nodedepth=n
位置 n
是您希望查询返回的级别数。 对于要返回的子节点,必须由属性选择器指定
p.hits=full
示例:
http://<host>:<port>/bin/querybuilder.json?p.hits=full&p.nodedepth=5&property=jcr%3atitle&property.value=Cycling%20Tuscany
property=jcr:title
property.value=Cycling Tuscany
p.hits=full
p.nodedepth=5
有关更多谓词,请参见 查询生成器谓词引用页.
您还可以检查 的Javadoc PredicateEvaluator
类. 这些类的Javadoc包含您可以使用的属性列表。
类名的前缀(例如, similar
在 SimilarityPredicateEvaluator
)是 主体属性 ,属于该类。 此属性也是要在查询中使用的谓词名称(小写)。
对于此类主体属性,您可以缩短查询并使用 similar=/content/en
而不是完全限定的变量 similar.similar=/content/en
. 全限定形式必须用于类的所有非主体属性。
String fulltextSearchTerm = "WKND";
// create query description as hash map (simplest way, same as form post)
Map<String, String> map = new HashMap<String, String>();
// create query description as hash map (simplest way, same as form post)
map.put("path", "/content");
map.put("type", "cq:Page");
map.put("group.p.or", "true"); // combine this group with OR
map.put("group.1_fulltext", fulltextSearchTerm);
map.put("group.1_fulltext.relPath", "jcr:content");
map.put("group.2_fulltext", fulltextSearchTerm);
map.put("group.2_fulltext.relPath", "jcr:content/@cq:tags");
// can be done in map or with Query methods
map.put("p.offset", "0"); // same as query.setStart(0) below
map.put("p.limit", "20"); // same as query.setHitsPerPage(20) below
Query query = builder.createQuery(PredicateGroup.create(map), session);
query.setStart(0);
query.setHitsPerPage(20);
SearchResult result = query.getResult();
// paging metadata
int hitsPerPage = result.getHits().size(); // 20 (set above) or lower
long totalMatches = result.getTotalMatches();
long offset = result.getStartIndex();
long numberOfPages = totalMatches / 20;
//Place the results in XML to return to client
DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
DocumentBuilder builder = factory.newDocumentBuilder();
Document doc = builder.newDocument();
//Start building the XML to pass back to the AEM client
Element root = doc.createElement( "results" );
doc.appendChild( root );
// iterating over the results
for (Hit hit : result.getHits()) {
String path = hit.getPath();
//Create a result element
Element resultel = doc.createElement( "result" );
root.appendChild( resultel );
Element pathel = doc.createElement( "path" );
pathel.appendChild( doc.createTextNode(path ) );
resultel.appendChild( pathel );
}
使用查询生成器(JSON) Servlet通过HTTP执行的相同查询:
http://<host>:<port>/bin/querybuilder.json?path=/content&type=cq:Page&group.p.or=true&group.1_fulltext=WKND&group.1_fulltext.relPath=jcr:content&group.2_fulltext=WKND&group.2_fulltext.relPath=jcr:content/@cq:tags&p.offset=0&p.limit=20
查询可以存储在存储库中,以便您以后使用。 此 QueryBuilder
提供 storeQuery
具有以下签名的方法:
void storeQuery(Query query, String path, boolean createFile, Session session) throws RepositoryException, IOException;
使用时 QueryBuilder#storeQuery
方法,给定 Query
作为文件或属性存储在存储库中,具体情况如下 createFile
参数值。 以下示例说明如何保存 Query
到路径 /mypath/getfiles
作为文件:
builder.storeQuery(query, "/mypath/getfiles", true, session);
任何之前存储的查询均可使用从存储库中加载的 QueryBuilder#loadQuery
方法:
Query loadQuery(String path, Session session) throws RepositoryException, IOException
例如, Query
存储到路径 /mypath/getfiles
可以由以下代码片段加载:
Query loadedQuery = builder.loadQuery("/mypath/getfiles", session);
要绕过并调试Query Builder查询,您可以使用位于的Query Builder调试器控制台
http://<host>:<port>/libs/cq/search/content/querydebug.html
或者,也可以使用位于的查询生成器JSON Servlet
http://<host>:<port>/bin/querybuilder.json?path=/tmp
此 path=/tmp
只是一个示例。
说明 所有 在开发周期内对目标索引集执行的查询。
https://<host>:<port>/system/console/slinglog
。创建日志记录器 com.day.cq.search.impl.builder.QueryImpl
在 调试.com.day.cq.search.impl.builder.QueryImpl XPath query: /jcr:root/content//element(*, cq:Page)[(jcr:contains(jcr:content, "WKND") or jcr:contains(jcr:content/@cq:tags, "WKND"))]

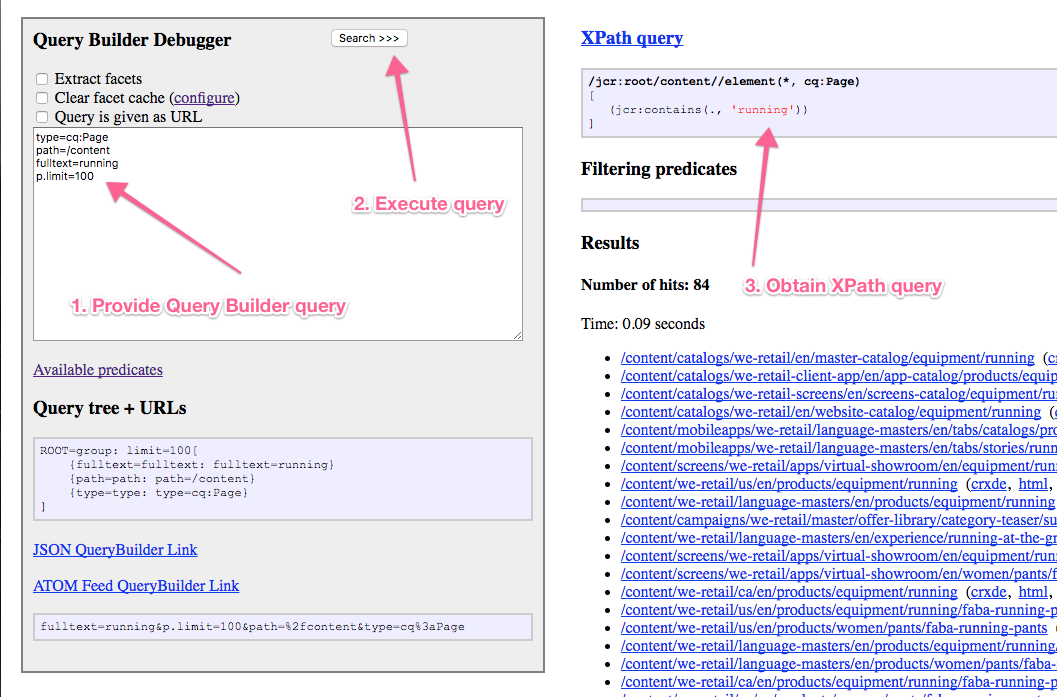

使用AEM Query Builder调试器生成可解释的XPath查询。
可以直接提供非查询生成器查询(XPath、JCR-SQL2)来解释查询。
文档中介绍了记录器的配置 记录.
执行上一节中描述的查询时,查询生成器实施的日志输出(INFO级别) 测试和调试:
com.day.cq.search.impl.builder.QueryImpl executing query (predicate tree):
null=group: limit=20, offset=0[
{group=group: or=true[
{1_fulltext=fulltext: fulltext=WKND, relPath=jcr:content}
{2_fulltext=fulltext: fulltext=WKND, relPath=jcr:content/@cq:tags}
]}
{path=path: path=/content}
{type=type: type=cq:Page}
]
com.day.cq.search.impl.builder.QueryImpl XPath query: /jcr:root/content//element(*, cq:Page)[(jcr:contains(jcr:content, "WKND") or jcr:contains(jcr:content/@cq:tags, "WKND"))]
com.day.cq.search.impl.builder.QueryImpl no filtering predicates
com.day.cq.search.impl.builder.QueryImpl query execution took 69 ms
如果您的查询使用谓词计算器,这些计算器过滤或使用按比较器排序的自定义规则,则查询中会记录该规则:
com.day.cq.search.impl.builder.QueryImpl executing query (predicate tree):
null=group: [
{nodename=nodename: nodename=*.jar}
{orderby=orderby: orderby=@jcr:content/jcr:lastModified}
{type=type: type=nt:file}
]
com.day.cq.search.impl.builder.QueryImpl custom order by comparator: jcr:content/jcr:lastModified
com.day.cq.search.impl.builder.QueryImpl XPath query: //element(*, nt:file)
com.day.cq.search.impl.builder.QueryImpl filtering predicates: {nodename=nodename: nodename=*.jar}
com.day.cq.search.impl.builder.QueryImpl query execution took 272 ms
Javadoc | 描述 |
---|---|
com.day.cq.search | 基本查询生成器和查询API |
com.day.cq.search.result | 结果API |
com.day.cq.search.facets | Facet |
com.day.cq.search.facets.buckets | 分段(包含在Facet中) |
com.day.cq.search.eval | 谓词评估器 |
com.day.cq.search.facets.extractors | Facet提取器(用于评估器) |
com.day.cq.search.writer | 查询生成器servlet的JSON结果点击编写器(/bin/querybuilder.json ) |
