Integrating Form Bridge with custom portal for HTML5 forms integrating-form-bridge-with-custom-portal-for-html-forms

FormBridge is a HTML5 forms bridge API that lets you interact with a form. For the FormBridge API reference, see FormBridge API reference.

You can use the FormBridge API to get or set the values of form fields from the HTML page and submit the form. For example, you can use API to build a wizard-like experience.

An existing HTML application can use the FormBridge API to interact with a form and embed it in the HTML page. You can use following steps to set the value of a field using Form Bridge API.

Integrating HTML5 forms to a web page integrating-html-forms-to-a-web-page

  1. Choose a Profile or create a Profile

    1. In the CRX DE interface, navigate to: https://'[server]:[port]'/crx/de.

    2. Log in with administrator credentials.

    3. Create a profile or choose an existing profile.

      For details on how to create a profile, see Creating a Profile.

  2. Modify the HTML Profile

    Include XFA runtime, XFA locale library, and XFA form HTML snippet in the profile renderer, design your web page, and place the form inside the web page.

    For example, use the following code snippet, to create an app with two input fields and a form to demonstrate the interaction between the form and an external app.

    code language-xml
    <%@ page session="false"
                   contentType="text/html; charset=utf-8"%><%
    %><%@ taglib prefix="cq" uri="https://www.day.com/taglibs/cq/1.0" %><%
    %><!DOCTYPE html>
    <html manifest="${param.offlineSpec}">
        <head>
           <cq:include script="formRuntime.jsp"/>
            <!-- Portal Scripts and Styles -->
           <cq:include script="portalheader.jsp"/>
        </head>
        <body>
            <div id="leftdiv" >
                <div id="leftdivcontentarea">
                    <!-- Portal Body -->
                  <cq:include script="portalbody.jsp"/>
                </div>
            </div>
            <div id="rightdiv">
                <div id="formBody">
                <cq:include script="config.jsp"/>
                <!-- Form body -->
                <cq:include script="formBody.jsp"/>
                <!  --To assist in page transitions -- add navigation, based on scrolling -->
                <cq:include  script="../nav/scroll/nav_footer.jsp"/>
                <cq:include script="footer.jsp"/>
                </div>
            </div>
        </body>
    </html>

    note note
    NOTE
    The line 9, contains additional JSP reference for CSS styles and JavaScript files to design the page.
    The <div id=“rightdiv”> tag on line 18 contains the HTML snippet of the XFA form.
    The page is styled into two containers: left and right. The right container has the form. The left container has two input fields and part of the external HTML page.

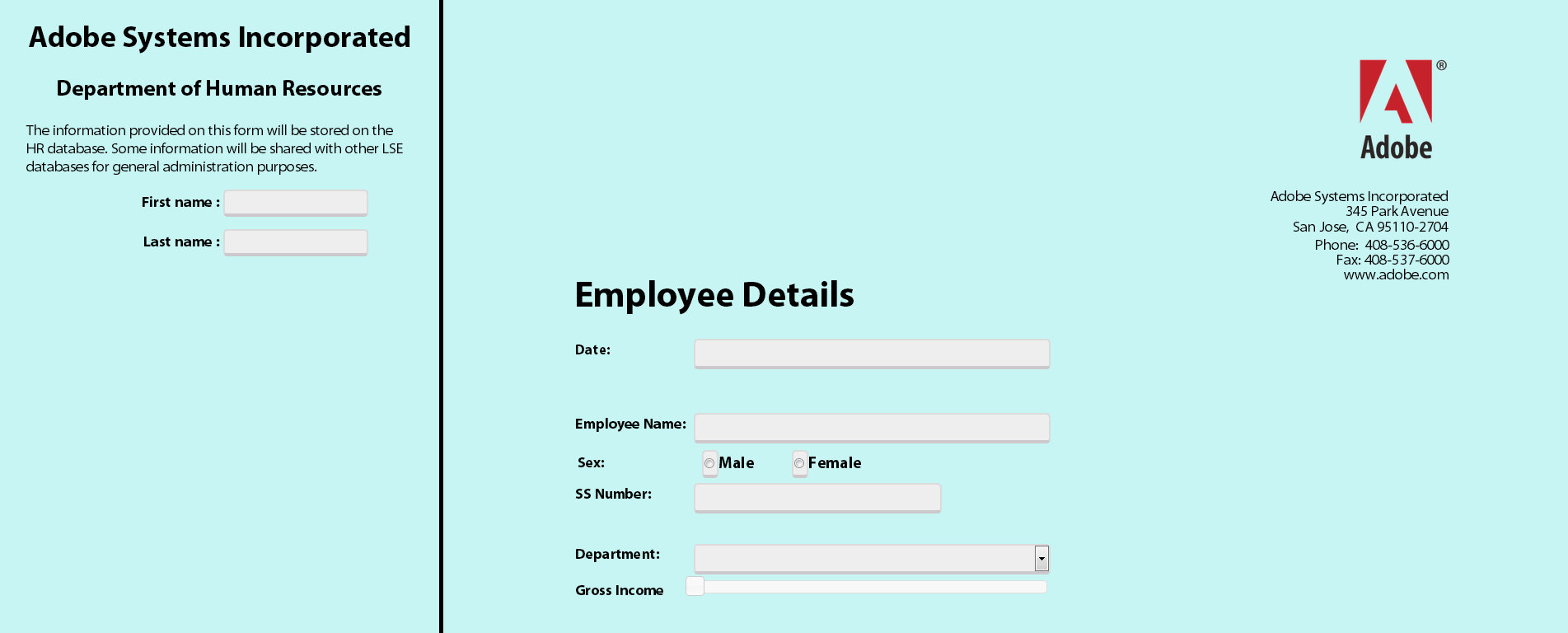

    The following screen shot shows how the form displays in a browser.

    portal

    The left side is part of the HTML page. The right side containing the fields is the xfa form.

  3. Accessing the form fields from the page

    The following is a sample script you can add to set values in a form field.

    For example, if you want to set the EmployeeName using the values in the Fields First Name and Last Name, call the window.formBridge.setFieldValue function.

    Similarly, you can read the value by calling window.formBridge.getFieldValue API.

    code language-javascript
    $(function() {
                $(".input").blur(function() {
                    window.formBridge.setFieldValue(
                                'xfa.form.form1.#subform[0].EmployeeName',
                                 $("#lname").val()+' '+$("#fname").val()
                               )
                    });
            });
