Assembling PDF Documents with Bookmarks

Samples and examples in this document are only for AEM Forms on JEE environment.

You can assemble a PDF document that contains bookmarks. For example, assume that you have a PDF document that does not contain bookmarks and you want to modify it by providing bookmarks. Using the Assembler service, you can pass it a PDF document that does not contain bookmarks and get back a PDF document that contains bookmarks.

Bookmarks contain the following properties:

• A title that appears as text on the screen.
• An action that specifies what happens when a user clicks on the bookmark. The typical action for a bookmark is to move to another location in the current document or open another PDF document, although other actions can be specified.

For the purpose of this discussion, assume that the following DDX document is used.

 <?xml version="1.0" encoding="UTF-8"?>
 <DDX xmlns="https://ns.adobe.com/DDX/1.0/">
       <PDF result="FinalDoc.pdf">
          <PDF source="Loan.pdf">
             <Bookmarks source="doc2" />
          </PDF>
       </PDF>
 </DDX>

Within this DDX document, notice that the source attribute is assigned the value Loan.pdf. This DDX document specifies that a single PDF document is passed to the Assembler service. When assembling a PDF document with bookmarks, you must specify a bookmark XML document that describes the bookmarks in the result document. To specify a bookmark XML document, ensure that the Bookmarks element is specified in your DDX document.

In this example DDX document, the Bookmarks element specifies doc2 as the value. This value indicates that the input map passed to the Assembler service contains a key named doc2. The value of the doc2 key is a com.adobe.idp.Document value that represents the bookmark XML document. (See “Bookmarks Language” in the Assembler Service and DDX Reference.)

This topic uses the following XML bookmarks language to assemble a PDF document containing bookmarks.

 <?xml version="1.0" encoding="UTF-8"?>
 <Bookmarks xmlns="https://ns.adobe.com/pdf/bookmarks" version="1.0">
       <Bookmark>
          <Action>
             <Launch NewWindow="true">
                <File Name="C:\Adobe\LoanDetails.pdf" />
             </Launch>
          </Action>
         <Title>Open the Loan document</Title>
       </Bookmark>
 <Bookmark>
          <Action>
             <Launch>
                <Win Name="C:\WINDOWS\notepad.exe" />
             </Launch>
          </Action>
     <Title>Launch NotePad</Title>
       </Bookmark>
 </Bookmarks>

Within this bookmark XML document, notice the Action element that defines the action that is performed when a user clicks the bookmark. Under the Action element is the Launch element that launches applications, such as NotePad and opens files, such as PDF files. To open a PDF file, you must use the File element that specifies the file to open. For example, in the bookmark XML file specified in this section, the name of the file that is opened is LoanDetails.pdf.

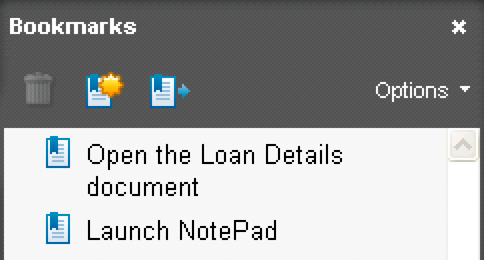

Given the DDX document specified in this section and bookmark XML file as input, the Assembler service assembles a PDF document that contains the following bookmarks.

When a user clicks on the Open the Loan Details bookmark, the LoanDetails.pdf is opened. Likewise, when the user clicks on the Launch NotePad bookmark, NotePad is started.

Summary of steps

To assemble a PDF document that contains bookmarks, perform the following tasks:

1. Include project files.
2. Create a PDF Assembler client.
3. Reference an existing DDX document.
4. Reference a PDF document to which bookmarks are added.
5. Reference the bookmark XML document.
6. Add the PDF document and the bookmark XML document to a Map collection.
7. Set run-time options.
8. Assemble the PDF document.
9. Save the PDF document that contains bookmarks.

Include project files

Include the necessary files in your development project. If you are creating a client application by using Java, include the necessary JAR files. If you are using web services, ensure that you include the proxy files.

The following JAR files must be added to your project’s class path:

• adobe-livecycle-client.jar
• adobe-usermanager-client.jar
• adobe-assembler-client.jar
• adobe-utilities.jar (required if AEM Forms is deployed on JBoss)
• jbossall-client.jar (required if AEM Forms is deployed on JBoss)

if AEM Forms is deployed on a supported J2EE application server other than JBoss, you must replace the adobe-utilities.jar and jbossall-client.jar files with JAR files that are specific to the J2EE application server that AEM Forms is deployed on. For information about the location of all AEM Forms JAR files, see Including AEM Forms Java library files.

Create a PDF Assembler client

Before you can programmatically perform an Assembler operation, you must create an Assembler service client.

Reference an existing DDX document

A DDX document must be referenced to assemble a PDF document. This DDX document must contain the Bookmarks element, which instructs the Assembler service to assemble a PDF that contains bookmarks. (See the DDX document shown earlier in this section for an example.)

Reference a PDF document to which bookmarks are added

Reference a PDF document to which bookmarks are added. It does not matter whether the referenced PDF document already contains bookmarks. If the Bookmarks element is a child of the PDF source element, then the Bookmarks will replace those that already exist in the PDF source. However, if you want to keep the existing bookmarks, then ensure that Bookmarks is a sibling of the PDF source element. For example, consider the following example:

 <PDF result="foo">
      <PDF source="inDoc"/>
      <Bookmarks source="doc2"/>
 </PDF>

Reference the bookmark XML document

To assemble a PDF that contains new bookmarks, you must reference a bookmark XML document. The bookmark XML document is passed to the Assembler service within the Map collection object. (See the bookmark XML document shown earlier in this section for an example.)

Add the PDF document and the bookmark XML document to a Map collection

You must add both the PDF document to which bookmarks are added and the bookmark XML document to the Map collection. Therefore the Map collection object contains two elements: a PDF document and the bookmark XML document.

Set run-time options

You can set run-time options that control the behavior of the Assembler service while it performs a job. For example, you can set an option that instructs the Assembler service to continue processing a job if an error is encountered. For information about the run-time options that you can set, see the AssemblerOptionSpec class reference in AEM Forms API Reference.

Assemble the PDF document

To assemble a PDF document that contains new bookmarks, use the Assembler service’s invokeDDX operation. The reason why you must use the invokeDDX operation as opposed to other Assembler service operations such as invokeOneDocument is because the Assembler service requires a bookmark XML document that is passed within the Map collection object. This object is a parameter of the invokeDDX operation.

Save the PDF document that contains bookmarks

You must extract the results from the returned map object and save the corresponding PDF document. (See “Extract the results” in Programmatically Assembling PDF Documents.)

See also

Including AEM Forms Java library files

Setting connection properties

Programmatically Assembling PDF Documents

Assemble PDF documents with bookmarks using the Java API

Assemble a PDF document with bookmarks by using the Assembler Service API (Java):

1. Include project files.

   Include client JAR files, such as adobe-assembler-client.jar, in your Java project’s class path.

2. Create a PDF Assembler client.

   • Create a ServiceClientFactory object that contains connection properties. (See Setting connection properties.)
   • Create an AssemblerServiceClient object by using its constructor and passing the ServiceClientFactory object.

3. Reference an existing DDX document.

   • Create a java.io.FileInputStream object that represents the DDX document by using its constructor and passing a string value that specifies the location of the DDX file.
   • Create a com.adobe.idp.Document object by using its constructor and passing the java.io.FileInputStream object.

4. Reference a PDF document to which bookmarks are added.

   • Create a java.io.FileInputStream object by using its constructor and passing the location of the PDF document.
   • Create a com.adobe.idp.Document object by using its constructor and pass the java.io.FileInputStream object that contains the PDF document.

5. Reference the bookmark XML document.

   • Create a java.io.FileInputStream object by using its constructor and passing the location of the XML file that represents the bookmark XML document.
   • Create a com.adobe.idp.Document object and pass the java.io.FileInputStream object that contains the PDF document.

6. Add the PDF document and the bookmark XML document to a Map collection.

   • Create a java.util.Map object that is used to store both the input PDF document and the bookmark XML document.

   • Add the input PDF document by invoking the java.util.Map object’s put method and passing the following arguments:

     • A string value that represents the key name. This value must match the value of the PDF source element specified in the DDX document.
     • A com.adobe.idp.Document object that contains the input PDF document.

   • Add the bookmark XML document by invoking the java.util.Map object’s put method and passing the following arguments:

     • A string value that represents the key name. This value must match the value of the Bookmarks source element specified in the DDX document.
     • A com.adobe.idp.Document object that contains the bookmark XML document.

7. Set run-time options.

   • Create an AssemblerOptionSpec object that stores run-time options by using its constructor.
   • Set run-time options to meet your business requirements by invoking a method that belongs to the AssemblerOptionSpec object. For example, to instruct the Assembler service to continue processing a job when an error occurs, invoke the AssemblerOptionSpec object’s setFailOnError method and pass false.

8. Assemble the PDF document.

   Invoke the AssemblerServiceClient object’s invokeDDX method and pass the following required values:

   • A com.adobe.idp.Document object that represents the DDX document to be used
   • A java.util.Map object that contains both the input PDF document and the bookmark XML document.
   • A com.adobe.livecycle.assembler.client.AssemblerOptionSpec object that specifies the run-time options, including default font and job log level

   The invokeDDX method returns a com.adobe.livecycle.assembler.client.AssemblerResult object that contains the results of the job and any exceptions that occurred.

9. Save the PDF document that contains bookmarks.

   To obtain the newly created PDF document, perform the following actions:

   • Invoke the AssemblerResult object’s getDocuments method. This returns a java.util.Map object.
   • Iterate through the java.util.Map object until you find the resultant com.adobe.idp.Document object. (You can use the PDF result element specified in the DDX document to get the document.)
   • Invoke the com.adobe.idp.Document object’s copyToFile method to extract the PDF document.

See also

Quick Start (SOAP mode): Assembling PDF documents with bookmarks using the Java API

Including AEM Forms Java library files

Setting connection properties

Assemble PDF documents with bookmarks using the web service API

Assemble a PDF document with bookmarks by using the Assembler Service API (web service):

1. Include project files.

   Create a Microsoft .NET project that uses MTOM. Ensure that you use the following WSDL definition: http://localhost:8080/soap/services/AssemblerService?WSDL&lc_version=9.0.1.

   NOTE

   Replace localhost with the IP address of the server hosting AEM Forms.

2. Create a PDF Assembler client.

   • Create an AssemblerServiceClient object by using its default constructor.

   • Create an AssemblerServiceClient.Endpoint.Address object by using the System.ServiceModel.EndpointAddress constructor. Pass a string value that specifies the WSDL to the AEM Forms service (for example, http://localhost:8080/soap/services/AssemblerService?blob=mtom). You do not need to use the lc_version attribute. This attribute is used when you create a service reference.

   • Create a System.ServiceModel.BasicHttpBinding object by getting the value of the AssemblerServiceClient.Endpoint.Binding field. Cast the return value to BasicHttpBinding.

   • Set the System.ServiceModel.BasicHttpBinding object’s MessageEncoding field to WSMessageEncoding.Mtom. This value ensures that MTOM is used.

   • Enable basic HTTP authentication by performing the following tasks:

     • Assign the AEM forms user name to the field AssemblerServiceClient.ClientCredentials.UserName.UserName.
     • Assign the corresponding password value to the field AssemblerServiceClient.ClientCredentials.UserName.Password.
     • Assign the constant value HttpClientCredentialType.Basic to the field BasicHttpBindingSecurity.Transport.ClientCredentialType.
     • Assign the constant value BasicHttpSecurityMode.TransportCredentialOnly to the field BasicHttpBindingSecurity.Security.Mode.

3. Reference an existing DDX document.

   • Create a BLOB object by using its constructor. The BLOB object is used to store the DDX document.
   • Create a System.IO.FileStream object by invoking its constructor and passing a string value that represents the file location of the DDX document and the mode in which to open the file.
   • Create a byte array that stores the content of the System.IO.FileStream object. You can determine the size of the byte array by getting the System.IO.FileStream object’s Length property.
   • Populate the byte array with stream data by invoking the System.IO.FileStream object’s Read method and passing the byte array, the starting position, and the stream length to read.
   • Populate the BLOB object by assigning its MTOM field with the contents of the byte array.

4. Reference a PDF document to which bookmarks are added.

   • Create a BLOB object by using its constructor. The BLOB object is used to store the input PDF.
   • Create a System.IO.FileStream object by invoking its constructor and passing a string value that represents the file location of the input PDF document and the mode in which to open the file.
   • Create a byte array that stores the content of the System.IO.FileStream object. You can determine the size of the byte array by getting the System.IO.FileStream object’s Length property.
   • Populate the byte array with stream data by invoking the System.IO.FileStream object’s Read method and passing the byte array, the starting position, and the stream length to read.
   • Populate the BLOB object by assigning its MTOM field with the contents of the byte array.

5. Reference the bookmark XML document.

   • Create a BLOB object by using its constructor. The BLOB object is used to store the bookmark XML document.
   • Create a System.IO.FileStream object by invoking its constructor and passing a string value that represents the file location of the input PDF document and the mode in which to open the file.
   • Create a byte array that stores the content of the System.IO.FileStream object. You can determine the size of the byte array by getting the System.IO.FileStream object’s Length property.
   • Populate the byte array with stream data by invoking the System.IO.FileStream object’s Read method and passing the byte array, the starting position, and the stream length to read.
   • Populate the BLOB object by assigning its MTOM field with the contents of the byte array.

6. Add the PDF document and the bookmark XML document to a Map collection.

   • Create a MyMapOf_xsd_string_To_xsd_anyType object. This collection object is used to store the input PDF documents and the bookmark XML document.
   • For each input PDF document and the bookmark XML document , create a MyMapOf_xsd_string_To_xsd_anyType_Item object.
   • Assign a string value that represents the key name to the MyMapOf_xsd_string_To_xsd_anyType_Item object’s key field. This value must match the value of the PDF source element specified in the DDX document.
   • Assign the BLOB object that stores the PDF document to the MyMapOf_xsd_string_To_xsd_anyType_Item object’s value field.
   • Add the MyMapOf_xsd_string_To_xsd_anyType_Item object to the MyMapOf_xsd_string_To_xsd_anyType object. Invoke the MyMapOf_xsd_string_To_xsd_anyType object’s Add method and pass the MyMapOf_xsd_string_To_xsd_anyType object. (Perform this task for each input PDF document and the bookmark XML document.)

7. Set run-time options.

   • Create an AssemblerOptionSpec object that stores run-time options by using its constructor.
   • Set run-time options to meet your business requirements by assigning a value to a data member that belongs to the AssemblerOptionSpec object. For example, to instruct the Assembler service to continue processing a job when an error occurs, assign false to the AssemblerOptionSpec object’s failOnError data member.

8. Assemble the PDF document.

   Invoke the AssemblerServiceClient object’s invokeDDX method and pass the following values:

   • A BLOB object that represents the DDX document
   • The MyMapOf_xsd_string_To_xsd_anyType array that contains the input documents
   • An AssemblerOptionSpec object that specifies run-time options

   The invokeDDX method returns an AssemblerResult object that contains the results of the job and any exceptions that may have occurred.

9. Save the PDF document that contains bookmarks.

   To obtain the newly created PDF document, perform the following actions:

   • Access the AssemblerResult object’s documents field, which is a Map object that contains the result PDF documents.
   • Iterate through the Map object until you find the key that matches the name of the resultant document. Then cast that array member’s value to a BLOB.
   • Extract the binary data that represents the PDF document by accessing its BLOB object’s MTOM field. This returns an array of bytes that you can write out to a PDF file.
