Conocimiento de los diseños, que le permite crear/utilizar un diseño personalizado. Consulte Cambiar el diseño del panel.
El componente Diseño del panel de formulario adaptable controla el modo en que se presentan los componentes de los formularios adaptables en un panel en relación con la interfaz de usuario.
/crx/de
./libs/fd/af/layouts/panel
(por ejemplo, tabbedPanelLayout
) a /apps
(por ejemplo, /apps/af-custom-layout
).customPanelLayout

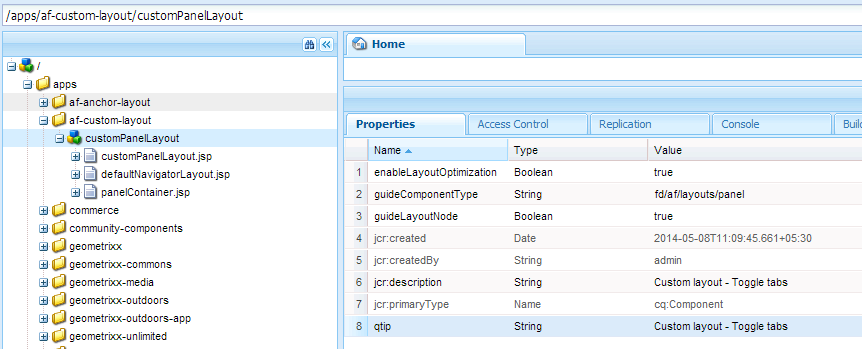

. Cambie las propiedades de los nodos qtip
y jcr:description
. Por ejemplo, cambie a Custom layout - Toggle tabs
.qtip
Configurar la propiedad guideComponentType
al valor fd/af/layouts/panel
determina que el diseño es un diseño de panel.
Cambiar el nombre del archivo tabbedPanelLayout.jsp
en el nuevo diseño a customPanelLayout.jsp.
Para introducir estilos y comportamientos nuevos, cree una biblioteca de cliente en el nodo etc
. Por ejemplo, en la ubicación /etc/af-custom-layout-clientlib, cree el nodo client-library. Permita que el nodo tenga la propiedad de categorías af.panel.custom. Tiene los siguientes archivos .css y .js:
/** CSS defining new styles used by custom layout **/
.menu-nav {
background-color: rgb(198, 38, 76);
height: 30px;
width: 30px;
font-size: 2em;
color: white;
-webkit-transition: -webkit-transform 1s; /* For Safari 3.1 to 6.0 */
transition: transform 1s;
}
.tab-content {
border: 1px solid #08b1cf;
}
.custom-navigation {
-webkit-transition: width 1s, height 1s, -webkit-transform 1s; /* For Safari 3.1 to 6.0 */
transition: width 1s, height 1s, transform 1s;
}
.panel-name {
padding-left: 30px;
font-size: 20px;
}
@media (min-width: 992px) {
.nav-close {
width: 0px;
}
}
@media (min-width: 768px) and (max-width: 991px) {
.nav-close {
height: 0px;
}
}
@media (max-width: 767px) {
.menu-nav, .custom-navigation {
display: none;
}
}
/** function for toggling the navigators **/
var toggleNav = function () {
var nav = $('.custom-navigation');
if (nav) {
nav.toggleClass('nav-close');
}
}
/** function to populate the panel title **/
$(window).on('load', function() {
if (window.guideBridge) {
window.guideBridge.on("elementNavigationChanged",
function (evntName, evnt) {
var activePanelSom = evnt.newText,
activePanel = window.guideBridge._guideView.getView(activePanelSom);
$('.panel-name').html(activePanel.$itemNav.find('a').html());
}
);
}
});
Para mejorar el aspecto y el comportamiento, puede incluir un client library
.
Además, actualice las rutas de los scripts incluidos en los archivos .jsp. Por ejemplo, actualice el archivo customPanelLayout.jsp
como se indica a continuación:
<%-- jsp encapsulating navigator container and panel container divs --%>
<%@include file="/libs/fd/af/components/guidesglobal.jsp"%>
<cq:includeClientLib categories="af.panel.custom"/>
<div>
<div class="row">
<div class="col-md-2 col-sm-2 hidden-xs menu-nav glyphicon glyphicon-align-justify" onclick="toggleNav();"></div>
<div class="col-md-10 col-sm-10 hidden-xs panel-name"></div>
</div>
<div class="row">
<div class="col-md-2 hidden-xs guide-tab-stamp-list custom-navigation">
<cq:include script = "/apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp" />
</div>
<div class="col-md-10">
<c:if test="${fn:length(guidePanel.description) > 0}">
<div class="<%=GuideConstants.GUIDE_PANEL_DESCRIPTION%>">
${guide:encodeForHtml(guidePanel.description,xssAPI)}
<cq:include script="/libs/fd/af/components/panel/longDescription.jsp"/>
</div>
</c:if>
<cq:include script = "/apps/af-custom-layout/customPanelLayout/panelContainer.jsp"/>
</div>
</div>
</div>
El archivo /apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp
:
<%-- jsp governing the navigation part --%>
<%@include file="/libs/fd/af/components/guidesglobal.jsp"%>
<%@ page import="com.adobe.aemds.guide.utils.StyleUtils" %>
<%-- navigation tabs --%>
<ul id="${guidePanel.id}_guide-item-nav-container" class="tab-navigators tab-navigators-vertical in"
data-guide-panel-edit="reorderItems" role="tablist">
<c:forEach items="${guidePanel.items}" var="panelItem">
<c:set var="isNestedLayout" value="${guide:hasNestablePanelLayout(guidePanel,panelItem)}"/>
<li id="${panelItem.id}_guide-item-nav" title="${guide:encodeForHtmlAttr(panelItem.navTitle,xssAPI)}" data-path="${panelItem.path}" role="tab" aria-controls="${panelItem.id}_guide-item">
<c:set var="panelItemCss" value="${panelItem.cssClassName}"/>
<% String panelItemCss = (String) pageContext.getAttribute("panelItemCss");%>
<a data-guide-toggle="tab" class="<%= StyleUtils.addPostfixToClasses(panelItemCss, "_nav") %> guideNavIcon nested_${isNestedLayout}">${guide:encodeForHtml(panelItem.navTitle,xssAPI)}</a>
<c:if test="${isNestedLayout}">
<guide:initializeBean name="guidePanel" className="com.adobe.aemds.guide.common.GuidePanel"
resourcePath="${panelItem.path}" restoreOnExit="true">
<sling:include path="${panelItem.path}"
resourceType="/apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp"/>
</guide:initializeBean>
</c:if>
<em></em>
</li>
</c:forEach>
</ul>
El /apps/af-custom-layout/customPanelLayout/panelContainer.jsp
actualizado:
<%-- jsp governing the panel content --%>
<%@include file="/libs/fd/af/components/guidesglobal.jsp"%>
<div id="${guidePanel.id}_guide-item-container" class="tab-content">
<c:if test="${guidePanel.hasToolbar && (guidePanel.toolbarPosition == 'Top') }">
<sling:include path="${guidePanel.toolbar.path}"/>
</c:if>
<c:forEach items="${guidePanel.items}" var="panelItem">
<div class="tab-pane" id="${panelItem.id}_guide-item" role="tabpanel">
<c:set var="isNestedLayout" value="${guide:hasNestablePanelLayout(guidePanel,panelItem)}"/>
<c:if test="${isNestedLayout}">
<c:set var="guidePanelResourceType" value="/apps/af-custom-layout/customPanelLayout/panelContainer.jsp" scope="request"/>
</c:if>
<sling:include path="${panelItem.path}" resourceType="${panelItem.resourceType}"/>
</div>
</c:forEach>
<c:if test="${guidePanel.hasToolbar && (guidePanel.toolbarPosition == 'Bottom')}">
<sling:include path="${guidePanel.toolbar.path}"/>
</c:if>
</div>
Abra un formulario adaptable en modo de autor. El diseño del panel que haya definido se agregará a la lista para configurar los diseños del panel.
Ejemplo de ZIP para un diseño de panel personalizado y un formulario adaptable que lo utilice.
