Wissen bezüglich Layouts, das für das Erstellen/Verwenden benutzerdefinierter Layouts nötig ist. Siehe Ändern des Bedienfeldlayouts.
Mit der Komponente für das Bedienfeldlayout für adaptive Formulare wird gesteuert, wie die Komponenten des adaptiven Formulars in einem Bedienfeld im Verhältnis zur Benutzeroberfläche angelegt werden.
/crx/de
./libs/fd/af/layouts/panel
(zum Beispiel tabbedPanelLayout
) nach /apps
(zum Beispiel /apps/af-custom-layout
).customPanelLayout
um. Ändern Sie die Eigenschaften der Knoten qtip
und jcr:description
. Ändern Sie sie beispielsweise in Custom layout - Toggle tabs
.qtip
Wenn Sie die Eigenschaft guideComponentType
auf den Wert fd/af/layouts/panel
setzen, wird festgelegt, dass es sich bei dem Layout um ein Bedienfeld-Layout handelt.
Benennen Sie die Datei tabbedPanelLayout.jsp
unter dem neuen Layout in „customPanelLayout.jsp“ um.
Um neue Stile und Verhaltensweisen einzuführen, erstellen Sie eine Client-Bibliothek unter dem Knoten etc
. Erstellen Sie z. B. im Verzeichnis /etc/af-custom-layout-clientlib den Knoten client-library. Weisen Sie dem Knoten die Kategorieneigenschaft af.panel.custom zu. Sie verfügt über folgende .css- und .js-Dateien:
/** CSS defining new styles used by custom layout **/
.menu-nav {
background-color: rgb(198, 38, 76);
height: 30px;
width: 30px;
font-size: 2em;
color: white;
-webkit-transition: -webkit-transform 1s; /* For Safari 3.1 to 6.0 */
transition: transform 1s;
}
.tab-content {
border: 1px solid #08b1cf;
}
.custom-navigation {
-webkit-transition: width 1s, height 1s, -webkit-transform 1s; /* For Safari 3.1 to 6.0 */
transition: width 1s, height 1s, transform 1s;
}
.panel-name {
padding-left: 30px;
font-size: 20px;
}
@media (min-width: 992px) {
.nav-close {
width: 0px;
}
}
@media (min-width: 768px) and (max-width: 991px) {
.nav-close {
height: 0px;
}
}
@media (max-width: 767px) {
.menu-nav, .custom-navigation {
display: none;
}
}
/** function for toggling the navigators **/
var toggleNav = function () {
var nav = $('.custom-navigation');
if (nav) {
nav.toggleClass('nav-close');
}
}
/** function to populate the panel title **/
$(window).on('load', function() {
if (window.guideBridge) {
window.guideBridge.on("elementNavigationChanged",
function (evntName, evnt) {
var activePanelSom = evnt.newText,
activePanel = window.guideBridge._guideView.getView(activePanelSom);
$('.panel-name').html(activePanel.$itemNav.find('a').html());
}
);
}
});
Zur Verbesserung von Erscheinungsbild und Verhalten können Sie eine client library
einfügen.
Aktualisieren Sie außerdem die Pfade der in .jsp-Dateien eingeschlossenen Skripts. Aktualisieren Sie z. B. die Datei customPanelLayout.jsp
wie folgt:
<%-- jsp encapsulating navigator container and panel container divs --%>
<%@include file="/libs/fd/af/components/guidesglobal.jsp"%>
<cq:includeClientLib categories="af.panel.custom"/>
<div>
<div class="row">
<div class="col-md-2 col-sm-2 hidden-xs menu-nav glyphicon glyphicon-align-justify" onclick="toggleNav();"></div>
<div class="col-md-10 col-sm-10 hidden-xs panel-name"></div>
</div>
<div class="row">
<div class="col-md-2 hidden-xs guide-tab-stamp-list custom-navigation">
<cq:include script = "/apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp" />
</div>
<div class="col-md-10">
<c:if test="${fn:length(guidePanel.description) > 0}">
<div class="<%=GuideConstants.GUIDE_PANEL_DESCRIPTION%>">
${guide:encodeForHtml(guidePanel.description,xssAPI)}
<cq:include script="/libs/fd/af/components/panel/longDescription.jsp"/>
</div>
</c:if>
<cq:include script = "/apps/af-custom-layout/customPanelLayout/panelContainer.jsp"/>
</div>
</div>
</div>
Die Datei /apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp
:
<%-- jsp governing the navigation part --%>
<%@include file="/libs/fd/af/components/guidesglobal.jsp"%>
<%@ page import="com.adobe.aemds.guide.utils.StyleUtils" %>
<%-- navigation tabs --%>
<ul id="${guidePanel.id}_guide-item-nav-container" class="tab-navigators tab-navigators-vertical in"
data-guide-panel-edit="reorderItems" role="tablist">
<c:forEach items="${guidePanel.items}" var="panelItem">
<c:set var="isNestedLayout" value="${guide:hasNestablePanelLayout(guidePanel,panelItem)}"/>
<li id="${panelItem.id}_guide-item-nav" title="${guide:encodeForHtmlAttr(panelItem.navTitle,xssAPI)}" data-path="${panelItem.path}" role="tab" aria-controls="${panelItem.id}_guide-item">
<c:set var="panelItemCss" value="${panelItem.cssClassName}"/>
<% String panelItemCss = (String) pageContext.getAttribute("panelItemCss");%>
<a data-guide-toggle="tab" class="<%= StyleUtils.addPostfixToClasses(panelItemCss, "_nav") %> guideNavIcon nested_${isNestedLayout}">${guide:encodeForHtml(panelItem.navTitle,xssAPI)}</a>
<c:if test="${isNestedLayout}">
<guide:initializeBean name="guidePanel" className="com.adobe.aemds.guide.common.GuidePanel"
resourcePath="${panelItem.path}" restoreOnExit="true">
<sling:include path="${panelItem.path}"
resourceType="/apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp"/>
</guide:initializeBean>
</c:if>
<em></em>
</li>
</c:forEach>
</ul>
Die aktualisierte /apps/af-custom-layout/customPanelLayout/panelContainer.jsp
:
<%-- jsp governing the panel content --%>
<%@include file="/libs/fd/af/components/guidesglobal.jsp"%>
<div id="${guidePanel.id}_guide-item-container" class="tab-content">
<c:if test="${guidePanel.hasToolbar && (guidePanel.toolbarPosition == 'Top') }">
<sling:include path="${guidePanel.toolbar.path}"/>
</c:if>
<c:forEach items="${guidePanel.items}" var="panelItem">
<div class="tab-pane" id="${panelItem.id}_guide-item" role="tabpanel">
<c:set var="isNestedLayout" value="${guide:hasNestablePanelLayout(guidePanel,panelItem)}"/>
<c:if test="${isNestedLayout}">
<c:set var="guidePanelResourceType" value="/apps/af-custom-layout/customPanelLayout/panelContainer.jsp" scope="request"/>
</c:if>
<sling:include path="${panelItem.path}" resourceType="${panelItem.resourceType}"/>
</div>
</c:forEach>
<c:if test="${guidePanel.hasToolbar && (guidePanel.toolbarPosition == 'Bottom')}">
<sling:include path="${guidePanel.toolbar.path}"/>
</c:if>
</div>

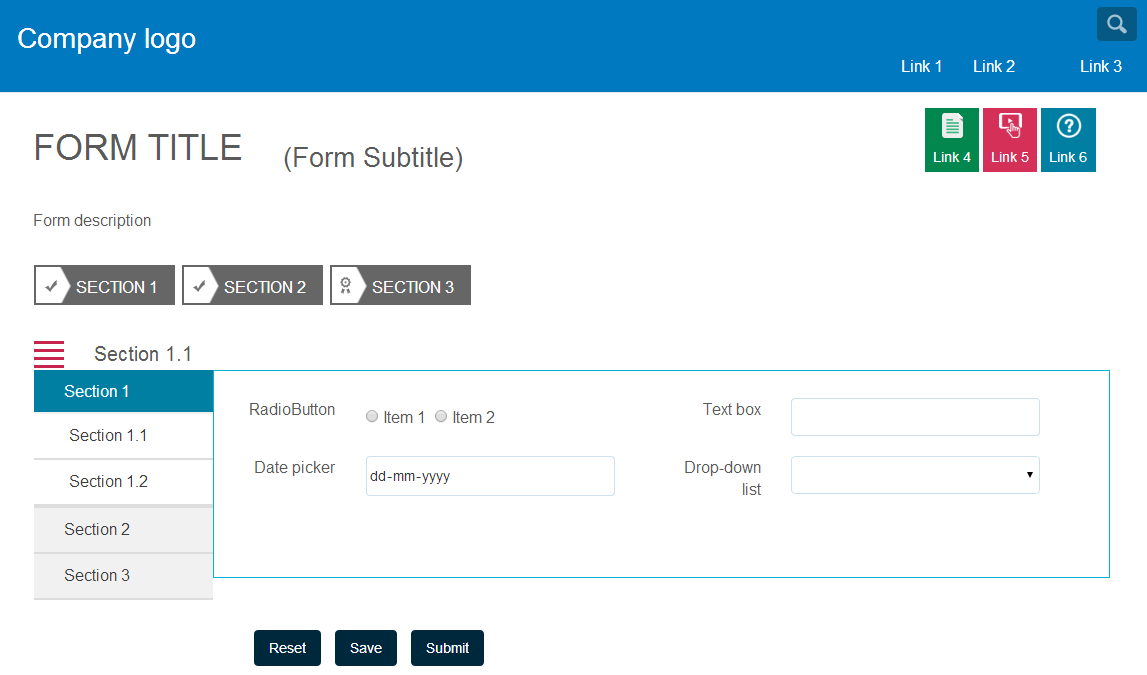

Öffnen Sie ein adaptives Formular im Bearbeitungsmodus. Das Bedienfeldlayout, das Sie definiert haben, wird der Liste zur Konfiguration der Bereichslayouts hinzugefügt.
Beispiel-ZIP-Datei für ein benutzerdefiniertes Bedienfeldlayout und ein adaptives Formular, das dieses verwendet.
