在创建自定义工具栏操作之前,请熟悉 使用客户端库 和 使用CRXDE Lite进行开发.

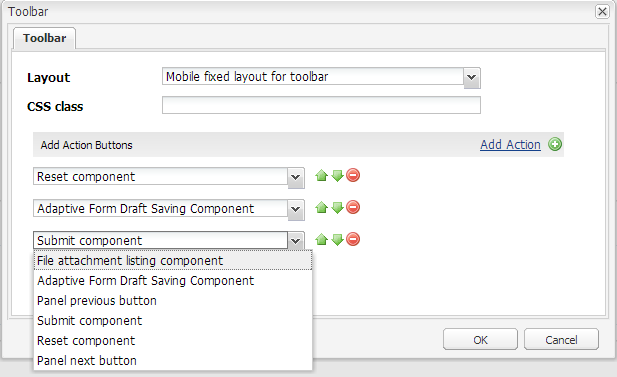

自适应表单提供了一个工具栏,表单作者可以使用该工具栏配置一组选项。 这些选项被定义为自适应表单的操作。 单击面板工具栏中的编辑按钮以设置自适应表单支持的操作。
除了默认提供的一组操作外,您还可以在工具栏中创建自定义操作。 例如,您可以添加一项操作,以便用户在提交表单之前查看所有自适应表单字段。
为了说明自定义工具栏操作的创建,以下步骤指导您创建一个按钮,以便最终用户在提交填写的表单之前查看所有自适应表单字段。
自适应表单支持的所有默认操作都存在于 /libs/fd/af/components/actions
文件夹。 在CRXDE中,复制 fileattachmentlisting
节点来源 /libs/fd/af/components/actions/fileattachmentlisting
到 /apps/customaction
.
将节点复制到 apps/customaction
文件夹,将节点名称重命名为 reviewbeforesubmit
. 此外,更改 jcr:title
和 jcr:description
节点的属性。
此 jcr:title
属性包含在工具栏对话框中显示的操作的名称。 此 jcr:description
属性包含当用户将指针悬停在操作上时显示的更多信息。
选择 cq:template
中的节点 reviewbeforesubmit
节点。 确保 guideNodeClass
属性为 guideButton
和更改 jcr:title
产之权益。
在中更改type属性 cq:Template
节点。 对于当前示例,请将type属性更改为button。
类型值将作为组件生成的HTML中的CSS类添加。 用户可以使用该CSS类来设置其操作的样式。 为按钮、提交、重置和保存类型值提供了移动设备和桌面设备的默认样式。
从自适应表单编辑工具栏对话框中选择自定义操作。 “审阅”按钮显示在面板的工具栏中。
要为“审阅”按钮提供功能,请在init.jsp文件中添加一些JavaScript和CSS代码以及服务器端代码,这些文件位于 reviewbeforesubmit
节点。
在中添加以下代码 init.jsp
.
<%@include file="/libs/fd/af/components/guidesglobal.jsp" %>
<guide:initializeBean name="guideField" className="com.adobe.aemds.guide.common.GuideButton"/>
<c:if test="${not isEditMode}">
<cq:includeClientLib categories="reviewsubmitclientlibruntime" />
</c:if>
<%--- BootStrap Modal Dialog --------------%>
<div class="modal fade" id="reviewSubmit" tabindex="-1">
<div class="modal-dialog">
<div class="modal-content">
<div class="modal-header">
<h3>Review the Form Fields</h3>
</div>
<div class="modal-body">
<div class="modal-list">
<table class="table table-bordered">
<tr class="name">
<td class="reviewlabel col-md-3 active">
<label>Your Name is: </label>
</td>
</tr>
<tr class="pan">
<td class="reviewlabel col-md-3 active">
<label>Your Pan Number is: </label>
</td>
</tr>
<tr class="dob">
<td class="reviewlabel col-md-3 active">
<label>Your Date Of Birth is: </label>
</td>
</tr>
<tr class="80cdeclaration">
<td class="reviewlabel col-md-3 active">
<label>Your Total 80C Declaration Amount is: </label>
</td>
</tr>
<tr class="rentpaid">
<td class="reviewlabel col-md-3 active">
<label>Your Total HRA Amount is: </label>
</td>
</tr>
</table>
</div>
</div><!-- /.modal-body -->
<div class="modal-footer">
<div class="fileAttachmentListingCloseButton col-md-2 col-xs-2 col-sm-2">
<button data-dismiss="modal">Close</button>
</div>
</div>
</div><!-- /.modal-content -->
</div><!-- /.modal-dialog -->
</div><!-- /.modal -->
将以下代码添加到 ReviewBeforeSubmit.js
文件。
/*anonymous function to handle show of review before submit view */
$(function () {
if($("div.reviewbeforesubmit button[id*=reviewbeforesubmit]").length > 0) {
$("div.reviewbeforesubmit button[id*=reviewbeforesubmit]").click(function(){
// Create the options object to be passed to the getElementProperty API
var options = {},
result = [];
options.somExpressions = [];
options.propertyName = "value";
guideBridge.visit(function(model){
if(model.name === "name" || model.name === "pan" || model.name === "dateofbirth" || model.name === "total" || model.name === "totalmonthlyrent"){
options.somExpressions.push(model.somExpression);
}
}, this);
result = guideBridge.getElementProperty(options);
$('#reviewSubmit .reviewlabel').each(function(index, item){
var data = ((result.data[index] == null) ? "No Data Filled" : result.data[index]);
if($(this).next().hasClass("reviewlabelvalue")){
$(this).next().html(data);
} else {
$(this).after($("<td></td>").addClass("reviewlabelvalue col-md-6 active").html(data));
}
});
// added because in mobile devices it was causing problem of backdrop
$("#reviewSubmit").appendTo('body');
$("#reviewSubmit").modal("show");
});
}
});
将以下代码添加到 ReviewBeforeSubmit.css
文件。
.modal-list .reviewlabel {
white-space: normal;
text-align: right;
padding:2px;
}
.modal-list .reviewlabelvalue {
border: #cde0ec 1px solid;
padding:2px;
}
/* Adding icon for this action in mobile devices */
/* This is the glyphicon provided by bootstrap eye-open */
/* .<type> .iconButton-icon */
.reviewbeforesubmit .iconButton-icon {
position: relative;
top: -8px;
font-family: 'Glyphicons Halflings';
font-style: normal;
}
.reviewbeforesubmit .iconButton-icon:before {
content: "\e105"
}
要验证自定义操作的功能,请在预览模式下打开自适应表单,然后单击工具栏中的审核。
此 GuideBridge
在创作模式下未加载库。 因此,此自定义操作在创作模式下不起作用。
以下存档包含一个内容包。 该资源包中包含一个与以上自定义工具栏操作演示相关的自适应表单。
