사용자 지정 도구 모음 작업 만들기 creating-a-custom-toolbar-action

사전 요구 사항 prerequisite

사용자 지정 도구 모음 작업을 만들기 전에 클라이언트측 라이브러리 사용CRXDE Lite을 사용한 개발.

동작이란? what-is-an-action-br

적응형 양식은 양식 작성자가 옵션 세트를 구성할 수 있는 도구 모음을 제공합니다. 이러한 옵션은 적응형 양식에 대한 작업으로 정의됩니다. 패널용 도구 모음에서 편집 단추를 클릭하여 적응형 양식에서 지원하는 작업을 설정합니다.

기본 도구 모음 작업

기본적으로 제공되는 작업 세트 외에 도구 모음에서 사용자 지정 작업을 만들 수 있습니다. 예를 들어, 양식을 제출하기 전에 사용자가 모든 적응형 양식 필드를 검토할 수 있는 작업을 추가할 수 있습니다.

적응형 양식에서 사용자 지정 작업을 만드는 단계 steps

다음 단계에서는 사용자 지정 도구 모음 작업을 만드는 방법을 보여 줍니다. 최종 사용자는 채워진 양식을 제출하기 전에 모든 적응형 양식 필드를 검토할 수 있는 단추를 만들 수 있습니다.

  1. 적응형 양식에서 지원하는 모든 기본 작업이에 있음 /libs/fd/af/components/actions 폴더를 삭제합니다. CRXDE에서 fileattachmentlisting 노드: 부터 /libs/fd/af/components/actions/fileattachmentlisting/apps/customaction.

  2. 노드를 로 복사한 후 apps/customaction 폴더, 노드 이름을 다음으로 변경합니다. reviewbeforesubmit. 또한 jcr:titlejcr:description 노드의 속성입니다.

    다음 jcr:title 속성에는 도구 모음 대화 상자에 표시되는 작업의 이름이 포함되어 있습니다. 다음 jcr:description 속성에는 사용자가 포인터를 작업 위로 가져가면 표시되는 추가 정보가 포함되어 있습니다.

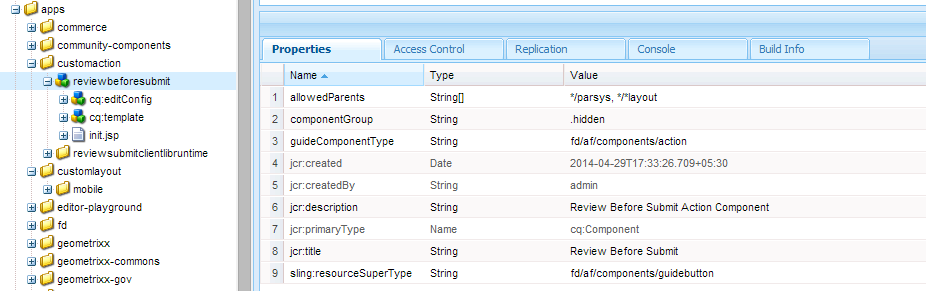

    도구 모음 사용자 정의를 위한 노드 계층

  3. 선택 cq:template 의 노드 reviewbeforesubmit 노드. 값: guideNodeClass 속성은 입니다. guideButton 및 변경 jcr:title 속성입니다.

  4. 에서 유형 속성 변경 cq:Template 노드. 현재 예제에서는 type 속성을 button으로 변경합니다.

    유형 값이 생성된 구성 요소 HTML에서 CSS 클래스로 추가됩니다. 사용자는 해당 CSS 클래스를 사용하여 작업의 스타일을 지정할 수 있습니다. 모바일 장치와 데스크탑 장치 모두에 대한 기본 스타일은 버튼, 제출, 재설정 및 저장 유형 값에 제공됩니다.

  5. 적응형 양식 편집 도구 모음 대화 상자에서 사용자 지정 작업을 선택합니다. 패널의 도구 모음에 검토 버튼이 표시됩니다.

    사용자 지정 작업은 도구 모음에서 사용할 수 있습니다 사용자 지정 생성 도구 모음 작업 표시

  6. [검토] 단추에 기능을 제공하려면 init.jsp 파일에 있는 일부 JavaScript 및 CSS 코드와 서버측 코드를 추가합니다. reviewbeforesubmit 노드.

    에 다음 코드 추가 init.jsp.

    code language-jsp
    <%@include file="/libs/fd/af/components/guidesglobal.jsp" %>
    <guide:initializeBean name="guideField" className="com.adobe.aemds.guide.common.GuideButton"/>

    <c:if test="${not isEditMode}">
            <cq:includeClientLib categories="reviewsubmitclientlibruntime" />
    </c:if>

    <%--- BootStrap Modal Dialog  --------------%>
    <div class="modal fade" id="reviewSubmit" tabindex="-1">
        <div class="modal-dialog">
            <div class="modal-content">
                <div class="modal-header">
                    <h3>Review the Form Fields</h3>
                </div>
                <div class="modal-body">
                    <div class="modal-list">
                        <table class="table table-bordered">
                            <tr class="name">
                                <td class="reviewlabel col-md-3 active">
                                    <label>Your Name is: </label>
                                </td>
                            </tr>
                            <tr class="pan">
                                <td class="reviewlabel col-md-3 active">
                                    <label>Your Pan Number is: </label>
                                </td>
                            </tr>
                            <tr class="dob">
                                <td class="reviewlabel col-md-3 active">
                                    <label>Your Date Of Birth is: </label>
                                </td>
                            </tr>
                            <tr class="80cdeclaration">
                                <td class="reviewlabel col-md-3 active">
                                    <label>Your Total 80C Declaration Amount is: </label>
                                </td>
                            </tr>
                            <tr class="rentpaid">
                                <td class="reviewlabel col-md-3 active">
                                    <label>Your Total HRA Amount is: </label>
                                </td>
                            </tr>
                        </table>
                    </div>
                </div><!-- /.modal-body -->
                <div class="modal-footer">
                    <div class="fileAttachmentListingCloseButton col-md-2 col-xs-2 col-sm-2">
                        <button data-dismiss="modal">Close</button>
                    </div>
                </div>
            </div><!-- /.modal-content -->
        </div><!-- /.modal-dialog -->
    </div><!-- /.modal -->


    에 다음 코드를 추가합니다 ReviewBeforeSubmit.js 파일.

    code language-javascript
    /*anonymous function to handle show of review before submit view */
    $(function () {
        if($("div.reviewbeforesubmit button[id*=reviewbeforesubmit]").length > 0) {
            $("div.reviewbeforesubmit button[id*=reviewbeforesubmit]").click(function(){
                // Create the options object to be passed to the getElementProperty API
                var options = {},
                    result = [];
                options.somExpressions = [];
                options.propertyName = "value";
                guideBridge.visit(function(model){
                    if(model.name === "name" || model.name === "pan" || model.name === "dateofbirth" || model.name === "total" || model.name === "totalmonthlyrent"){
                            options.somExpressions.push(model.somExpression);
                    }
                }, this);
                result = guideBridge.getElementProperty(options);

                $('#reviewSubmit .reviewlabel').each(function(index, item){
                    var data = ((result.data[index] == null) ? "No Data Filled" : result.data[index]);
                    if($(this).next().hasClass("reviewlabelvalue")){
                        $(this).next().html(data);
                    } else {
                        $(this).after($("<td></td>").addClass("reviewlabelvalue col-md-6 active").html(data));
                    }
                });
                // added because in mobile devices it was causing problem of backdrop
                $("#reviewSubmit").appendTo('body');
                $("#reviewSubmit").modal("show");
            });
        }
    });


    에 다음 코드를 추가합니다 ReviewBeforeSubmit.css 파일.

    code language-css
    .modal-list .reviewlabel {
        white-space: normal;
        text-align: right;
        padding:2px;
    }

    .modal-list .reviewlabelvalue {
        border: #cde0ec 1px solid;
        padding:2px;
    }

    /* Adding icon for this action in mobile devices */
    /* This is the glyphicon provided by bootstrap eye-open */
    /* .<type> .iconButton-icon */
    .reviewbeforesubmit .iconButton-icon {
        position: relative;
        top: -8px;
        font-family: 'Glyphicons Halflings';
        font-style: normal;
    }

    .reviewbeforesubmit .iconButton-icon:before {
        content: "\e105"
    }

  7. 사용자 지정 작업의 기능을 확인하려면 미리 보기 모드에서 적응형 양식을 열고 도구 모음에서 검토 를 클릭합니다.

    note note
    NOTE
    다음 GuideBridge 라이브러리가 작성 모드에서 로드되지 않았습니다. 따라서 이 사용자 지정 작업은 작성 모드에서 작동하지 않습니다.

    사용자 정의 검토 버튼 작업 데모

샘플 samples

다음 아카이브에는 컨텐츠 패키지가 포함되어 있습니다. 패키지에는 위의 사용자 지정 도구 모음 작업 데모와 관련된 적응형 양식이 포함되어 있습니다.

파일 가져오기
