Using tables is an effective, simplified, and organized way of presenting complex data. It helps users in identifying information easily and providing inputs in an ordered arrangement of rows and columns. Most forms from financial services and government organizations require large data tables to put numbers and perform calculations.
AEM Forms provides a Table component in the components browser in sidebar that lets you create tables in adaptive forms. Some of the key capabilities it provides are:
To create a table, drag-and-drop the Table component from the components browser in the sidekick on the adaptive form. By default, the table contains two columns and three rows, including the header row.
The header cells are text fields. To change the label for a header, right-click the header cell and click Edit. In the Edit dialog, update the label in the Value field and click OK.
The body cells are text boxes, by default. You can replace a body cell with any other adaptive forms component available in the sidekick, such as a numeric box, date picker, or drop-down list.
For example, the first body row in the following table includes text box, date picker, and drop-down list components as cells.
You can merge two or more body cells by selecting the cells you want to merge, right-click, and select Merge. Also, you can split a merged cell by right-clicking it and selecting Split Cells.
You can add and delete a row or column, and move a row up and down in a table.
To add or delete a row or column or move a row, click any cell in the row or column. A drop-down menu appears at the top of the column and on the left of the row. The menu at the top provides options to add or delete the column, whereas the menu on the left allows you to add, delete, or move the row.
The drop-down menu for the row also provides the Edit operation to edit row properties, settings, and styling options.
While you can add any number of rows in a table, the maximum number of columns you can add is six. Also, you cannot delete the header row from the table.
You can add a description of the table to explain how the information is organized that screen readers can interpret and read out. To add the description:
You can sort data based on any column in a table in the adaptive form. The values in the column can be sorted in an ascending or descending order.
Sorting can be applied to table columns containing:
To apply sorting on table columns, the table column cells must contain any of the following components: Numeric Box, Numeric Stepper, Date Input Field, Date Picker, Text, or Text Box.
To enable sorting:
Select the table and tap (Configure). You can also select the table using the Content browser in the sidekick of the Interactive Communication.
Select Enable Sorting.
Tap to save the table properties. The sorting icons, up and down arrows, in columns headers represent that the sorting has been enabled.
Switch to the Preview mode to view the output. The table is automatically sorted based on the first column of the table.
Click the column header to sort the values based on the column.
A column header with an up arrow represents that the table is sorted based on that column. In addition, the values in the column are displayed in the ascending order.
Similarly, a column header with a down arrow represents that the values in the column are displayed in the descending order.
You can also make changes in the table in the Preview mode and click the column header again to sort the column values.
Execute the following steps to set column width for a table:
In the Content tab, tap the Table component and tap the Configure ()icon.
Enter the comma-separated list of values in the Column Width field to specify the proportionate width of each column in the table. For example, for a table that includes 3 columns, specifying 2,4,6 as the value in the Column Width field results in setting the width of columns as 2/12 for first column, 4/12 for second column, and 6/12 for third column. 2/12 as the width for the first column refers to one-sixth of the table width. Similarly, 4/12 sets the second column width as one-third of the table width and 6/12 sets the third column width as half of the table width.
You can define the style for a table by using the Style mode in the page toolbar. Perform the following steps to switch to style mode and edit the table styling
In the page toolbar, before Preview, tap > Style.
In the sidebar select table and tap the edit button .
You can see the styling properties in the sidebar.
You can change the color theme for header and body rows by changing the values of LESS variables. For more information, see Themes in AEM Forms.
Tables provide out-of-the box support for dynamically adding or deleting rows at runtime.
At runtime, you will see + and - buttons to add or delete a row.
Adding or deleting a row dynamically is not supported in Headers on left mobile layout of tables.
While tables and rows support only visibility expressions to control their visibility based on the value returned by an expression, cells support the following expressions:
If the XFA change/exit script is also applied to the same field, the XFA change/exit script executes before the Value Commit script.
The visibility expression for a table or a row can be defined in the Panel properties tab of their corresponding Edit component dialog. The expressions for a cell can be defined in the Script tab of its Edit component dialog.
Tables in adaptive forms provide unmatched experience mobile devices because of its fluid and responsive layouts. AEM Forms offers two types of mobile layouts for tables - Headers on left and Collapsible columns.
You can configure a mobile layout for a table from the Styling tab of the Edit component dialog for a table.
In the Headers on left layout, the header in the table are transposed on the left with only one cell appearing against a header. Each row in this layout appears as a distinct section. The following images compare a table on a desktop with that on a mobile device.

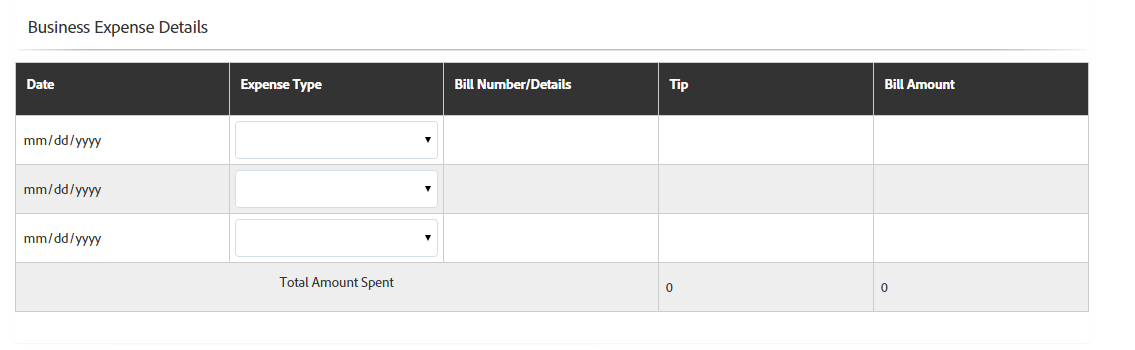

Desktop view of a table with Header on left layout
Mobile view of a table with Header on left layout
In the Collapsible column layout, the columns in the table collapse to show one or two columns, depending on the device size, while other columns are collapsed. You can click the collapse/expand icon to view other columns in the table.
While Collapsible column layout is optimized for mobile devices, it will work on desktop as well, if the width available is not enough to show all the columns in a table.
The following images compare how a table looks on a device with collapsed and expanded columns.
Collapsed columns of a table with only two columns showing up on a mobile device
Expanded column of a table on a mobile device
Tables in adaptive forms allow you to populate the table at runtime using data from an XML file. The data XML file can reside in the local file system of the machine where AEM Forms server is running or in the CRX repository.
Let’s take example of the following bank transaction summary table that we want to populate with data from an XML file.
In this example, the Element name property for:
The XML file that contains data in the following format:
<?xml version="1.0" encoding="UTF-8"?><afData> <afUnboundData> <data> <typeSelect>0</typeSelect> <Row1> <tableItem1>2015-01-08</tableItem1> <tableItem2>Purchase laptop</tableItem2> <type>0</type> <tableItem3>12000</tableItem3> </Row1> <Row1> <tableItem1>2015-01-05</tableItem1> <tableItem2>Transport expense</tableItem2> <type>0</type> <tableItem3>120</tableItem3> </Row1> <Row1> <tableItem1>2014-01-08</tableItem1> <tableItem2>Laser printer</tableItem2> <type>0</type> <tableItem3>500</tableItem3> </Row1> <Row1> <tableItem1>2014-12-08</tableItem1> <tableItem2>Credit card payment</tableItem2> <type>0</type> <tableItem3>300</tableItem3> </Row1> <Row1> <tableItem1>2015-01-06</tableItem1> <tableItem2>Interest earnings</tableItem2> <type>1</type> <tableItem3>12000</tableItem3> </Row1> <Row1> <tableItem1>2015-01-05</tableItem1> <tableItem2>Payment from a client</tableItem2> <type>1</type> <tableItem3>500</tableItem3> </Row1> <Row1> <tableItem1>2015-01-08</tableItem1> <tableItem2>Food expense</tableItem2> <type>0</type> <tableItem3>120</tableItem3> </Row1> </data> </afUnboundData> <afBoundData> <data/> </afBoundData> <afBoundData/> </afData>
In the sample XML, the data for a row is defined by the
<Row1> tags, which is the element name for the row in the table. Within the
<Row1> tag, the data for each cell is defined within the tag for its element name, such as
To merge this data with the table at runtime, we need to point the adaptive form containing the table to the absolute XML location with wcmmode disabled. For example, if the adaptive form is at https://localhost:4502/myForms/bankTransaction.html and the data XML file is saved at C:/myTransactions/bankSummary.xml, you can view the table with data at the following URL:
If you created an adaptive form based on an XFA form template, the XFA elements are available in the Data Model tab of AEM Content Finder. You can drag and drop these XFA elements, including tables, in the adaptive form.
The XFA table element is mapped to the Table component and works out-of-the-box in adaptive forms. All properties and functionalities of XDP table are preserved when moved into adaptive form, and you can perform any operation on it just as you do with native adaptive form table. For example, if a row in an XDP table is marked repeatable, it will be repeated when dropped in adaptive forms as well.
In addition, you can drag-drop XDP subform to add a new row in the table. However, note that dropping a nested subform does not work.
An XDP table without a header row will not be mapped to the adaptive form Table component. Instead, it will be mapped to the adaptive form Panel component with fluid layout. Also, when you add a nested table from an XDP to an adaptive form, the outer table gets converted to a panel while retaining the inner table.
In addition, you can drag-drop a group of XSD complex type elements to create a table row. A new row gets created just below the row on which you dropped the elements. The cells created using the XSD complex type elements maintain a binding reference to the XSD. You can also replace a body cell with an XSD complex type element by dropping the element onto the cell.
The number of elements in a XDP table component, a subform, or an XSD complex type cannot exceed the number of cells in a row. For example, you cannot drop four elements on a row that has only three cells. It will result in an error.
If the number of elements is less than the number of cells in a row, the new row first adds cells based on the elements, and then the default cells are added to fill in the remaining cells in the row. For example, if you drop a group of three elements in a row that has four cells, the first three cells are based on the elements you dropped and the remaining one cell will be the default table cell.
If you move rows up and down while authoring an XSD-based table, some data loss from table rows is seen in the data XML generated on submitting the form.
Each body cell in a default table has a predefined element name associated with it. If you add another table in the adaptive form, the default body cells in the new table will have the same element name as in the first table. In such scenario, the data generated on submitting the form will include data in the default body cells of only one of the tables. Therefore, ensure that you rename the element names for default body cells to keep them unique across tables and avoid data loss.
Note that this is applicable only to the default body cells. If you add more rows or columns to a table will autogenerate unique element names for non-default body cells.
