Customizing the Websites Console (Classic UI)

Adding a Custom Column to the Websites (siteadmin) Console

The Websites Administration console can be extended to display custom columns. The console is built based on a JSON object that can be extended by creating an OSGI service implementing the ListInfoProvider interface. Such a service modifies the JSON object that is sent to the client to build the console.

This step-by-step tutorial explains how to display a new column in the Websites Administration console by implementing the ListInfoProvider interface. It consists of the following steps:

1. Creating the OSGI service and deploying the bundle containing it to the AEM server.
2. (optional) Testing the new service by issuing a JSON call to request the JSON object that is used to build the console.
3. Displaying the new column by extending the nodes structure of the console in the repository.

Creating the OSGI Service

The ListInfoProvider interface defines two methods:

• updateListGlobalInfo, to update global properties of the list,
• updateListItemInfo, to update single list item.

The arguments for both methods are:

• request, the associated Sling HTTP request object,
• info, the JSON object to update, which is respectively the global list or the current list item,
• resource, a Sling resource.

The sample implementation below:

• Adds a starred property for each item, which is true if the page name starts with an e, and false otherwise.

• Adds a starredCount property, which is global for the list and contains the number of starred list items.

To create the OSGI service:

1. In CRXDE Lite, create a bundle.
2. Add the sample code below.
3. Build the bundle.

The new service is up and running.

package com.test;

import com.day.cq.commons.ListInfoProvider;
import com.day.cq.i18n.I18n;
import com.day.cq.wcm.api.Page;
import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Service;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.commons.json.JSONException;
import org.apache.sling.commons.json.JSONObject;

@Component(metatype = false)
@Service(value = ListInfoProvider.class)
public class StarredListInfoProvider implements ListInfoProvider {

    private int count = 0;

    public void updateListGlobalInfo(SlingHttpServletRequest request, JSONObject info, Resource resource) throws JSONException {
        info.put("starredCount", count);
        count = 0; // reset for next execution
    }

    public void updateListItemInfo(SlingHttpServletRequest request, JSONObject info, Resource resource) throws JSONException {
        Page page = resource.adaptTo(Page.class);
        if (page != null) {
            // Consider starred if page name starts with 'e'
            boolean starred = page.getName().startsWith("e");
            if (starred) {
                count++;
            }
            I18n i18n = new I18n(request);
            info.put("starred", starred ? i18n.get("Yes") : i18n.get("No"));
        }
    }

}

Testing the New Service

When you open the Websites Administration console and browse through your site, the browser is issuing an ajax call to get the JSON object that is used to build the console. For example, when you browse to the /content/geometrixx folder, the following request is sent to the AEM server to build the console:

https://localhost:4502/content/geometrixx.pages.json?start=0&limit=30&predicate=siteadmin

To make sure that the new service is running after having deployed the bundle containing it:

1. Point your browser to the following URL:
   https://localhost:4502/content/geometrixx.pages.json?start=0&limit=30&predicate=siteadmin

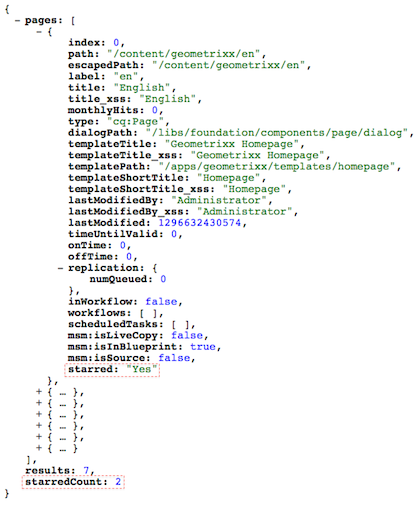

2. The response should display the new properties as follows:

Displaying the New Column

The last step consists in adapting the nodes structure of the Websites Administration console to display the new property for all the Geometrixx pages by overlaying /libs/wcm/core/content/siteadmin. Proceed as follows:

1. In CRXDE Lite, create the nodes structure /apps/wcm/core/content with nodes of type sling:Folder to reflect the structure /libs/wcm/core/content.

2. Copy the node /libs/wcm/core/content/siteadmin and paste it below /apps/wcm/core/content.

3. Copy the node /apps/wcm/core/content/siteadmin/grid/assets to /apps/wcm/core/content/siteadmin/grid/geometrixx and changes its properties:

   • Remove pageText

   • Set pathRegex to /content/geometrixx(/.*)?
     This will make the grid configuration active for all geometrixx websites.

   • Set storeProxySuffix to .pages.json

   • Edit the storeReaderFields multivalued property and add the starred value.

   • To activate MSM functionality add the following MSM parameters to the multi-String property storeReaderFields:

     • msm:isSource
     • msm:isInBlueprint
     • msm:isLiveCopy

4. Add a starred node (of type nt:unstructured) below /apps/wcm/core/content/siteadmin/grid/geometrixx/columns with the following properties:

   • dataIndex: starred of type String

   • header: Starred of type String

   • xtype: gridcolumn of type String

5. (optional) Drop the columns you do not want to display at /apps/wcm/core/content/siteadmin/grid/geometrixx/columns

6. /siteadmin is a vanity path that, as default, points to /libs/wcm/core/content/siteadmin.
   To redirect this to your version of siteadmin on /apps/wcm/core/content/siteadmin define the property sling:vanityOrder to have a value higher than that defined on /libs/wcm/core/content/siteadmin. The default value is 300, so anything higher is suitable.

7. Go to the Websites Administration console and navigate to the Geometrixx site:
   https://localhost:4502/siteadmin#/content/geometrixx.

8. The new column called Starred is available, displaying custom information as follows:

Sample package

The outcome of this tutorial is available in the Customizing the Websites Administration Console package on Package Share.
