Add custom action/button in Create Correspondence UI add-custom-action-button-in-create-correspondence-ui

CAUTION
AEM 6.4 has reached the end of extended support and this documentation is no longer updated. For further details, see our technical support periods. Find the supported versions here.

Overview overview

The Correspondence Management solution allows you add custom actions to the Create Correspondence user interface.

The scenario in this document explains how you can create a button in the Create Correspondence User Interface to share a letter as a review PDF attached to an email.

Prerequisites prerequisites

To complete this scenario, you require the following:

  • Knowledge of CRX and JavaScript
  • LiveCycle Server

Scenario: Create the button in the Create Correspondence User Interface to send a letter for review scenario-create-the-button-in-the-create-correspondence-user-interface-to-send-a-letter-for-review

Adding a button with an action (here send letter for review) to the Create Correspondence User Interface includes:

  1. Adding the button to the Create Correspondence User Interface
  2. Adding action handling to the button
  3. Adding the LiveCycle process to enable action ``handling

Add the button to the Create Correspondence user interface add-the-button-to-the-create-correspondence-user-interface

  1. Go to https://[server]:[port]/[ContextPath]/crx/de and login as Administrator.

  2. In the apps folder, create a folder named defaultApp with path/structure similar to the defaultApp folder (located in config folder). Use the following steps to create the folder:

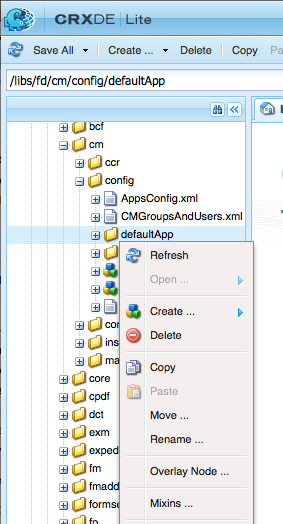

    • Right-click the defaultApp folder at the following path and select Overlay Node:

      /libs/fd/cm/config/defaultApp/

      Overlay node

    • Ensure that the Overlay Node dialog has the following values:

      Path: /libs/fd/cm/config/defaultApp/

      Overlay Location: /apps/

      Match Node Types: Checked

      Overlay node

    • Click OK.

    • Click Save All.

  3. Make a copy of the acmExtensionsConfig.xml file (exists under the /libs branch) under the /apps branch.

    • Go to “/libs/fd/cm/config/defaultApp/acmExtensionsConfig.xml”

    • Right click the acmExtensionsConfig.xml file and select Copy.

      Copy acmExtensionsConfig.xml

    • Right-click the defaultApp folder at “/apps/fd/cm/config/defaultApp/,” and select Paste.

    • Click Save All.

  4. Double-click the copy of acmExtentionsConfig.xml you have newly created in the apps folder. The file opens for editing.

  5. Locate the following code:

    code language-xml
    <?xml version="1.0" encoding="utf-8"?>
    <extensionsConfig>
        <modelExtensions>
            <modelExtension type="LetterInstance">
      <customAction name="Preview" label="loc.letterInstance.preview.label" tooltip="loc.letterInstance.preview.tooltip" styleName="previewButton"/>
                <customAction name="Submit" label="loc.letterInstance.submit.label" tooltip="loc.letterInstance.submit.tooltip" styleName="submitButton" permissionName="forms-users"/>
                <customAction name="SaveAsDraft" label="loc.letterInstance.saveAsDraft.label" tooltip="loc.letterInstance.saveAsDraft.tooltip" styleName="submitButton" permissionName="forms-users"/>
                <customAction name="Close" label="loc.letterInstance.close.label" tooltip="loc.letterInstance.close.tooltip" styleName="closeButton"/>
            </modelExtension>
        </modelExtensions>
    </extensionsConfig>

  6. To email letter, you can use LiveCycle Forms Workflow. Add a customAction tag under the modelExtension tag in acmExtensionsConfig.xml as following:

    code language-xml
     <customAction name="Letter Review" label="Letter Review" tooltip="Letter Review" styleName="" permissionName="forms-users" actionHandler="CM.domain.CCRCustomActionHandler">
          <serviceName>Forms Workflow -> SendLetterForReview/SendLetterForReviewProcess</serviceName>
        </customAction>


    customAction tag

    The modelExtension tag has a set of customAction child tags that configure the action, permissions, and appearance of the action button. Following is the list of customAction configuration tags:

    table 0-row-2 1-row-2 2-row-2 3-row-2 4-row-2 5-row-2 6-row-2
    Name Description
    name The alphanumeric name for the action to perform. Value of this tag is required, must be unique (within the modelExtension tag), and must start with an alphabet.
    label The label to display on the action button
    tooltip Tool tip text of the button, which is displayed when the user hovers over the button.
    styleName Name of the custom style that is applied on the action button.
    permissionName The corresponding action is displayed only if user has the permission specified by permissionName. When you specify permissionName as forms-users, all the users get access to this option.
    actionHandler Fully qualified name of the ActionHandler class that is called when user clicks the button.

    Apart from the above parameters, there can be additional configurations associated with a customAction. These additional configurations are made available to the handler through the CustomAction object.

    table 0-row-2 1-row-2 2-row-2 3-row-2
    Name Description
    serviceName If a customAction contains a child tag with name serviceName, then on clicking of the relevant button/link, a process is called with the name represented by serviceName tag. Ensure this process has the same signature as the Letter PostProcess. Add “Forms Workflow ->” prefix in service name.
    Parameters containing cm_ prefix in tag name If a customAction contains a child tags starting with name cm_, then in post process (be it Letter Post Process or the special process represented by serviceName tag) these parameters are available in the input XML code under the relevant tag with cm_ prefix removed.
    actionName Whenever a post process is due to a click, submitted XML contains a special tag with name under the tag with the name of the user action.
  7. Click Save All.

Create a locale folder with properties file in the /apps branch create-a-locale-folder-with-properties-file-in-the-apps-branch

The ACMExtensionsMessages.properties file includes labels and tooltip messages of various fields in Create Correspondence user interface. For the customized actions/buttons to work, make a copy of this file in the /apps branch.

  1. Right-click the locale folder at the following path and select Overlay Node:

    /libs/fd/cm/config/defaultApp/locale

  2. Ensure that the Overlay Node dialog has the following values:

    Path: /libs/fd/cm/config/defaultApp/locale

    Overlay Location: /apps/

    Match Node Types: Checked

  3. Click OK.

  4. Click Save All.

  5. Right-click the following file and select Copy:

    /libs/fd/cm/config/defaultApp/locale/ACMExtensionsMessages.properties

  6. Right-click the locale folder at the following path and select Paste:

    /apps/fd/cm/config/defaultApp/locale/

    ACMExtensionsMessages.properties file is copied in the locale folder.

  7. To localize the labels of the newly added custom action/button, create the ACMExtensionsMessages.properties file for the relevant locale in /apps/fd/cm/config/defaultApp/locale/.

    For example, for localizing the custom action/button created in this article, create a file named ACMExtensionsMessages_fr.properties with the following entry:

    loc.letterInstance.letterreview.label=Revue De Lettre

    Similarly, you can add more properties, such as for tooltip and style, in this file.

  8. Click Save All.

Restart the Adobe Asset Composer Building Block bundle restart-the-adobe-asset-composer-building-block-bundle

After making every server-side change, restart the Adobe Asset Composer Building Block bundle. In this scenario, the acmExtensionsConfig.xml and ACMExtensionsMessages.properties files on the server-side are edited, and hence the Adobe Asset Composer Building Block bundle requires a restart.

NOTE
You may need to clear the browser cache.
  1. Go to https://[host]:[port]/system/console/bundles. If necessary, log in as Administrator.

  2. Locate the Adobe Asset Composer Building Block bundle. Restart the bundle: click Stop and then click Start.

    Adobe Asset Composer Building Block

After restarting the Adobe Asset Composer Building Block bundle, the custom button appears in the Create Correspondence User Interface. You can open a letter in the Create Correspondence User Interface to preview the custom button.

Add action handling to the button add-action-handling-to-the-button

The Create Correspondence user interface by default has implementation of ActionHandler in the cm.domain.js file at the following location:

/libs/fd/cm/ccr/gui/components/admin/clientlibs/ccr/js/cm.domain.js

For custom action handling, create an overlay of the cm.domain.js file in the /apps branch of CRX.

Handling the action/button on clicking action/button includes logic for:

  • Making the newly added action as visibe/invisible: done by overriding the actionVisible() function.
  • Enabling/disabling newly added action: done by overriding the actionEnabled() function.
  • Actual handling of action when user clicks the button: done by overriding the implementation of the handleAction() function.
  1. Go to https://[server]:[port]/[ContextPath]/crx/de. If necessary, log in as Administrator.

  2. In the apps folder, create a folder named js in the /apps branch of CRX with structure similar to the following folder:

    /libs/fd/cm/ccr/gui/components/admin/clientlibs/ccrui/js

    Use the following steps to create the folder:

    1. Right-click the js folder at the following path and select Overlay Node:

      /libs/fd/cm/ccr/gui/components/admin/clientlibs/ccrui/js

    2. Ensure that the Overlay Node dialog has the following values:

      Path: /libs/fd/cm/ccr/gui/components/admin/clientlibs/ccrui/js

      Overlay Location: /apps/

      Match Node Types: Checked

    3. Click OK.

    4. Click Save All.

  3. In the js folder, create a file named ccrcustomization.js with the code for action handling of the button using the following steps:

    1. Right-click the js folder at the following path and select Create > Create File:

      /apps/fd/cm/ccr/gui/components/admin/clientlibs/ccrui/js

      Name the file as ccrcustomization.js.

    2. Double-click the ccrcustomization.js file to open it in CRX.

    3. In the file, paste the following code and click Save All:

      code language-none
      /* for adding and handling custom actions in Extensible Toolbar.
        * One instance of handler will be created for each action.
        * CM.domain.CCRCustomActionHandler is actionHandler class.
        */
      var CCRCustomActionHandler;
          CCRCustomActionHandler = CM.domain.CCRCustomActionHandler = new Class({
              className: 'CCRCustomActionHandler',
              extend: CCRDefaultActionHandler,
              construct : function(action,model){
              }
          });
          /**
           * Called when user user click an action
           * @param extraParams additional arguments that may be passed to handler (For future use)
           */
          CCRCustomActionHandler.prototype.handleAction = function(extraParams){
              if (this.action.name == CCRCustomActionHandler.SEND_FOR_REVIEW) {
                  var sendForReview = function(){
                      var serviceName = this.action.actionConfig["serviceName"];
                      var inputParams = {};
                      inputParams["dataXML"] = this.model.iccData.data;
                      inputParams["letterId"] = this.letterVO.id;
                      inputParams["letterName"] = this.letterVO.name;
                      inputParams["mailId"] = $('#email').val();
                      /*function to invoke the LivecyleService */
                      ServiceDelegate.callJSONService(this,"lc.icc.renderlib.serviceInvoker.json","invokeProcess",[serviceName,inputParams],this.onProcessInvokeComplete,this.onProcessInvokeFail);
                      $('#ccraction').modal("hide");
                  }
                  if($('#ccraction').length == 0){
                      /*For first click adding popup & setting letterName.*/
                      $("body").append(popUp);
                      $("input[id*='letterName']").val(this.letterVO.name);
                      $(document).on('click',"#submitLetter",$.proxy( sendForReview, this ));
                  }
                  $('#ccraction').modal("show");
              }
          };
          /**
           * Should the action be enabled in toolbar
           * @param extraParams additional arguements that may be passed to handler (For future use)
           * @return flag indicating whether the action should be enabled
           */
         CCRCustomActionHandler.prototype.actionEnabled = function(extraParams){
                  /*can be customized as per user requirement*/
                  return true;
          };
          /**
           * Should the action be visible in toolbar
           * @param extraParams additional arguments that may be passed to handler (For future use)
           * @return flag indicating whether the action should be enabled
           */
          CCRCustomActionHandler.prototype.actionVisible = function(extraParams){
              /*Check can be enabled for Non-Preview Mode.*/
              return true;
          };
          /*SuccessHandler*/
          CCRCustomActionHandler.prototype.onProcessInvokeComplete = function(response) {
              ErrorHandler.showSuccess("Letter Sent for Review");
          };
          /*FaultHandler*/
          CCRCustomActionHandler.prototype.onProcessInvokeFail = function(event) {
              ErrorHandler.showError(event.message);
          };
          CCRCustomActionHandler.SEND_FOR_REVIEW  = "Letter Review";
      /*For PopUp*/
          var popUp = '<div class="modal fade" id="ccraction" tabindex="-1" role="dialog" aria-hidden="true">'+
          '<div class="modal-dialog modal-sm">'+
              '<div class="modal-content">' +
                  '<div class="modal-header">'+
                      '<button type="button" class="close" data-dismiss="modal" aria-label="Close"><span aria-hidden="true">&times;</span></button>'+
                      '<h4 class="modal-title"> Send Review </h4>'+
                  '</div>'+
                  '<div class="modal-body">'+
                      '<form>'+
                          '<div class="form-group">'+
                              '<label class="control-label">Email Id</label>'+
                              '<input type="text" class="form-control" id="email">'+
                          '</div>'+
                          '<div class="form-group">'+
                              '<label  class="control-label">Letter Name</label>'+
                              '<input id="letterName" type="text" class="form-control" readonly>'+
                          '</div>'+
                          '<div class="form-group">'+
                              '<input id="letterData" type="text" class="form-control hide" readonly>'+
                          '</div>'+
                      '</form>'+
                  '</div>'+
                  '<div class="modal-footer">'+
                     '<button type="button" class="btn btn-default" data-dismiss="modal"> Cancel </button>'+
                     '<button type="button" class="btn btn-primary" id="submitLetter"> Submit </button>'+
                  '</div>'+
              '</div>'+
          '</div>'+
      '</div>';


Add the LiveCycle process to enable action handling add-the-livecycle-process-to-enable-action-span-class-acrolinxcursormarker-span-handling

In this scenario, enable the following components, which are a part of the attached components.zip file:

  • DSC component jar (DSCSample.jar)
  • Send letter for review process LCA (SendLetterForReview.lca)

Download and unzip the components.zip file to get DSCSample.jar and SendLetterForReview.lca files. Use these files as specified in the following procedures.

Get File

Configure the LiveCycle Server to run the LCA process configure-the-livecycle-server-to-run-the-lca-process

NOTE
This step is required only if you are on an `` OSGI setup and LC integration is required for the type of customization you are implementing.

The LCA process runs on the LiveCycle server and requires the server address and the login credentials.

  1. Go to https://[server]:[port]/system/console/configMgr and login as Administrator.

  2. Locate Adobe LiveCycle Client SDK Configuration and click Edit (edit icon). The Configurations panel opens.

  3. Enter the following details and click Save:

    • Server Url: URL of the LC server whose Send For Review service the action handler code uses.
    • Username: Admin user name of the LC server
    • Password: Password of the Admin user name

    Adobe LiveCycle Client SDK Configuration

Install LiveCycle Archive (LCA) install-livecycle-archive-lca

The required LiveCycle process that enables email service process.

NOTE
To view what this process does or to create a similar process of your own, you need Workbench.
  1. Log in as Administrator to Livecycle Server adminui at https:/[lc server]/:[lc port]/adminui.

  2. Navigate to Home > Services > Applications and Services > Application Management.

  3. If SendLetterForReview application is already present, skip the remaining steps in this procedure, otherwise continue to the next steps.

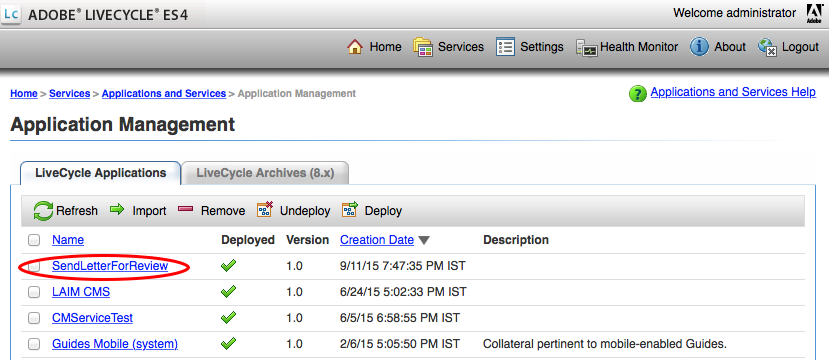

    SendLetterForReview application in the UI

  4. Click Import.

  5. Click Choose File and select SendLetterForReview.lca.

    Select SendLetterForReview.lca file

  6. Click Preview.

  7. Select Deploy assets to runtime when import is complete.

  8. Click Import.

Adding ServiceName to the AllowListed Service list adding-servicename-to-the-allowlisted-service-list

Mention in the AEM server the LiveCycle services you want to access the AEM server.

  1. Log in as Administrator to https:/[host]/:[port]/system/console/configMgr.

  2. Locate and click Adobe LiveCycle Client SDK Configuration. The Adobe LiveCycle Client SDK Configuration panel appears.

  3. In the Service Name list, click + icon and add a serviceName SendLetterForReview/SendLetterForReviewProcess.

  4. Click Save.

Configure the email service configure-the-email-service

In this scenario, for Correspondence Management to be able to send an email, configure the email service in the LiveCycle server.

  1. Log in with Admin credentials to Livecycle Server adminui at https:/[lc server]:[lc port]/adminui.

  2. Navigate to Home > Services > Applications and Services > Service Management.

  3. Locate and click EmailService.

  4. In SMTP Host, configure the email service.

  5. Click Save.

Configure the DSC service configure-the-dsc-service

To use the Correspondence Management API, download the DSCSample.jar (attached in this document as part of components.zip) and upload it to the LiveCycle server. After the DSCSample.jar file is uploaded to the LiveCycle server, the AEM server uses the DSCSample.jar file to access the renderLetter API.

For more information, see Connecting AEM Forms with Adobe LiveCycle.

  1. Update the AEM server URL in cmsa.properties in DSCSample.jar, which is at the following location:

    DSCSample.jar\com\adobe\livecycle\cmsa.properties

  2. Provide the following parameters in configuration file:

    • crx.serverUrl=https:/[host]/:[port]/[context path]/[AEM URL]
    • crx.username= AEM user name
    • crx.password= AEM password
    • crx.appRoot=/content/apps/cm
    note note
    NOTE
    Every time you make any changes at the server side, restart the Server.

    The DSCSample.jar file uses the renderLetter API. For more Information about the renderLetter API, see Interface LetterRenderService.

Import DSC to AEM Forms on JEE import-dsc-to-livecyle

DSCSample.jar file uses the renderLetter API to render letter as PDF bytes from XML data that C give as input. For more Information about the renderLetter and other APIs, see Letter Render Service.

  1. Start Workbench and log in.

  2. Select Window > Show Views > Components. The Components view gets added to Workbench ES2.

  3. Right-click Components and select Install Component.

  4. Select the DSCSample.jar file through the file browser and click Open.

  5. Right-click RenderWrapper and select Start Component. If the component starts, a green arrow appears next to the component name.

Send letter for review send-letter-for-review

After you have configured the action and button for sending the letter for review:

  1. Clear the browser cache.

  2. In the Create Correspondence UI, click Letter Review and specify the reviewer’s email ID.

  3. Click Submit.

sendreview

The reviewer receives an email from the system with the letter as a PDF attachment.

recommendation-more-help
a6ebf046-2b8b-4543-bd46-42a0d77792da
