Tutorial: Apply rules to adaptive form fields tutorial-apply-rules-to-adaptive-form-fields

CAUTION
AEM 6.4 has reached the end of extended support and this documentation is no longer updated. For further details, see our technical support periods. Find the supported versions here.

06-apply-rules-to-adaptive-form_main

This tutorial is a step in the Create Your First Adaptive Form series. Adobe recommends following the series in chronological sequence to understand, perform, and demonstrate the complete tutorial use case.

About the tutorial about-the-tutorial

You can use rules to add interactivity, business logic, and smart validations to an adaptive form. Adaptive forms have a built-in rule editor. The rule editor provides a drag-and-drop functionality, similar to guided tours. The drag-and-drop method is the fastest and easiest method to create rules. The rule editor also provides a code window for users interested in testing their coding skills or taking the rules to the next level.

You can learn more about the rule editor at Adaptive Forms rule editor.

By the end of the tutorial, you will learn to create rules to:

  • Invoke a Form Data Model service to retrieve data from the database
  • Invoke a Form Data Model service to add data to the database
  • Run a validations check and display error messages

Interactive GIF images at the end of each section of the tutorial help you learn and validate the functionality of the form you are building, on the fly.

Step 1: Retrieve a customer record from the database retrieve-customer-record

You created a form data model by following the create form data model article. Now, you can use the rule editor to invoke the Forms Data Model services to retrieve and add information to the database.

Every customer is assigned a unique Customer ID number, which helps identify relevant customer data in a database. The procedure below uses the Customer ID to retrieve information from the database:

  1. Open the adaptive form for editing.

    http://localhost:4502/editor.html/content/forms/af/change-billing-shipping-address.html

  2. Tap the Customer ID field and tap the Edit Rules icon. The Rule Editor window opens.

  3. Tap the + Create icon to add a rule. It opens the Visual Editor.

    In the Visual Editor, the WHEN statement is selected by default. Also, the form object (in this case, Customer ID) from where you launched the rule editor is specified in the WHEN statement.

  4. Tap the Select State drop-down and select is changed.

    whencustomeridischanged

  5. In the THEN statement, select Invoke Service from the Select Action drop-down.

  6. Select the Retrieve Shipping Address service from the Select drop-down.

  7. Drag-and-drop the Customer ID field from the Form Objects tab to the Drop object or select here field in the INPUT box.

    dropobjectstoinputfield-retrievedata

  8. Drag-and-drop the Customer ID, Name, Shipping Address, State, and Zip Code field from the Form Objects tab to the Drop object or select here field in the OUTPUT box.

    dropobjectstooutputfield-retrievedata

    Tap Done to save the rule. On the rule editor window, tap Close.

  9. Preview the adaptive form. Enter an ID in the Customer ID field. The form can now retrieve customer details from the database.

    retrieve-information

Step 2: Add the updated customer address to the database updated-customer-address

After the customer details are retrieved from the database, you can update the shipping address, state, and zip code. The procedure below invokes a Form Data Model service to update customer information to the database:

  1. Select the Submit field and tap the Edit Rules icon. The Rule Editor window opens.

  2. Select the Submit - Click rule and tap the Edit icon. The options to edit the Submit rule appear.

    submit-rule

    In the WHEN option, the Submit and is clicked options are already selected.

    submit-is-clicked

  3. In the THEN option, tap the + Add Statement option. Select Invoke Service from the Select Action drop-down.

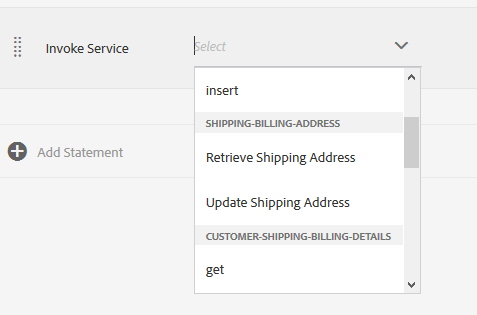

  4. Select the Update Shipping Address service from the Select drop-down.

    update-shipping-address

  5. dropobjectstoinputfield-updatedata

    Drag-and-drop the Shipping Address, State, and Zip Code field from the Form Objects tab to the corresponding tablename .property (for example, customerdetails .shippingAddress) of the Drop object or select here field in the INPUT box. All the fields prefixed with tablename (For example, customerdetails in this use case) serve as input data for the update service. All the content provided in these fields is updated in the data source.

    note note
    NOTE
    Do not drag-and-drop the Name and Customer ID fields to the corresponding tablename.property (for example, customerdetails.name). It helps avoid updating name and ID of the customer by mistake.
  6. Drag-and-drop the Customer ID field from the Form Objects tab to the id field in the INPUT box. Fields without a prefixed tablename (for example, customerdetails in this use case) serve as a search parameter for the update service. The id field in this use case uniquely identifies a record in the customerdetails table.

  7. Tap Done to save the rule. On the rule editor window, tap Close.

  8. Preview the adaptive form. Retrieve details of a customer, update the shipping address, and submit the form. When you retrieve details of the same customer again, the updated shipping address is displayed.

Step 3: (Bonus section) Use the code editor to run validations and display error messages step-bonus-section-use-the-code-editor-to-run-validations-and-display-error-messages

You should run validation on the form to ensure that the data entered in the form is correct and an error message is displayed in case of incorrect data. For example, if a non-existing Customer ID is entered in the form, an error message should be displayed.

Adaptive forms provide several components with built-in validations, for example, email, and numeric fields that you can use for common use cases. Use the rule editor for advanced use cases, for example, to display an error message when the database returns zero (0) records (no records).

The following procedure shows how to create a rule to displays an error message if the Customer ID entered in the form does not exist in the database. The rule also brings the focus to and resets the Customer ID field. The rule uses the dataIntegrationUtils API of the form data model service to check if the Customer ID exists in the database.

  1. Tap the Customer ID field and tap the Edit Rules icon. The Rule Editor window opens.

  2. Tap the + Create icon to add a rule. It opens the Visual Editor.

    In the Visual Editor, the WHEN statement is selected by default. Also, the form object (in this case, Customer ID) from where you launched the rule editor is specified in the WHEN statement.

  3. Tap the Select State drop-down and select is changed.

    whencustomeridischanged

    In the THEN statement, select Invoke Service from the Select Action drop-down.

  4. Switch from Visual Editor to Code Editor. The switch control is on the right side of the window. The Code Editor opens, displaying code similar to the following:

    code-editor

  5. Replace the input variable section with the following code:

    code language-none
    var inputs = {
        "id" : this
    };

  6. Replace the guidelib.dataIntegrationUtils.executeOperation (operationInfo, inputs, outputs) section with the following code:

    code language-none
    guidelib.dataIntegrationUtils.executeOperation(operationInfo, inputs, outputs, function (result) {
      if (result) {
          result = JSON.parse(result);
        customer_Name.value = result.name;
        customer_Shipping_Address = result.shippingAddress;
      } else {
        if(window.confirm("Invalid Customer ID. Provide a valid customer ID")) {
              customer_Name.value = " ";
             guideBridge.setFocus(customer_ID);
        }
      }
    });

  7. Preview the adaptive form. Enter an incorrect Customer ID. An error message appears.

    display-validation-error
