Rendering Interactive PDF Forms

The Forms service renders interactive PDF forms to client devices, typically web browsers, to collect information from users. After an interactive form is rendered, a user can enter data into form fields and click a submit button located on the form to send information back to the Forms service. Adobe Reader or Acrobat must be installed on the computer hosting the client web browser in order for an interactive PDF form to be visible.

Sample loan application

A sample loan application is introduced to demonstrate how the Forms service uses interactive forms to collect information from users. This application lets a user fill in a form with data required to secure a loan and then submits data to the Forms service. The following diagram shows the loan application’s logic flow.

The following table describes the steps in this diagram.

Loan form

This interactive loan form is rendered by the sample loan application’s GetLoanForm Java Servlet.

Confirmation form

This form is rendered by the sample loan application’s HandleData Java Servlet.

The HandleData Java Servlet prepopulates this form with the user’s first and last name as well as the amount. After the form is prepopulated, it is sent to the client web browser. (See Prepopulating Forms with Flowable Layouts)

Java Servlets

The sample loan application is an example of a Forms service application that exists as a Java Servlet. A Java Servlet is a Java program running on a J2EE application server, such as WebSphere, and contains Forms service Client API code.

The following code shows the syntax of a Java Servlet named GetLoanForm:

     public class GetLoanForm extends HttpServlet implements Servlet {
         public void doGet(HttpServletRequest req, HttpServletResponse resp
         throws ServletException, IOException {

         }
         public void doPost(HttpServletRequest req, HttpServletResponse resp
         throws ServletException, IOException {

             }

Normally, you would not place Forms service Client API code within a Java Servlet’s doGet or doPost method. It is better programming practice to place this code within a separate class, instantiate the class from within the doPost method (or doGet method), and call the appropriate methods. However, for code brevity, the code examples in this section are kept to a minimum and code examples are placed in the doPost method.

Summary of steps

To render an interactive PDF form, perform the following tasks:

1. Include project files.
2. Create a Forms Client API object.
3. Specify URI values.
4. Attach files to the form (Optional).
5. Render an interactive PDF form.
6. Write the form data stream to the client web browser.

Include project files

Include necessary files into your development project. If you are creating a client application using Java, include the necessary JAR files. If you are using web services, ensure that you include the proxy files.

Create a Forms Client API object

Before you can programmatically perform a Forms service Client API operation, you must create a Forms Client API object. If you are using the Java API, create a FormsServiceClient object. If you are using the Forms web service API, create a FormsService object.

Specify URI values

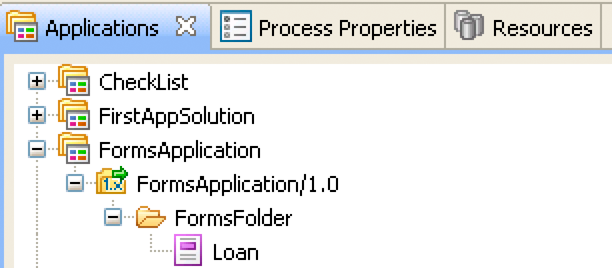

You can specify URI values that are required by the Forms service to render a form. A form design that is saved as part of a Forms application can be referenced by using the content root URI value repository:///. For example, consider the following form design named Loan.xdp located within a Forms application named FormsApplication:

To access this form design, specify Applications/FormsApplication/1.0/FormsFolder/Loan.xdp as the form name (the first parameter passed to the renderPDFForm method) and repository:/// as the content root URI value.

The path to a resource located in a Forms application is:

Applications/Application-name/Application-version/Folder.../Filename

The following values show some examples of URI values:

• Applications/AppraisalReport/1.0/Forms/FullForm.xdp
• Applications/AnotherApp/1.1/Assets/picture.jpg
• Applications/SomeApp/2.0/Resources/Data/XSDs/MyData.xsd

When you render an interactive form, you can define URI values such as the target URL to where form data is posted. The target URL can be defined in one of the following ways:

• On the Submit button while designing the form design in Designer
• By using the Forms service Client API

If the target URL is defined within the form design, do not override it with the Forms service Client API. That is, setting the target URL using the Forms API resets the specified URL in the form design to the one specified using the API. If you wish to submit the PDF form to the target URL specified in the form design, then programmatically set the target URL to an empty string.

If you have a form that contains a submit button and a calculate button (with a corresponding script that runs at the server), you can programmatically define the URL to where the form is sent to execute the script. Use the submit button on the form design to specify the URL to where form data is posted. (See Calculating Form Data.)

Attach files to the form

You can attach files to a form. When you render a PDF form with file attachments, users can retrieve the file attachments in Acrobat using the file attachment pane. You can attach different file types to a form, such as a text file, or to a binary file such as a JPG file.

Render an interactive PDF form

To render a form, use a form design that was created in Designer and saved as an XDP or PDF file. As well, you can render a form that was created using Acrobat and saved as a PDF file. To render an interactive PDF form, invoke the FormsServiceClient object’s renderPDFForm method or renderPDFForm2 method.

The renderPDFForm uses a URLSpec object. The content root to the XDP file is passed to the Forms service using the URLSpec object’s setContentRootURI method. The Form design name ( formQuery) is passed as a separate parameter value. The two values are concatenated to get the absolute reference to the form design.

The renderPDFForm2 method accepts a com.adobe.idp.Document instance that contains the XDP or PDF document to render.

Render an interactive PDF form using the Java API

Render an interactive PDF form by using the Forms API (Java):

1. Include project files

   Include client JAR files, such as adobe-forms-client.jar, in your Java project’s class path.

2. Create a Forms Client API object

   • Create a ServiceClientFactory object that contains connection properties.
   • Create an FormsServiceClient object by using its constructor and passing the ServiceClientFactory object.

3. Specify URI values

   • Create a URLSpec object that stores URI values by using its constructor.
   • Invoke the URLSpec object’s setApplicationWebRoot method and pass a string value that represents the application’s web root.
   • Invoke the URLSpec object’s setContentRootURI method and pass a string value that specifies the content root URI value. Ensure that the form design is located in the content root URI. If not, the Forms service throws an exception. To reference the repository, specify repository:///.
   • Invoke the URLSpec object’s setTargetURL method and pass a string value that specifies the target URL value to where form data is posted. If you define the target URL in the form design, you can pass an empty string. You can also specify the URL to where a form is sent in order to perform calculations.

4. Attach files to the form

   • Create a java.util.HashMap object to store file attachments by using its constructor.

   • Invoke the java.util.HashMap object’s put method for each file to attach to the rendered form. Pass the following values to this method:

     • A string value that specifies the name of the file attachment, including the file name extension.

   • A com.adobe.idp.Document object that contains the file attachment.

   NOTE

   Repeat this step for each file to attach to the form. This step is optional and you can pass null* if you do not want to send file attachments.*

5. Render an interactive PDF form

   Invoke the FormsServiceClient object’s renderPDFForm method and pass the following values:

   • A string value that specifies the form design name, including the file name extension. If you reference a form design that is part of a Forms application, ensure that you specify the complete path, such as Applications/FormsApplication/1.0/FormsFolder/Loan.xdp.
   • A com.adobe.idp.Document object that contains data to merge with the form. If you do not want to merge data, pass an empty com.adobe.idp.Document object.
   • A PDFFormRenderSpec object that stores run-time options. This is an optional parameter and you can specify null if you do not want to specify run-time options.
   • A URLSpec object that contains URI values that are required by the Forms service.
   • A java.util.HashMap object that stores file attachments. This is an optional parameter and you can specify null if you do not want to attach files to the form.

   The renderPDFForm method returns a FormsResult object that contains a form data stream that must be written to the client web browser.

6. Write the form data stream to the client web browser

   • Create a com.adobe.idp.Document object by invoking the FormsResult object ‘s getOutputContent method.
   • Get the content type of the com.adobe.idp.Document object by invoking its getContentType method.
   • Set the javax.servlet.http.HttpServletResponse object’s content type by invoking its setContentType method and passing the content type of the com.adobe.idp.Document object.
   • Create a javax.servlet.ServletOutputStream object used to write the form data stream to the client web browser by invoking the javax.servlet.http.HttpServletResponse object’s getOutputStream method.
   • Create a java.io.InputStream object by invoking the com.adobe.idp.Document object’s getInputStream method.
   • Create a byte array and populate it with the form data stream by invoking the InputStream object’s read method and passing the byte array as an argument.
   • Invoke the javax.servlet.ServletOutputStream object’s write method to send the form data stream to the client web browser. Pass the byte array to the write method.

Render an interactive PDF form using the web service API

Render an interactive PDF form by using the Forms API (web service):

1. Include project files

   • Create Java proxy classes that consume the Forms service WSDL.
   • Include the Java proxy classes into your class path.

2. Create a Forms Client API object

   Create a FormsService object and set authentication values.

3. Specify URI values

   • Create a URLSpec object that stores URI values by using its constructor.
   • Invoke the URLSpec object’s setApplicationWebRoot method and pass a string value that represents the application’s web root.
   • Invoke the URLSpec object’s setContentRootURI method and pass a string value that specifies the content root URI value. Ensure that the form design is located in the content root URI. If not, the Forms service throws an exception. To reference the repository, specify repository:///.
   • Invoke the URLSpec object’s setTargetURL method and pass a string value that specifies the target URL value to where form data is posted. If you define the target URL in the form design, you can pass an empty string. You can also specify the URL to where a form is sent in order to perform calculations.

4. Attach files to the form

   • Create a java.util.HashMap object to store file attachments by using its constructor.

   • Invoke the java.util.HashMap object’s put method for each file to attach to the rendered form. Pass the following values to this method:

     • A string value that specifies the name of the file attachment, including the file name extension

   • A BLOB object that contains the file attachment

   NOTE

   Repeat this step for each file to attach to the form.

5. Render an interactive PDF form

   Invoke the FormsService object’s renderPDFForm method and pass the following values:

   • A string value that specifies the form design name, including the file name extension. If you reference a form design that is part of a Forms application, ensure that you specify the complete path, such as Applications/FormsApplication/1.0/FormsFolder/Loan.xdp.
   • A BLOB object that contains data to merge with the form. If you do not want to merge data, pass null.
   • A PDFFormRenderSpec object that stores run-time options. This is an optional parameter and you can specify null if you do not want to specify run-time options.
   • A URLSpec object that contains URI values that are required by the Forms service.
   • A java.util.HashMap object that stores file attachments. This is an optional parameter and you can specify null if you do not want to attach files to the form.
   • An empty com.adobe.idp.services.holders.BLOBHolder object that is populated by the method. This is used to store the rendered PDF form.
   • An empty javax.xml.rpc.holders.LongHolder object that is populated by the method. (This argument will store the number of pages in the form.)
   • An empty javax.xml.rpc.holders.StringHolder object that is populated by the method. (This argument will store the locale value.)
   • An empty com.adobe.idp.services.holders.FormsResultHolder object that will contain the results of this operation.

   The renderPDFForm method populates the com.adobe.idp.services.holders.FormsResultHolder object that is passed as the last argument value with a form data stream that must be written to the client web browser.

6. Write the form data stream to the client web browser

   • Create a FormResult object by getting the value of the com.adobe.idp.services.holders.FormsResultHolder object’s value data member.
   • Create a BLOB object that contains form data by invoking the FormsResult object’s getOutputContent method.
   • Get the content type of the BLOB object by invoking its getContentType method.
   • Set the javax.servlet.http.HttpServletResponse object’s content type by invoking its setContentType method and passing the content type of the BLOB object.
   • Create a javax.servlet.ServletOutputStream object used to write the form data stream to the client web browser by invoking the javax.servlet.http.HttpServletResponse object’s getOutputStream method.
   • Create a byte array and populate it by invoking the BLOB object’s getBinaryData method. This task assigns the content of the FormsResult object to the byte array.
   • Invoke the javax.servlet.http.HttpServletResponse object’s write method to send the form data stream to the client web browser. Pass the byte array to the write method.

Write the form data stream to the client web browser

When the Forms service renders a form, it returns a form data stream that you must write to the client web browser. When written to the client web browser, the form is visible to the user.
