为自适应表单创建自定义布局组件

先决条件

了解布局,使您能够创建/使用自定义布局。 请参阅更改面板布局

自适应表单面板布局组件

自适应表单面板布局组件控制自适应表单组件在面板中相对于用户界面的布局方式。

创建自定义面板布局

  1. 导览至位置/crx/de
  2. 将面板布局从位置/libs/fd/af/layouts/panel(例如tabbedPanelLayout)复制到/apps(例如/apps/af-custom-layout)。
  3. 重命名您复制到customPanelLayout的布局。 更改节点qtipjcr:description的属性。 例如,将它们更改为Custom layout - Toggle tabs

自定义面板布局CRX DE快照

注意

将属性guideComponentType设置为值fd/af/layouts/panel可确定布局为面板布局。

  1. 将新布局下的文件tabbedPanelLayout.jsp重命名为customPanelLayout.jsp。

  2. 要引入新的样式和行为,请在etc节点下创建一个客户端库。 例如,在/etc/af-custom-layout-clientlib位置创建节点client-library。 让节点具有类别属性af.panel.custom。 它具有以下。css和。js文件:

    /** CSS defining new styles used by custom layout **/

    .menu-nav {
        background-color: rgb(198, 38, 76);
        height: 30px;
     width: 30px;
     font-size: 2em;
     color: white;
        -webkit-transition: -webkit-transform 1s;  /* For Safari 3.1 to 6.0 */
     transition: transform 1s;
    }

    .tab-content {
     border: 1px solid #08b1cf;
    }

    .custom-navigation {
        -webkit-transition: width 1s, height 1s, -webkit-transform 1s;  /* For Safari 3.1 to 6.0 */
     transition: width 1s, height 1s, transform 1s;
    }

    .panel-name {
        padding-left: 30px;
        font-size: 20px;
    }

    @media (min-width: 992px) {
     .nav-close {
      width: 0px;
        }
    }

    @media (min-width: 768px) and (max-width: 991px) {
     .nav-close {
      height: 0px;
        }
    }

    @media (max-width: 767px) {
     .menu-nav, .custom-navigation {
         display: none;
        }
    }

    /** function for toggling the navigators **/
    var toggleNav = function () {

        var nav = $('.custom-navigation');
        if (nav) {
            nav.toggleClass('nav-close');
        }
    }

    /** function to populate the panel title **/
    $(window).on('load', function() {
        if (window.guideBridge) {
            window.guideBridge.on("elementNavigationChanged",
            function (evntName, evnt) {
                        var activePanelSom = evnt.newText,
                            activePanel = window.guideBridge._guideView.getView(activePanelSom);
                        $('.panel-name').html(activePanel.$itemNav.find('a').html());
                    }
            );
        }
    });

  3. 要增强外观和行为,可以包含client library

    此外,更新。jsp文件中包含的脚本的路径。 例如,按如下方式更新customPanelLayout.jsp文件:

    <%-- jsp encapsulating navigator container and panel container divs --%>

    <%@include file="/libs/fd/af/components/guidesglobal.jsp?lang=zh-Hans"%>
    <cq:includeClientLib categories="af.panel.custom"/>
    <div>
        <div class="row">
            <div class="col-md-2 col-sm-2 hidden-xs menu-nav glyphicon glyphicon-align-justify" onclick="toggleNav();"></div>
            <div class="col-md-10 col-sm-10 hidden-xs panel-name"></div>
        </div>
        <div class="row">
            <div class="col-md-2 hidden-xs guide-tab-stamp-list custom-navigation">
                <cq:include script = "/apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp" />
            </div>
            <div  class="col-md-10">
                <c:if test="${fn:length(guidePanel.description) > 0}">
                    <div class="<%=GuideConstants.GUIDE_PANEL_DESCRIPTION%>">
                        ${guide:encodeForHtml(guidePanel.description,xssAPI)}
                            <cq:include script="/libs/fd/af/components/panel/longDescription.jsp?lang=zh-Hans"/>
                    </div>
                </c:if>
                <cq:include script = "/apps/af-custom-layout/customPanelLayout/panelContainer.jsp"/>
            </div>
        </div>
    </div>


    /apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp文件:

    <%-- jsp governing the navigation part --%>

    <%@include file="/libs/fd/af/components/guidesglobal.jsp?lang=zh-Hans"%>
    <%@ page import="com.adobe.aemds.guide.utils.StyleUtils" %>
    <%-- navigation tabs --%>
    <ul id="${guidePanel.id}_guide-item-nav-container" class="tab-navigators tab-navigators-vertical in"
        data-guide-panel-edit="reorderItems" role="tablist">
        <c:forEach items="${guidePanel.items}" var="panelItem">
            <c:set var="isNestedLayout" value="${guide:hasNestablePanelLayout(guidePanel,panelItem)}"/>
            <li id="${panelItem.id}_guide-item-nav" title="${guide:encodeForHtmlAttr(panelItem.navTitle,xssAPI)}" data-path="${panelItem.path}" role="tab" aria-controls="${panelItem.id}_guide-item">
                <c:set var="panelItemCss" value="${panelItem.cssClassName}"/>
                <% String panelItemCss = (String) pageContext.getAttribute("panelItemCss");%>
                <a data-guide-toggle="tab" class="<%= StyleUtils.addPostfixToClasses(panelItemCss, "_nav") %> guideNavIcon nested_${isNestedLayout}">${guide:encodeForHtml(panelItem.navTitle,xssAPI)}</a>
                <c:if test="${isNestedLayout}">
                    <guide:initializeBean name="guidePanel" className="com.adobe.aemds.guide.common.GuidePanel"
                        resourcePath="${panelItem.path}" restoreOnExit="true">
                        <sling:include path="${panelItem.path}"
                                       resourceType="/apps/af-custom-layout/customPanelLayout/defaultNavigatorLayout.jsp?lang=zh-Hans"/>
                    </guide:initializeBean>
                </c:if>
                <em></em>
            </li>
        </c:forEach>
    </ul>


    更新的/apps/af-custom-layout/customPanelLayout/panelContainer.jsp:

    <%-- jsp governing the panel content --%>

    <%@include file="/libs/fd/af/components/guidesglobal.jsp?lang=zh-Hans"%>

    <div id="${guidePanel.id}_guide-item-container" class="tab-content">
        <c:if test="${guidePanel.hasToolbar && (guidePanel.toolbarPosition == 'Top') }">
            <sling:include path="${guidePanel.toolbar.path}"/>
        </c:if>

    <c:forEach items="${guidePanel.items}" var="panelItem">
        <div class="tab-pane" id="${panelItem.id}_guide-item" role="tabpanel">
            <c:set var="isNestedLayout" value="${guide:hasNestablePanelLayout(guidePanel,panelItem)}"/>
            <c:if test="${isNestedLayout}">
                <c:set var="guidePanelResourceType" value="/apps/af-custom-layout/customPanelLayout/panelContainer.jsp?lang=zh-Hans" scope="request"/>
            </c:if>
            <sling:include path="${panelItem.path}" resourceType="${panelItem.resourceType}"/>
        </div>
    </c:forEach>
    <c:if test="${guidePanel.hasToolbar && (guidePanel.toolbarPosition == 'Bottom')}">
        <sling:include path="${guidePanel.toolbar.path}"/>
    </c:if>
    </div>

  4. 在“创作”模式下打开自适应表单。 您定义的面板布局将添加到用于配置面板布局的列表。

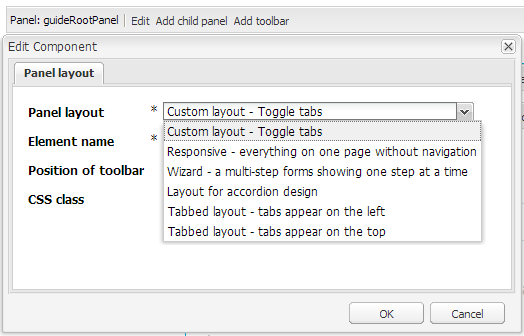

    “自定义面板”布局显示在面板布局列 表中自适应表单的屏幕截图,使用自定义面 板布局演示自定义布局的切换功能的屏幕截图

自定义面板布局和使用它的自适应表单的示例ZIP。

获取文件
