Creating custom toolbar layout

Toolbar layouts

When you create an adaptive form, you can specify a toolbar layout for the form. The toolbar layout defines the commands and the layout of the toolbar on the form.

Toolbar layout uses rely heavily on client-side processing driven by complex JavaScript and CSS code. Organizing and optimizing the serving of this code can be a complicated issue. To help deal with this issue, AEM provides Client-side Library Folders, which allow you to store your client-side code in the repository, organize it into categories, and define when and how each category of code is to be served to the client. The client-side library system then takes care of producing the correct links in your final webpage to load the correct code. For detailed information, see How client-side libraries work in AEM.

Figure: Sample layout of the toolbar

Adaptive forms provide a set of out-of-the-box layouts:

Figure: Toolbar layouts available out-of-the-box

In addition, you can create a custom toolbar layout.

The following procedure details the steps to create a custom toolbar that displays three actions in the toolbar and the other actions in a drop-down list in the toolbar.

The attached content package contains the entire code described below. After installing the content package, open /content/forms/af/CustomLayoutDemo.html to view the custom toolbar layout demo.

CustomToolbarLayoutDemo.zip

Get File
Demo custom toolbar layout

To create a custom toolbar layout

1. Create a folder to maintain your custom toolbar layouts. For example:

   /apps/customlayout/toolbar.

   To create a custom layout, you can use (and customize) one of the out-of-the-box toolbar layouts available in the following folder:

   /libs/fd/af/layouts/toolbar

   For example, copy the mobileFixedToolbarLayout node from the /libs/fd/af/layouts/toolbar folder to the /apps/customlayout/toolbar folder.

   Also, copy the toolbarCommon.jsp to the /apps/customlayout/toolbar folder.

   NOTE

   The folder that you create to maintain the custom layouts much be created with the apps folder.

2. Rename the copied node, mobileFixedToolbarLayout, to customToolbarLayout.

   Also, provide a relevant description for the node. For example, change the jcr:description of the node to Custom layout for toolbar.

   The guideComponentType property of the node determines the layout type. In this case, the layout type is toolbar, hence it appears in toolbar layout selection drop-down.



   A node with relevant description

   Your new custom toolbar layout is displayed in the Adaptive Form Toolbar dialog configuration.



   List of available toolbar layouts

   NOTE

   The description updated in the previous step is displayed in the Layout drop-down list.

3. Select this custom toolbar layout and click OK.

   Add clientlib (javascript and css) in the /etc/customlayout node and include the reference of the clientlib in the customToolbarLayout.jsp.

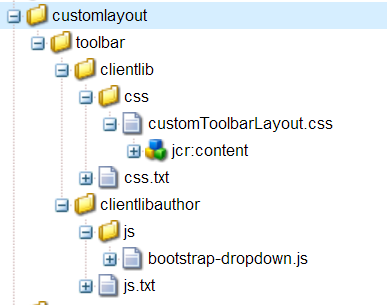

   Path of the customToolbarLayout.css file

   Sample customToolbarLayout.jsp:

   <%@include file="/libs/fd/af/components/guidesglobal.jsp" %>
   <cq:includeClientLib categories="customtoolbarlayout" />
   <c:if test="${isEditMode}">
           <cq:includeClientLib categories="customtoolbarlayoutauthor" />
   </c:if>
   <div class="guidetoolbar mobileToolbar mobilecustomToolbar" data-guide-position-class="guide-element-hide">
       <div data-guide-scroll-indicator="true"></div>
       <%@include file="../toolbarCommon.jsp" %>
   </div>



   NOTE

   Add the guidetoolbar class for the layout. The out-of-the-box styling for the toolbar is defined with respect to the guidetoolbar class.

   Sample toolBarCommon.jsp:

   <%@taglib prefix="fn" uri="https://java.sun.com/jsp/jstl/functions"%>
   <%--------------------
   This code iterates over all the tool bar items using the guideToolbar bean.
   If the number of toolbar items are more than 3, then we create a dropdown menu using bootstrap for other actions present in the toolbar.
   In both desktop and mobile devices, the layout is different.
   ---------------------------------%>

   <c:forEach items="${guideToolbar.items}" var="toolbarItem" varStatus="loop">
       <c:choose>
         <c:when test="${loop.index gt 2}">
      <c:choose>
       <c:when test="${loop.index eq 3}">
                     <div class="btn-group dropdown">
                       <button type="button" class="btn btn-primary dropdown-toggle label" data-toggle="dropdown">Actions <span class="caret"></span></button>
                       <button type="button" class="btn btn-primary dropdown-toggle icon" data-toggle="dropdown"><span class="glyphicon glyphicon-th-list"></span></button>
             <ul class="dropdown-menu" role="menu">
                           <li>
                               <div id="${toolbarItem.id}_guide-item">
                                 <sling:include path="${toolbarItem.path}" resourceType="${toolbarItem.resourceType}"/>
                              </div>
                           </li>
                           <c:if test="${loop.index eq (fn:length(guideToolbar.items)-1)}">
                                </ul>
                                </div>
                           </c:if>
       </c:when>
       <c:when test="${loop.index eq (fn:length(guideToolbar.items)-1)}">
                          <li>
                                     <div id="${toolbarItem.id}_guide-item">
                                         <sling:include path="${toolbarItem.path}" resourceType="${toolbarItem.resourceType}"/>
                                     </div>
                           </li>
                       </ul>
                     </div>

       </c:when>
       <c:otherwise>
         <li>
          <div id="${toolbarItem.id}_guide-item">
           <sling:include path="${toolbarItem.path}" resourceType="${toolbarItem.resourceType}"/>
          </div>
         </li>
       </c:otherwise>
      </c:choose>
         </c:when>
         <c:otherwise>
     <div id="${toolbarItem.id}_guide-item">
           <sling:include path="${toolbarItem.path}" resourceType="${toolbarItem.resourceType}"/>
        </div>
         </c:otherwise>
    </c:choose>
   </c:forEach>



   The CSS present inside the clientlib node:

   .mobilecustomToolbar .dropdown {
       display: inline-block;
   }

   .mobilecustomToolbar .dropdown {
       float: right;
   }

   .mobilecustomToolbar .dropdown > button {
      padding: 6px 12px;
   }

   .mobilecustomToolbar .dropdown .guideFieldWidget, .mobilecustomToolbar .dropdown .guideFieldWidget button {
       width: 100%;
   }

   .mobilecustomToolbar .dropdown .caret{
       border-bottom: 6px solid;
       border-right: 6px solid transparent;
       border-left: 6px solid transparent;
    border-top: transparent;
   }

   .mobilecustomToolbar .dropdown-menu{
    top: auto;
    bottom: 100%;
   }

   .mobilecustomToolbar .btn-group {
    vertical-align: super;
   }

   .mobilecustomToolbar .glyphicon {
    font-size: 24px;
   }

   @media (max-width: 767px){

    .mobilecustomToolbar .dropdown .guideButton .iconButton-icon {
      display: none;
       }

       .mobilecustomToolbar .dropdown .guideButton .iconButton-label {
      display: inline-block;
       }

       .mobilecustomToolbar .dropdown .guideButton button {
      background-color: #013853;
       }

    .mobilecustomToolbar .btn-group {
     vertical-align: top;
    }

   }


Figure: Desktop view of the custom layout toolbar
