設定AEM,讓製作執行個體上的復寫代理使用相互SSL(MSSL)連線至發佈執行個體。 復寫代理程式和發佈執行個體上的HTTP服務會使用憑證來相互驗證。
為復寫設定MSSL時,需執行下列步驟:
建立或取得製作和發佈執行個體的私密金鑰和憑證。
在製作和發佈執行個體上安裝金鑰和憑證:
在發佈執行個體上設定Jetty型HTTP服務。
配置複製代理的傳輸和SSL屬性。
您必須確定執行複製的用戶帳戶。 在發佈執行個體上安裝信任的作者憑證時,憑證會與此使用者帳戶相關聯。
製作和發佈執行個體需要私密金鑰和公開憑證:
以JKS格式產生私密金鑰和憑證。 私鑰儲存在KeyStore檔案中,證書儲存在TrustStore檔案中。 使用 Java keytool
來建立兩者。
使用Java執行下列步驟 keytool
要建立私鑰和憑據,請執行以下操作:
在KeyStore中產生私密 — 公開金鑰組。
建立或取得憑證:
將憑證匯入TrustStore。
請依照下列程式,為製作和發佈執行個體建立私密金鑰和自行簽署的憑證。 對命令選項使用不同的值。
開啟命令列視窗或終端機。 要建立私鑰對,請使用下表中的選項值輸入以下命令:
keytool -genkeypair -keyalg RSA -validity 3650 -alias alias -keystore keystorename.keystore -keypass key_password -storepass store_password -dname "CN=Host Name, OU=Group Name, O=Company Name,L=City Name, S=State, C=Country_ Code"
選項 | 作者 | 發佈 |
---|---|---|
-alias | 作者 | 發佈 |
-keystore | author.keystore | publish.keystore |
要導出證書,請使用下表中的選項值輸入以下命令:
keytool -exportcert -alias alias -file cert_file -storetype jks -keystore keystore -storepass store_password
選項 | 作者 | 發佈 |
---|---|---|
-alias | 作者 | 發佈 |
-file | author.cer | publish.cer |
-keystore | author.keystore | publish.keystore |
以pkcs#12格式生成私鑰和證書。 使用 openSSL 來產生。 請依照下列步驟產生私密金鑰和憑證要求。 若要取得憑證,請使用您的私密金鑰(自行簽署憑證)簽署要求,或將要求傳送至CA。 然後,生成包含私鑰和證書的pkcs#12歸檔檔案。
開啟命令列視窗或終端機。 要建立私鑰,請使用下表中的選項值輸入以下命令:
openssl genrsa -out keyname.key 2048
選項 | 作者 | 發佈 |
---|---|---|
-out | author.key | publish.key |
要生成證書請求,請使用下表中的選項值輸入以下命令:
openssl req -new -key keyname.key -out key_request.csr
選項 | 作者 | 發佈 |
---|---|---|
-key | author.key | publish.key |
-out | author_request.csr | publish_request.csr |
簽署憑證要求或將要求傳送至CA。
若要簽署憑證請求,請使用下表中的選項值,輸入下列命令:
openssl x509 -req -days 3650 -in key_request.csr -signkey keyname.key -out certificate.cer
選項 | 作者 | 發佈 |
---|---|---|
-signkey | author.key | publish.key |
-中的 | author_request.csr | publish_request.csr |
-out | author.cer | publish.cer |
要將私鑰和簽名證書添加到pkcs#12檔案,請使用下表中的選項值輸入以下命令:
openssl pkcs12 -keypbe PBE-SHA1-3DES -certpbe PBE-SHA1-3DES -export -in certificate.cer -inkey keyname.key -out pkcs12_archive.pfx -name "alias"
選項 | 作者 | 發佈 |
---|---|---|
-inkey | author.key | publish.key |
-out | author.pfx | publish.pfx |
-中的 | author.cer | publish.cer |
-名稱 | 作者 | 發佈 |
在製作執行個體上安裝下列項目:
若要執行下列程式,您必須以製作執行個體管理員的身分登入。
開啟製作例項的「使用者管理」頁面。 (http://localhost:4502/libs/granite/security/content/useradmin.html)
若要開啟使用者帳戶的屬性,請按一下或點選您的使用者名稱。
如果「Create KeyStore」(建立KeyStore)連結出現在「Account Settings」(帳戶設定)區域中,請按一下該連結。 配置密碼,然後按一下「確定」。

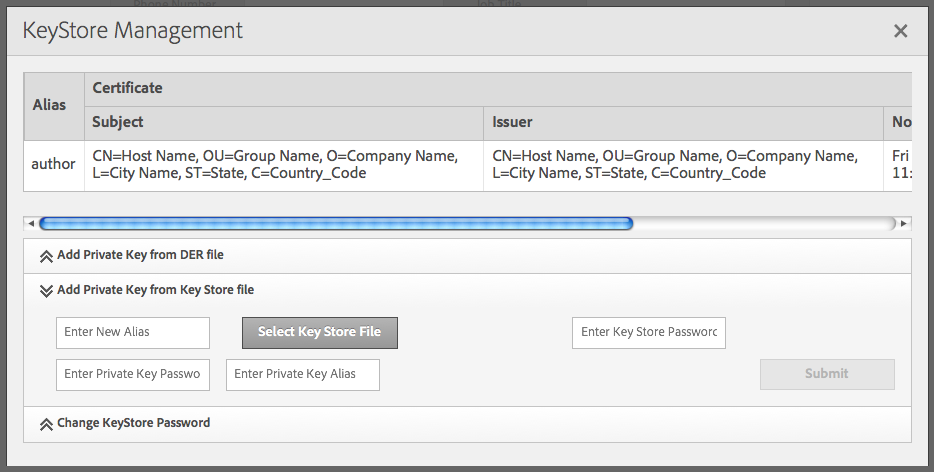

在「帳戶設定」區域中,按一下「管理金鑰存放區」。
按一下「從金鑰存放區檔案新增私密金鑰」 。
按一下「選擇密鑰儲存檔案」,然後瀏覽並選擇author.keystore檔案或author.pfx檔案(如果使用pkcs#12),然後按一下「開啟」。
輸入密鑰儲存的別名和密碼。 輸入私鑰的別名和密碼,然後按一下提交。
關閉「KeyStore管理」對話框。
開啟製作例項的「使用者管理」頁面。 (http://localhost:4502/libs/granite/security/content/useradmin.html)
若要開啟使用者帳戶的屬性,請按一下或點選您的使用者名稱。
如果「Create TrustStore(建立信任儲存)」連結出現在「Account Settings(帳戶設定)」區域中,請按一下該連結,為TrustStore建立密碼,然後按一下「OK(確定)」。
在「帳戶設定」區域中,按一下「管理信任儲存」。
按一下「從CER檔案添加證書」。
清除「將憑證對應至使用者」選項。 按一下「選擇證書檔案」,選擇「publish.cer」,然後按一下「開啟」。
關閉TrustStore管理對話框。
在發佈執行個體上安裝下列項目:
若要執行下列程式,您必須以發佈執行個體管理員的身分登入。
在發佈執行個體上設定Apache Felix Jetty Based HTTP Service的屬性,以便在存取Granite金鑰存放區時使用HTTPS。 服務的PID為 org.apache.felix.http
.
下表列出了配置是否使用Web控制台所需的OSGi屬性。
Web主控台上的屬性名稱 | OSGi屬性名稱 | 值 |
---|---|---|
啟用HTTPS | org.apache.felix.https.enable | true |
啟用HTTPS以使用Granite KeyStore | org.apache.felix.https.use.granite.keystore | true |
HTTPS 連接埠 | org.osgi.service.http.port.secure | 8443(或其他需要的埠) |
用戶端憑證 | org.apache.felix.https.clientcertificate | "需要客戶端證書" |
在連線至發佈執行個體時,在製作執行個體上設定復寫代理,以使用HTTPS通訊協定。 有關配置複製代理的完整資訊,請參見 配置複製代理.
要啟用MSSL,請根據下表配置「傳輸」頁簽上的屬性:
屬性 | 值 |
---|---|
URI | https://server_name:SSL_port/bin/receive?sling:authRequestLogin=1 例如: http://localhost:8443/bin/receive?sling:authRequestLogin=1 |
使用者 | 無值 |
密碼 | 無值 |
SSL | 用戶驗證 |
設定復寫代理後,請測試連線,以判斷MSSL是否已正確設定。
29.08.2014 14:02:46 - Create new HttpClient for Default Agent
29.08.2014 14:02:46 - * HTTP Version: 1.1
29.08.2014 14:02:46 - * Using Client Auth SSL configuration *
29.08.2014 14:02:46 - adding header: Action:Test
29.08.2014 14:02:46 - adding header: Path:/content
29.08.2014 14:02:46 - adding header: Handle:/content
29.08.2014 14:02:46 - deserialize content for delivery
29.08.2014 14:02:46 - No message body: Content ReplicationContent.VOID is empty
29.08.2014 14:02:46 - Sending POST request to http://localhost:8443/bin/receive?sling:authRequestLogin=1
29.08.2014 14:02:46 - sent. Response: 200 OK
29.08.2014 14:02:46 - ------------------------------------------------
29.08.2014 14:02:46 - Sending message to localhost:8443
29.08.2014 14:02:46 - >> POST /bin/receive HTTP/1.0
29.08.2014 14:02:46 - >> Action: Test
29.08.2014 14:02:46 - >> Path: /content
29.08.2014 14:02:46 - >> Handle: /content
29.08.2014 14:02:46 - >> Referer: about:blank
29.08.2014 14:02:46 - >> Content-Length: 0
29.08.2014 14:02:46 - >> Content-Type: application/octet-stream
29.08.2014 14:02:46 - --
29.08.2014 14:02:46 - << HTTP/1.1 200 OK
29.08.2014 14:02:46 - << Connection: Keep-Alive
29.08.2014 14:02:46 - << Server: Day-Servlet-Engine/4.1.64
29.08.2014 14:02:46 - << Content-Type: text/plain;charset=utf-8
29.08.2014 14:02:46 - << Content-Length: 26
29.08.2014 14:02:46 - << Date: Fri, 29 Aug 2014 18:02:46 GMT
29.08.2014 14:02:46 - << Set-Cookie: login-token=3529326c-1500-4888-a4a3-93d299726f28%3ac8be86c6-04bb-4d18-80d6-91278e08d720_98797d969258a669%3acrx.default; Path=/; HttpOnly; Secure
29.08.2014 14:02:46 - << Set-Cookie: cq-authoring-mode=CLASSIC; Path=/; Secure
29.08.2014 14:02:46 - <<
29.08.2014 14:02:46 - << R
29.08.2014 14:02:46 - << eplicationAction TEST ok.
29.08.2014 14:02:46 - Message sent.
29.08.2014 14:02:46 - ------------------------------------------------
29.08.2014 14:02:46 - Replication (TEST) of /content successful.
Replication test succeeded
