AEM 6.4 has reached the end of extended support and this documentation is no longer updated. For further details, see our technical support periods. Find the supported versions here.

Assets provides for centralized video asset management where you can upload videos directly to Assets for auto-encoding to Dynamic Media Classic and access Dynamic Media Classic videos directly from Assets for page authoring.

Dynamic Media Classic video integration extends the reach of optimized video to all screens (auto device and bandwidth detection).

  • The Dynamic Media Classic (Scene7) video component automatically performs device and bandwidth detection to play the right format and right quality video across desktop, tablets and mobile.
  • Assets - You can include adaptive video sets rather than only single video assets. An adaptive video set is a container for all video renditions required to playback video seamlessly across multiple screens. An Adaptive Video Set groups versions of the same video that are encoded at different bit rates and formats such as 400 kbps, 800 kbps, and 1000 kbps. You use an Adaptive Video Set, along with S7 video component, for adaptive video streaming across multiple screens including desktop, iOS, Android, Blackberry, and Windows mobile devices. See Scene7 documentation about adaptive video sets for more information.

About FFMPEG and Dynamic Media Classic about-ffmpeg-and-scene

The default video encoding process is based on using the FFMPEG-based integration with video profiles. Therefore, the out-of-the-box DAM Update Asset workflow contains the following two ffmpeg-based workflow steps:

  • FFMPEG thumbnails
  • FFMPEG encoding

Be aware that enabling and configuring the Dynamic Media Classic integration does not automatically remove or deactivate these two workflow steps from the out-of-the-box DAM Update Asset ingestion workflow. If you already make use of the FFMPEG-based video encoding in AEM, it is likely that you have FFMPEG installed on your authoring environments. In this case, a new video ingested using Assets would be encoded twice: once from the FFMPEG encoder and once from Dynamic Media Classic integration.

If you have the FFMPEG-based video encoding in AEM configured and FFMPEG installed, Adobe recommends that you remove the two FFMPEG workflows from your DAM Update Asset workflows.

Supported Formats supported-formats

The following formats are supported for the Dynamic Media Classic Video component:

  • F4V H.264
  • MP4 H.264

Deciding where to upload your video deciding-where-to-upload-your-video

Deciding where to upload your video assets depends on the following:

  • Do you need a workflow for the video asset?
  • Do you need version control for the video asset?

If the answer is “yes” to either or both of these questions, then upload your video directly to Adobe DAM. If the answer is “no” to both questions, then upload your video directly to Dynamic Media Classic. The workflow for each scenario is described in the following section.

If you are uploading your video directly to Adobe Assets if-you-are-uploading-your-video-directly-to-adobe-assets

If you need a workflow or versioning for your assets, you should upload to Adobe Assets first. The following is the recommended workflow:

  1. Upload the video asset to Adobe Assets and automatically encode and publish to Dynamic Media Classic.
  2. In AEM, access video assets in WCM in the Movies tab of the Content Finder.
  3. Author with Dynamic Media Classic video or foundation video component.

If you are uploading your video to Dynamic Media Classic if-you-are-uploading-your-video-to-scene

If you do not need a workflow or versioning for your assets, you should upload your assets to Dynamic Media Classic. The following is the recommended workflow:

  1. In Dynamic Media Classic, set up a scheduled FTP uploading and encoding to Dynamic Media Classic (system automated).
  2. In AEM, access video assets in WCM in the Dynamic Media Classic tab of the Content Finder.
  3. Author with the Dynamic Media Classic video component.

Configuring Integration with Dynamic Media Classic Video configuring-integration-with-scene-video

To configure universal presets:

  1. In Cloud Services, navigate to your Dynamic Media Classic configuration and click Edit.

  2. Select the Video tab.

    note note
    NOTE
    The Video tab does not appear if the page does not have a cloud configuration. See Enabling Dynamic Media Classic for WCM.
  3. Select the adaptive video encoding profile, an out-of-the-box single video encoding profile, or a custom video encoding profile.

    note note
    NOTE
    For more information about what the video presets mean, see the Dynamic Media Classic documentation.
    Adobe recommends that you select either both adaptive video sets when configuring the universal presets or select the Adaptive Video Encoding option.
  4. The selected encoding profiles are automatically applied to all videos uploaded to the CQ DAM target folder you set up for this Dynamic Media Classic cloud config. You can set up multiple Dynamic Media Classic cloud configurations with different target folders to apply different encoding profiles as needed.

Updating viewer and encoding presets updating-viewer-and-encoding-presets

If you need to update the viewer and encoding presets for video in AEM because the presets have been updated in Dynamic Media Classic, navigate to the Dynamic Media Classic configuration in the cloud configuration and click Update the viewer and encoding presets.

chlimage_1-131

Uploading your master video uploading-your-master-video

To upload your master video to Dynamic Media Classic from Adobe DAM:

  1. Navigate to the CQ DAM target folder where you have set up your cloud configuration with Dynamic Media Classic encoding profiles.

  2. Click Upload to upload master video. Video uploading and encoding is complete after the DAM Update Asset workflow is complete and Publish to Dynamic Media Classic has a checkmark.

    note note
    NOTE
    It may take some time for the video thumbnails to be generated.

    Dragging the DAM master video on to the video component accesses all of the Dynamic Media Classic encoded proxy renditions for delivery.

Foundation Video Component versus Dynamic Media Classic Video Component foundation-video-component-versus-scene-video-component

When using AEM, you have access to both the Video component available in Sites and the Dynamic Media Classic (Scene7) video component. These components are not interchangeable.

The Dynamic Media Classic video component only works for Dynamic Media Classic videos. The foundation component works with videos stored from AEM (using ffmpeg) and Dynamic Media Classic videos.

The following matrix explains when you should use which component:

chlimage_1-132

NOTE
Out of the box, the Dynamic Media Classic video component uses the universal video profile. You can however obtain the HTML5-based video player for use by AEM. In Dynamic Media Classic, copy the embed code of the out-of-box HTML5 video player and put it in your AEM page.

AEM Video Component aem-video-component

Even if using the Dynamic Media Classic video component is recommended for viewing Dynamic Media Classic videos, this section describes using Dynamic Media Classic videos with the Foundation Video Component in AEM, for the sake of completeness.

AEM Video and Dynamic Media Classic Video comparison aem-video-and-scene-video-comparison

The following table provides a high level comparison of supported capabilties between the AEM Foundation Video component and the Scene7 Video component:

AEM Foundation Video
Dynamic Media Classic Video
Approach
HTML5 first approach. Flash is only used for non-HTML5 fallback.
Flash on most desktops. HTML5 is used for mobile and tablets.
Delivery
Progressive
Adaptive Streaming
Tracking
Yes
Yes
Extensibility
Yes
Yes (with Dynamic Media Classic viewer SDK)
Mobile Video
Yes
Yes

Setting Up setting-up

Creating Video Profiles creating-video-profiles

The various video encodings are created according to the Dynamic Media Classic encoding presets selected in the Dynamic Media Classic cloud configuration. In order for the foundation video component to make use of them, a video profile must be created for each Dynamic Media Classic encoding preset selected. This allows the video component to select the DAM renditions accordingly.

NOTE
New video profiles and changes to them must be activated to publish.
  1. In AEM, go to Tools, then select Configuration Console. In the Configuration Console navigate to Tools > Assets > Video Profiles in the navigation tree.

  2. Create a new Dynamic Media Classic Video Profile. In the New… menu, select Create Page and then select the Dynamic Media Classic Video Profile template. Give the new video profile page a name and click Create.

    chlimage_1-133

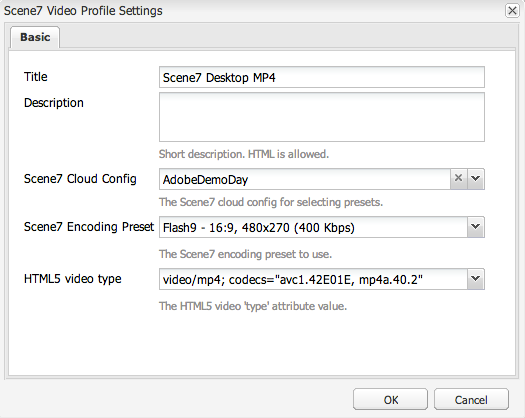

  3. Edit the new video profile. Select the cloud config first. Then select the same encoding preset as selected in the cloud config.

    chlimage_1-134

    table 0-row-2 1-row-2 2-row-2 3-row-2
    Property Description
    Dynamic Media Classic (Scene7) Cloud Config The cloud config to use for the encoding presets.
    Dynamic Media Classic (Scene7) Encoding Preset The encoding preset to map this video profile with.
    HTML5 video type This property allows to set the value of the type property of the HTML5 video source element. This information is not provided by the Dynamic Media Classic encoding presets, but required for properly rendering the videos using HTML5 video element. A list for common formats is provided, but can be overwritten for other formats.

    Repeat this step for all encoding presets selected in the cloud config that you want to use in the video component.

Configuring Design configuring-design

The foundation video component must know about what video profiles to use in order to build the video sources list. You must open the video components design dialog and configure the components design for using the new video profiles.

NOTE
If you use the foundation video component on a mobile page, you might need to repeat these steps on the design of the mobile page.
NOTE
Changes made to the design require activation of the design in order to take effect on publish.
  1. Open the foundation video component’s design dialog and change to the Profiles tab. Then delete the out-of-the-box profiles and add the new Dynamic Media Classic video profiles. The order of the profile list in the design dialog as well defines the order of the video sources element when rendering.
  2. For browsers not supporting HTML5, the video component allows to configure a flash fallback. Open the video components design dialog and change to the Flash tab. Configure the flash player settings and assign a fallback profile for the flash player.

Checklist checklist

  1. Create a Dynamic Media Classic (Scene7) cloud config. Make sure the video encoding presets are set and the importer is running.
  2. Create a Dynamic Media Classic video profile for each video encoding preset selected in the cloud config.
  3. The video profiles must be activated.
  4. Configure the design of the foundation video component on your page.
  5. Activate the design after you are done with your design changes.
