The goal for this tutorial is to familiarize you with the terminology used in the SQL Report Builder and give you a solid foundation for creating
The SQL Report Builder is a report builder with options: you can run a query for the sole purpose of retrieving a table of data, or you can turn those results into a report. This tutorial explains how to build a visualization from a SQL query.
Before you begin this tutorial, refer to the following terminology used in the
SQL Report Builder.
Series: The column that you want to measure is referred to as a Series in the SQL Report Builder. Common examples are
items sold, and
marketing spend. At least one column must be set as a
Series to create a visualization.
Category: The column you want to use to segment your data is called a
Category This is just like the
Group By feature in the
Visual Report Builder. For example, if you want to segment your customers’ lifetime revenue by their acquisition source, the column that contains acquisition source would be specified as the
Category. More than one column can be set as a
Dates and timestamps can also be used as
Categories. They are just another column of data in your query and must be formatted and ordered as desired in the query itself.
Labels: These are applied as x-axis labels. When analyzing data trending over time, the year and month columns are specified as labels. More than one column can be set to be Label.
Keep in mind the following:
The SQL Report Builder uses
If you are creating a report with a time series, be sure to
ORDER BY the timestamp column(s). This ensures that the timestamps are plotted in the right order on the report.
EXTRACT function is great to use for parsing out the day, week, month, or year of the timestamp. This is useful when the
time interval you want to use on the report is
To get started, open up the SQL Report Builder by clicking Report Builder > SQL Report Builder.
As an example, consider this query that returns the monthly total number of items sold for each product:
SELECT SUM("qty") AS "Items Sold", "products's name" AS "product name", EXTRACT(year from "Order date") AS "year", EXTRACT(month from "Order date") AS "month" FROM "items" WHERE "products's name" LIKE '%Jeans' GROUP BY "products's name", "year","month" ORDER BY "year" ASC,"month" ASC LIMIT 3500
This query returns this table of results:
With these results, how do you create the visualization? To get started, click the Chart tab in the
Results pane. This displays the
Chart settings tab.
When a query is first executed, the report may look inscrutable because all columns in the query are plotted as a series:
For this example, you want this to be a line chart that trends over time. To create it, use these settings:
Series: Select the
Items sold column as the
Series since you want to measure it. After you define a
Series column, you’ll see a single line plotted in the report.
Category: For this example, you want to view each product as a different line in the report. To do this, you set
Product name as the
Labels: Use the columns
month as labels on the x-axis to be able to view
Items Sold as trending over time.
The query must contain an
ORDER BY clause on the labels if they are

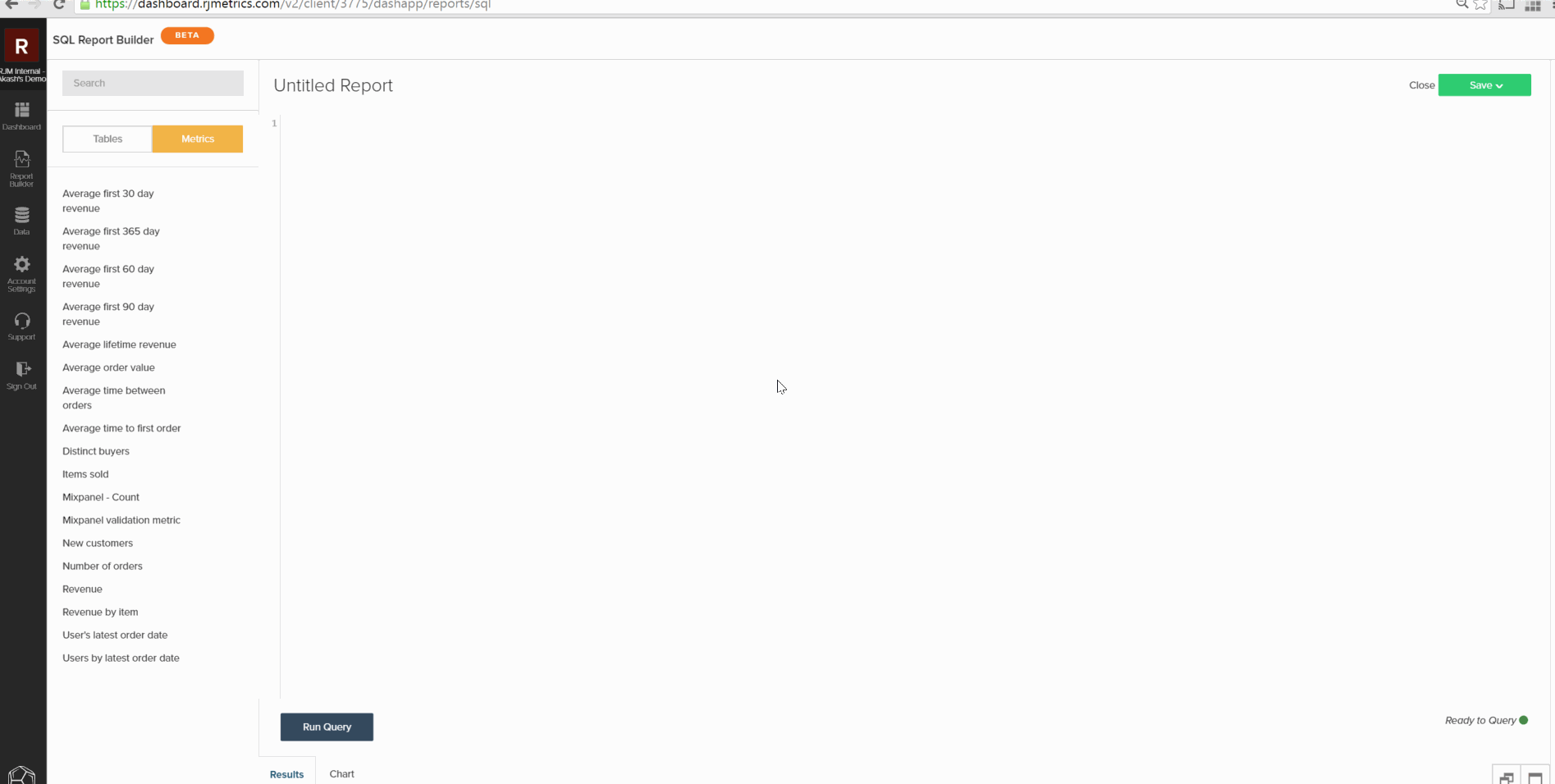

Below is a quick look at how you created this visualization, from running the query to setting up the report:
This example uses the
Line chart type. To use a different
chart type, click the icons above the chart options section to change it:
If you want to use this report again, give the report a name and click Save in the top-right corner.
In the dropdown, select
Chart as the
Type and then a dashboard to save the report to.
Want to take it a step further? Check out the query optimization best practices.
