Sales > Payment Methods > Braintree

Last update: 2023-09-29
  • Created for:
  • Beginner
    Intermediate
    Admin
    Developer
    User
IMPORTANT

Commerce 2.4 Migration:

For versions of Adobe Commerce and Magento Open Source earlier than 2.4.0, it was recommended that merchants install and configure the official Braintree payment integration extension from the Commerce Marketplace to replace the core integration. As of 2.4.0, the extension is now included in the core release.



When migrating to Commerce 2.4, merchants need to uninstall the extension distributed on the Marketplace (paypal/module-braintree or gene/module-braintree) and update any code customizations to use the PayPal_Braintree namespace instead of Magento_Braintree. Configuration settings from the bundled extension for Commerce and the extension distributed on the Commerce Marketplace are persisted. Payments placed with those versions of the extension are captured, voided, or refunded as normal.



If you are upgrading to Commerce 2.4.0 and do not use the recommended Commerce Marketplace extension in your previous 2.3.x version, the multi address feature does not work with the 2.4.0 version of Braintree. When a shopper selects deliver to multiple addresses , the Braintree payment method does not appear. The Commerce Marketplace extension previously recommended for 2.3.x has this multiple address issue.

To access the store configuration settings, choose Stores > Settings > Configuration from the Admin sidebar.

NOTE

2.4.7-beta2 There are updates included in the 2.4.7-beta2 release that provide enhancements to the described functionality. If you are using this release version, review the release notes for detailed information about the changes.

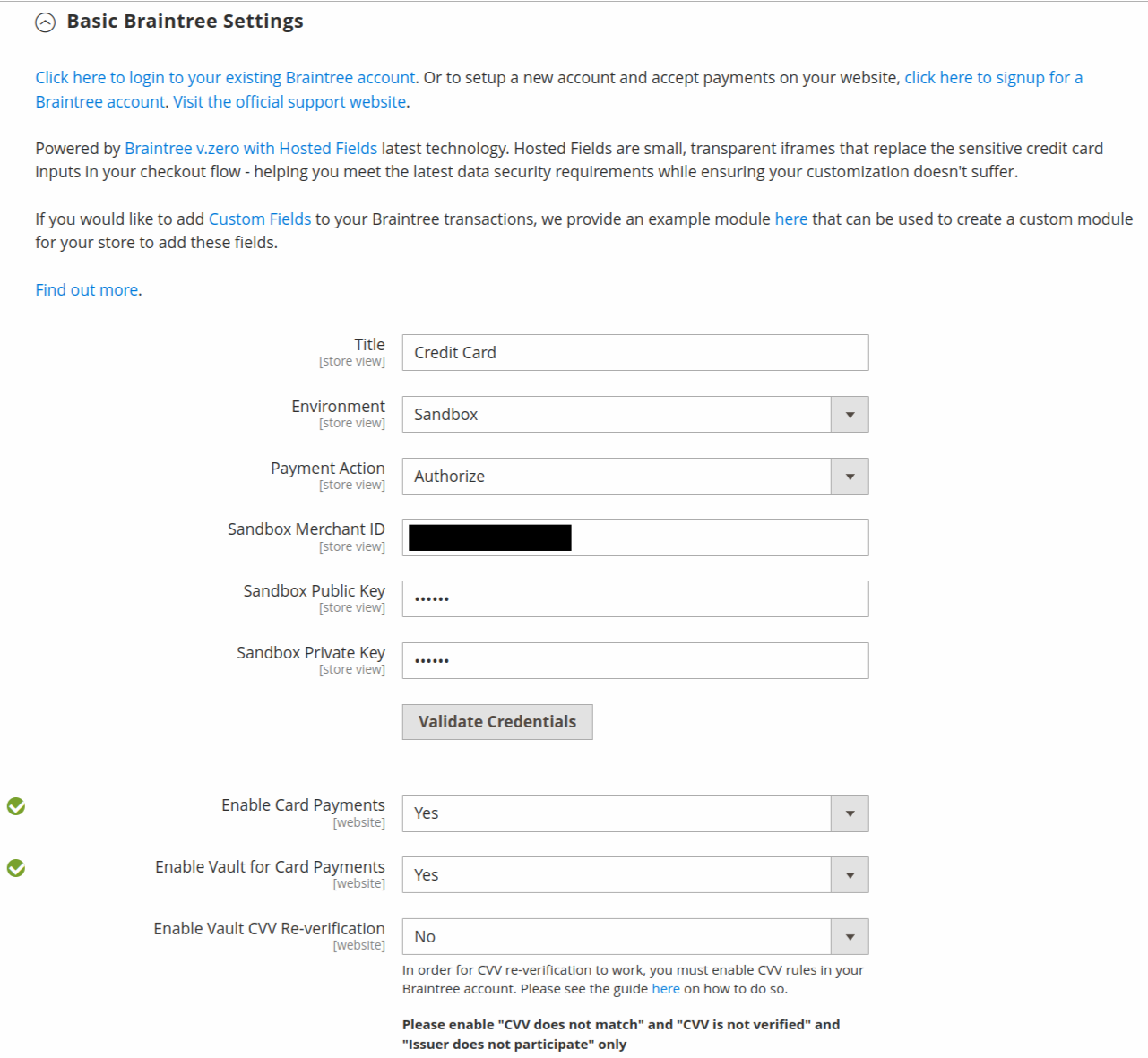

Basic Braintree Settings

Basic Braintree Settings

Field Scope Description
Title Store View Default value: Credit Card (Braintree)
Environment Store View Options: Sandbox / Production
Payment Action Store View Determines the action taken by Braintree when a payment is processed. Options:
Authorize - Funds on the customer’s credit card are authorized, but not transferred from the account. An order is created in your store Admin. You can later capture the sale and create an invoice.
Intent Sale (previously Authorize and Capture in earlier releases) - Funds on the customer’s credit card are authorized and captured by Braintree, and an order and invoice are created in your store Admin.
Sandbox Merchant ID Store View This is the unique identifier for your entire sandbox gateway account. Also known as the public ID or production ID, your merchant ID is different for your production and sandbox gateways. This field appears when the Environment field is set to Sandbox.
Sandbox Public Key Store View This is your user-specific, public identifier that restricts access to encrypted data. Each user associated with your Sandbox Braintree gateway has their own sandbox public key. This field appears when the Environment field is set to Sandbox.
Sandbox Private Key Store View This is your user-specific, private identifier that restricts access to encrypted data. Each user associated with your Sandbox Braintree gateway has their own private key for the sandbox. This field appears when the Environment field is set to Sandbox.
Merchant ID Store View This is the unique identifier for your entire gateway account, including the multiple merchant accounts that may be in your gateway. Also known as the public ID or production ID, your merchant ID is different for your production and sandbox gateways. This field appears when the Environment field is set to Production.
Public Key Store View This is your user-specific, public identifier that restricts access to encrypted data. Each user associated with your Braintree gateway has their own public key. This field appears when the Environment field is set to Production.
Private Key Store View This is your user-specific, private identifier that restricts access to encrypted data. Each user associated with your Braintree gateway has their own private key. This field appears when the Environment field is set to Production.
Enable Card Payments Website Determines if the Braintree credit card payment method is available to your customers as a payment method. Options: Yes / No
Enable Vault for Card Payments Website When enabled, provides secure storage for customer payment information, so customers don’t have to reenter their credit card information for each purchase. Options: Yes / No
Enable Vault CVV Reverification Website When enabled, validation is done for the CVV rules setup in your Braintree Account. Options: Yes / No

Advanced Braintree Settings

Braintree Advanced Settings
Field Scope Description
Vault Title Website A descriptive title for your reference that identifies the vault where your customer card information is stored.
Merchant Account ID Website The Merchant Account ID that is to be associated with Braintree transactions from this website. If left blank, the default merchant account from your Braintree account is used.
Skip Fraud Checks on Admin Orders Website Prevents the transaction from being sent for evaluation as part of Advanced Fraud Tools checks, on orders placed through the admin only when it set to Yes.
Options: Yes / No
Bypass Fraud Protection Threshold Website Advanced Fraud Protection checks are bypassed when the threshold value is met or exceeded. Leaving this field blank disables this option.
Debug Website Determines if communications between the Braintree system and your store are recorded in a log file. Options: Yes / No
CVV Verification Website Determines if customers are required to provide the three-digit security code from the back of a credit card. Options: Yes / No
Send Card Line Items Website Send the cart line items for all the payment methods. Options: Yes / No
Credit Card Types Website Specifies each credit card that you accept as payment through Braintree. Press and hold Ctrl (or Command on Mac) to select a combination of cards. Options: American Express / Visa / MasterCard / Discover / JCB / Diners / Maestro International
Sort Order Website Determines the order that Braintree is listed with other payment methods during checkout.

Braintree Webhooks Settings

Braintree Webhooks Settings

Field Scope Description
Enable Webhook Website To enable the webhook functionality for fraud protection, ACH payments and local payment methods. Options: Yes / No
Fraud Protection URL Website Add this URL into your Braintree Account as the Webhook Destination URL. This URL must be secure and publicly accessible.
Fraud Protection Approve Order Status Website When fraud protection is approved by Braintree, the selected order status is assigned to the Commerce order. This status is used to update the status of the order where the ACH payment method is used and when it moves to SETTLED in Braintree.
Fraud Protection Reject Order Status Website When fraud protection is rejected by Braintree, the selected order status is assigned to the Commerce order. This status is used to update the status of the order where the ACH payment method is used and when SETTLEMENT is DECLINED in Braintree.

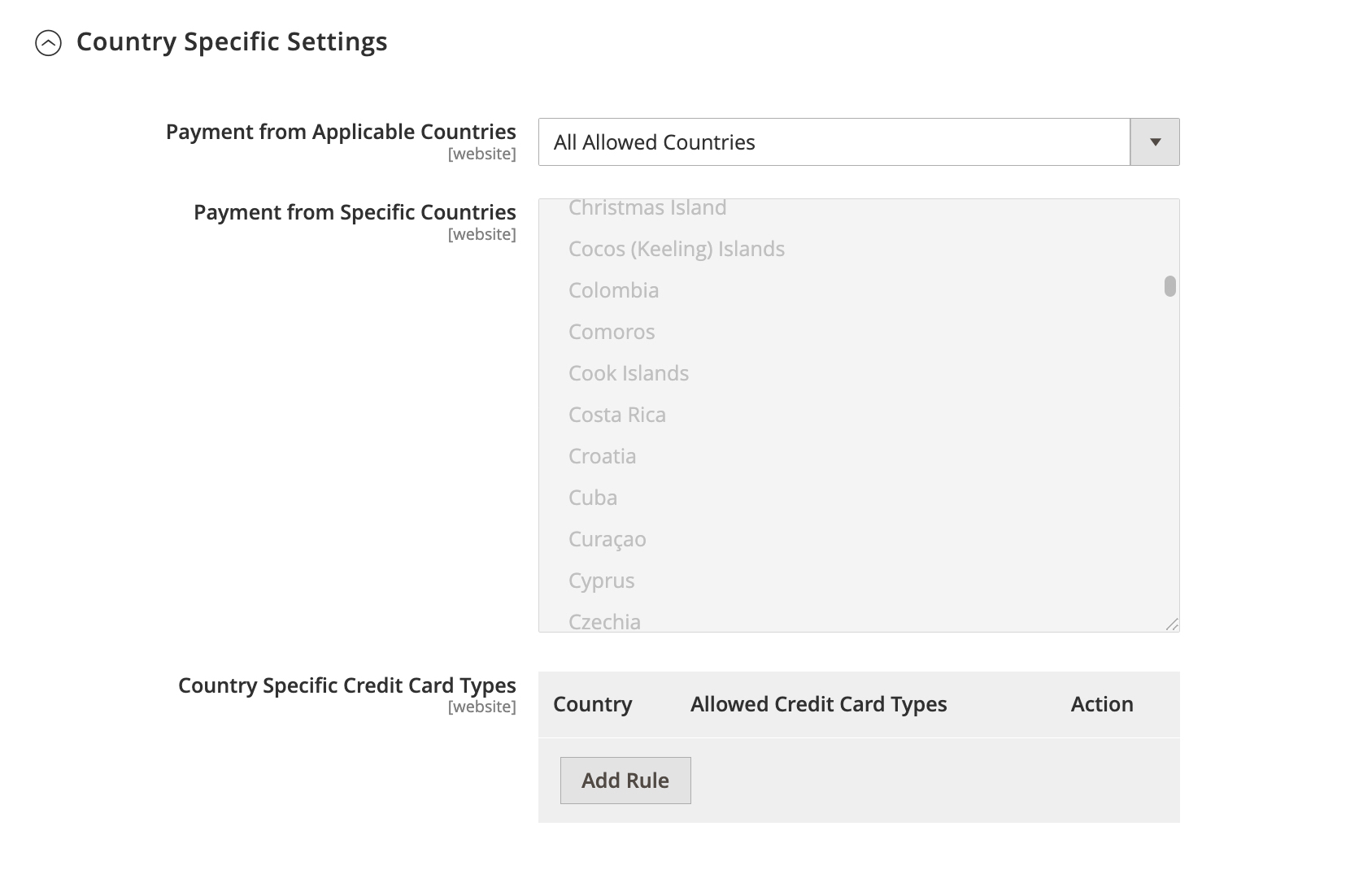

Country Specific Settings

Country Specific Settings

Field Scope Description
Payment from Applicable Countries Website Determines if you accept payments processed by Braintree from all countries, or only specific countries. Options: All Allowed Countries / Specific Countries
Payment from Specific Countries Website If applicable, identifies the specific countries from which you accept payments processed by Braintree.
Country Specific Credit Card Types Website Identifies the credit cards that are accepted per country for payments processed by Braintree. A record is saved for each country. Options:
Country - Choose the country.
Allowed Card Types - Select each credit card that is accepted from the country as payment through Braintree.
Add - Add a line to allow credit cards for a different country.
Action - Deletes the record of allowed credit cards for the country.

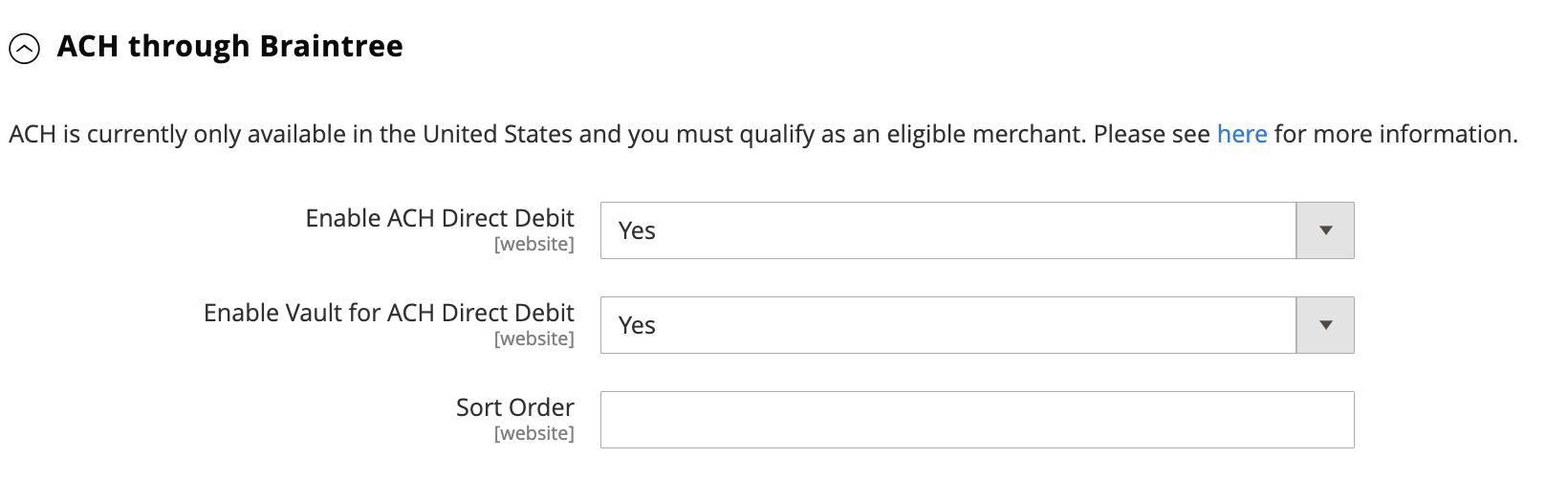

ACH through Braintree

ACH through Braintree

Field Scope Description
Enabled ACH Direct Debit Website Determines if ACH Direct Debit is included as a payment method through Braintree. Options: Yes / No
Sort Order Website Determines the order that ACH Direct Debit is listed with other payment methods during checkout.

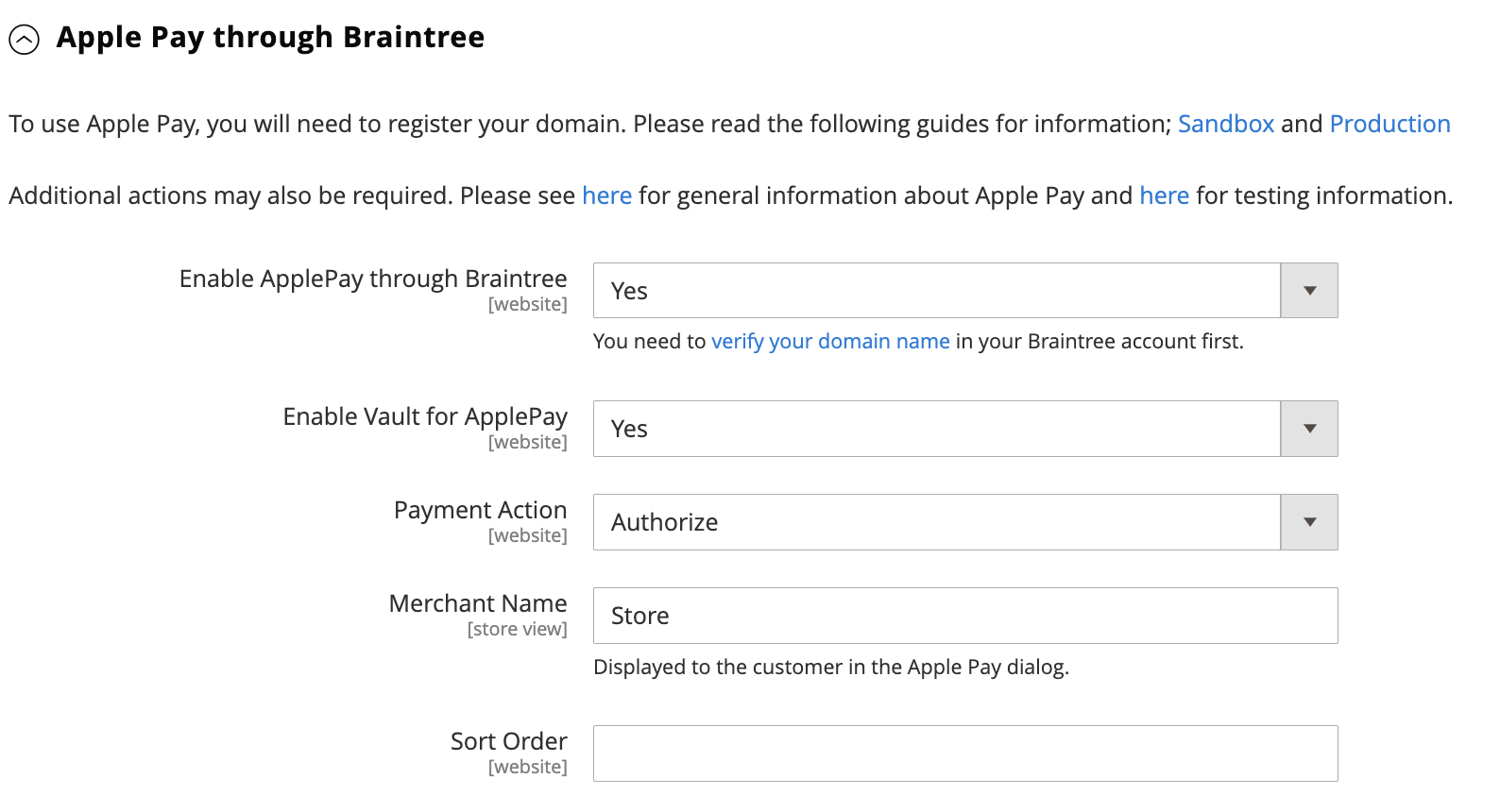

Apple Pay through Braintree

Apple Pay through Braintree

Field Scope Description
Enable ApplePay through Braintree Website Determines if Apple Pay is included as a payment method through Braintree. Options: Yes / No

The domain must be verified in Braintree Account first.
Payment Action Website Determines the action taken by Braintree when a payment is processed. Options:
Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.
Intent Sale - Funds on the customer’s card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. Note: This was Authorize and Capture in 2.3.x and earlier releases.
Merchant Name Store View Label that is displayed to customers in the ApplePay popup.
Sort Order Website Determines the order that Apple Pay is listed with other payment methods during checkout.

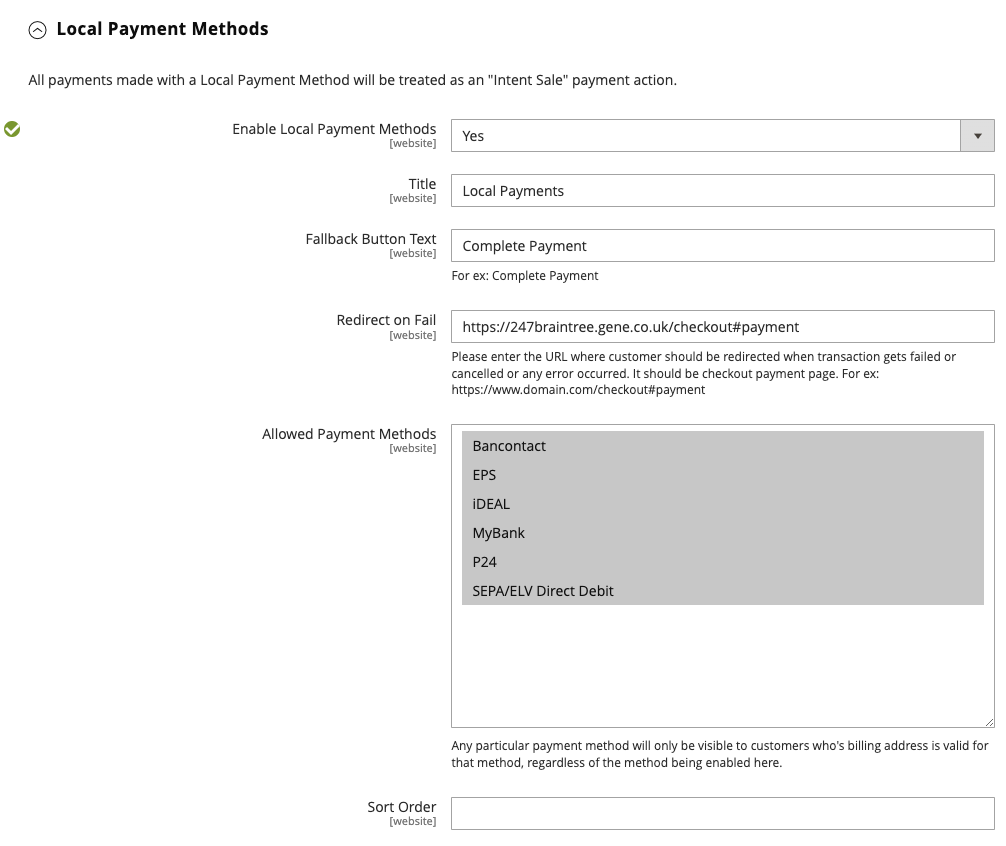

Local Payment Methods

Local Payment Methods

Field Scope Description
Enabled Local Payment Methods Website Determines if Local Payment Method is included as a payment method through Braintree. Options: Yes / No
Title Website Label that appears on the checkout payment method section. Default value: Local Payments
Allowed Payment Method Website Select the local Payment method to be enabled. Options: Bancontact / EPS / giropay / iDeal / Klarna Pay Now / SOFORT / MyBank / P24 / SEPA/ELV Direct Debit (not yet supported)
Sort Order Website Determines the order that Local Payment Method is listed with other payment methods during checkout.
NOTE

The bundled Braintree extension does not support all the local payment methods listed in the Braintree developer documentation. Other local payment methods are under development to be supported in future releases.

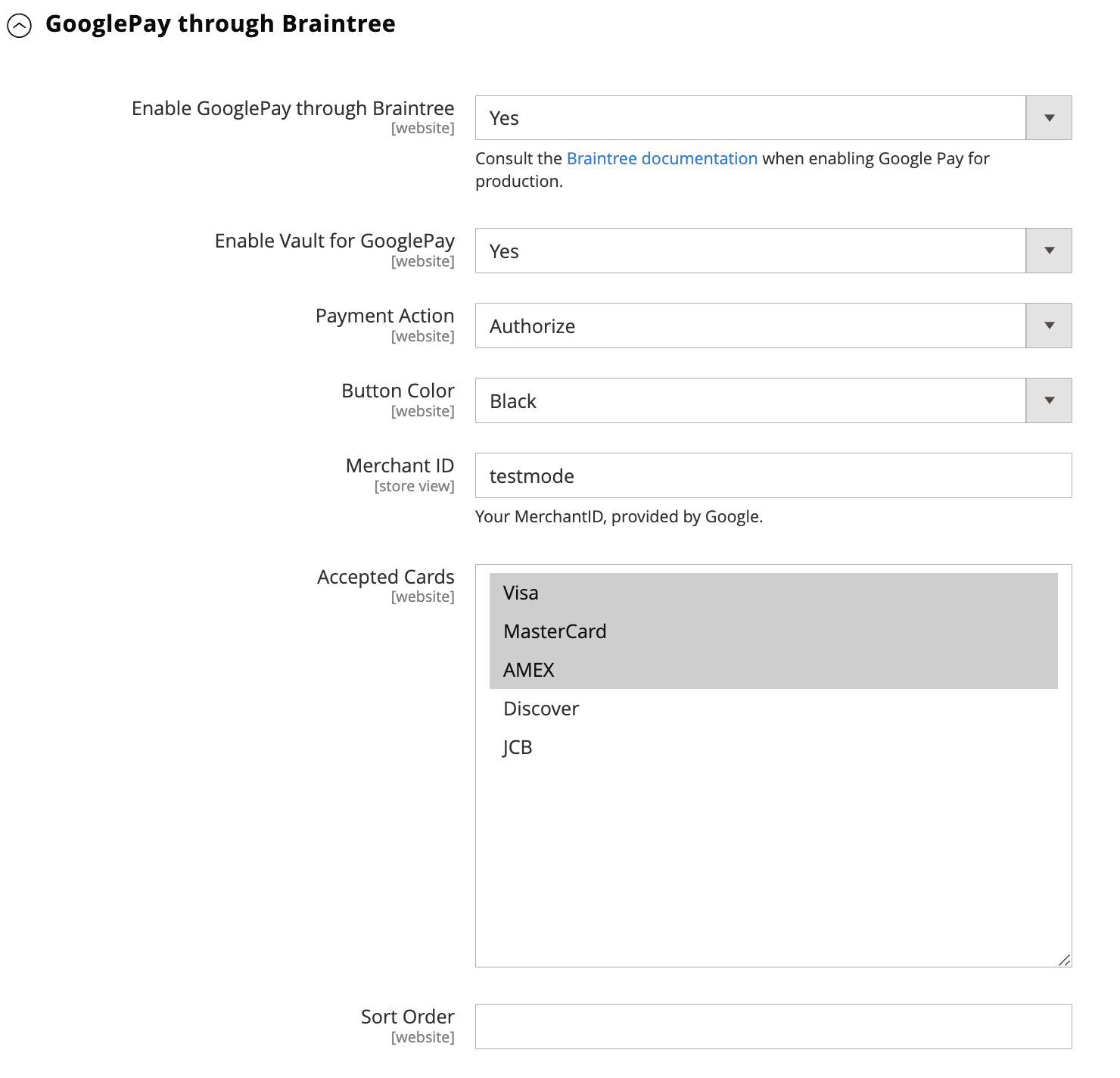

GooglePay through Braintree

GooglePay through Braintree

Field Scope Description
Enabled GooglePay through Braintree Website Determines if Google Pay payment is included as a payment method through Braintree. Options: Yes / No
Payment Action Website Determines the action taken by Braintree when a payment is processed. Options:
Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.
Intent Sale - Funds on the customer’s card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. Note: This was Authorize and Capture in 2.3.x and earlier releases.
Button Color Website Determines the color of the Google Pay button. Options: White / Black
Merchant ID Store View ID provided by Google must be entered here.
Accepted Cards Website Select the type of cards that a customer can use to place order using Google Pay.
Sort Order Website Determines the order that Google Pay is listed with other payment methods during checkout.

Venmo through Braintree

Venmo through Braintree

Field Scope Description
Enable Venmo through Braintree Website Determines if Venmo is included as a payment method through Braintree. Options: Yes / No
Payment Action Website Determines the action taken by Braintree when a payment is processed. Options:
Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.
Intent Sale - Funds on the customer’s card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. Note: This was Authorize and Capture in 2.3.x and earlier releases.
Sort Order Website Determines the order that Venmo is listed with other payment methods during checkout.

PayPal through Braintree

PayPal through Braintree
Field Scope Description
Enable PayPal through Braintree Website Determines if PayPal is included as a payment method through Braintree. Options: Yes / No
Enable PayPal Credit through Braintree Website Determines if PayPal Credit is included as a payment method through Braintree. Options: Yes / No. This field gets visible when Enable PayPal through Braintree is set to Yes
Enable PayPal PayLater through Braintree Website Determines if PayPal PayLater is included as a payment method through Braintree. Options: Yes / No. This field gets visible when Enable PayPal through Braintree is set to Yes
Title Store View The label that identifies PayPal through Braintree to customers during checkout. Default value: PayPal
Vault Enabled Website When enabled, provides secure storage for customer payment information, so customers don’t have to re enter their PayPal information for each purchase. Options: Yes / No
Sort Order Website A number that determines the order in which PayPal through Braintree is listed with other payment methods during checkout.
Override Merchant Name Store View An alternate name that can be used to identify the merchant for each store view.
Payment Action Website Determines the action taken by PayPal through Braintree when a payment is processed. Options:
Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.
Authorize and Capture - Funds on the customer’s card are authorized and captured by PayPal through Braintree, and an order and invoice are created in your store Admin.
Payment from Applicable Countries Website Determines if you accept payments processed by PayPal through Braintree from all countries, or only specific countries. Options: All Allowed Countries / Specific Countries
Payment from Specific Countries Website If applicable, identifies the specific countries from which you accept payments processed by Braintree.
Require Customer’s Billing Address Website Determines if the customer’s billing address is required to submit an order. Options: Yes / No
Debug Website Determines if communications between the PayPal through Braintree system and your store are recorded in a log file. Options: Yes / No
Display on Shopping Cart Website Determines if the PayPal button appears in the mini cart and on the shopping cart page. Options: Yes / No

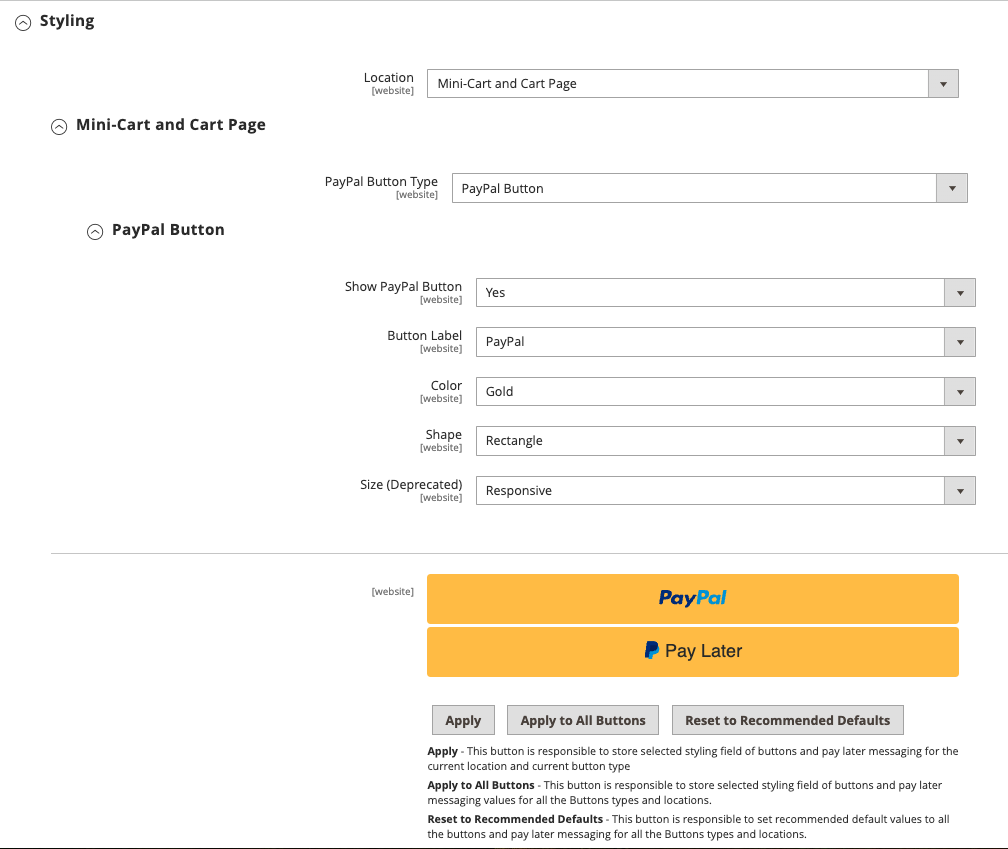

Styling

PayPal Styling

Field Scope Description
Location Website Determines where PayPal buttons and messages are rendered on the storefront. Options: Mini-Cart and Cart Page / Checkout Page / Product Page

Mini-Cart and Cart Page

The option and settings in this section vary according to the setting in the Location field.

Field Scope Description
PayPal Button Type Website Sets the button to one of three types: PayPal Button / PayPal Pay Later Button / PayPal Credit Button

PayPal Button

The options and settings in this section vary according to the button type selected in the PayPal Button Type field.

Field Scope Description
Show PayPal Button Website Determines the location of the PayPal button on the selected location. Options: Yes / No
Button Label Website Determines the label for the PayPal button. Options: Paypal / Checkout / Buy Now / Pay
Color Website Determines the color of the PayPal button. Options: Blue / Black / Gold / Silver
Shape Website Determines the shape of the PayPal button. Options: Pill / Rectangle
Size Website Determines the size of the PayPal button. Options: Medium / Large / Responsive

PayLater Messaging

Field Scope Description
Show PayLater Messaging Website Enables PayLater messaging at the selected location. Options: Yes / No. When enabled, it displays PayLater messaging for available offers (restrictions apply).
Message Layout Website Determines the PayLater message layout. Options: Text / Flex
Logo Website Determines the logo type used for the PayPal button. Options: Inline / Primary / Alternative / None
Logo Position Website Determines the logo position for the PayPal button. Options: Left / Right / Top
Text Color Website Determines the text color of the PayPal button. Options: Black / White / Monochrome / Grayscale

When these options are set, you can see the preview of the PayPal buttons and PayLater messages. There are controls that you can use to apply the settings or reset the values:

Field Scope Description
Apply Website Stores the selected styling settings for buttons and PayLater messaging and applies them to the current location and current button type.
Apply to All Buttons Website Stores the selected styling settings for buttons and PayLater messaging values and applies them to all button types and locations.
Reset to Recommended Defaults Website Returns the styling settings to the recommended default values for buttons and PayLater messaging and applies them to all button types and locations.

3d Secure Verification Settings

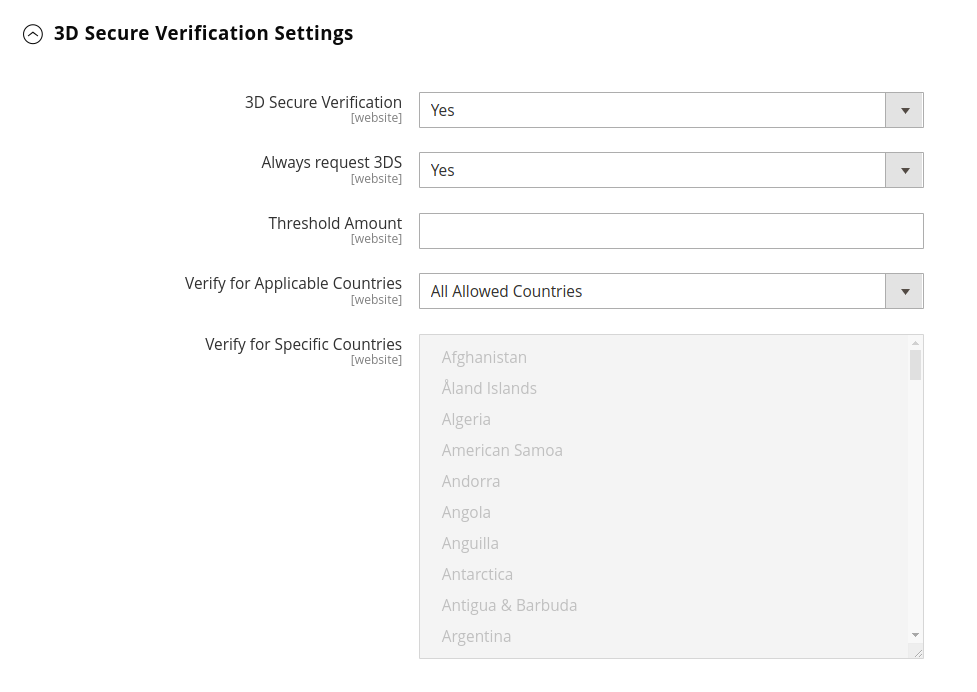

3D Secure Verification Settings

Field Scope Description
3D Secure Verification Website Determines if a transaction must pass an extra verification process when the customer is enrolled in a program such as Verified by VISA. Options: Yes / No
Always request 3DS Website Challenge the 3D Secure request always for all the transactions. Options: Yes / No
Threshold Amount Website Determines the maximum order amount that is authorized for processing on a single order. Braintree declines authorization if the order amount exceeds this threshold amount.
Verify for Applicable Countries Website Determines the countries where payment must be verified. Options: All Allowed Countries / Specific Countries
Verify for Specific Countries Website If applicable, identifies the specific countries from which payment by Braintree must be verified.

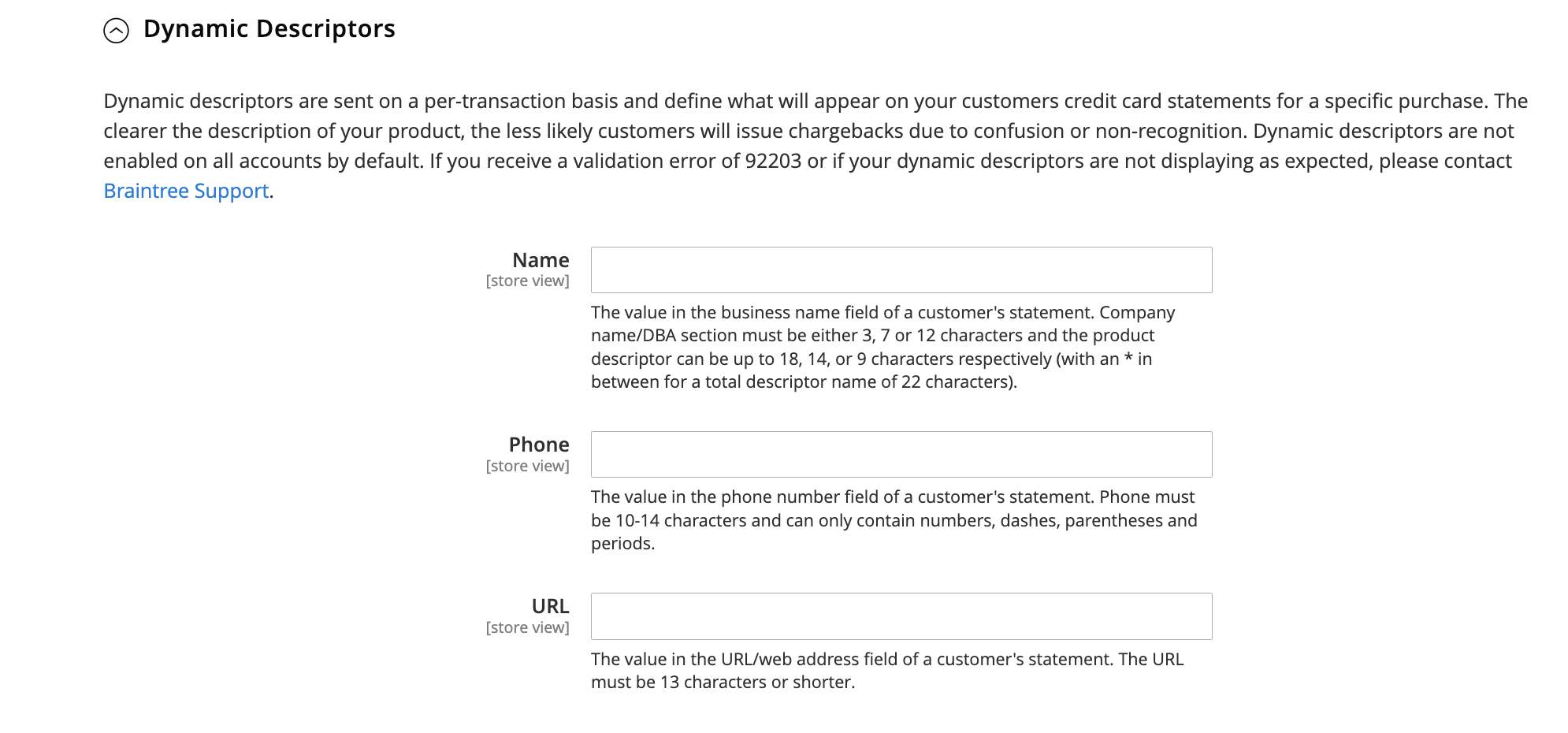

Dynamic Descriptors

Dynamic Descriptors

Field Scope Description
Name Store View There are two parts to the Name descriptor, which are separated by an asterisk (*). The first part of the descriptor identifies the company or DBA and the second part identifies the product. For example: company*myproduct

The length of the Company and Product parts of the descriptor can be allocated in the following ways, for a combined length of up to 22 characters:
Option 1 - Company must be three characters / Product can be up to 18 characters
Option 2 - Company must be seven characters / Product can be up to 14 characters
Option 3 - Company must be 12 characters / Product can be up to nine characters
Phone Store View The Phone descriptor must be ten to 14 characters in length, and can include only numbers, dashes, parentheses, and periods. For example: 9999999999 (999) 999-9999 999.999.9999
URL Store View The URL descriptor represents your domain name, and can be up to 13 characters long. For example: company.com
