从Adobe Campaign登陆页面更新Adobe Experience Platform配置文件

上次更新: 2023-10-30
  • 创建对象:
  • Beginner
    Developer

Adobe Campaign与Adobe Experience Platform之间的集成允许您在Adobe Campaign登陆页面与Adobe Experience Platform之间无缝同步数据。 通过此集成,您可以:

  • 检索Adobe Experience Platform配置文件属性,以在Adobe Campaign登陆页面中显示更新的信息。
  • 将更新的用户档案属性发送回Adobe Experience Platform,以根据登陆页面中已填写和提交的内容更新相应的属性。

设置此集成的主要步骤如下:

设置OAuth连接

创建HTTP API源连接

在Campaign中添加身份验证选项

在Campaign中添加代码JavaScript

配置登陆页面工作流

设置Oauth连接

Adobe Cloud Platform API使用OAuth 2.0协议进行身份验证和授权。 要使用API调用将Adobe Experience Platform连接到Adobe Campaign,您需要使用在Adobe Developer控制台中创建的OAuth集成生成访问令牌。

为此,请执行以下步骤:

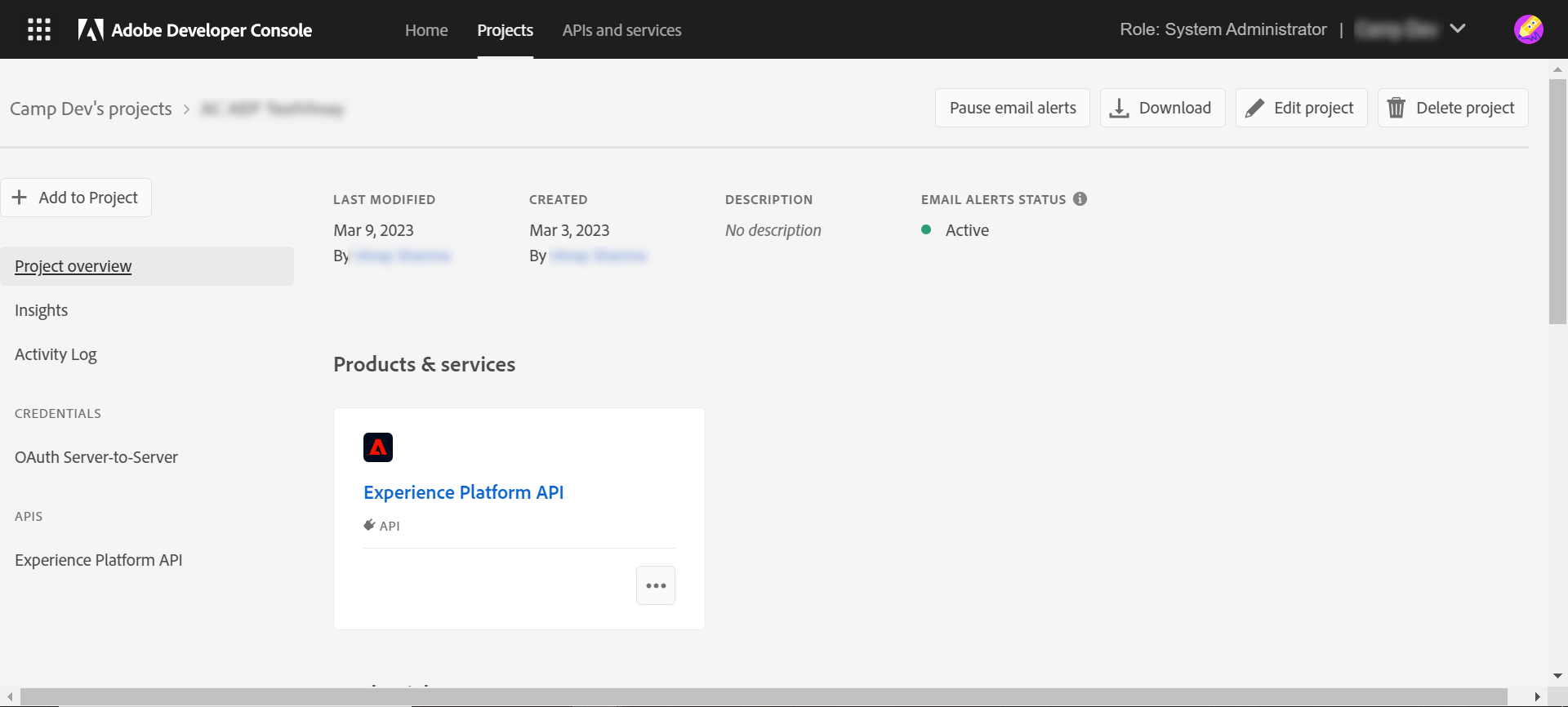

  1. 访问Adobe Developer Console。

  2. 使用Adobe Experience Platform API产品创建新的API连接。 有关如何获取OAuth 2.0访问令牌的详细步骤,请参阅 Adobe Developer控制台文档.

  3. 创建连接后,导航至 OAuth Server-to-Server 菜单并复制以下详细信息,这些是Campaign进行身份验证所必需的:

    • 客户端ID
    • 客户端密码
    • 组织ID

现在您的Oauth连接已配置,请创建和配置新的 HTTP API 将Adobe Campaign与Adobe Experience Platform关联的源连接。

创建HTTP API源连接

建立OAuth连接后,下一步是创建 HTTP API Adobe Experience Platform中的源连接。 利用此连接,可使用API将数据流式传输到Adobe Experience Platform。 执行以下步骤:

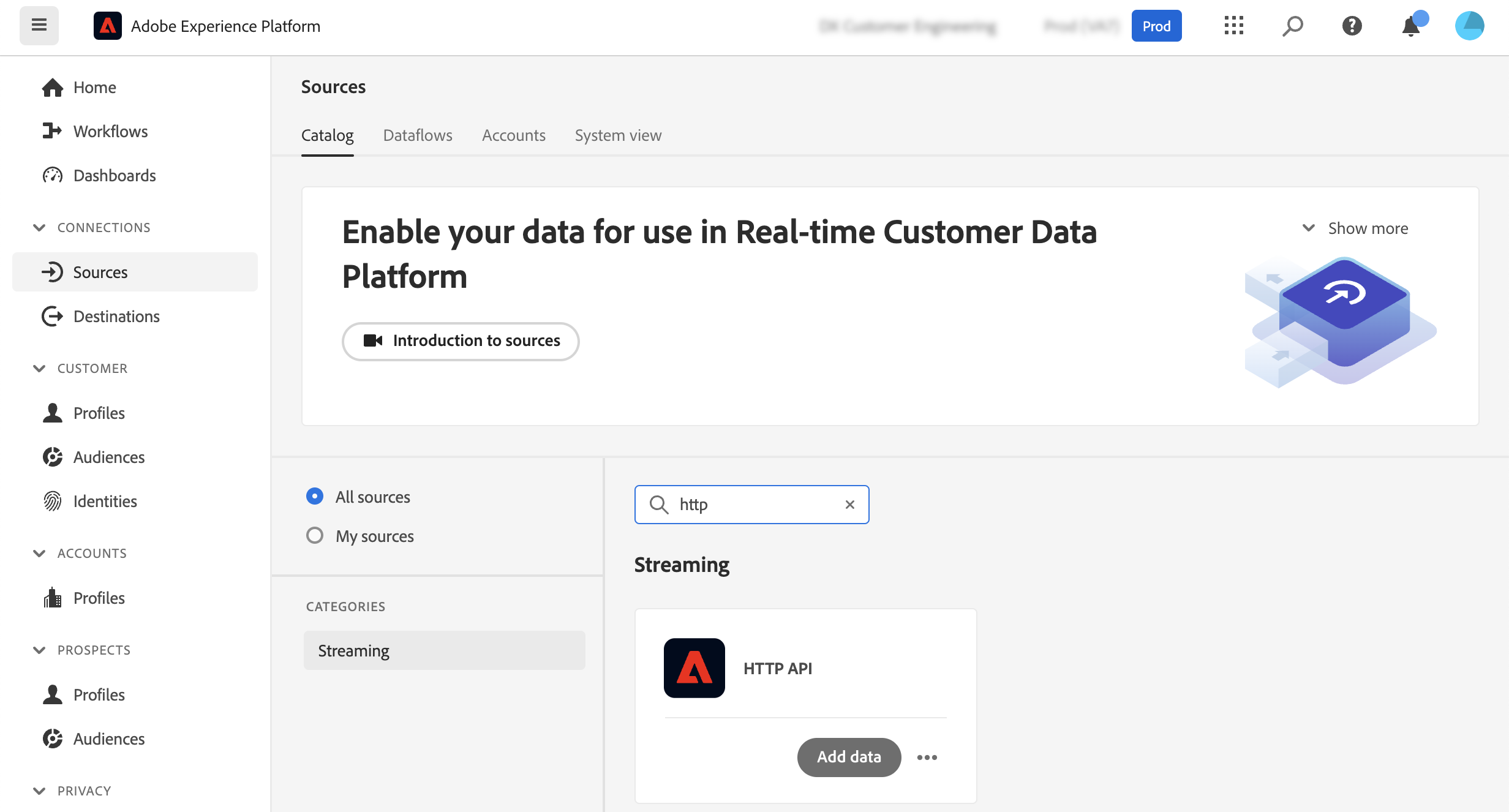

  1. 导航到Adobe Experience Platform Sources,搜索 HTTP API 源,然后单击 Add data.

  2. 根据需要配置连接。 有关如何配置HTTP API连接的详细信息,请参阅 Adobe Experience Platform源文档.

    Authentication 步骤,打开 Enable authentication 使用通过OAuth集成生成的访问令牌进行身份验证的选项。

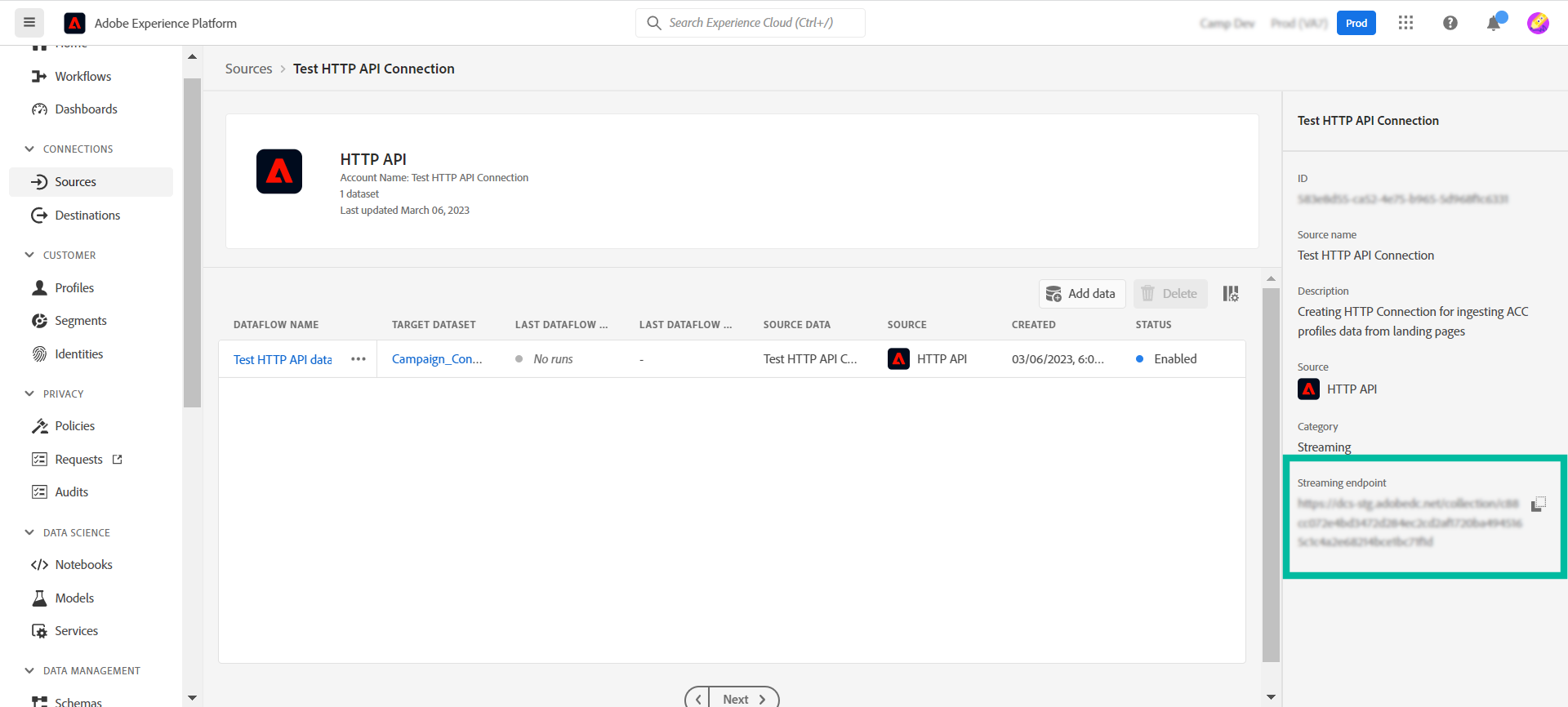

  3. 配置源连接后,将显示流端点。 需要此端点才能将数据摄取到Adobe Experience Platform。

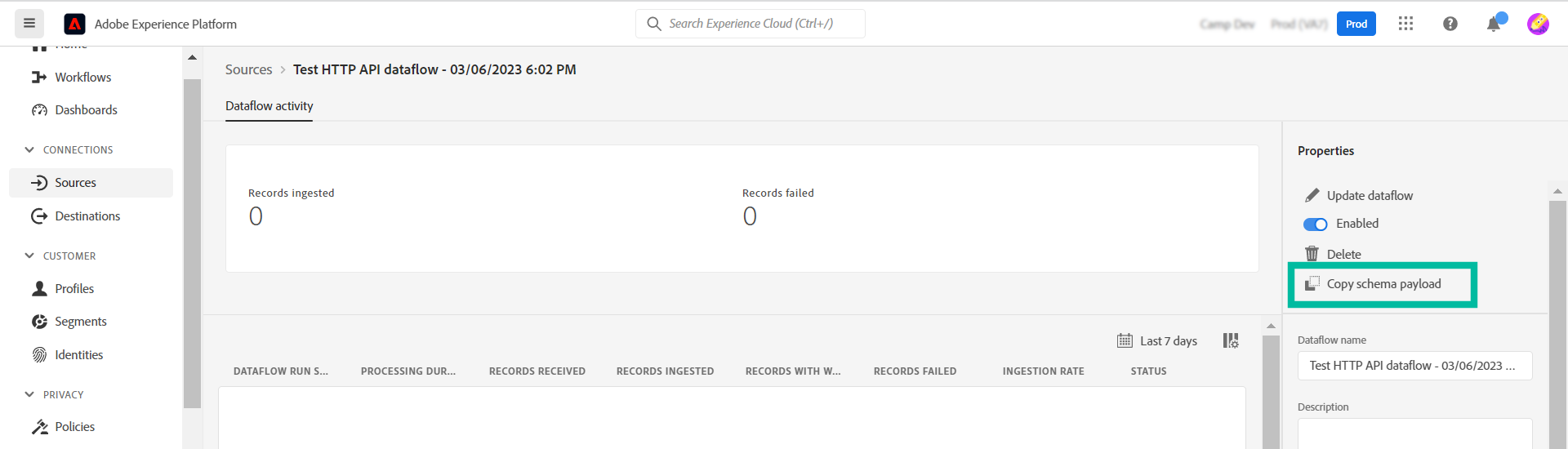

    您还可以通过从打开新创建的数据流来访问Adobe Experience Platform中引入的数据格式示例。 Dataflows 选项卡。

现在已设置HTTP API源连接,您需要在Adobe Campaign中添加特定选项以启用与Adobe Experience Platform的连接。

在Adobe Campaign中添加身份验证选项

配置HTTP API源连接后,您需要在Adobe Campaign中添加特定选项以启用与Adobe Experience Platform的连接。 这可以在Campaign“管理”菜单中或在通过添加特定的 JavaScript code 活动。

浏览下面的选项卡以发现这两种方法:

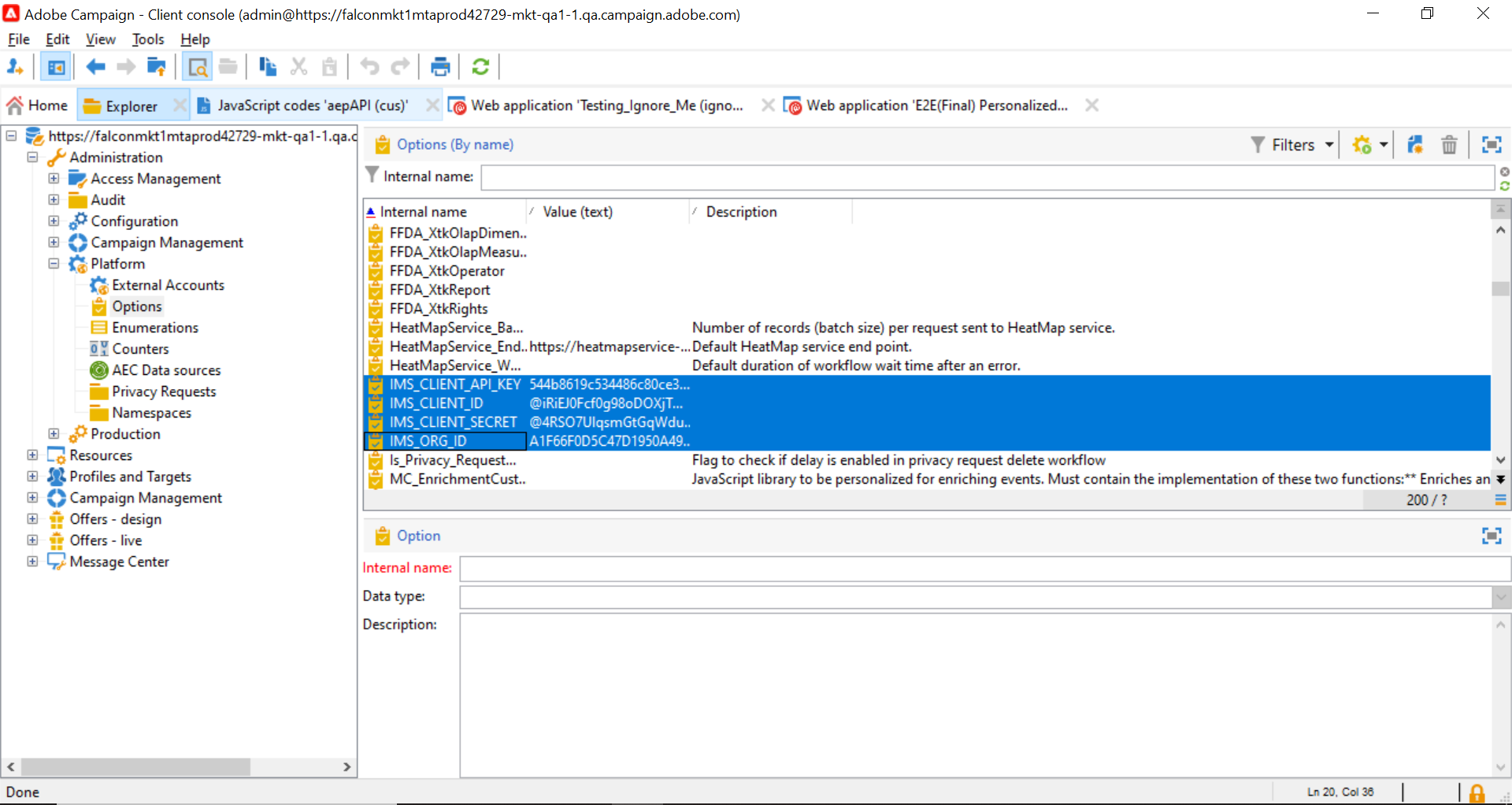

  1. 导航至 Administration > Platform > Options 菜单。

  2. 从Adobe Developer控制台添加以下选项以及相应的值:

    • IMS_CLIENT_ID = cryptString(客户端ID)
    • IMS_CLIENT_SECRET = cryptString(客户端密钥)
    • IMS_ORG_ID =组织ID
    • IMS_CLIENT_API_KEY = cryptString(客户端ID)
    注意

    cryptString()函数用于加密您的身份验证数据。

要在执行登陆页面工作流时自动配置这些选项,请添加 JavaScript code 使用下面的代码访问您的工作流。 了解如何配置JavaScript代码活动.

在执行工作流时,系统会自动在Campaign控制台中使用提供的值创建选项。

```
loadLibrary("xtk:shared/nl.js");
loadLibrary("xtk:shared/xtk.js");
loadLibrary("xtk:shared/json2.js");
loadLibrary("xtk:common.js");

函数setAuthCredentials()
{
setOption("IMS_CLIENT_ID", cryptString('CLIENT ID'));
setOption("IMS_CLIENT_SECRET", cryptString('CLIENT SECRET'));
setOption("IMS_ORG_ID", cryptString('ORGANIZATION ID'));
setOption("IMS_CLIENT_API_KEY", cryptString('CLIENT ID'));
}
```

现在,Campaign中已配置身份验证选项,您需要创建自定义JavaScript代码,以允许从登陆页面在Campaign和Adobe Experience Platform之间同步数据。

在工作流执行时添加选项

要允许在登陆页面与Adobe Experience Platform之间同步数据,必须将自定义JavaScript代码添加到Adobe Campaign中。 执行以下步骤:

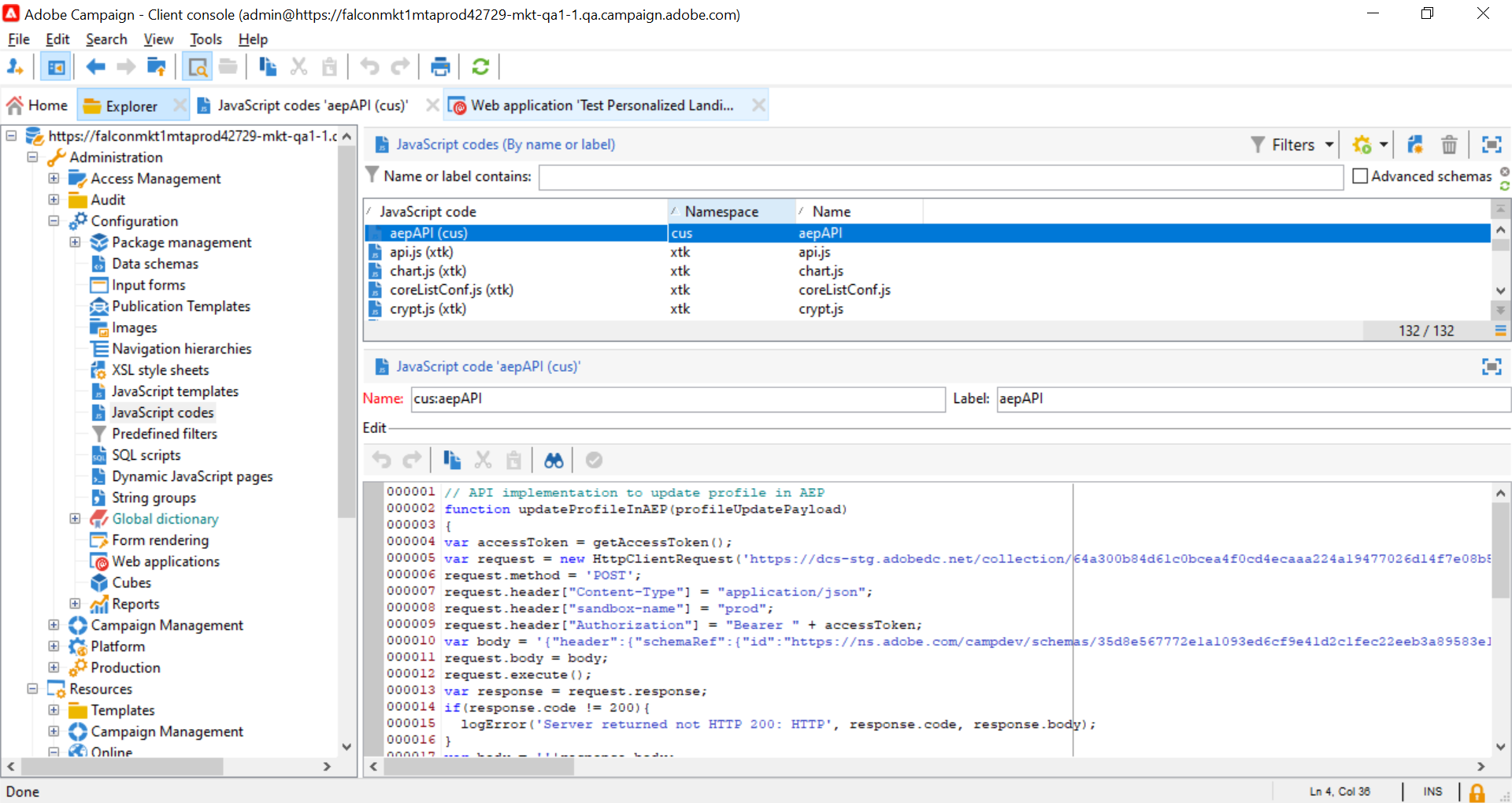

  1. 导航至 Administration > Configuration > JavaScript codes 菜单。

  2. 创建新的JavaScript代码并复制并粘贴以下代码片段。

    注意

    访问令牌和身份验证数据会从之前设置的选项中自动检索。

 脚本1 — 从Experience Platform加载配置文件属性

此代码在加载登陆页面之前检查配置文件是否存在于Adobe Experience Platform中。 它会检索用户档案属性,并将其显示在登陆页面的相应字段中。

// API implementation to read profile from AEP
function getProfileInfo(email)
{
var accessToken = getAccessToken();
var request = new HttpClientRequest(('https://platform-stage.adobe.io/data/core/ups/access/entities?schema.name=_xdm.context.profile&entityId=' + email + '&entityIdNS=email&fields=identities,consents.marketing'));
request.method = 'GET';
request.header["Content-Type"] = "application/json";
request.header["sandbox-name"] = "prod";
request.header["x-gw-ims-org-id"] = getOption('IMS_ORG_ID');
request.header["x-api-key"] = getOption('IMS_CLIENT_API_KEY');
request.header["Authorization"] = "Bearer " + accessToken;
request.execute();
return request.response;
}
 脚本2 — 更新Experience Platform配置文件属性

此代码会使用登陆页面中提交的值更新Adobe Experience Platform中的配置文件属性。

// API implementation to update profile in AEP
loadLibrary("xtk:shared/nl.js");
loadLibrary("xtk:shared/xtk.js");
loadLibrary("xtk:shared/json2.js");
loadLibrary("xtk:common.js");

function updateProfileInAEP(profileUpdatePayload)
{
var accessToken = getAccessToken();
var request = new HttpClientRequest('https://dcs-stg.adobedc.net/collection/64a300b84d61c0bcea4f0cd4ecaaa224a19477026d14f7e08b5408ffaf5e6162?syncValidation=false');
request.method = 'POST';
request.header["Content-Type"] = "application/json";
request.header["sandbox-name"] = "prod";
request.header["Authorization"] = "Bearer " + accessToken;
var body = '{"header":{"schemaRef":{"id":"https://ns.adobe.com/campdev/schemas/35d8e567772e1a1093ed6cf9e41d2c1fec22eeb3a89583e1","contentType":"application/vnd.adobe.xed-full+json;version=1.0"},"imsOrgId":"A1F66F0D5C47D1950A494133@AdobeOrg","datasetId":"63c7fa2a20cce11b98cccb41","source":{"name":"testHTTPSourcesVinay - 03/06/2023 5:43 PM"}},"body":{"xdmMeta":{"schemaRef":{"id":"https://ns.adobe.com/campdev/schemas/35d8e567772e1a1093ed6cf9e41d2c1fec22eeb3a89583e1","contentType":"application/vnd.adobe.xed-full+json;version=1.0"}},"xdmEntity":' + profileUpdatePayload +'}}';
request.body = body;
request.execute();
return request.response;
}


// Get Access token from OAuth-Server-to-server API call
function getAccessToken() {
var clientId = decryptString(getOption('IMS_CLIENT_ID'));
var clientSecret = decryptString(getOption('IMS_CLIENT_SECRET'));
var request = new HttpClientRequest(('https://ims-na1-stg1.adobelogin.com/ims/token/v2?grant_type=client_credentials' + '&client_id=' + clientId + '&client_secret=' + clientSecret + '&scope=openid,session,AdobeID,read_organizations,additional_info.projectedProductContext'));
request.method = 'POST';
request.execute();
var response = request.response;
if(response.code != 200){
logError('GetAccessToken failed,', response.code, response.body);
return;
}
var body = ''+response.body;
var parsedResponse = JSON.parse(body);
var accessToken = parsedResponse.access_token;
logInfo("Access token generated successfully");
return accessToken;
}

现在,已在Adobe Campaign中创建自定义JavaScript代码,您可以配置包含登陆页面的工作流,以使用这些JavaScript代码进行数据同步。

配置登陆页面工作流

通过将JavaScript代码添加到Adobe Campaign,您可以使用将它们用于登陆页面工作流 JavaScript code 活动:

  • 要在加载登陆页面之前从Experience Platform加载数据,请添加 JavaScript code 活动,并复制、粘贴脚本1。
 脚本1 — 从Experience Platform加载配置文件属性
// Script code to read profile from AEP.

logInfo("Loading profile from AEP");
loadLibrary("cus:aepAPI");
var recipient=ctx.recipient;
var email = recipient.@email;
var response = getProfileInfo(email);
ctx.isAEPProfileExists = 1;

if(response.code == 404){
ctx.isAEPProfileExists = 0
logInfo("Profile with email" + email + " not found in AEP, ignoring the update activity");
}
else if(response.code == 200){
var body = ''+response.body;
var parsedResponse = JSON.parse(body);
for (var key in parsedResponse) {
    var value =  parsedResponse[key];
    var marketing = value.entity.consents.marketing;
    logInfo("User Consent Details : " + JSON.stringify(marketing));
    if(marketing.hasOwnProperty('email')&&marketing.email.hasOwnProperty('val')&&marketing.email.val=='n'){
    ctx.recipient.@blackListEmail = 1;
    }
    if(marketing.hasOwnProperty('sms')&&marketing.sms.hasOwnProperty('val')&&marketing.sms.val=='n'){
    ctx.recipient.@blackListMobile = 1;
    }
    if(marketing.hasOwnProperty('push')&&marketing.push.hasOwnProperty('val')&&marketing.push.val=='n'){
    ctx.recipient.@blackListPostalMail = 1;
    }
}
}
  • 要使用在登陆页中提交的数据更新Experience Platform配置文件属性,请添加 JavaScript code 活动,并复制粘贴脚本2。

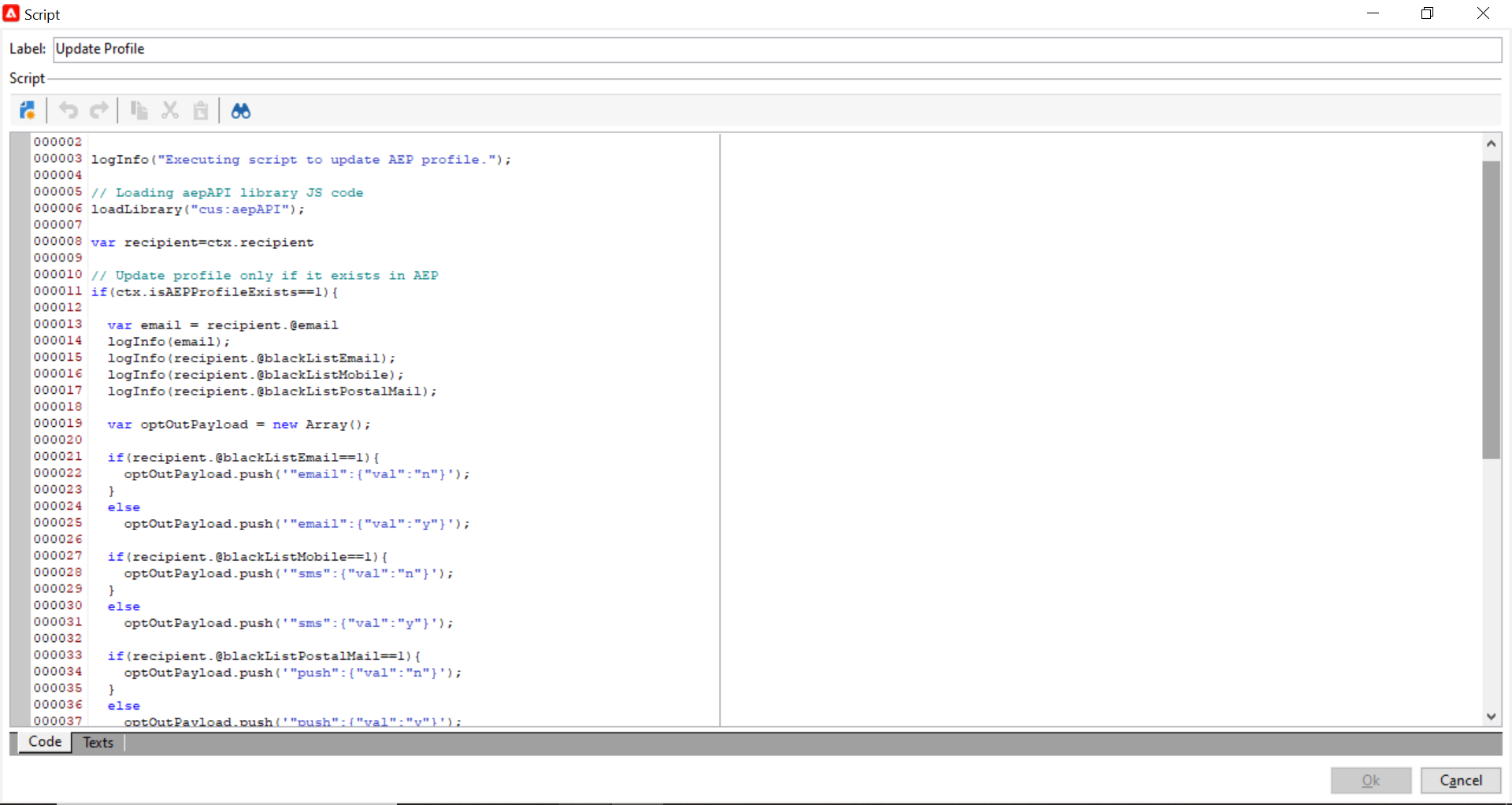

 脚本2 — 更新Experience Platform配置文件属性
// Script code to update profile in AEP and ACC.

logInfo("Executing script to update AEP profile.");

// Loading aepAPI library JS code
loadLibrary("cus:aepAPI");

var recipient=ctx.recipient

// Update profile only if it exists in AEP
if(ctx.isAEPProfileExists==1){

var email = recipient.@email
logInfo(email);
logInfo(recipient.@blackListEmail);
logInfo(recipient.@blackListMobile);
logInfo(recipient.@blackListPostalMail);

var optOutPayload = new Array();

if(recipient.@blackListEmail==1){
    optOutPayload.push('"email":{"val":"n"}');
}
else
    optOutPayload.push('"email":{"val":"y"}');

if(recipient.@blackListMobile==1){
    optOutPayload.push('"sms":{"val":"n"}');
}
else
    optOutPayload.push('"sms":{"val":"y"}');

if(recipient.@blackListPostalMail==1){
    optOutPayload.push('"push":{"val":"n"}');
}
else
    optOutPayload.push('"push":{"val":"y"}');

var profileUpdatePayload = '{'+ '"personalEmail":{"address":' + '\"' + email + '\"' + '},' +'"consents":{"marketing":{' + optOutPayload.toString() + '}}}';

var response = updateProfileInAEP(profileUpdatePayload);
if(response.code == 200){
var body = '' + response.body;
logInfo("AEP Profile Updated successfully, Response " + body);
// Update ACC profile
recipient.@xtkschema = "nms:recipient";
recipient.@_operation = "update";
recipient.@_key="@id";
xtk.session.Write(recipient);
logInfo("ACC Profile Updated successfully");
}
else{
    logError('Server Error: ', response.code, response.body);
}
}
else {
logInfo("Ignoring AEP profile update as profile doesn't exists.");

// Update ACC profile
recipient.@xtkschema = "nms:recipient";
recipient.@_operation = "update";
recipient.@_key="@id";
xtk.session.Write(recipient);
logInfo("ACC Profile Updated successfully");
}
注意

确保根据特定需求自定义每个脚本中的有效负载。

如果您在登陆页面活动之前未添加任何脚本,则不会在Adobe Experience Platform中执行任何配置文件存在性检查。 在提交登陆页面并且该配置文件不存在时,将使用登陆页面中的属性在Adobe Experience Platform中创建它。

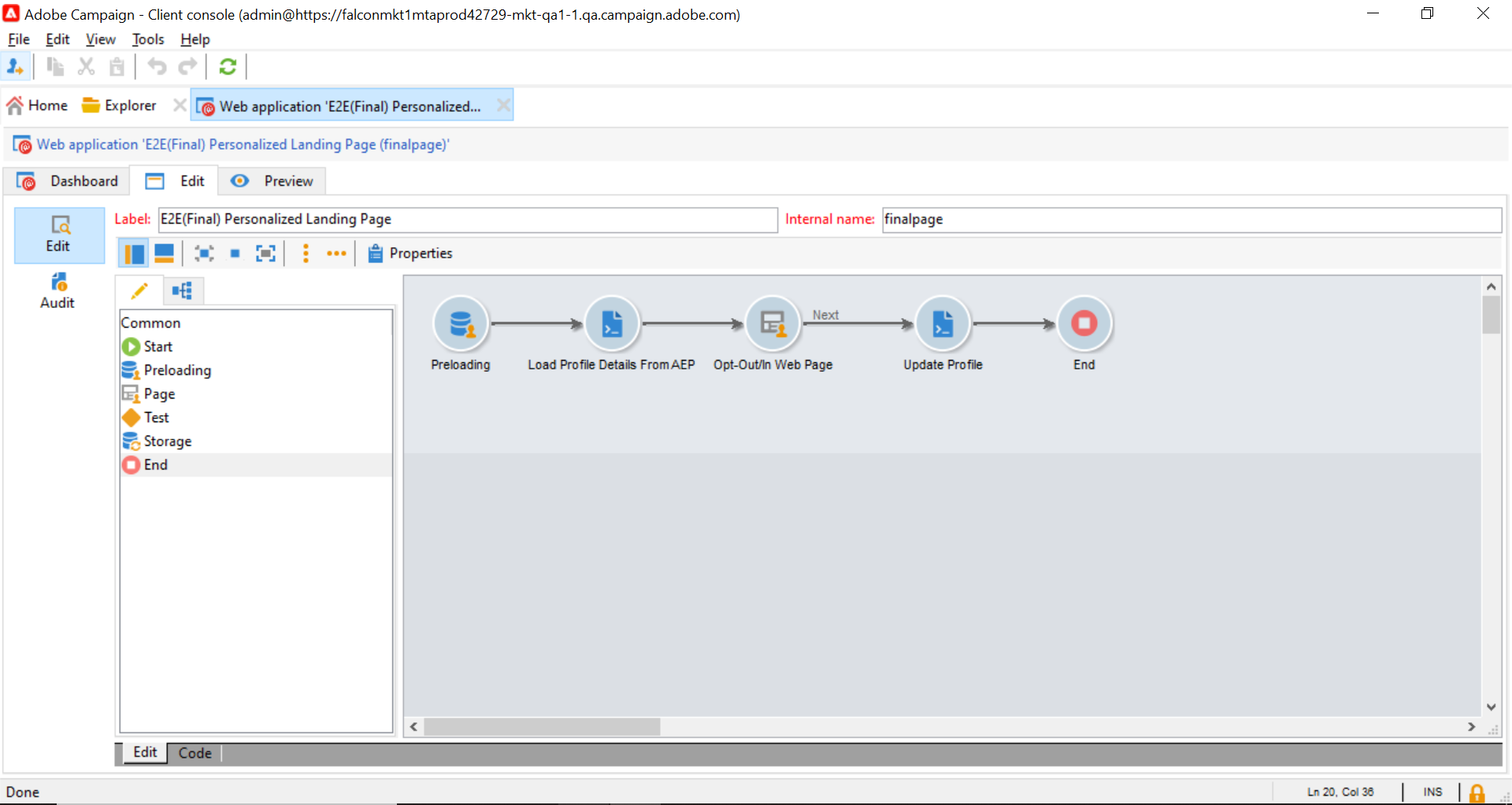

以下是登陆页面前后使用JavaScript代码活动的示例工作流:

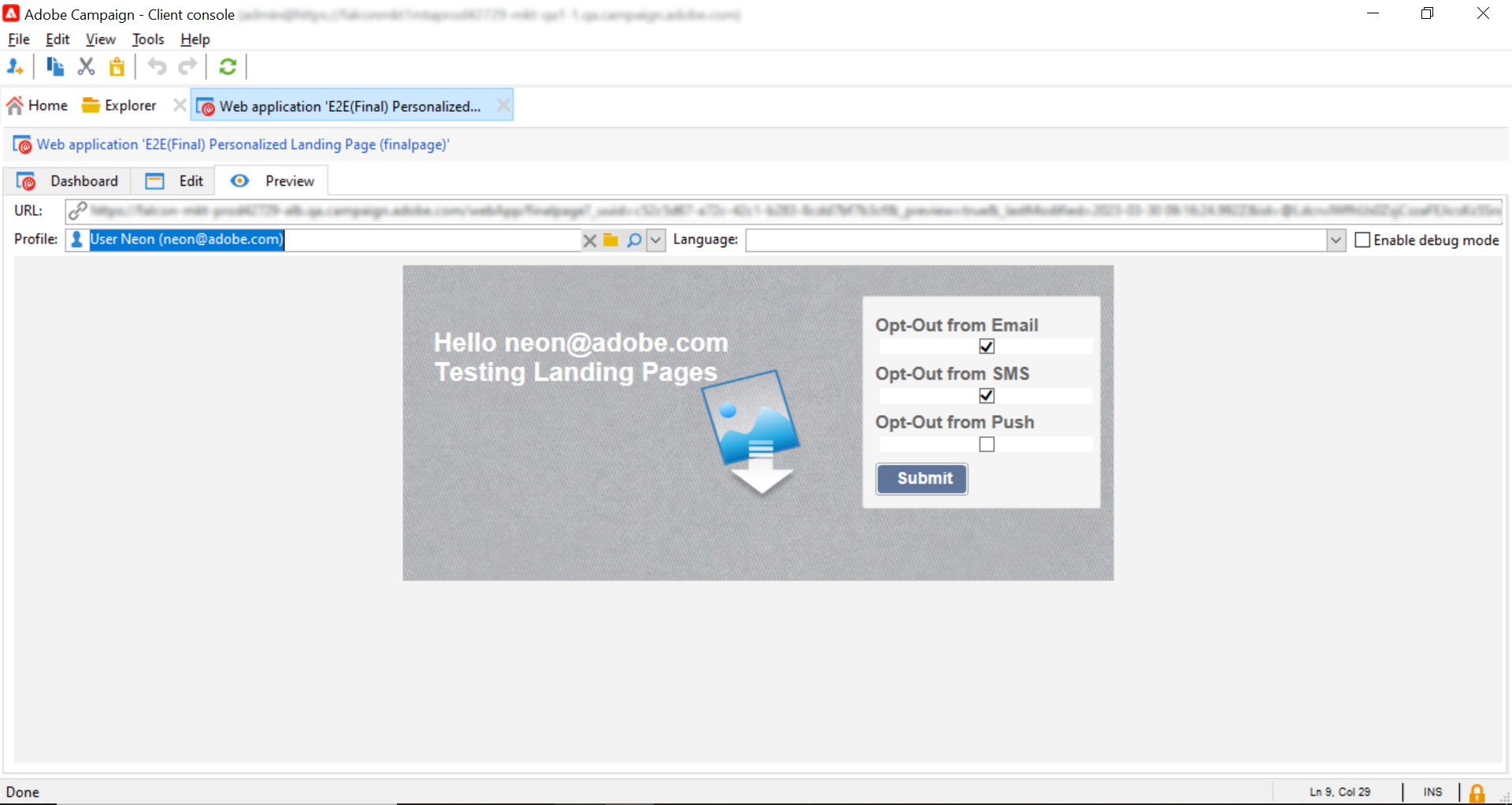

以下是配置为更新Adobe Experience Platform中的配置文件属性的登陆页面和JavaScript代码活动的示例:
