实施推送跟踪

关于推送跟踪

要确保已完全开发推送通知,您需要确保正确实施跟踪部分,因为并非每个推送通知都已启用跟踪。 要启用此功能,开发人员需要确定哪些投放已启用跟踪功能,Adobe Campaign Standard将发送一个名为_acsDeliveryTracking的标志,该标志具有两个值​​或​​上。 应用程序开发人员应仅对变量设置为​on​的投放发送跟踪请求。

重要

此变量不适用于在21.1版本之前设置的投放或使用自定义模板的投放。

推送跟踪分为三种类型:

  • 推送印象 — 推送通知已发送到设备且位于通知中心但完全未触及时。这被视为一种印象。 在大多数情况下,展示次数数应类似,如果与已交付数不相同。 它确保设备收到消息并将该信息转发回服务器。

  • 推送单击 — 当推送通知已发送到设备且用户已单击设备时。用户要么希望视图通知(随后将移至“推送打开”跟踪),要么取消通知。

  • 推送打开 — 当推送通知已发送到设备且用户单击了导致应用程序打开的通知时。这与“推送单击”类似,但如果通知被关闭,则不会触发“推送打开”。

要实施Campaign Standard跟踪,移动应用程序需要包含Mobile SDK。 这些SDK可在Adobe Mobile Services上找到。 有关详细信息,请参见此 页面

要发送跟踪信息,有三个变量需要发送。 两个是从Campaign Standard接收的数据的一部分,一个操作变量指示它是​印象单击​还是​打开

变量
broadlogId 来自数据的_mId
deliveryId 来自数据的_dId
行动 1表示打开,2表示单击,7表示印象

Android的实现

如何实现推送印象跟踪

要进行印象跟踪,在调用​trackAction()​函数时,必须发送值“7”以执行操作。

对于在21.1版本之前创建的投放或具有自定义模板的投放,请参阅此部分

@Override
public void onMessageReceived(RemoteMessage remoteMessage) {
....{Handle push messages}....
  if (data.size() > 0) {
    String deliveryId = data.get("_dId");
    String messageId = data.get("_mId");
    String acsDeliveryTracking = data.get("_acsDeliveryTracking");

    /*
    This is to handle deliveries created before 21.1 release or deliveries with custom template
    where acsDeliveryTracking is not available.
    */
    if( acsDeliveryTracking == null ) {
        acsDeliveryTracking = "on";
    }

    HashMap<String, String> contextData = new HashMap<>();
    if (deliveryId != null && messageId != null && acsDeliveryTracking.equals("on")) {
                contextData.put("deliveryId", deliveryId);
                contextData.put("broadlogId", messageId);
                contextData.put("action", "7");
                MobileCore.trackAction("tracking", contextData);
    }
  }
}

如何实现单击跟踪

要进行点击跟踪,您必须在调用​trackAction()​函数时发送值“2”以执行操作。

要跟踪单击,需要处理两种情况:

  • 用户可以看到通知,但会清除通知。
  • 用户看到通知并单击它,将其转换为开放跟踪。

要处理此问题,您需要使用两个方法:一个用于单击通知,另一个用于关闭通知。

对于在21.1版本之前创建的投放或具有自定义模板的投放,请参阅此部分

MyFirebaseMessagingService.java

private void sendNotification(Map<String, String> data) {
    Intent openIntent = new Intent(this, CollectPIIActivity.class);
    Intent dismissIntent = new Intent(this, NotificationDismissedReceiver.class);
    openIntent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);

    //put the data map into the intent to track clickthroughs
    Bundle pushData = new Bundle();
    Set<String> keySet = data.keySet();
    for (String key : keySet) {
        pushData.putString(key, data.get(key));
    }
    openIntent.putExtras(pushData);
    dissmissIntent.putExtras(pushData);


    PendingIntent pendingIntent = PendingIntent.getActivity(this, 0, openIntent,
        PendingIntent.FLAG_UPDATE_CURRENT);
    PendingIntent onDismissPendingIntent = PendingIntent.getBroadcast(this.getApplicationContext(), 0, dismissIntent, 0);

    //<BUILD NOTIFICATION using notification builder>
    //Add both Intents to the notification
    notificationBuilder.setContentIntent(pendingIntent);
    notificationBuilder.setDeleteIntent(onDismissPendingIntent);
}

要使​BroadcastReceiver​正常工作,您需要将其注册到​AndroidManifest.xml

<manifest>
    <application>
        <receiver android:name=".NotificationDismissedReceiver">
        </receiver>
    </application>
</manifest>

NotificationDismessedReceiver.java

public class NotificationDismissedReceiver extends BroadcastReceiver {
    private static final String TAG = NotificationDismissedReceiver.class.getSimpleName();
    @Override
    public void onReceive(Context context, Intent intent) {
        Bundle data = intent.getExtras();
        String deliveryId = data.getString("_dId");
        String messageId = data.getString("_mId");
        String acsDeliveryTracking = data.get("_acsDeliveryTracking");

        /*
        This is to handle deliveries created before 21.1 release or deliveries with custom template
        where acsDeliveryTracking is not available.
        */
        if( acsDeliveryTracking == null ) {
            acsDeliveryTracking = "on";
        }

        HashMap<String, Object> contextData = new HashMap<>();

        //We only send the click tracking since the user dismissed the notification
        if (deliveryId != null && messageId != null && acsDeliveryTracking.equals("on")) {
            contextData.put("deliveryId", deliveryId);
            contextData.put("broadlogId", messageId);
            contextData.put("action", "2");
            MobileCore.trackAction("tracking", contextData);
        }
    }
}

如何实现开放跟踪

您将需要发送“1”和“2”,因为用户必须单击通知才能打开应用程序。 如果应用程序未通过推送通知启动/打开,则不会发生跟踪事件。

要跟踪打开,您需要创建“用途”。 目的对象允许Android OS在完成某些操作时调用您的方法。 在这种情况下,请单击通知以打开应用程序。

此代码基于实现点击印象跟踪。 设置​Intent​后,您现在需要将跟踪信息发送回Adobe Campaign Standard。 在这种情况下,您需要将​Open Intent​设置为在应用程序中打开到某个视图,这将使用​Intent Object​中的通知数据调用onResume方法。

对于在21.1版本之前创建的投放或具有自定义模板的投放,请参阅此部分

@Override
protected void onResume() {
    super.onResume();
    handleTracking();
}


private void handleTracking() {
    //Check to see if this view was opened based on a notification
    Intent intent = getIntent();
    Bundle data = intent.getExtras();

    if (data != null) {
        //This was opened based on the notification, you need to get the tracking that was passed on.
        String deliveryId = data.getString("_dId");
        String messageId = data.getString("_mId");
        String acsDeliveryTracking = data.get("_acsDeliveryTracking");
        /*
        This is to handle deliveries created before 21.1 release or deliveries with custom template
        where acsDeliveryTracking is not available.
        */
        if( acsDeliveryTracking == null) {
            acsDeliveryTracking = "on";
        }

        HashMap<String, String> contextData = new HashMap<>();

        if (deliveryId != null && messageId != null && acsDeliveryTracking.equals("on")) {
            contextData.put("deliveryId", deliveryId);
            contextData.put("broadlogId", messageId);

            //Send Click Tracking since the user did click on the notification
            contextData.put("action", "2");
            MobileCore.trackAction("tracking", contextData);

            //Send Open Tracking since the user opened the app
            contextData.put("action", "1");
            MobileCore.trackAction("tracking", contextData);
        }
    }
}

iOS的实现

如何实现推送印象跟踪

要进行印象跟踪,在调用​trackAction()​函数时,必须发送值“7”以执行操作。

要了解iOS通知的工作方式,需要详细说明应用程序的三个状态:

  • 前景:当应用程序当前处于活动状态且当前处于屏幕上时(在前景中)。
  • 背景:当is应用程序未在屏幕上但进程未关闭时。当您多次单击“主页”按钮时,它通常会显示后台的所有应用程序。
  • 关闭/关闭:一个程序被杀的应用程序。

如果某个应用程序已关闭,Apple将在应用程序重新启动之前调用该应用程序。 这意味着您将无法了解在iOS上何时收到通知。

为了使​Impression​跟踪在应用程序处于后台时仍能正常工作,我们需要发送​Content-Available​以告知应用程序必须完成跟踪。

注意

iOS印象跟踪不准确,不应被视为可靠。

对于在21.1版本之前创建的投放或具有自定义模板的投放,请参阅此部分

以下代码目标后台应用程序:

// In didReceiveRemoteNotification event handler in AppDelegate.m

//In order to handle push notification when only in background with content-available: 1
func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable : Any], fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Void) {

        //Check if the app is not in the foreground right now
        if(UIApplication.shared.applicationState != .active) {
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
               ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"7"])
            }
        }
        completionHandler(UIBackgroundFetchResult.noData)
    }

以下代码目标前台应用程序:

// This will get called when the app is in the foreground

func userNotificationCenter(_ center: UNUserNotificationCenter, willPresent notification: UNNotification, withCompletionHandler completionHandler: @escaping (UNNotificationPresentationOptions) -> Void) {


        let userInfo = notification.request.content.userInfo
        let deliveryId = userInfo["_dId"] as? String
        let broadlogId = userInfo["_mId"] as? String
        let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
        /*
        This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
        */
        if( acsDeliveryTracking == nil ) {
            acsDeliveryTracking = "on";
        }
        if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
             ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"7"])
        }
        completionHandler([.alert,.sound])
    }

如何实现单击跟踪

要进行点击跟踪,您必须在调用​trackAction()​函数时发送值“2”以执行操作。
对于在21.1版本之前创建的投放或具有自定义模板的投放,请参阅此部分

// AppDelegate.swift
...
import os.log
import UserNotifications
...

func registerForPushNotifications() {
        let center = UNUserNotificationCenter.current()
        center.delegate = notificationDelegate
        //Here we are creating a new Category that allows us to handle Dismiss Actions
        let defaultCategory = UNNotificationCategory(identifier: "DEFAULT", actions: [], intentIdentifiers: [], options: .customDismissAction)
        //Add it to our array of Category, in this case we only have one
        center.setNotificationCategories([defaultCategory])
        center.requestAuthorization(options: [.alert, .sound, .badge]) {
            (granted, error) in
            os_log("Permission granted: %{public}@", type:. debug, granted.description)
            if error != nil {
                return
            }
            if granted {
                os_log("Notifications allowed", type: .debug)
            }
            else {
                os_log("Notifications denied", type: .debug)
            }

            // 2. Attempt registration for remote notifications on the main thread
            DispatchQueue.main.async {
                UIApplication.shared.registerForRemoteNotifications()
            }
        }
    }

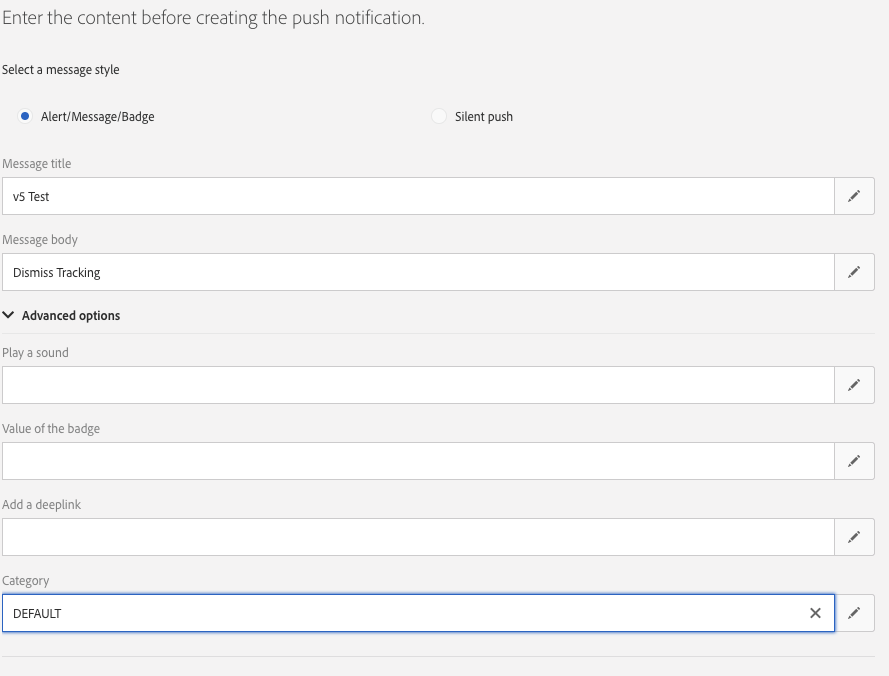

现在,在发送推送通知时,您需要添加类别。 在本例中,我们将其称为“DEFAULT”。

然后,要处理​Dismiss​并发送跟踪信息,您需要添加以下内容:

func userNotificationCenter(_ center: UNUserNotificationCenter, didReceive response: UNNotificationResponse, withCompletionHandler completionHandler: @escaping () -> Void) {
        let userInfo = response.notification.request.content.userInfo
        switch response.actionIdentifier {
        case UNNotificationDismissActionIdentifier:
            print("Dismiss Action")
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"2"])
            }
        default:
            ////MORE CODE
        }
        completionHandler()
    }

如何实现开放跟踪

您将需要发送“1”和“2”,因为用户必须单击通知才能打开应用程序。 如果应用程序未通过推送通知启动/打开,则不会发生跟踪事件。

对于在21.1版本之前创建的投放或具有自定义模板的投放,请参阅此部分

import Foundation
import UserNotifications
import UserNotificationsUI

class NotificationDelegate: NSObject, UNUserNotificationCenterDelegate {

    // Called when user clicks the push notification or also called from willPresent()
    func userNotificationCenter(_ center: UNUserNotificationCenter, didReceive response: UNNotificationResponse, withCompletionHandler completionHandler: @escaping () -> Void) {

        let userInfo = response.notification.request.content.userInfo
        os_log("App push data %{public}@, in userNotificationCenter:didReceive()", type: .debug, userInfo)
        switch response.actionIdentifier {
        case UNNotificationDismissActionIdentifier:
            //This is to handle the Dismiss Action
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"2"])
            }
        default:
            //This is to handle the tracking when the app opens
            let deliveryId = userInfo["_dId"] as? String
            let broadlogId = userInfo["_mId"] as? String
            let acsDeliveryTracking = userInfo["_acsDeliveryTracking"] as? String
            /*
            This is to handle deliveries created before 21.1 release or deliveries with custom template where acsDeliveryTracking is not available.
            */
            if( acsDeliveryTracking == nil ) {
                acsDeliveryTracking = "on";
            }
            if (deliveryId != nil && broadlogId != nil && acsDeliveryTracking?.caseInsensitiveCompare("on") == ComparisonResult.orderedSame) {
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"2"])
                ADBMobile.trackAction("tracking", data: ["deliveryId": deliveryId!, "broadlogId": broadlogId!, "action":"1"])
            }
        }
        completionHandler()
    }
}
