JavaScript模板是包含JavaScript代码的HTML或文本文档。 其构建方式与投放操作中的电子邮件内容相同。
JavaScript模板由其名称和命名空间标识,就像架构和表单一样。 但是,建议添加 .js 选项到模板名称。
基于“cus:book”架构的JavaScriptHTML格式设置模板示例:
<html>
<body>
<!-- Title of book -->
<h1><%= content.@name %></h1>
<ul>
<% for each(var chapter in content.chapter) { %>
<li><%= chapter.@name %></li>
<% }%>
</ul>
</body>
</html>
各种JavaScript指令以以下形式显示:
<%= <source> %>
语法,其中 <source>
是要显示的数据的源字段。此 内容 对象表示输入XML文档的主元素。
在我们的示例中,以下行显示名称簿名称的内容:
<h1><%= content.@name %></h1>
以下代码在上迭代 <chapter>
收集要素:
<% for each(var chapter in content.chapter) { %>
<li><%= chapter.@name %></li>
<% }%>
内容的属性和元素表示为JavaScript对象,并且遵循源文档的结构。
示例:
['name']
:与 内容。@name 语法<chapter
收集要素[0]
.@name:检索第一个的名称 <chapter>
元素<chapter>
元素<chapter>
由于“ — ”字符是在JavaScript语言中保留的,因此必须通过 ['<field>']
语法。
例如: content.@['offer-id']
.
编程语言的所有功能(变量、循环、条件测试、函数等) )可用于构造输出文档。 可以访问SOAP API以扩充输出文档。
示例:
条件测试:
<% if (content.@number == 1 || content.@language == 'en') { %>
<!-- Content to be displayed if test is true-->
<% } %>
函数调用:
<!-- Displays a horizontal bar -->
;<% function DisplayHorizontalBar() { %>
<hr/>
<% } %>
<!-- The same function in a block -->
<%
function DisplayHorizontalBar2()
{
document.write('<hr/>');
}
%>
<!-- Returns the value in uppercase -->
<%
function formatName(value)
{
return value.toUpperCase();
}
%>
<!-- Call functions -->
<%= DisplayHorizontalBar1() %>
<%= DisplayHorizontalBar2() %>
<%= formatName(content.@name) %>
声明和变量调用:
<% var counter = 0; %>
<%= counter += 10 %>
使用静态方法检索和显示收件人名称:
<% var recipient = nms.recipient.get(1246); %>
<%= recipient.lastName %>
使用非静态方法恢复和显示收件人名称:
<% var query = xtk.queryDef.create(
<queryDef schema="nms:recipient" operation="get">
<select>
<node expr="@lastName"/>
</select>
<where>
<condition expr="@id=1246"/>
</where>
</queryDef>);
var recipient = query.ExecuteQuery();
%>
<%= recipient.@lastName %>
您可以构建一个函数或变量库以供将来使用。 为此,请使用以下内容导入JavaScript模板 估计 函数。 这使您可以使用在其他JavaScript模板中声明的其他函数扩充上下文。
示例:导入 common.jsp 模板。
<% eval(xtk.javascript.get("cus:common.js").data); %>

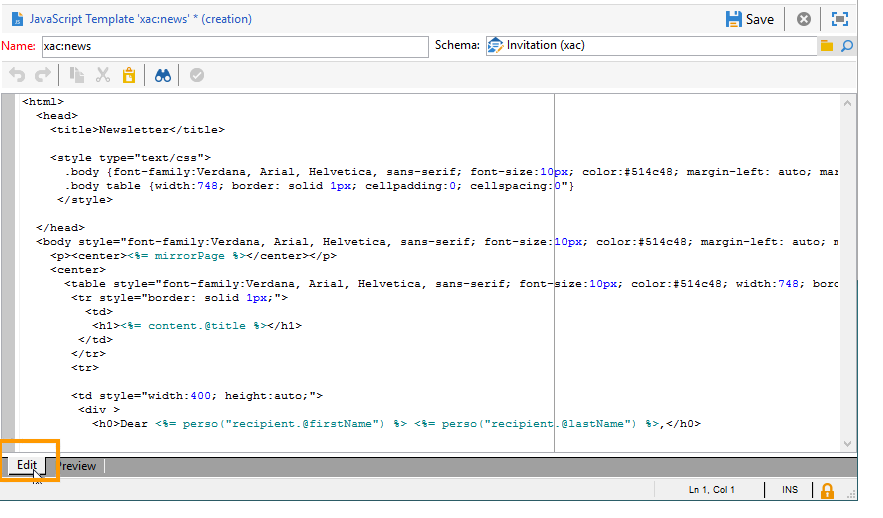

通过编辑区域,可填充JavaScript模板的内容:
为初始化JavaScript对象,必须填充关联的数据模型架构。

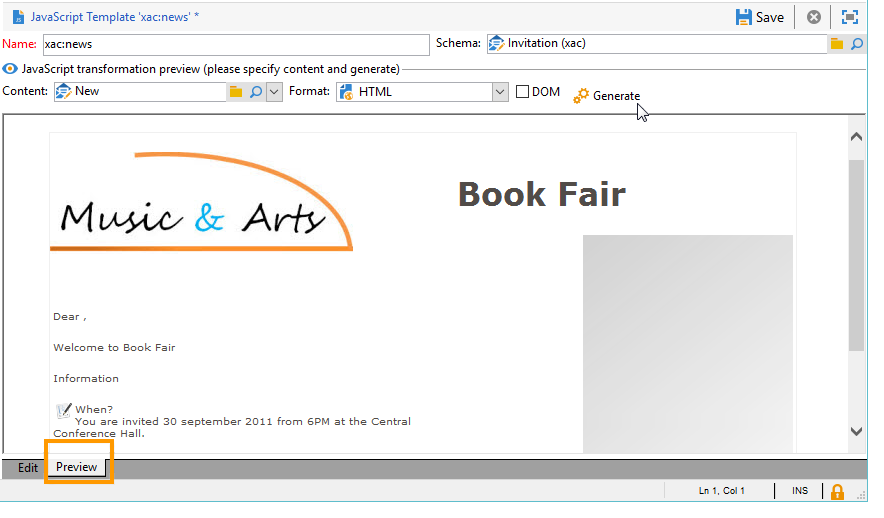

要随时生成输出文档的预览,请选择内容和输出格式(HTML、文本、XML),然后单击 Generate :
无需保存更改即可预览输出文档。
在下面,您会找到使用JavaScript模板实施以下内容管理所需的配置:
此示例涉及以下步骤:
创建以下架构(在本例中: neo:news):
<srcSchema _cs="Invitation (neo)" entitySchema="xtk:srcSchema" img="xtk:schema.png" label="Invitation" mappingType="sql" name="news" namespace="neo" xtkschema="xtk:srcSchema">
<enumeration basetype="string" default="en" name="language">
<value label="Français" name="fr" value="fr"/>
<value label="English" name="gb" value="gb"/>
</enumeration>
<enumeration basetype="string" name="css">
<value label="Blue" name="bl" value="blue"/>
<value label="Orange" name="or" value="orange"/>
</enumeration>
<element label="Intervenants" name="attendee">
<key internal="true" name="id">
<keyfield xpath="@id"/>
</key>
<attribute label="Name" name="name" type="string"/>
<element label="Image" name="image" target="xtk:fileRes" type="link"/>
<attribute label="Description" name="description" type="string"/>
<attribute default="Gid()" label="Id" name="id" type="long"/>
</element>
<element label="Invitation" name="news" template="ncm:content" xmlChildren="true">
<compute-string expr="@name"/>
<attribute enum="language" label="Language" name="language" type="string"/>
<attribute enum="css" label="Stylesheet" name="css" type="string"/>
<attribute label="Title" name="title" type="string"/>
<element label="Presentation" name="presentation" type="html"/>
<attribute label="Date" name="date" type="date"/>
<element label="Attendees list" name="attendeesList" ordered="true" ref="attendee" unbound="true"/>
</element>
</srcSchema>
创建链接的 Content management 键入表单(neo:news)
<form _cs="News (neo)" entitySchema="xtk:form" img="xtk:form.png" label="News" name="news" namespace="neo" type="contentForm" xtkschema="xtk:form">
<container type="iconbox">
<container label="Invitation">
<input xpath="@langue"/>
<input xpath="@css"/>
<input xpath="@title"/>
<input xpath="@date"/>
<input xpath="presentation"/>
</container>
<container label="Intervenants">
<container toolbarCaption="Liste des intervenants" type="notebooklist" xpath="attendeesList" xpath-label="@nom">
<container>
<input xpath="@nom"/>
<input img="nl:sryimage.png" newEntityFormChoice="true" xpath="image">
<sysFilter>
<condition expr="@isImage = true"/>
</sysFilter>
</input>
<input xpath="@description"/>
</container>
</container>
</container>
</container>
</form>
创建包含用于HTML和文本格式的消息内容的JavaScript模板。
在我们的示例中,对于HTML:
<html>
<head>
<title>Newsletter</title>
<style type="text/css">
.body {font-family:Verdana, Arial, Helvetica, sans-serif; font-size:10px; color:#514c48; margin-left: auto; margin-right: auto;}
.body table {width:748; border: solid 1px; cellpadding:0; cellspacing:0"}
</style>
</head>
<body>
<p><center><%= mirrorPage %></center></p>
<center>
<table>
<tr>
<td>
<img src="[LOGO]"/>
</td>
<td>
<h1><%= content.@title %></h1>
</td>
</tr>
<tr>
<td>
<div >
<h0><%= hello,</h0>
<p><%= content.presentation %></p>
<h0>Useful information</h0>
<p>
<img src="[IMAGE 1]"/>When? <br/><%= formatDate(content.@date, "%2D %Bl %4Y") %> From 10 AM in your bookshop.</p><br/>
<p>
<img src="[IMAGE 2]"/>Who? <br>Meet our favorite authors and illustrators and get a signed copy of their book.</p><br/>
<p>
<img src="[IMAGE 3]"/>Attendance is free but there is a limited number of seats: sign up now!</p>
</div>
</td>
<td>
<div style="text-align:left; width:210; height:400px; background:url([IMAGE DE FOND])">
<h0><%= participant %></h0>
<%
var i
var iLength = content.attendeesList.length()
for (i=0; i<iLength; i++)
{ %>
<p>
<%= generateImgTag(content.attendeesList[i].@["image-id"]) %> <%= content.attendeesList[i].@description %>
</p>
<% }
%>
</div2>
</td>
</tr>
</table>
</center>
</body>
</html>
对于文本:
<%= content.@title %>
<%= content.presentation %>
*** When? On <%= formatDate(content.@date, "%2D %Bl %4Y") %> From 10 AM in your bookshop.
*** Who? Come and meet our favorite authors and illustrators and get a signed copy of their books.
*** Attendance is free but there is a limited number of seats: sign up now!
Guests:
******************
<%
var i
var iLength = content.attendeesList.length()
//for (i=(iLength-1); i>-1; i--)
for( i=0 ; i<iLength ; i++ )
{ %>
Description <%= i %> : <%= content.attendeesList[i].@description %>
<% }
%>

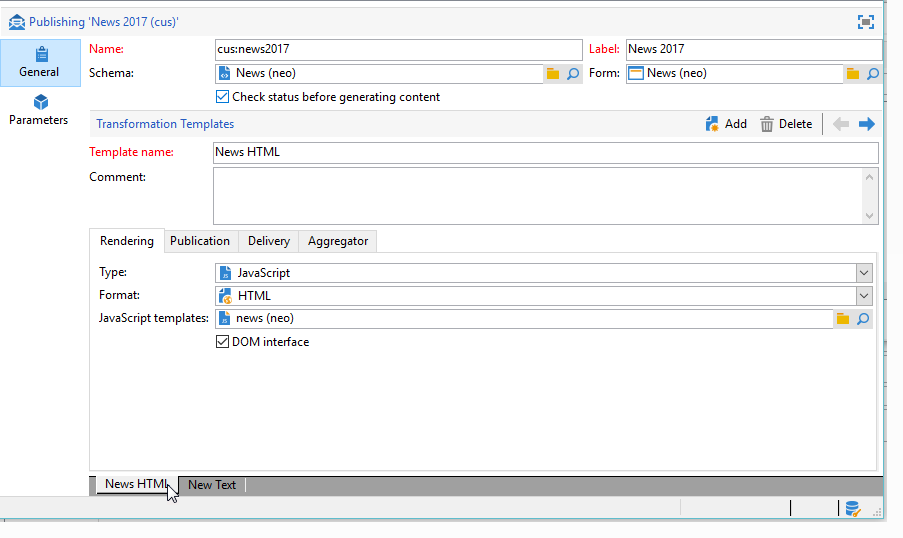

现在,创建用于两种格式的发布模板:
对于HTML:
对于文本:

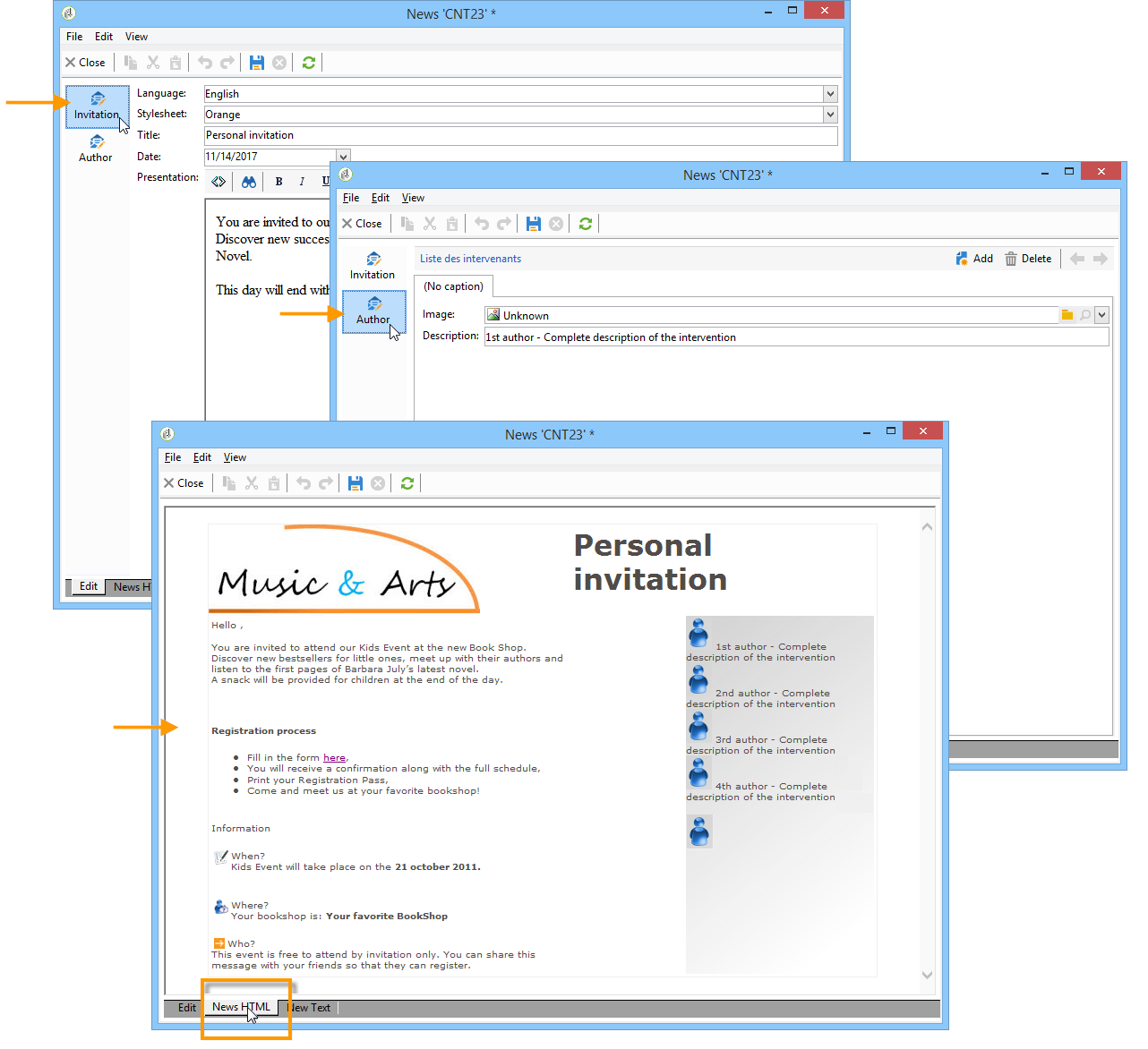

然后,您可以在投放中使用此内容模板。
有关详细信息,请参见 使用内容模板.
XSLT语言允许将XML文档更改为输出文档。 根据样式表的输出方法,生成的文档可以以HTML、纯文本或其他XML树生成。
此转换在称为样式表的文档中的XML中又进行了详细说明。
样式表由其名称和命名空间标识,就像架构和表单一样。 但是,建议添加 .xsl 样式表名称的扩展。
样式表的标识键是由命名空间和用冒号分隔的名称组成的字符串;例如: cus:book.xsl.
基于示例架构“cus:book”的HTML格式化样式表的示例:
<?xml version="1.0" encoding="ISO-8859-1" ?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
<xsl:output encoding="ISO-8859-1" method="html"/>
<!-- Point of entry of the stylesheet -->
<xsl:template match="/book">
<html>
<body>
<!-- Book title -->
<h1><xsl:value-of select="@name"/></h1>
<lu>
<!-- List of chapters -->
<xsl:for-each select="child::chapter">
<li><xsl:value-of select="@name"/></li>
</xsl:for-each>
</lu>
</body>
</html>
</xsl:template>
</xsl:stylesheet>
样式表是遵循以下规则的XML文档:
样式表必须以XSL根元素标记开头 <xsl:stylesheet>
结束于 </xsl:stylesheet>
标记。 必须在开始标记中定义XSL命名空间,如下所示:
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
此 <xsl:output>
元素指定生成的文档的格式。 指定所需的字符集和输出格式。
<xsl:output encoding="ISO-8859-1" method="html"/>
以下说明描述了用于格式化输出文档的样式表的配置。
<xsl:template match="/book">
<html>
<body>
<!-- Book title -->
<h1><xsl:value-of select="@name"/></h1>
<lu>
<!-- List of chapters -->
<xsl:for-each select="child::chapter">
<li><xsl:value-of select="@name"/></li>
</xsl:for-each>
</lu>
</body>
</html>
</xsl:template>
默认情况下,XSLT处理器会查找 模板 应用于输入XML文档的根节点或主节点。 输出文档的构造以此开头 模板.
在我们的示例中,通过显示书名和章节列表,从“cus:book”架构生成了HTML页。
有关XSLT语言的更多信息,请参阅XSLT参考文档。
要显示 html 字段,使用 disable-output-escaping="yes" 选项来自 <xsl:value-of>
指令。 这样可避免将字符替换为XML实体(例如,将<替换为<)。
此 <xsl:text>
指令和 disable-output-escaping="yes" 选项允许您为个性化字段或条件测试插入JavaScript标记。
示例:
显示“html”类型字段的内容:
<xsl:value-of select="summary" disable-output-escaping="yes"/>
插入个性化字段 <%= recipient.email %>:
<xsl:text disable-output-escaping="yes"><%= recipient.email %></xsl:text>
添加条件测试 <%,如果(recipient.language == 'en') {
%>:
<xsl:text disable-output-escaping="yes"><% if (recipient.language == 'en') { %></xsl:text>
可以构建模板或变量的库以在多个样式表之间共享。 “longMonth” 模板如上所示,是一个典型示例,说明了在样式表中远程定位模板以便以后可以重复使用这一优点。
此 <xsl:include>
指令指示要包含在文档中的样式表的名称。
示例:包含“common.xsl”样式表。
<? xml version="1.0" encoding="ISO-8859-1" ?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
<xsl:include href="common.xsl"/>
<xsl:output encoding="ISO-8859-1" method="jsp" indent="yes"/>
...
</xsl:stylesheet>
不得在要包含的样式表的引用中输入命名空间的名称。 作为标准,此样式表是使用用户命名空间创建的。

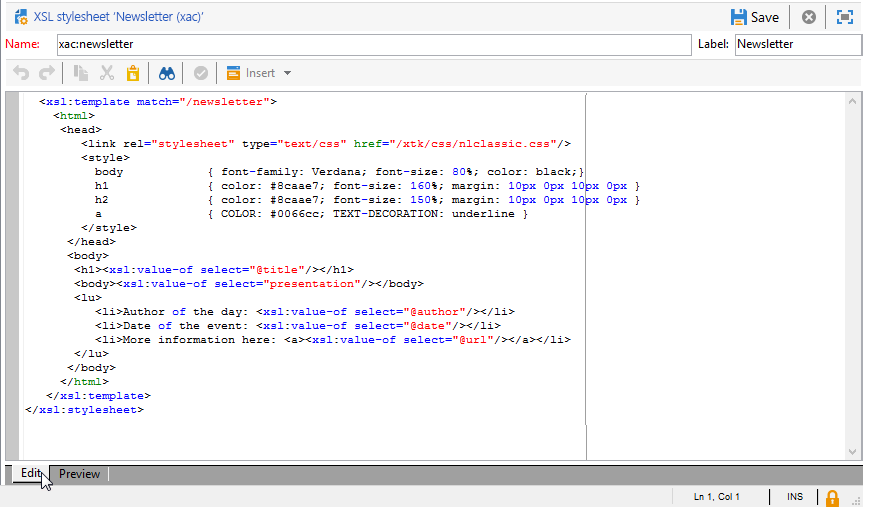

编辑区域允许您填充样式表的内容:

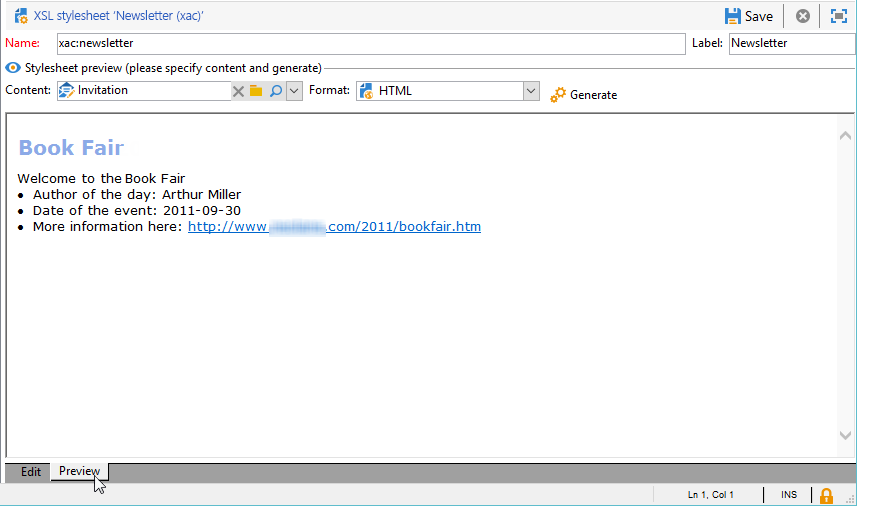

要随时生成输出文档的预览,请选择内容实例和格式(HTML、文本、XML),然后单击 Generate :
无需在样式表中保存更改即可查看输出文档预览。
在HTML输出文档中输入的图像可以使用绝对或相对参照进行参照。
相对引用允许您输入包含图像的 NcmResourcesDir 和 NcmResourcesDirPreview 选项。 这些选项包含要在Adobe Campaign客户端控制台中发布和预览的图像的位置。
这两个选项可通过中的选项管理屏幕访问 Administration > Platform > Options 文件夹。
示例:
在样式表处理过程中, _resPath 根据上下文(预览或发布),输入XML文档的主元素上的属性会自动填充一个或多个选项。
有关如何将图像放置选项及其用于图像的示例:
<img src="<%= content.@_resPath %>/newsletter/image.png"/>
我们建议声明一个包含存储图像的服务器引用的变量(在我们的示例中为“resPath”)。
您还可以使用 Public resources 根据在部署向导中输入的实例设置,声明图像并将其上传到服务器。
然后,您可以在内容中调用这些图像。 为此,请在内容管理架构中使用以下语法:
<element label="Image" name="image" target="xtk:fileRes" type="link"/>
在表单中,用于选择图像的字段将通过以下语法添加:
<input img="nl:sryimage.png" newEntityFormChoice="true" xpath="image">
<sysFilter>
<condition expr="@isImage = true"/>
</sysFilter>
</input>
有关更多详细信息 Public resources 以及如何配置和使用它们,请参阅 本节.
在XML输入文档中,日期以内部XML格式存储: YYYY/MM/DD HH:MM:SS (示例2018/10/01 12:23:30)。
Adobe Campaign为JavaScript模板和XSL样式表提供日期格式功能,如下所述。
要以所需格式显示日期,Adobe Campaign提供了 formatdate 函数作为输入日期,并使用以下语法指定输出格式的字符串: %4Y/%2M/%2D %2H%2N%2S
示例:
在中显示日期 31/10/2018 格式:
<%= formatDate(content.@date, "%2D/%2M/%4Y") %>
在中显示日期 2018年7 格式:
<%
function displayDate(date)
{
var aMonth =
[ 'January', 'February', 'March', 'April', 'May', 'June', 'July', 'August', 'September', 'October', 'November', 'December' ];
var month = formatDate(content.@date, "%2M")
var year = formatDate(content.@date, "%4Y")
return aMonth[month-1]+" "+year;
}
%>
<%= displayDate(content.@date) %>
在XSLT语法中没有标准日期管理函数。 要以所需格式显示日期,Adobe Campaign提供了外部功能 date-format. 此函数将日期的内容和一个字符串作为输入,该字符串使用以下语法指定输出格式: %4Y/%2M/%2D %2H%2N%2S
示例:
要在以下位置显示日期: 01/10/2018 格式:
<xsl:value-of select="external:date-format(@date, '%2D/%2M/%4Y')"/>
要在以下位置显示日期: 2018年7 格式:
<!-- Returns the month in the form of a string with the month number as input -->
<xsl:template name="longMonth">
<xsl:param name="monthNumber"/>
<xsl:choose>
<xsl:when test="$monthNumber = 1">January</xsl:when>
<xsl:when test="$monthNumber = 2">February</xsl:when>
<xsl:when test="$monthNumber = 3">March</xsl:when>
<xsl:when test="$monthNumber = 4">April</xsl:when>
<xsl:when test="$monthNumber = 5">May</xsl:when>
<xsl:when test="$monthNumber = 6">June</xsl:when>
<xsl:when test="$monthNumber = 7">July</xsl:when>
<xsl:when test="$monthNumber = 8">August</xsl:when>
<xsl:when test="$monthNumber = 9">September</xsl:when>
<xsl:when test="$monthNumber = 10">October</xsl:when>
<xsl:when test="$monthNumber = 11">November</xsl:when>
<xsl:when test="$monthNumber = 12">December</xsl:when>
</xsl:choose>
</xsl:template>
<!-- Display date -->
<xsl:call-template name="longMonth">
<xsl:with-param name="monthNumber">
<xsl:value-of select="external:date-format(@date, '%2M')"/>
</xsl:with-param>
</xsl:call-template>
<xsl:value-of select="external:date-format(@date, '%4y')"/>
