聚合器允許您使用外部資料來豐富內容。 此資料來自一般查詢或連結表。
查詢是通過 Aggregator 頁籤。
檢索到的資料將通過XML的主要元素豐富XML輸出文檔。
從收件人方案上的查詢返回的示例(nms:收件人):
<book name="Content Management">
...
<collection-recipient>
<recipient lastName="Doe" firstName="John" email="john.doe@aolf.com">
...
</collection-recipient>
</book>
的 <collection-recipient>
元素表示由查詢生成的文檔的輸入元素。 檢索到的資料在此元素下返回;在我們的例子中,收件人清單。
查詢參數使用嚮導進行編輯。
在第一頁中,指定包含要檢索的資料的標籤和架構。
編輯欄位 路徑 用於更名查詢輸出元素。

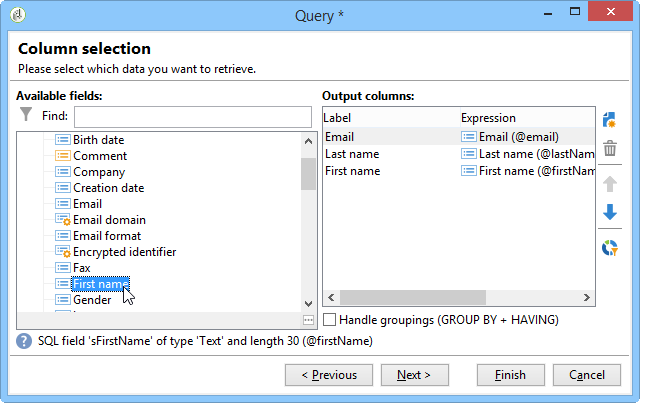

下一頁允許您選擇要檢索的資料。

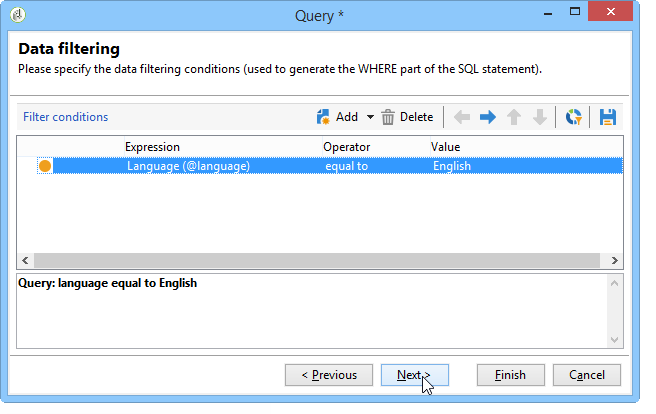

下一頁定義篩選器條件。

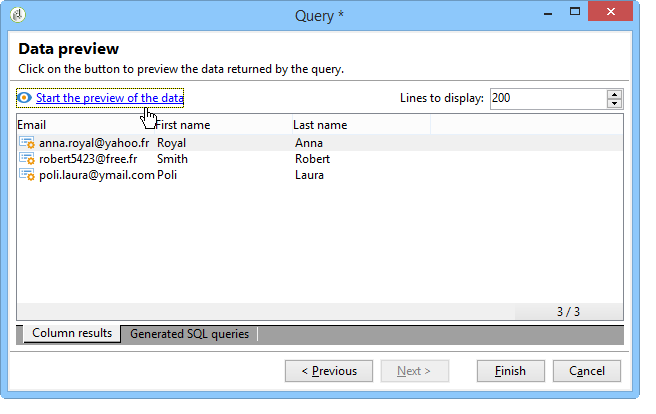

最後一頁啟動查詢返回的資料的預覽。
連結允許您檢索連結到內容的外部資料。
連結資料有兩種類型:
在資料模式中聲明內容連結如下:
<element expandSchemaTarget="cus:chapter" label="Main chapter" name="mainChapter" type="string"/>
連結的定義填充在 字串 — 類型 <element>
的 擴展架構目標 屬性引用目標架構(示例中的「cus:chapter」)。 引用的架構必須是內容架構。
目標元素的內容豐富了連結元素,即 <chapter>
示例架構中的元素:
<mainChapter computeString="Introduction" id="7011" title="Introduction" xtkschema="cus:chapter">
<page>Introduction to input <STRONG>forms</STRONG>.</page>
</mainChapter>
的 計算字串 的 計算字串 屬性。
在輸入表單中,連結的編輯控制項聲明如下:
<input type="articleEdit" xpath="mainChapter"/>
的 Magnifier 表徵圖可開啟連結元素的編輯窗體。
要填充連結集合,請添加 未綁定="true" 屬於資料架構中連結元素的定義:
<element expandSchemaTarget="cus:chapter" label="List of chapters" name="chapter" ordered="true" unbound="true"/>
目標元素的內容豐富了每個收集元素:
<chapter computeString="Introduction" id="7011" title="Introduction" xtkschema="cus:chapter">
<page>Introduction to input <STRONG>forms</STRONG>.</page>
</chapter>

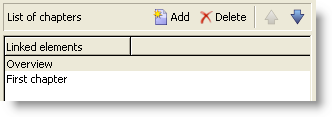

在輸入表單中,清單控制項聲明如下:
<input editable="false" nolabel="true" toolbarCaption="List of chapters" type="articleList" xpath="chapter" zoom="true"/>
將顯示預設列,以查看 計算字串 目標元素。
在資料模式中聲明到外部表的連結如下:
<element label="Main contact" name="mainContact" target="nms:recipient" type="link"/>
連結的定義填充在 連結 — 類型 <element>
的 目標 屬性引用目標模式(本例中為「nms:recipient」)。
根據約定,必須從資料架構的主要元素聲明連結。
的 計算字串 目標元素的關鍵是豐富了 <name>-id
和 <name>-cs
屬性。
在本例中,連結在「cus:book」架構中填充,連結資料的內容包含在「mainContact-id」和「mainContact-cs」屬性中:
<book computeString="Content management" date="2006/06/08" id="6106" language="en" mainContact-cs="John Doe (john.doe@adobe.com)" mainContact-id="3012" name="Content management" xtkschema="cus:book">
連結編輯控制項聲明如下:
<input xpath="mainContact"/>
通過添加 <sysfilter>
元素,通過輸入表單中的連結定義:
<input xpath="mainContact">
<!-- Filter the selection of the link on the Adobe domain -->
<sysFilter>
<condition expr="@domain = 'adobe.com '"/>
</sysFilter>
</input>
此限制也適用於內容連結。
集合的定義與集合元素上清單的定義相同:
<element label="List of contacts" name="contact" unbound="true">
<element label="Recipient" name="recipient" target="nms:recipient" type="link"/>
</element>
在輸入表單中,清單控制項聲明如下:
<input nolabel="true" toolbarCaption="List of contacts" type="list" xpath="contact">
<input xpath="recipient"/>
</input>
該清單是可編輯的,允許您從上面顯示的「連結」類型控制項中選擇連結。
目標元素的內容豐富了輸出文檔中的每個集合元素:
<contact id="11504978621" recipient-cs="Doe John (john.doe@adobe.com)" recipient-id="3012"/>
<contact id="11504982510" recipient-cs="Martinez Peter (peter.martinez@adobe.com)" recipient-id="3013"/>
引用的每個連結的內容限於內部密鑰和 計算字串 目標元素。
使用JavaScript指令碼通過SOAP查詢來豐富連結的內容。
示例:將收件人姓名添加到「mainContact」連結和「contact」集合連結:
// Update <mainContact> link
var mainContactId = content.@['mainContact-id']
var query = xtk.queryDef.create(
<queryDef schema="nms:recipient" operation="get">
<select>
<node expr="@lastName"/>
</select>
<where>
<condition expr={"@id="+mainContactId}/>
</where>
</queryDef>)
var recipient = query.ExecuteQuery()
content.mainContact.@lastName = recipient.@lastName
// Update <contact> link collection
for each(var contact in content.contact)
{
var contactId = contact.@['recipient-id']
var query = xtk.queryDef.create(
<queryDef schema="nms:recipient" operation="get">
<select>
<node expr="@lastName"/>
</select>
<where>
<condition expr={"@id="+contactId}/>
</where>
</queryDef>
)
var recipient = query.ExecuteQuery()
contact.@lastName = recipient.@lastName
}
指令碼執行後獲得的結果:
<mainContact lastName="Doe"/>
<contact id="11504978621" lastName="Doe" recipient-cs="Doe John (john.doe@adobe.com)" recipient-id="3012"/>
<contact id="11504982510" lastName="Martinez" recipient-cs="Martinez Peter (peter.martinez@adobe.com)" recipient-id="3013"/>

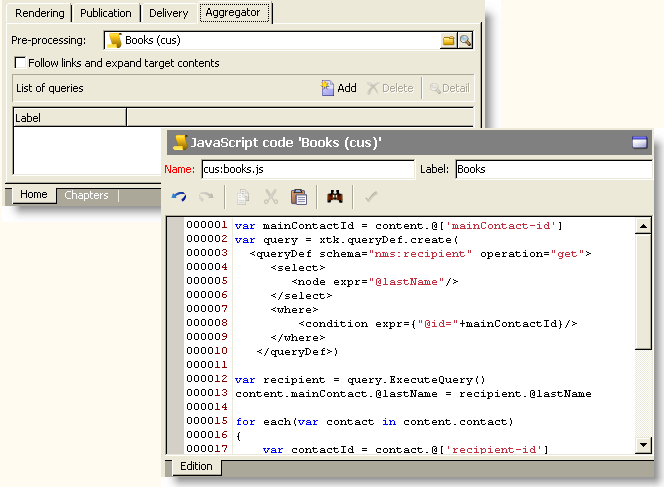

JavaScript代碼的內容通過 Administration > Configuration > Content management > JavaScript Codes 資料夾,必須在每個轉換的發佈模板中填充。
