丰富内容

聚合器允许您使用外部数据扩充内容。 此数据来自通用查询或链接的表。

一般查询

查询通过 Aggregator 选项卡。

检索到的数据将通过其主元素扩充XML输出文档。

从关于收件人架构的查询返回的示例(nms:recipient):

<book name="Content Management">
  ...
  <collection-recipient>
    <recipient lastName="Doe" firstName="John" email="john.doe@aolf.com">
    ...
  </collection-recipient>
</book>

<collection-recipient> 元素表示由查询生成的文档的输入元素。 检索到的数据将在此元素下返回;在本例中,为收件人列表。

添加查询

可使用向导编辑查询参数。

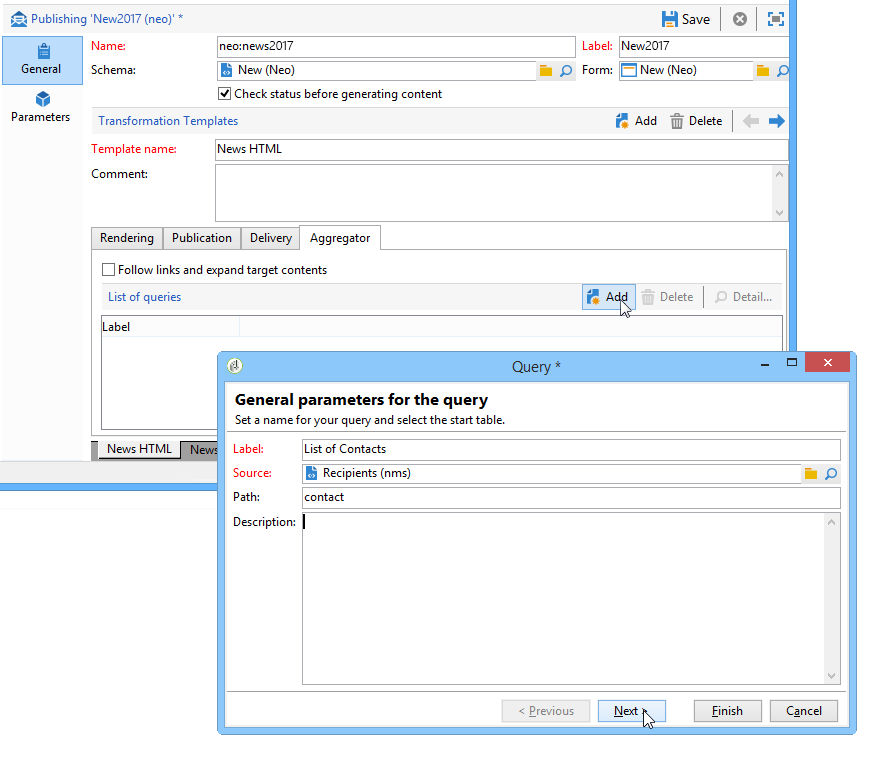

  1. 在第一页中,指定标签和包含要检索数据的架构。

    注意

    编辑字段 路径 用于重命名查询输出元素。

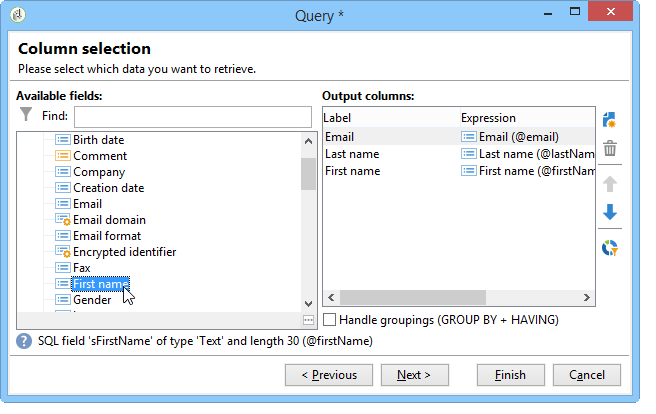

  2. 下一页允许您选择要检索的数据。

  3. 下一页定义过滤条件。

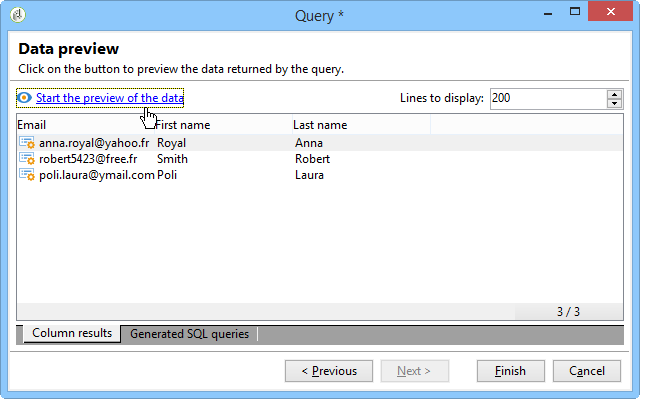

  4. 最后一页将启动查询返回的数据预览。

链接的表

利用链接,可检索链接到内容的外部数据。

链接数据有两种类型:

  • 内容链接:这是本机内容管理模式。 链接的内容会自动集成到XML输出文档中。
  • 指向外部表的链接允许访问数据库中的所有其他表,但约束是使用聚合器检索所选链接的数据。

在数据架构中声明内容链接,如下所示:

<element expandSchemaTarget="cus:chapter" label="Main chapter" name="mainChapter" type="string"/>

链接的定义会填充在 字符串-type <element>​和 expandSchemaTarget 属性引用目标架构(我们示例中的“cus:chapter”)。 引用的架构必须是内容架构。

目标元素的内容丰富了链接元素,即 <chapter> 元素:

<mainChapter computeString="Introduction" id="7011" title="Introduction" xtkschema="cus:chapter">
  <page>Introduction to input <STRONG>forms</STRONG>.</page>
</mainChapter>
注意

计算字符串computeString 属性。

在输入表单中,链接的编辑控件声明如下:

<input type="articleEdit" xpath="mainChapter"/>

Magnifier 图标,可打开链接元素的编辑表单。

要填充链接集合,请将 unbound="true" 属于数据架构中链接元素的定义:

<element expandSchemaTarget="cus:chapter" label="List of chapters" name="chapter"  ordered="true" unbound="true"/>

目标元素的内容丰富了每个收集元素:

<chapter computeString="Introduction" id="7011" title="Introduction" xtkschema="cus:chapter">
  <page>Introduction to input <STRONG>forms</STRONG>.</page>
</chapter>

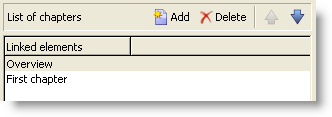

在输入表单中,列表控件声明如下:

<input editable="false" nolabel="true" toolbarCaption="List of chapters" type="articleList" xpath="chapter" zoom="true"/>

为了查看 计算字符串 目标元素的列表。

在数据架构中声明指向外部表的链接,如下所示:

<element label="Main contact" name="mainContact" target="nms:recipient" type="link"/>

链接的定义会填充在 链接-type <element>​和 目标 属性引用目标模式(在我们的示例中为“nms:recipient”)。

按照惯例,必须从数据架构的主要元素中声明链接。

计算字符串 而目标元素的关键,丰富了 <name>-id<name>-cs 属性。

在我们的示例中,链接以“cus:book”模式填充,链接数据的内容包含在“mainContact-id”和“mainContact-cs”属性中:

<book computeString="Content management" date="2006/06/08" id="6106" language="en" mainContact-cs="John Doe (john.doe@adobe.com)" mainContact-id="3012" name="Content management" xtkschema="cus:book">

链接编辑控件声明如下:

<input xpath="mainContact"/>

您可以通过添加 <sysfilter> 元素(通过输入表单中的链接定义):

<input xpath="mainContact">
  <!-- Filter the selection of the link on the Adobe domain -->
  <sysFilter>
    <condition expr="@domain =  'adobe.com '"/>
  </sysFilter>
</input>
注意

此限制也适用于内容链接。

集合的定义与集合元素上列表的定义相同:

<element label="List of contacts" name="contact" unbound="true">
  <element label="Recipient" name="recipient" target="nms:recipient" type="link"/>
</element>

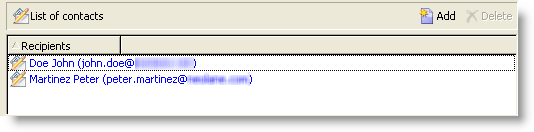

在输入表单中,列表控件声明如下:

<input nolabel="true" toolbarCaption="List of contacts" type="list" xpath="contact">
  <input xpath="recipient"/>
</input>

注意

该列表是可编辑的,允许您从上面显示的“链接”类型控件中选择链接。

目标元素的内容丰富了输出文档中的每个收集元素:

<contact id="11504978621" recipient-cs="Doe John (john.doe@adobe.com)" recipient-id="3012"/>
<contact id="11504982510" recipient-cs="Martinez Peter (peter.martinez@adobe.com)" recipient-id="3013"/>

引用的每个链接的内容仅限于内部键和 计算字符串 目标元素的URL。

JavaScript脚本用于通过SOAP查询扩充链接的内容。

示例:将收件人名称添加到“mainContact”链接和“contact”集合链接:

// Update <mainContact> link
var mainContactId = content.@['mainContact-id']
var query = xtk.queryDef.create(
    <queryDef schema="nms:recipient" operation="get">
      <select>
        <node expr="@lastName"/>
      </select>
      <where>
        <condition expr={"@id="+mainContactId}/>
      </where>
    </queryDef>)

var recipient = query.ExecuteQuery()
content.mainContact.@lastName = recipient.@lastName

// Update <contact> link collection
for each(var contact in content.contact)
{
  var contactId = contact.@['recipient-id']
  var query = xtk.queryDef.create(
    <queryDef schema="nms:recipient" operation="get">
      <select>
        <node expr="@lastName"/>
      </select>
      <where>
        <condition expr={"@id="+contactId}/>
      </where>
    </queryDef>
  )

  var recipient = query.ExecuteQuery()
  contact.@lastName = recipient.@lastName
}

执行脚本后获得的结果:

<mainContact lastName="Doe"/>

<contact id="11504978621" lastName="Doe" recipient-cs="Doe John (john.doe@adobe.com)" recipient-id="3012"/>
<contact id="11504982510" lastName="Martinez" recipient-cs="Martinez Peter (peter.martinez@adobe.com)" recipient-id="3013"/>

JavaScript代码的内容通过 Administration > Configuration > Content management > JavaScript Codes 文件夹,且必须在每个转换的发布模板中填充。
