집계를 사용하면 외부 데이터로 컨텐츠를 보강할 수 있습니다. 이 데이터는 일반 쿼리 또는 연결된 테이블에서 가져옵니다.
쿼리는 의 게시 템플릿을 통해 구성됩니다 Aggregator 탭.
검색된 데이터는 기본 요소를 통해 XML 출력 문서를 보강합니다.
수신자 스키마의 쿼리에서 반환한 예(nms:recipient):
<book name="Content Management">
...
<collection-recipient>
<recipient lastName="Doe" firstName="John" email="john.doe@aolf.com">
...
</collection-recipient>
</book>
다음 <collection-recipient>
요소 는 쿼리에서 얻은 문서의 입력 요소를 나타냅니다. 검색된 데이터가 이 요소 아래에 반환됩니다. 이 예제에서는 수신자 목록입니다.
쿼리 매개 변수는 마법사를 사용하여 편집됩니다.
첫 번째 페이지에서 검색할 데이터가 포함된 스키마와 레이블을 지정합니다.
편집 필드 경로 쿼리 출력 요소의 이름을 바꾸는 데 사용됩니다.

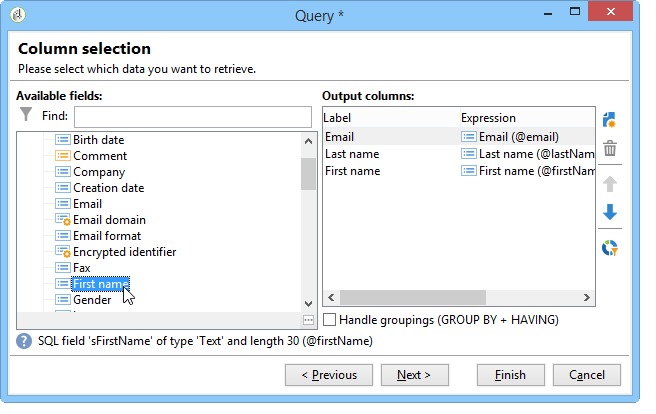

다음 페이지에서 검색할 데이터를 선택할 수 있습니다.

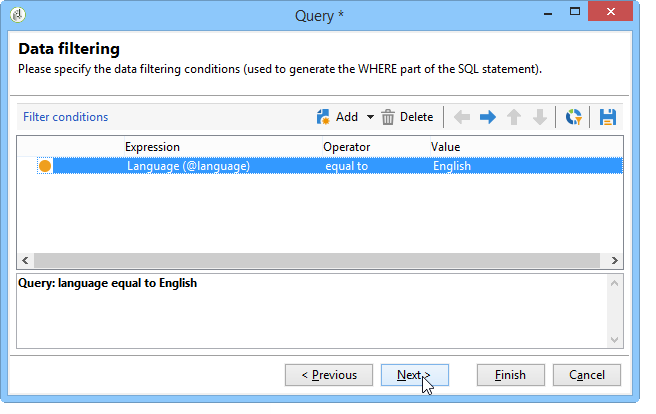

다음 페이지에서는 필터 조건을 정의합니다.

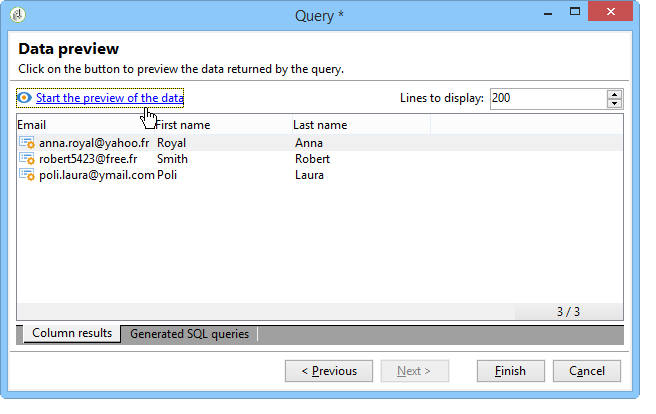

마지막 페이지는 쿼리에서 반환한 데이터의 미리 보기를 실행합니다.
링크를 사용하면 컨텐츠에 연결된 외부 데이터를 검색할 수 있습니다.
연결된 데이터에는 두 가지 유형이 있습니다.
컨텐츠 링크는 데이터 스키마에 다음과 같이 선언됩니다.
<element expandSchemaTarget="cus:chapter" label="Main chapter" name="mainChapter" type="string"/>
링크의 정의가 string-type <element>
, 및 expandSchemaTarget 속성은 대상 스키마("cus:chapter" 예제)를 참조합니다. 참조된 스키마가 컨텐츠 스키마여야 합니다.
타깃팅된 요소의 컨텐츠는 링크 요소(즉, <chapter>
예제 스키마의 요소:
<mainChapter computeString="Introduction" id="7011" title="Introduction" xtkschema="cus:chapter">
<page>Introduction to input <STRONG>forms</STRONG>.</page>
</mainChapter>
다음 계산 문자열 링크의 값은 computeString 속성을 사용합니다.
입력 양식에서 링크의 편집 컨트롤은 다음과 같이 선언됩니다.
<input type="articleEdit" xpath="mainChapter"/>
다음 Magnifier 아이콘을 사용하면 연결된 요소의 편집 양식을 열 수 있습니다.
링크 컬렉션을 채우려면 unbound="true" 속성 을 데이터 스키마의 링크 요소 정의에 사용합니다.
<element expandSchemaTarget="cus:chapter" label="List of chapters" name="chapter" ordered="true" unbound="true"/>
타깃팅된 요소의 컨텐츠는 각 수집 요소를 보강합니다.
<chapter computeString="Introduction" id="7011" title="Introduction" xtkschema="cus:chapter">
<page>Introduction to input <STRONG>forms</STRONG>.</page>
</chapter>

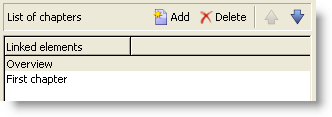

입력 양식에서 목록 컨트롤은 다음과 같이 선언됩니다.
<input editable="false" nolabel="true" toolbarCaption="List of chapters" type="articleList" xpath="chapter" zoom="true"/>
기본 열이 표시되어 계산 문자열 타깃팅된 요소의 수입니다.
외부 테이블에 대한 링크는 데이터 스키마에서 다음과 같이 선언됩니다.
<element label="Main contact" name="mainContact" target="nms:recipient" type="link"/>
링크의 정의가 링크-type <element>
, 및 target 속성은 대상 스키마("nms:recipient" 예제)를 참조합니다.
규칙에 따라 링크는 데이터 스키마의 기본 요소에서 선언되어야 합니다.
다음 계산 문자열 및 타깃팅된 요소의 키는 <name>-id
및 <name>-cs
기본 요소의 속성입니다.
이 예제에서 링크는 "cus:book" 스키마에서 채워지고, 링크 데이터의 컨텐츠는 "mainContact-id" 및 "mainContact-cs" 속성에 포함됩니다.
<book computeString="Content management" date="2006/06/08" id="6106" language="en" mainContact-cs="John Doe (john.doe@adobe.com)" mainContact-id="3012" name="Content management" xtkschema="cus:book">
링크 편집 컨트롤은 다음과 같이 선언됩니다.
<input xpath="mainContact"/>
을 추가하여 대상 요소의 선택을 제한할 수 있습니다 <sysfilter>
입력 양식에서 링크 정의를 통해 요소:
<input xpath="mainContact">
<!-- Filter the selection of the link on the Adobe domain -->
<sysFilter>
<condition expr="@domain = 'adobe.com '"/>
</sysFilter>
</input>
이 제한 사항은 콘텐츠 링크에도 적용됩니다.
컬렉션의 정의는 수집 요소에 대한 목록 정의와 동일합니다.
<element label="List of contacts" name="contact" unbound="true">
<element label="Recipient" name="recipient" target="nms:recipient" type="link"/>
</element>
입력 양식에서 목록 컨트롤은 다음과 같이 선언됩니다.
<input nolabel="true" toolbarCaption="List of contacts" type="list" xpath="contact">
<input xpath="recipient"/>
</input>

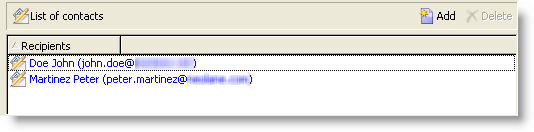

목록을 편집할 수 있으며 위에 표시된 "링크" 유형 컨트롤에서 링크를 선택할 수 있습니다.
타깃팅된 요소의 컨텐츠는 출력 문서의 각 수집 요소를 보강합니다.
<contact id="11504978621" recipient-cs="Doe John (john.doe@adobe.com)" recipient-id="3012"/>
<contact id="11504982510" recipient-cs="Martinez Peter (peter.martinez@adobe.com)" recipient-id="3013"/>
참조되는 각 링크의 콘텐츠는 내부 키와 로 제한됩니다 계산 문자열 타겟팅된 요소의 수입니다.
JavaScript 스크립트는 SOAP 쿼리를 통해 링크의 컨텐츠를 보강하는 데 사용됩니다.
예: 받는 사람 이름을 "mainContact" 링크 및 "contact" 컬렉션 링크에 추가:
// Update <mainContact> link
var mainContactId = content.@['mainContact-id']
var query = xtk.queryDef.create(
<queryDef schema="nms:recipient" operation="get">
<select>
<node expr="@lastName"/>
</select>
<where>
<condition expr={"@id="+mainContactId}/>
</where>
</queryDef>)
var recipient = query.ExecuteQuery()
content.mainContact.@lastName = recipient.@lastName
// Update <contact> link collection
for each(var contact in content.contact)
{
var contactId = contact.@['recipient-id']
var query = xtk.queryDef.create(
<queryDef schema="nms:recipient" operation="get">
<select>
<node expr="@lastName"/>
</select>
<where>
<condition expr={"@id="+contactId}/>
</where>
</queryDef>
)
var recipient = query.ExecuteQuery()
contact.@lastName = recipient.@lastName
}
스크립트 실행 후 얻은 결과:
<mainContact lastName="Doe"/>
<contact id="11504978621" lastName="Doe" recipient-cs="Doe John (john.doe@adobe.com)" recipient-id="3012"/>
<contact id="11504982510" lastName="Martinez" recipient-cs="Martinez Peter (peter.martinez@adobe.com)" recipient-id="3013"/>

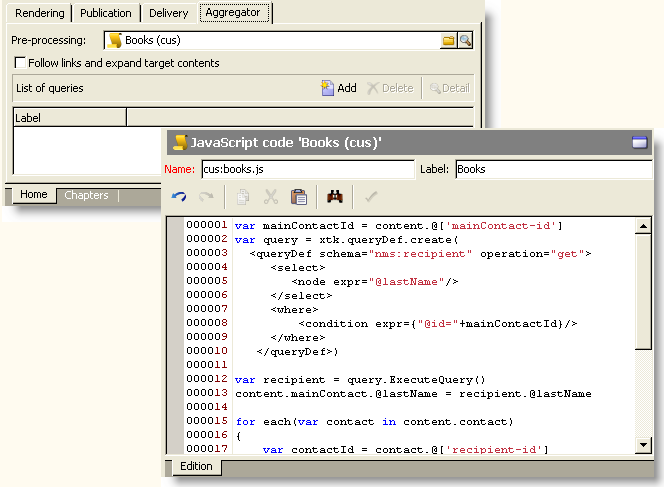

JavaScript 코드의 컨텐츠는 Administration > Configuration > Content management > JavaScript Codes 폴더 및 를 각 변환에 대해 게시 템플릿에서 채워야 합니다.
