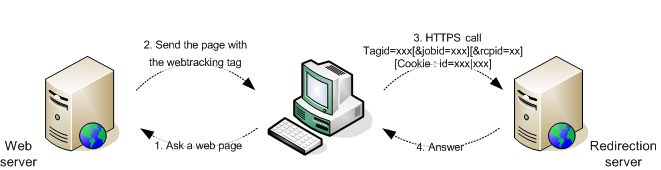

此方法包含透過插入以下內容將HTTP呼叫傳送至重新導向伺服器: <img>
HTML標籤(在您要追蹤的網頁的HTML原始碼中)。
此方法會使用網頁瀏覽器傳送的Cookie來識別收件者,而且並非100%可靠。
範例:
<img height='0' width='0' alt='' src='https://localhost/r/12343?tagid=home'
插入的標籤會與重新導向伺服器接觸。
定義要在主控台中追蹤的頁面時,可以產生範例網頁追蹤標籤,以複製並貼到網頁的原始程式碼中。
但是,當您使用TRANSACTION型別標籤時,必須使用JavaScript修改範例標籤,以便插入交易資訊(金額、專案數)和擴充功能結構描述定義的任何資訊。
若要執行靜態標籤插入,只需複製並貼上主控台產生的標籤或手動建構的標籤到網頁的來源中即可。
範例:在顯示表單的頁面上插入網頁追蹤標籤。
<html>
<...>
<body>
<script>
document.write("<img height='0' width='0' alt='' src='https://localhost/r/" + Math.random().toString() + "?tagid=home'>");
</script>
<noscript>
<img height='0' width='0' alt='' src='https://localhost/r/?tagid=home'>
</noscript>
<h1>My site</h1>
<form action="http://localhost/amount.md">
Quantity: <input type="text" name="quantity"/><br/><br/>
Amount: <input type="text" name="amount"/><br/><br/>
<input value="Save" type="submit">
</form>
</body>
</html>
在確認頁面(「amount.md」)中插入TRANSACTION型別的網頁追蹤標籤。
<html>
<body>
<script>
function getURLparam(name)
{
var m = location.search.match new RegExp("[?&]" + name + "=([^&]+)"));
return m ? unescape(m[1]) : "";
}
var params = "https://localhost/r/" + Math.random().toString() + "?tagid=amount&amount="
+getURLparam("amount")+"&article="+getURLparam("quantity");
document.write("<img height='0' width='0' src='"+params+"'/>");
</script>
<h1>Approval confirmation</h1>
</body>
</html>
動態產生網頁時,您可以在產生頁面時新增網頁追蹤標籤。
範例:網頁追蹤已新增至JSP。
<%@page import="java.util.Random" %>
<html>
<body>
<img height='0' width='0' alt='' src='https://localhost/r/<%=new Random().nextInt()%>?tagid=home'>
<h1>My site</h1>
<form action="https://localhost/amount.md">
Quantity: <input type="text" name="quantity"/><br/><br/>
Amount: <input type="text" name="amount"/><br/><br/>
<input value="Save" type="submit">
</form>
</body>
</html>
<%@page import="java.util.Random" %>
<html>
<body>
<%
String strParams = new Random().nextInt() + "?tagid=amount";
strParams += "&amount="+request.getParameter("amount");
strParams += "&article="+request.getParameter("quantity");
%>
<img height='0' width='0' alt=''
src='http://localhost/r/<%=strParams%>'>
<h1>Approval confirmation</h1>
</body>
</html>

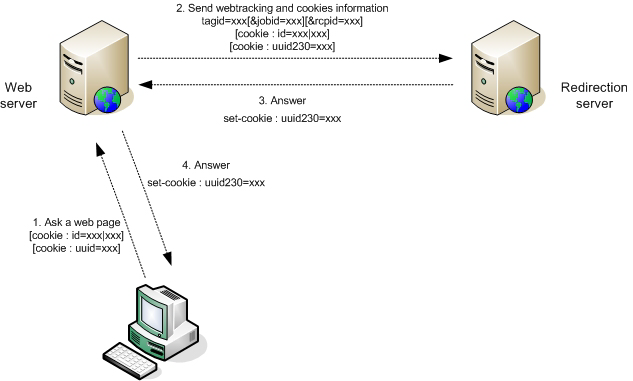

如果您想要控制傳送至重新導向伺服器的資訊,最可靠的方式是使用頁面產生語言自行同步執行HTTP查詢。
您建構的URL必須符合中定義的語法規則 網路追蹤標籤:定義.
重新導向和網頁追蹤會使用Cookie,執行同步HTTP呼叫的網頁伺服器必須與重新導向伺服器位於相同的網域中。 各種HTTP交換必須傳遞「id」、「uuid」和「uuid230」Cookie。
範例:在Java中動態產生,收件者使用其帳號進行驗證。
[...]
// Recipient account, amount and articles
String strAccount = request.getParameter("account");
String strAmount = request.getParameter("amount");
String strArticle = request.getParameter("article");
StringBuffer strCookies = new StringBuffer();
String strSetCookie = null;
// Get cookies from client request
Cookie[] cookies = request.getCookies();
for(int i=0; i< cookies.length; i++ )
{
Cookie c = cookies[i];
String strName = c.getName();
if( strName.equals("id") || strName.equals("uuid") || strName.equals("uuid230") )
// Helper function to add cookies in string
AddCookie(strCookies, c);
}
// Now perform a synchronous HTTP request to inform redirection server
// Add a tagid in auto-discover mode, and a default jobId to use (in hexa)
StringBuffer strURL = new StringBuffer("https://www.adobe.com/r/a?tagid=cmd_page%7Ct&jobid=27EE");
if( strAccount != null )
AddParameter(strURL, "rcpid", "saccount="+strAccount);
if( strAmount != null )
AddParameter(strURL, "amount", strAmount);
if( strArticle != null )
AddParameter(strURL, "article", strArticle);
URL url = new URL(strURL.toString());
HttpURLConnection connection = (HttpURLConnection)url.openConnection();
// Add the client cookies
if( strCookies.length() > 0 )
connection.setRequestProperty("Cookie", strCookies.toString());
int errcode = connection.getResponseCode();
// Now add the Adobe Campaign cookies if the server returned one :
if( errcode == 200 )
{
strSetCookie = connection.getHeaderField("Set-Cookie");
if( strSetCookie != null && strSetCookie.length() > 0 )
response.addHeader("Set-Cookie", strSetCookie);
}
[...]
