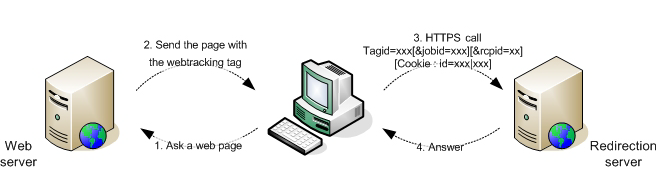

이 메서드는 를 삽입하여 리디렉션 서버로 HTTP 호출을 보내는 것으로 구성됩니다. <img>
추적하려는 웹 페이지의 HTML 소스 코드에 있는 HTML 태그입니다.
이 방법은 웹 브라우저에서 보낸 쿠키를 사용하여 수신자를 식별하며 100% 신뢰할 수 없습니다.
예제:
<img height='0' width='0' alt='' src='https://localhost/r/12343?tagid=home'
삽입된 태그는 리디렉션 서버에 연결됩니다.
콘솔에서 추적할 페이지를 정의할 때 샘플 웹 추적 태그를 생성하여 웹 페이지의 소스 코드에 복사하여 붙여넣을 수 있습니다.
그러나 TRANSACTION 유형 태그를 사용하는 경우, 트랜잭션 정보(금액, 항목 수)와 확장 스키마에 의해 정의된 정보를 삽입하려면 JavaScript를 사용하여 샘플 태그를 수정해야 합니다.
정적 태그 삽입을 수행하려면 콘솔에서 생성했거나 수동으로 구성한 태그를 복사하여 웹 페이지의 소스에 붙여넣으면 됩니다.
예: 양식을 표시하는 페이지에 웹 추적 태그 삽입
<html>
<...>
<body>
<script>
document.write("<img height='0' width='0' alt='' src='https://localhost/r/" + Math.random().toString() + "?tagid=home'>");
</script>
<noscript>
<img height='0' width='0' alt='' src='https://localhost/r/?tagid=home'>
</noscript>
<h1>My site</h1>
<form action="http://localhost/amount.md">
Quantity: <input type="text" name="quantity"/><br/><br/>
Amount: <input type="text" name="amount"/><br/><br/>
<input value="Save" type="submit">
</form>
</body>
</html>
확인 페이지("amount.md")에 트랜잭션 유형 웹 추적 태그 삽입.
<html>
<body>
<script>
function getURLparam(name)
{
var m = location.search.match new RegExp("[?&]" + name + "=([^&]+)"));
return m ? unescape(m[1]) : "";
}
var params = "https://localhost/r/" + Math.random().toString() + "?tagid=amount&amount="
+getURLparam("amount")+"&article="+getURLparam("quantity");
document.write("<img height='0' width='0' src='"+params+"'/>");
</script>
<h1>Approval confirmation</h1>
</body>
</html>
웹 페이지가 동적으로 생성되면 페이지 생성 시 웹 추적 태그를 추가할 수 있습니다.
예: 웹 추적이 JSP에 추가되었습니다.
<%@page import="java.util.Random" %>
<html>
<body>
<img height='0' width='0' alt='' src='https://localhost/r/<%=new Random().nextInt()%>?tagid=home'>
<h1>My site</h1>
<form action="https://localhost/amount.md">
Quantity: <input type="text" name="quantity"/><br/><br/>
Amount: <input type="text" name="amount"/><br/><br/>
<input value="Save" type="submit">
</form>
</body>
</html>
<%@page import="java.util.Random" %>
<html>
<body>
<%
String strParams = new Random().nextInt() + "?tagid=amount";
strParams += "&amount="+request.getParameter("amount");
strParams += "&article="+request.getParameter("quantity");
%>
<img height='0' width='0' alt=''
src='http://localhost/r/<%=strParams%>'>
<h1>Approval confirmation</h1>
</body>
</html>

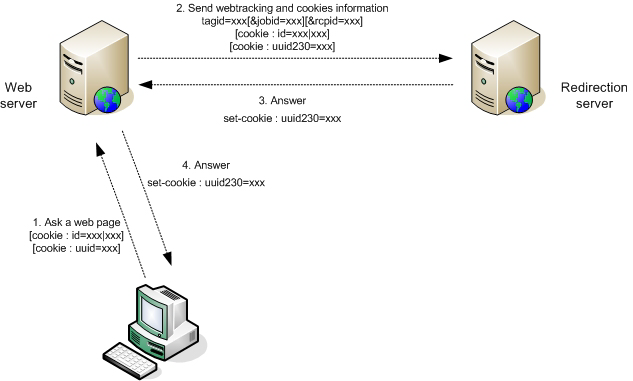

리디렉션 서버로 전송되는 정보를 제어하려는 경우 페이지 생성 언어를 사용하여 HTTP 쿼리를 동기적으로 직접 수행하는 것이 가장 안정적인 방법입니다.
생성하는 URL은에 정의된 구문 규칙을 준수해야 합니다. 웹 추적 태그: 정의.
리디렉션 및 웹 추적은 쿠키를 사용하며, 동기 HTTP 호출을 수행하는 웹 서버가 리디렉션 서버와 동일한 도메인에 있는 것이 중요합니다. 다양한 HTTP 교환은 'id', 'uuid' 및 'uuid230' 쿠키를 전달해야 합니다.
예: 계정 번호를 사용한 수신자 인증을 사용하는 Java의 동적 생성.
[...]
// Recipient account, amount and articles
String strAccount = request.getParameter("account");
String strAmount = request.getParameter("amount");
String strArticle = request.getParameter("article");
StringBuffer strCookies = new StringBuffer();
String strSetCookie = null;
// Get cookies from client request
Cookie[] cookies = request.getCookies();
for(int i=0; i< cookies.length; i++ )
{
Cookie c = cookies[i];
String strName = c.getName();
if( strName.equals("id") || strName.equals("uuid") || strName.equals("uuid230") )
// Helper function to add cookies in string
AddCookie(strCookies, c);
}
// Now perform a synchronous HTTP request to inform redirection server
// Add a tagid in auto-discover mode, and a default jobId to use (in hexa)
StringBuffer strURL = new StringBuffer("https://www.adobe.com/r/a?tagid=cmd_page%7Ct&jobid=27EE");
if( strAccount != null )
AddParameter(strURL, "rcpid", "saccount="+strAccount);
if( strAmount != null )
AddParameter(strURL, "amount", strAmount);
if( strArticle != null )
AddParameter(strURL, "article", strArticle);
URL url = new URL(strURL.toString());
HttpURLConnection connection = (HttpURLConnection)url.openConnection();
// Add the client cookies
if( strCookies.length() > 0 )
connection.setRequestProperty("Cookie", strCookies.toString());
int errcode = connection.getResponseCode();
// Now add the Adobe Campaign cookies if the server returned one :
if( errcode == 200 )
{
strSetCookie = connection.getHeaderField("Set-Cookie");
if( strSetCookie != null && strSetCookie.length() > 0 )
response.addHeader("Set-Cookie", strSetCookie);
}
[...]
