面向数据的 API

面向数据的API允许您处理整个数据模型。

数据模型概述

Adobe Campaign不为每个实体提供专用的读取API(没有getRecipient或getDelivery函数等)。 使用QUERY & WRITER数据读取和修改方法访问模型的数据。

Adobe Campaign允许您管理收藏集:通过查询,您可以恢复整个数据库中收集的一组信息。 与在SQL模式下访问不同,Adobe Campaign API返回的是XML树而不是数据列。 Adobe Campaign因此会创建包含所有收集数据的复合文档。

此操作模式不提供XML文档的属性和元素与数据库中表列之间的一对一映射。

XML文档存储在数据库的MEMO类型字段中。

模型描述

您必须熟悉Adobe Campaign数据模型,才能在脚本中处理数据库的字段。

有关数据模型的演示,请参阅 Adobe Campaign数据模型描述.

查询和编写器

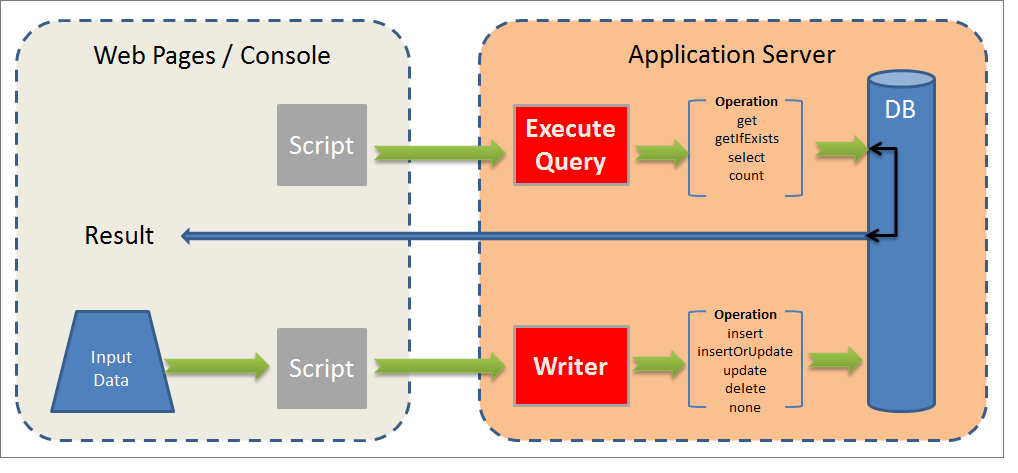

下面的介绍模式详细介绍了数据库和客户(网页或Adobe Campaign客户端控制台)之间用于读取(ExecuteQuery)和写入(Writer)的低级交换。

ExecuteQuery

对于列和条件,您可以使用查询。

这允许您隔离基础SQL。 查询语言不依赖于基础引擎:某些函数将被重新映射,这可能会生成多个SELECT SQL订单。

有关更多信息,请参阅 模式“xtk:queryDef”的“ExecuteQuery”方法示例.

ExecuteQuery 方法介绍于 ExecuteQuery(xtk:queryDef).

写入

使用“写入”(write)命令可以编写简单或复杂的文档,其中包含一个或多个基表中的条目。

事务型API允许您通过 updateOrInsert 命令:使用一个命令可以创建或更新数据。 您还可以配置修改合并(合并):此操作模式允许您授权部分更新。

XML结构提供了数据的逻辑视图,并允许您绕过SQL表的物理结构。

Write方法在 Write/WriteCollection(xtk:session).

ExecuteQuery(xtk:queryDef)

此方法允许您根据与架构关联的数据执行查询。 它采用身份验证字符串(必须登录)和XML文档,以描述要作为参数提交的查询。 返回参数是一个XML文档,其中包含查询结果,其格式为查询引用的架构。

在“xtk:queryDef”架构中定义“ExecuteQuery”方法:

<method name="ExecuteQuery" const="true">
  <parameters>
    <param desc="Output XML document" name="output" type="DOMDocument" inout="out"/>
  </parameters>
</method>
注意

这是一种“const”方法。 输入参数以"xtk:queryDef"模式的格式包含在XML文档中。

输入查询的XML文档的格式

查询的XML文档的结构在“xtk:queryDef ”架构中进行了描述。 本文档介绍SQL查询的子句:"select"、"where"、"order by"、"group by"、"having"。

<queryDef schema="schema_key" operation="operation_type">
  <select>
    <node expr="expression1">
    <node expr="expression2">
    ...
  </select>
  <where>
    <condition expr="expression1"/>
    <condition expr="expression2"/>
    ...
  </where>
  <orderBy>
    <node expr="expression1">
    <node expr="expression2">
    ...
  </orderBy>
  <groupBy>
    <node expr="expression1">
    <node expr="expression2">
    ...
  </groupBy>
  <having>
    <condition expr="expression1"/>
    <condition expr="expression2"/>
    ...
  </having>
</queryDef>

子查询( <subquery> ) <condition> 元素。 的语法 <subquery> 元素基于 <querydef>.

示例 <subquery> : </subquery>

<condition setOperator="NOT IN" expr="@id" enabledIf="$(/ignored/@ownerType)=1">
  <subQuery schema="xtk:operatorGroup">
     <select>
       <node expr="[@operator-id]" />
     </select>
     <where>
       <condition expr="[@group-id]=$long(../@owner-id)"/>
     </where>
   </subQuery>
</condition>

查询必须引用 模式 属性。

所需的操作类型在 操作 属性和包含以下值之一:

  • get:从表中检索记录,并在数据不存在时返回错误,
  • getIfExists:从表中检索记录,并在数据不存在时返回空文档,
  • 选择:创建游标以返回多个记录,如果没有数据则返回空文档,
  • 计数:返回数据计数。

XPath 语法用于根据输入模式查找数据。 有关XPath的详细信息,请参阅 数据模式.

“get”操作的示例

在电子邮件上检索带过滤器的收件人(“nms:recipient”模式)的姓氏和名字。

<queryDef schema="nms:recipient" operation="get">
  <!-- fields to retrieve -->
  <select>
    <node expr="@firstName"/>
    <node expr="@lastName"/>
  </select>

  <!-- condition on email -->
  <where>
    <condition expr="@email= 'john.doe@aol.com'"/>
  </where>
</queryDef>

“select”操作的示例

返回在文件夹和电子邮件域上过滤的收件人列表(按出生日期的降序排序)。

<queryDef schema="nms:recipient" operation="select">
  <select>
    <node expr="@email"/>
    <!-- builds a string with the concatenation of the last name and first name separated by a dash -->
    <node expr="@lastName+'-'+@firstName"/>
    <!-- get year of birth date -->
    <node expr="Year(@birthDate)"/>
  </select>

  <where>
     <condition expr="[@folder-id] = 1234 and @domain like 'Adobe%'"/>
  </where>

  <!-- order by birth date -->
  <orderBy>
    <node expr="@birthDate" sortDesc="true"/> <!-- by default sortDesc="false" -->
  </orderBy>
</queryDef>

表达式可以是简单的字段或复杂的表达式,如算术运算或字符串的串联。

要限制要返回的记录数,请将 lineCount 属性 <querydef> 元素。

要将查询返回的记录数限制为100,请执行以下操作:

<queryDef schema="nms:recipient" operation="select" lineCount="100">
...

要检索下一个100条记录,请再次运行同一查询,并添加 startLine 属性。

<queryDef schema="nms:recipient" operation="select" lineCount="100" startLine="100">
...

“count”运算的示例

要计算查询中的记录数,请执行以下操作:

<queryDef schema="nms:recipient" operation="count"">
  <!-- condition on the folder and domain of the email -->
  <where>
    <condition expr="[@folder-id] = 1234" and @domain like 'Adobe%'"/>
  </where>
</queryDef>
注意

我们再次使用上一个示例中的条件。 的 <select> 和子句不被使用。 </select>

数据分组

要检索引用多次的电子邮件地址,请执行以下操作:

<queryDef schema="nms:recipient" operation="select">
  <select>
    <node expr="@email"/>
    <node expr="count(@email)"/>
  </select>

  <!-- email grouping clause -->
  <groupby>
    <node expr="@email"/>
  </groupby>

  <!-- grouping condition -->
  <having>
    <condition expr="count(@email) > 1"/>
  </having>

</queryDef>

通过添加 groupBy 属性直接分配给要分组的字段:

<select>
  <node expr="@email" groupBy="true"/>
</select>
注意

不再需要填充 <groupby> 元素。

在条件中括号

以下是两个在同一条件下括号的示例。

  • 单个表达式中的简单版本:

    <where>
      <condition expr="(@age > 15 or @age <= 45) and  (@city = 'Newton' or @city = 'Culver City') "/>
    </where>

  • 具有的结构化版本 <condition> 元素:

    <where>
      <condition bool-operator="AND">
        <condition expr="@age > 15" bool-operator="OR"/>
        <condition expr="@age <= 45"/>
      </condition>
      <condition>
        <condition expr="@city = 'Newton'" bool-operator="OR"/>
        <condition expr="@city = 'Culver City'"/>
      </condition>
    </where>


当多个条件应用于同一字段时,可以将“OR”运算符替换为“IN”运算:

<where>
  <condition>
    <condition expr="@age IN (15, 45)"/>
    <condition expr="@city IN ('Newton', 'Culver City')"/>
  </condition>
</where>

当条件中使用了两个以上的数据时,此语法会简化查询。

  • 链接1-1或N1:当表具有外键(链接从表开始)时,可以直接过滤或检索链接表的字段。

    文件夹标签上的过滤器示例:

    <where>
      <condition expr="[folder/@label] like 'Segment%'"/>
    </where>


    要从“nms:recipient”模式检索文件夹的字段,请执行以下操作:

    <select>
      <!-- label of recipient folder -->
      <node expr="[folder/@label]"/>
      <!-- displays the string count of the folder -->
      <node expr="partition"/>
    </select>

  • 收藏集链接(1N):必须通过 存在不存在 运算符。

    要筛选订阅了“新闻稿”信息服务的收件人,请执行以下操作:

    <where>
      <condition expr="subscription" setOperator="EXISTS">
        <condition expr="@name = 'Newsletter'"/>
      </condition>
    </where>


    直接从 <select> 不建议使用子句,因为查询返回主产品。 仅当链接的表只包含一条记录时(例如, <node expr="">)。

    “订阅”集合链接示例:

    <select>
      <node expr="subscription/@label"/>
    </select>


    可以检索包含 <select> 子句。 引用字段的XPaths是集合元素中的上下文字段。

    过滤( <orderby> )和限制( <where> )元素。

    在本例中,对于每个收件人,查询都会返回收件人订阅的电子邮件和信息服务列表:

    <queryDef schema="nms:recipient" operation="select">
      <select>
        <node expr="@email"/>

        <!-- collection table (unbound type) -->
        <node expr="subscription">
          <node expr="[service/@label]"/>
          <!-- sub-condition on the collection table -->
          <where>
            <condition expr="@expirationDate >= GetDate()"/>
          </where>
          <orderBy>
            <node expr="@expirationDate"/>
          </orderBy>
        </node>
      </select>
    </queryDef>


绑定“where”和“select”子句的参数

参数的绑定允许引擎设置查询中使用的参数的值。 这非常有用,因为引擎负责值的转义,并且对于要检索的参数,缓存还有额外的好处。

构建查询时,“绑定”值将替换为字符(? 在ODBC中, #[index]# …)。

<select>
  <!--the value will be bound by the engine -->
  <node expr="@startDate = #2002/02/01#"/>
  <!-- the value will not be bound by the engine but visible directly in the query -->
  <node expr="@startDate = #2002/02/01#" noSqlBind="true"/>
</select>

要避免绑定参数,必须使用值“true”填充“noSqlBind”属性。

重要

如果查询包含“订单依据”或“组依据”说明,则数据库引擎将无法“绑定”值。 必须将@noSqlBind="true"属性放在查询的"select"和/或"where"说明中。

查询构建提示:

要帮助处理查询的语法,您可以在Adobe Campaign客户端控制台中使用通用查询编辑器来编写查询( Tools/ Generic query editor… 菜单)。 操作步骤:

  1. 选择要检索的数据:

  2. 定义过滤条件:

  3. 执行查询并按Ctrl+F4查看查询源代码。

输出文档格式

返回参数是与查询关联的架构格式的XML文档。

从“nms:recipient”模式返回“get”操作的示例:

<recipient email="john.doe@adobe.com" lastName"Doe" firstName="John"/>

在“选择”操作中,返回的文档是元素的枚举:

<!-- the name of the first element does not matter -->
<recipient-collection>
  <recipient email="john.doe@adobe.com" lastName"Doe" firstName="John"/>
  <recipient email="peter.martinez@adobe.com" lastName"Martinez" firstName="Peter"/>
  <recipient...
</recipient-collection>

为“count”类型操作返回的文档示例:

<recipient count="3"/>

别名

使用别名可修改输出文档中数据的位置。 的 别名 属性必须在相应的字段上指定XPath。

<queryDef schema="nms:recipient" operation="get">
  <select>
    <node expr="@firstName" alias="@firstName"/>
    <node expr="@lastName"/>
    <node expr="[folder/@label]" alias="@My_folder"/>
  </select>
</queryDef>

返回:

<recipient My_folder="Recipients" First name ="John" lastName="Doe"/>

而不是:

<recipient firstName="John" lastName="Doe">
  <folder label="Recipients"/>
</recipient>

SOAP消息示例

  • 查询:

    <?xml version='1.0' encoding='ISO-8859-1'?>
    <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
      <SOAP-ENV:Body>
        <ExecuteQuery xmlns='urn:xtk:queryDef' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
          <__sessiontoken xsi:type='xsd:string'/>
          <entity xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
            <queryDef operation="get" schema="nms:recipient" xtkschema="xtk:queryDef">
              <select>
                <node expr="@email"/>
                <node expr="@lastName"/>
                <node expr="@firstName"/>
              </select>
              <where>
                <condition expr="@id = 3599"/>
              </where>
            </queryDef>
          </entity>
        </ExecuteQuery>
      </SOAP-ENV:Body>
    </SOAP-ENV:Envelope>

  • 响应:

    <?xml version='1.0' encoding='ISO-8859-1'?>
    <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
      <SOAP-ENV:Body>
        <ExecuteQueryResponse xmlns='urn:xtk:queryDef' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
          <pdomOutput xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
            <recipient email="john.doe@adobe.com" lastName"Doe" firstName="John"/>
          </pdomOutput>
        </ExecuteQueryResponse>
      </SOAP-ENV:Body>
    </SOAP-ENV:Envelope>


Write/WriteCollection(xtk:session)

这些服务用于插入、更新或删除实体(“写入”方法)或实体集合(“写入收集”方法)。

要更新的实体与数据模式相关联。 输入参数是验证字符串(必须登录)和包含要更新数据的XML文档。

本文档补充了有关配置写入过程的说明。

除错误外,调用不返回任何数据。

在“xtk:session”架构中对“Write”和“WriteCollection”方法的定义:

<method name="Write" static="true">
  <parameters>
    <param name="doc" type="DOMDocument" desc="Difference document"/>
  </parameters>
</method>
<method name="WriteCollection" static="true">
  <parameters>
    <param name="doc" type="DOMDocument" desc="Difference collection document"/>
  </parameters>
</method>
注意

这是一种“静态”方法。 输入参数以要更新的模式的格式包含在XML文档中。

概述

数据协调操作基于在关联架构中输入的键值的定义。 写入过程根据输入文档中输入的数据查找第一合格键。 根据实体在数据库中的存在,插入或更新实体。

待更新实体架构的键值已根据 xtkschema 属性。

因此,可以强制使用 _key 属性,该属性包含构成键的XPath列表(以逗号分隔)。

可以通过填充 _operation 属性的值:

  • 插入:强制插入记录(不使用协调键值),
  • insertOrUpdate:根据协调键值(默认模式)更新或插入记录,
  • 更新:更新记录;如果数据不存在,则不执行任何操作,
  • 删除:删除记录,
  • :仅用于链接协调,而不进行更新或插入。

“Write”方法的示例

使用电子邮件地址、出生日期和城镇更新或插入收件人(隐含的“insertOrUpdate”操作):

<recipient xtkschema="nms:recipient" email="john.doe@adobe.com" birthDate="1956/05/04" folder-id=1203 _key="@email, [@folder-id]">
  <location city="Newton"/>
</recipient>

删除收件人:

<recipient xtkschema="nms:recipient" _operation="delete" email="rene.dupont@adobe.com" folder-id=1203 _key="@email, [@folder-id]"/>
注意

对于删除操作,输入文档必须只包含构成协调键值的字段。

“WriteCollection”方法的示例

更新或插入多个收件人:

<recipient-collection xtkschema="nms:recipient">
  <recipient email="john.doe@adobe.com" firstName="John" lastName="Doe" _key="@email"/>
  <recipient email="peter.martinez@adobe.com" firstName="Peter" lastName="Martinez" _key="@email"/>
  <recipient ...
</recipient-collection>

示例 1

根据文件夹的内部名称(@name)将文件夹与收件人关联。

<recipient _key="[folder/@name], @email" email="john.doe@adobe.net" lastName="Doe" firstName="John" xtkschema="nms:recipient">
  <folder name="Folder2" _operation="none"/>
</recipient>

可在链接的元素上输入“_key”和“_operation”属性。 此元素上的行为与输入架构的主元素上的行为相同。

主实体(nms:recipient)的键的定义由链接表(元素)中的字段组成 <folder> 架构“xtk:folder”)和电子邮件。

注意

在文件夹元素中输入的操作“无”定义对文件夹的协调,而无需更新或插入。

示例 2

从收件人更新公司(“cus:company”架构中的链接表):

<recipient _key="[folder/@name], @email" email="john.doe@adobe.net" lastName="Doe" firstName="John" xtkschema="nms:recipient">
  <company name="adobe" code="ERT12T" _key="@name" _operation="update"/>
</recipient>

示例 3

使用组关系表(“nms:rcpGrpRel”)向组添加收件人:

<recipient _key="@email" email="martin.ledger@adobe.net" xtkschema="nms:recipient">
  <rcpGrpRel _key="[rcpGroup/@name]">
    <rcpGroup name="GRP1"/>
  </rcpGrpRel>
</recipient>
注意

键的定义未在 <rcpgroup> 元素,因为基于组名称的隐式键在“nms:group”模式中定义。

XML收集元素

默认情况下,必须填充所有集合元素,才能更新XML集合元素。 来自数据库的数据将替换为来自输入文档的数据。 如果文档仅包含要更新的元素,则必须对所有要更新的集合元素填充“_operation”属性,以便强制与数据库的XML数据合并。

SOAP消息示例

  • 查询:

    <?xml version='1.0' encoding='ISO-8859-1'?>
    <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
      <SOAP-ENV:Body>
        <Write xmlns='urn:xtk:persist' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
          <__sessiontoken xsi:type='xsd:string'/>
          <domDoc xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
            <recipient xtkschema="nms:recipient" email="rene.dupont@adobe.com" firstName="René" lastName="Dupont" _key="@email">
          </domDoc>
        </Write>
      </SOAP-ENV:Body>
    </SOAP-ENV:Envelope>

  • 响应:

    <?xml version='1.0' encoding='ISO-8859-1'?>
    <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
      <SOAP-ENV:Body>
        <WriteResponse xmlns='urn:' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
        </WriteResponse>
      </SOAP-ENV:Body>
    </SOAP-ENV:Envelope>


    返回时出错:

    <?xml version='1.0'?>
    <SOAP-ENV:Envelope xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
      <SOAP-ENV:Body>
        <SOAP-ENV:Fault>
          <faultcode>SOAP-ENV:Server</faultcode>
          <faultstring xsi:type="xsd:string">Error while executing the method 'Write' of service 'xtk:persist'.</faultstring>
          <detail xsi:type="xsd:string">PostgreSQL error: ERROR:  duplicate key violates unique constraint &quot;nmsrecipient_id&quot;Impossible to save document of type 'Recipients (nms:recipient)'</detail>
        </SOAP-ENV:Fault>
      </SOAP-ENV:Body>
    </SOAP-ENV:Envelope>


在此页面上
