v7
僅適用於 Campaign Classic v7

關於 Web 服務 about-web-services

Adobe Campaign API的定義 definition-of-adobe-campaign-apis

Adobe Campaign應用程式伺服器的設計初衷是開放性以及可輕鬆整合日益多樣化且複雜的公司資訊系統。

Adobe Campaign API可用於應用程式內的JavaScript中,以及應用程式外的SOAP中。 它們構成了可以擴充的一般函式庫。 如需詳細資訊,請參閱 實作SOAP方法.

IMPORTANT
授權引擎每日的通話次數視您的授權合約而定。 如需詳細資訊,請參閱此頁面
所有API的清單,包括其完整說明,請參見 [本專屬檔案] (https://experienceleague.adobe.com/developer/campaign-api/api/index.html?lang=zh-Hant.

必要條件 prerequisites

使用Adobe Campaign API之前,您必須熟悉下列主題:

  • Javascript
  • SOAP通訊協定
  • Adobe Campaign資料模型

使用Adobe Campaign API using-adobe-campaign-apis

Adobe Campaign使用兩種型別的API:

  • 用於查詢資料模型資料的一般資料存取API。 請參閱 資料導向API.
  • 業務特定API可讓您對每個物件執行動作:傳送、工作流程、訂閱等。 請參閱 商業導向API.

為了開發API並與Adobe Campaign互動,您需要熟悉您的資料模型。 Adobe Campaign可讓您產生基底的完整說明。 請參閱 模型說明.

SOAP 呼叫 soap-calls

SOAP通訊協定可讓您透過豐富使用者端、使用Web服務的協力廠商應用程式或原生使用這些方法的JSP來叫用API方法。

SOAP訊息的結構如下:

  • 定義訊息結構的封套,
  • 選用的標頭,
  • 內含呼叫和回應相關資訊的主體,
  • 定義錯誤條件的錯誤管理。

資源與交換 resources-and-exchanges

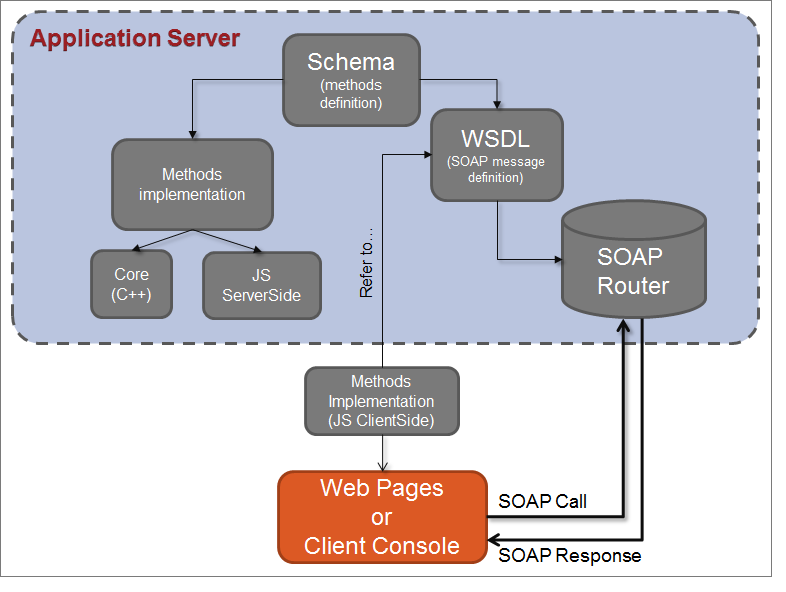

下列結構描述顯示與使用Adobe Campaign API有關的各種資源:

'ExecuteQuery'方法上的SOAP訊息範例 example-of-a-soap-message-on-the--executequery--method--

在此範例中,SOAP查詢會叫用「ExecuteQuery」方法,此方法會將字元字串當作驗證(工作階段權杖)的引數,並以XML內容作為要執行的查詢說明。

如需詳細資訊,請參閱 ExecuteQuery (xtk:queryDef).

NOTE
本服務的WSDL說明在此範例中完成: Web服務說明:WSDL.

SOAP查詢 soap-query

<?xml version='1.0' encoding='ISO-8859-1'?>
  <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
    <SOAP-ENV:Body>
      <ExecuteQuery xmlns='urn:xtk:queryDef' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
        <__sessiontoken xsi:type='xsd:string'/>
        <entity xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
          <queryDef firstRows="true" lineCount="200" operation="select" schema="nms:rcpGrpRel" startLine="0" startPath="/" xtkschema="xtk:queryDef">
          ...
          </queryDef>
        </entity>
      </ExecuteQuery>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

<soap-env:envelope> element是代表SOAP信封之訊息的第一個元素。

<soap-env:body> 元素是包絡的第一個子元素。 它包含訊息的說明,即查詢或回應的內容。

要叫用的方法輸入於 <executequery> 元素。

在SOAP中,會依外觀順序來識別引數。 第一個引數, <__sessiontoken>,取用驗證鏈,第二個引數是來自的查詢的XML說明 <querydef> 元素。

SOAP回應 soap-response

<?xml version='1.0' encoding='ISO-8859-1'?>
  <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
    <SOAP-ENV:Body>
      <ExecuteQueryResponse xmlns='urn:xtk:queryDef' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
        <pdomOutput xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
          <rcpGrpRel-collection><rcpGrpRel group-id="1872" recipient-id="1362"></rcpGrpRel></rcpGrpRel-collection>
        </pdomOutput>
      </ExecuteQueryResponse>
    </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

查詢結果輸入自 <pdomoutput> 元素。

錯誤管理 error-management

SOAP錯誤回應範例:

<?xml version='1.0' encoding='ISO-8859-1'?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
  <SOAP-ENV:Body>
    <SOAP-ENV:Fault>
      <faultcode>SOAP-ENV:Server</faultcode>
      <faultstring>Error while executing 'Write' of the 'xtk:persist'.</faultstring> service
      <detail>ODBC error: [Microsoft][ODBC SQL Server Driver][SQL Server]Cannot insert duplicate key row in object 'XtkOption' with unique index 'XtkOption_name'. SQLSTate: 23000
ODBC error: [Microsoft][ODBC SQL Server Driver][SQL Server]The statement has been terminated. SQLSTate: 01000 Cannot save the 'Options (xtk:option)' document </detail>
    </SOAP-ENV:Fault>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

<soap-env:fault> SOAP訊息內文中的元素用於傳達處理Web服務期間產生的錯誤訊號。 它由下列子元素組成:

  • <faultcode> :指出錯誤型別。 錯誤型別為:

    • 若與所使用的SOAP版本不相容,
    • 「MustUnderstand」在訊息標頭發生問題的情況下,
    • 「使用者端」在使用者端遺失某些資訊時,
    • 「伺服器」(在伺服器執行處理時發生問題的事件中)。
  • <faultstring> :說明錯誤的訊息

  • <detail> :長錯誤訊息

服務引動成功或失敗會在 <faultcode> 元素已驗證。

IMPORTANT
所有Adobe Campaign Web服務都會處理錯誤。 因此,強烈建議您測試每個呼叫,以便處理傳回的錯誤。

C#中的錯誤處理範例:

try
{
  // Invocation of method
  ...
}
catch (SoapException e)
{
  System.Console.WriteLine("Soap exception: " + e.Message);
  if (e.Detail != null)
    System.Console.WriteLine(e.Detail.InnerText);
}

Web服務伺服器(或端點)的URL url-of-web-service-server--or-endpoint-

若要提交Web服務,必須聯絡實作對應服務方法的Adobe Campaign伺服器。

伺服器URL如下:

https://serverName/nl/jsp/soaprouter.jsp

替換為 <server> Adobe Campaign應用程式伺服器(nlserver web)。
